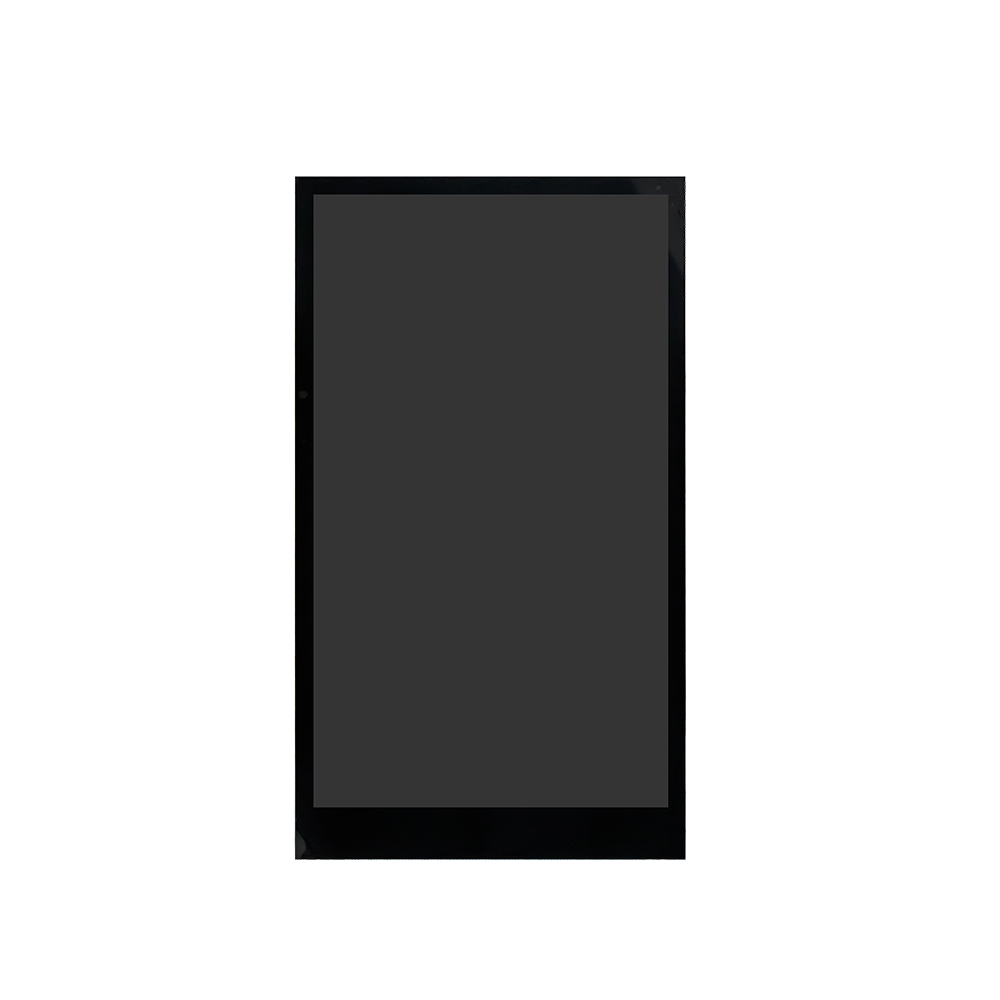

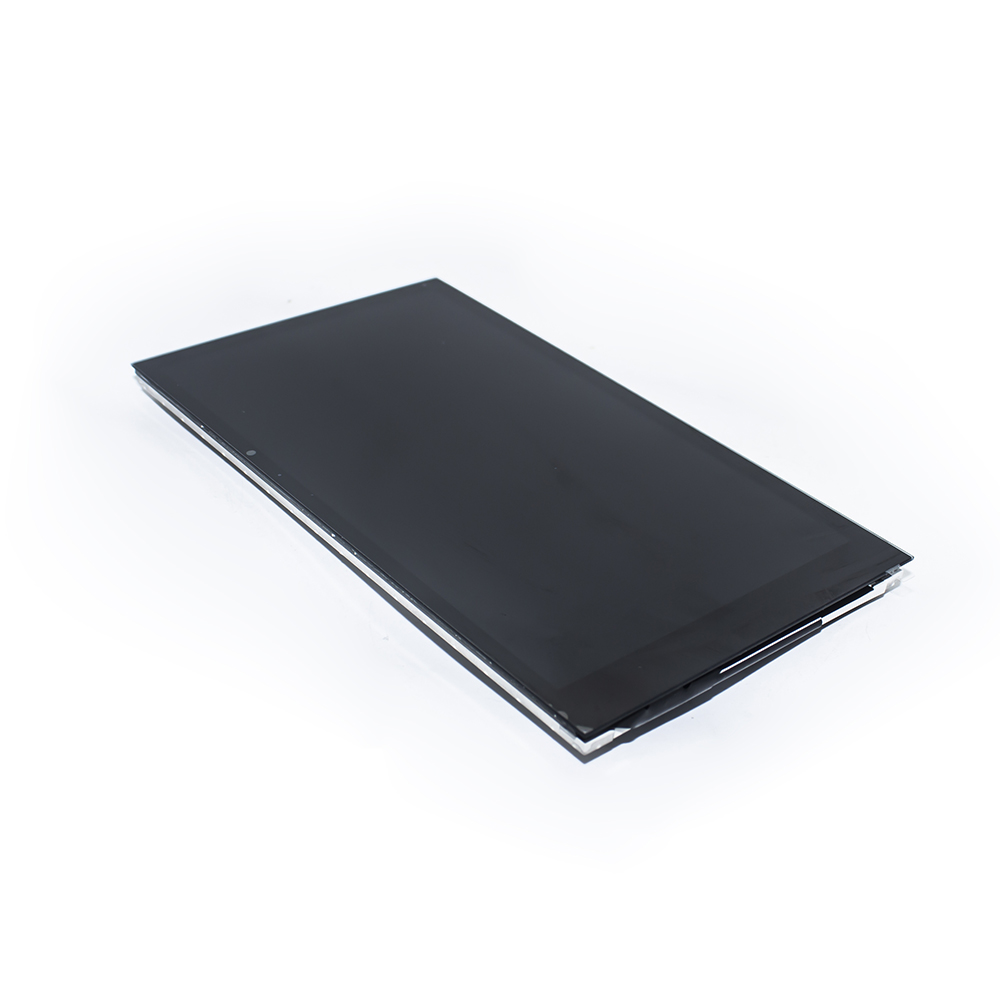

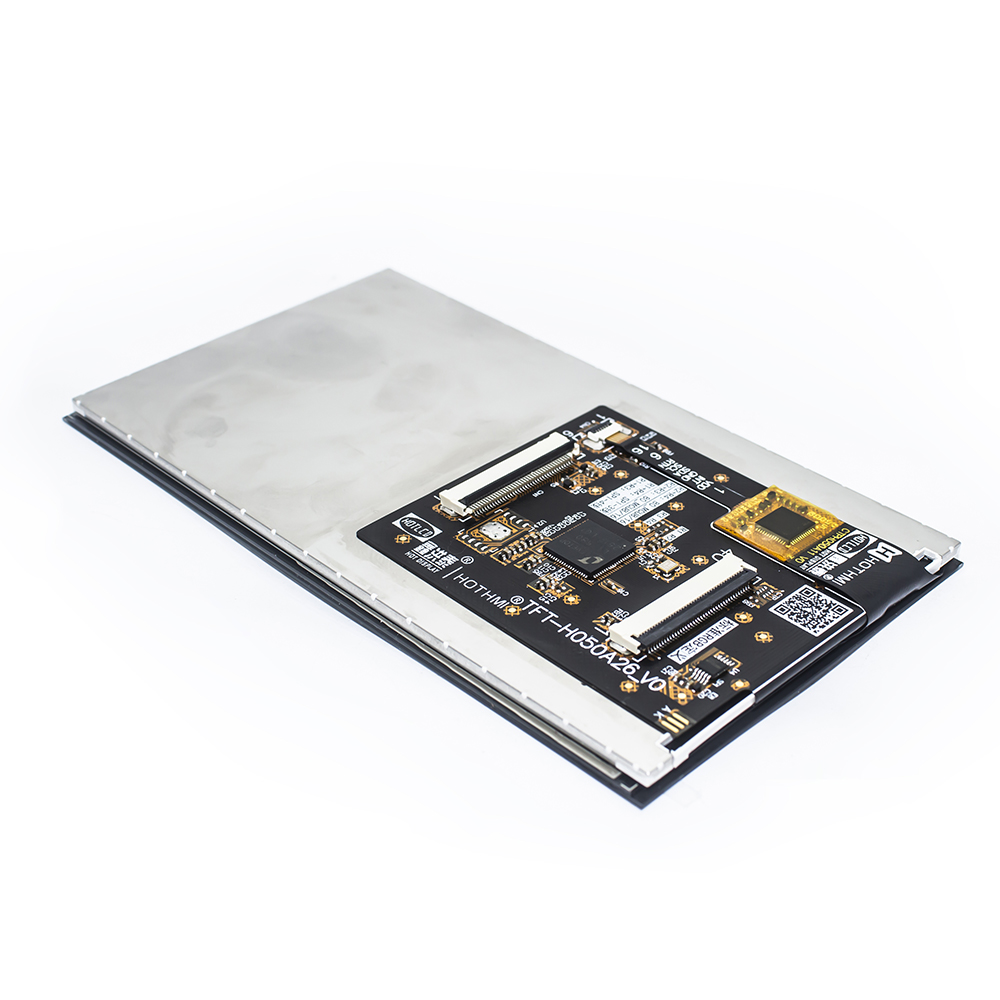

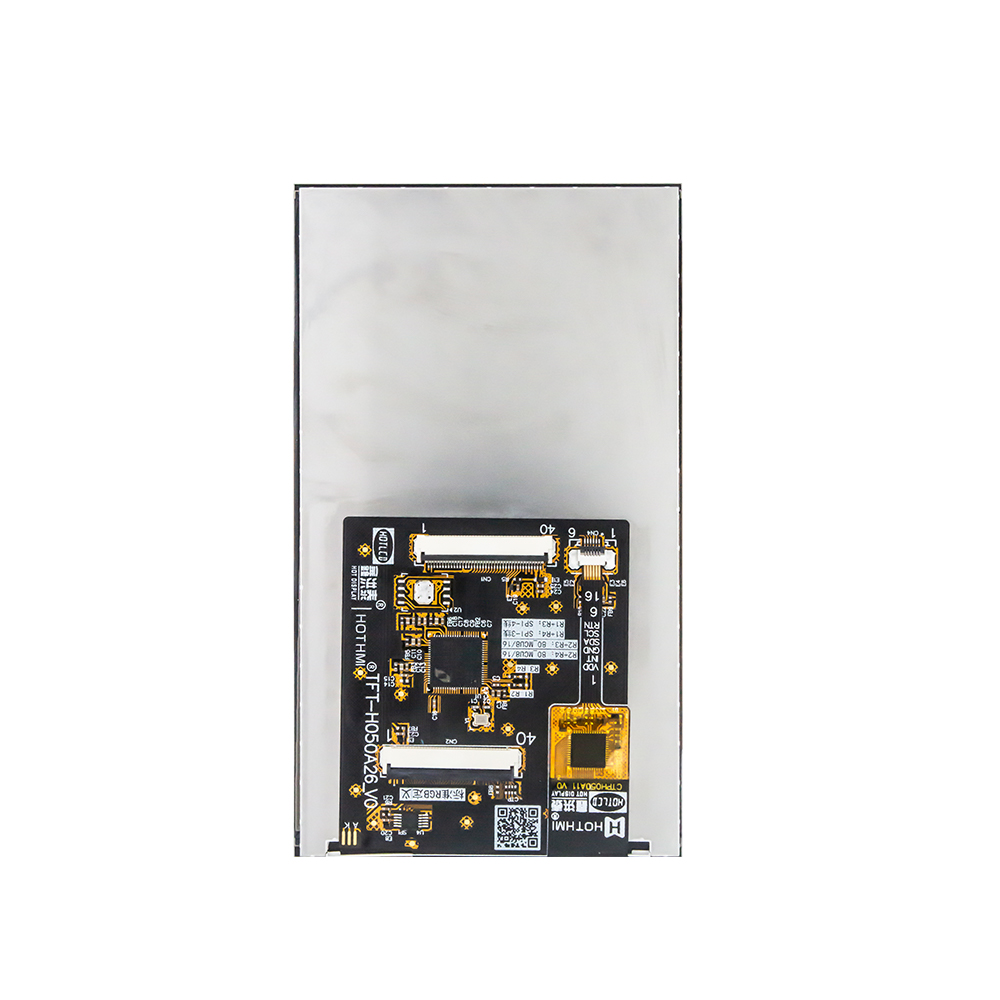

5 inch TFT LCD 480x854 Resolution display With Capacitive Touchscreen

5 inch TFT LCD 480x854 Resolution display With Capacitive Touchscreen

▶ Model: TFT-H050A26FWILT5C40

▶ Type: 10.1-inch TFT display module
▶ Display pixels: 480x854

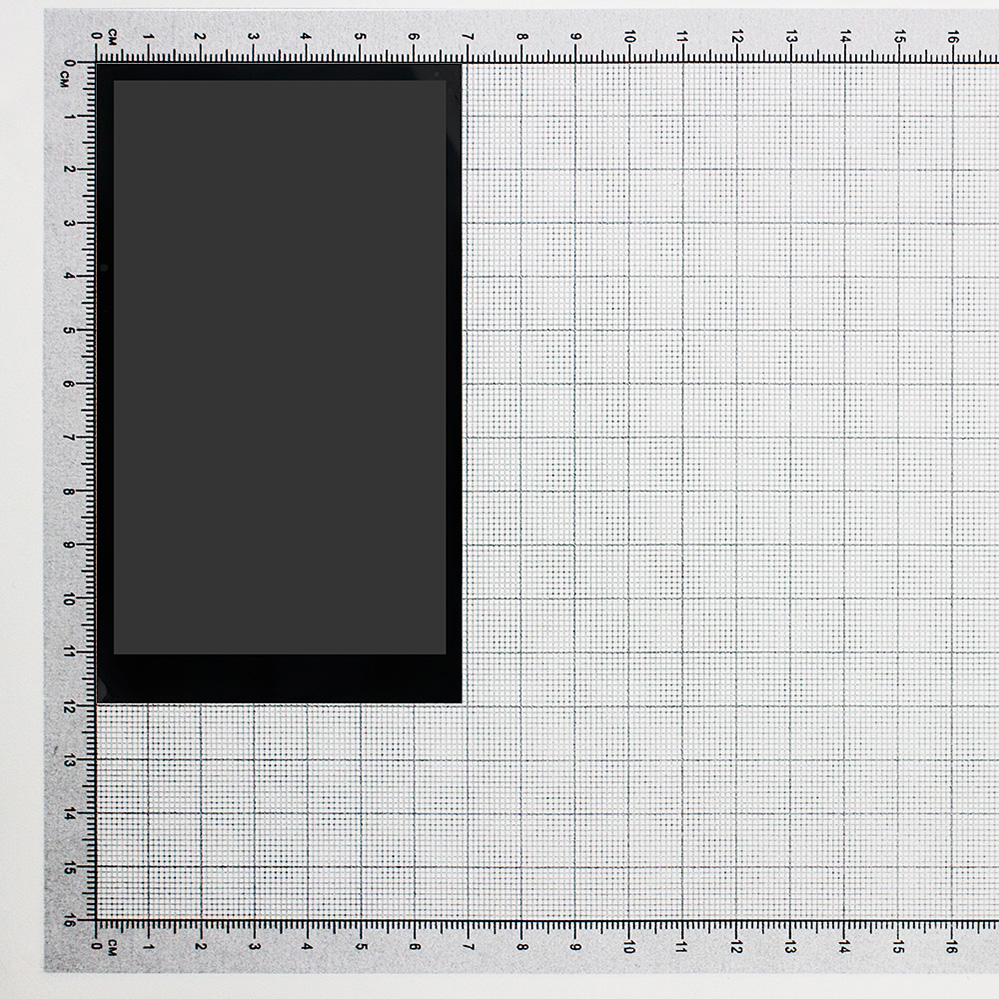

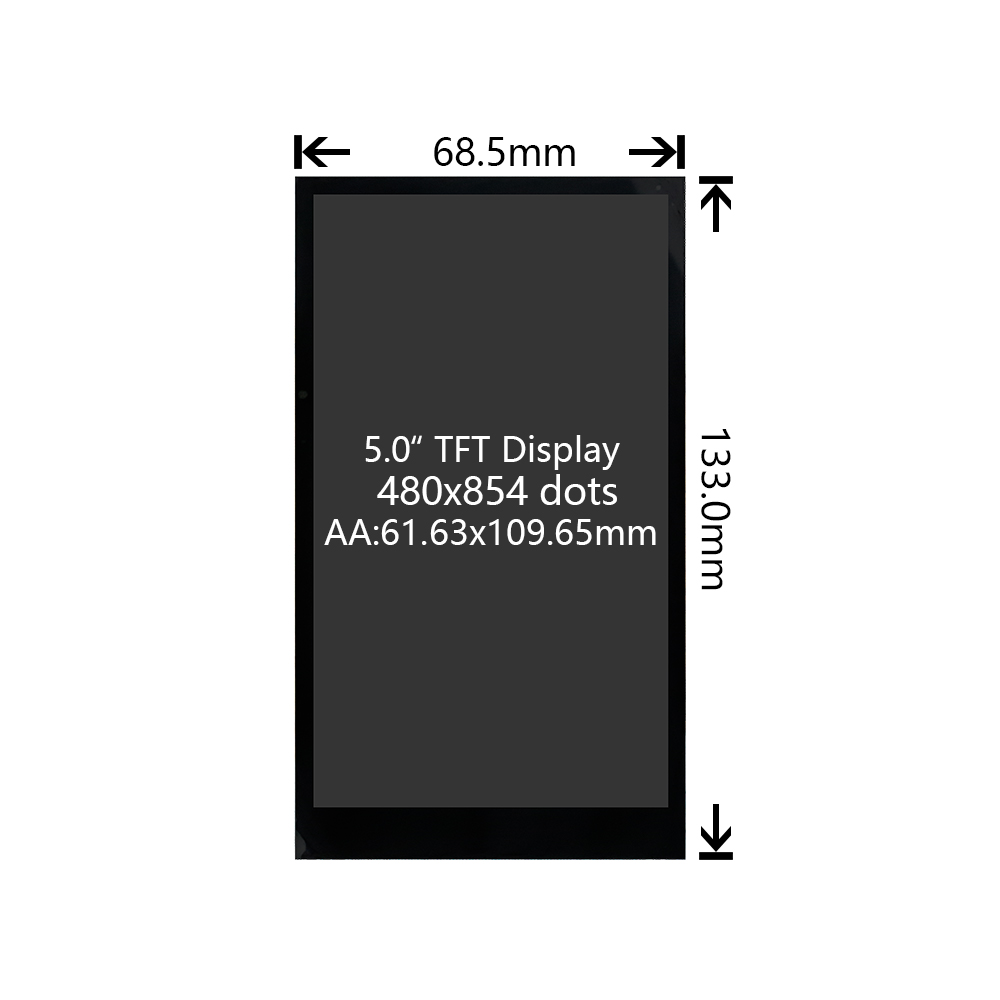

▶ Dimensions: 68.5x133.0x4.71
▶ AA size (mm): 61.63x109.65
▶ Display inches: 5.0”
▶ Application: Central control system
▶ Viewing angle: IPS full viewing angle
▶ Backlight/brightness: 500cd/m2
▶ Pin configuration: FPC-40 pin
▶ Interface: MCU
▶ Special notes: ESD protection 8KV
▶ Operating temperature: -20~70℃
▶ Power supply voltage: 3.3V

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

STM32F103RET6 Development Board - Suitable for MCU or SPI TFT Displays
TFT universal accessories

Product Description
Customized Services
Attributes

TFT-H050A26FWILT5C40 | 5 inch TFT LCD 480x854 Resolution display With Capacitive Touchscreen
The 5 inch TFT LCD is a high-performance display module engineered to meet the demands of modern embedded applications and smart devices. Featuring a crisp and vibrant active matrix panel, this 5 inch TFT LCD delivers excellent image clarity, true-to-life color reproduction, and wide viewing angles, ensuring that visual content is always displayed with precision and impact. Whether used in industrial control systems, medical instruments, or human-machine interfaces, the superior optical performance of this 5 inch TFT LCD makes it an ideal choice for designers seeking both quality and reliability.
Beyond its stunning visuals, this 5 inch TFT LCD integrates a highly responsive capacitive touch panel that supports smooth and accurate multi-touch gestures. The touch functionality is seamless, providing an intuitive user experience akin to modern consumer electronics. This combination of high-resolution display and sensitive touch technology within a compact 5 inch TFT LCD form factor allows for sleek and modern product designs without compromising on interaction quality. The interface is designed for straightforward integration, simplifying the connection to a wide range of microcontrollers and processors.
Furthermore, the robust construction of this 5 inch TFT LCD ensures long-term durability and stable performance in various operating environments. Its balanced power consumption makes it suitable for both portable and stationary applications. By choosing this 5 inch TFT LCD, developers benefit from a reliable component that merges visual excellence with advanced touch functionality, accelerating development cycles and enhancing the final user interface. Experience the perfect blend of size, performance, and ease of use with this versatile 5 inch TFT LCD solution.

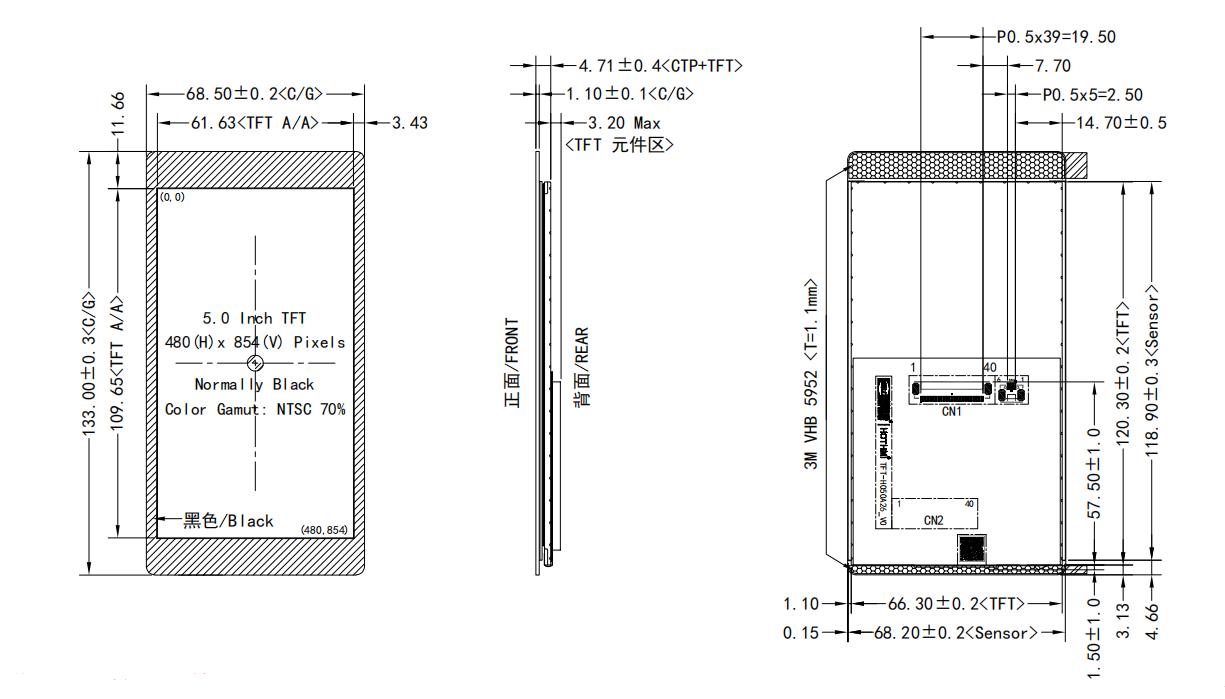

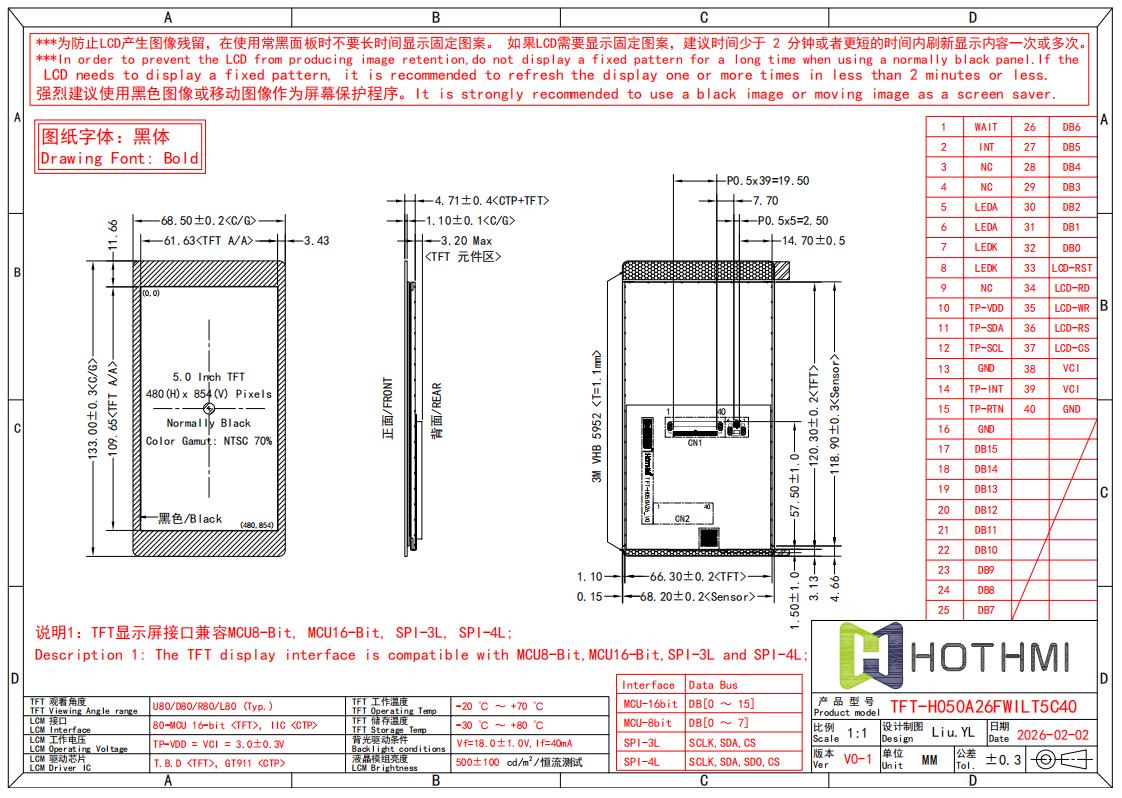

Specification of the 5 inch TFT LCD

Datasheet for Touch Panel,Controller↓

Name	Date	Size
TFT-H050A26FWILT5C40	February 02, 2026	106.54KB

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H050A26FWILT5C40
Diagonal size	5.0”	Inch
Resolution	480x854	Dot
Dimensions	45.0x58.0x1.95	mm
Active area (AA)	61.63x109.65	mm
LCD type	5.0” TFT Module	mm
Display viewing angle	Full View
Aspect ratio	1：2
Backlight type	LED white
TFT driver IC	——
Brightness	500cd/m2	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
