▶ Model: TFT-H050A26FWILT6N40

▶ Type: 5.0-inch TFT display module
▶ Display pixels: 480x854

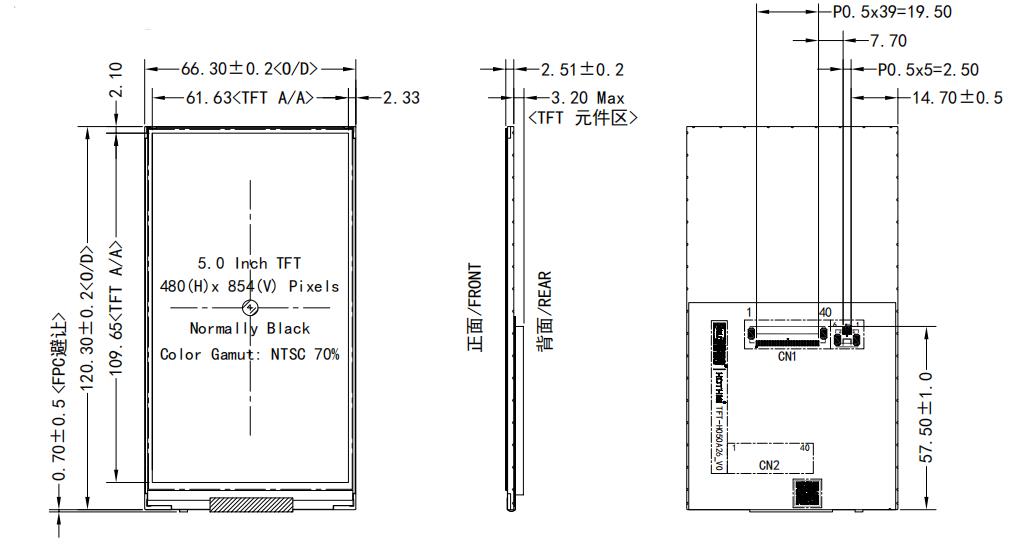

▶ Dimensions: 68.5x120.30x2.51
▶ AA size (mm): 61.63x109.65
▶ Display inches: 5.0”
▶ Application: Central control system
▶ Viewing angle: IPS full viewing angle
▶ Backlight/brightness: 600cd/m2

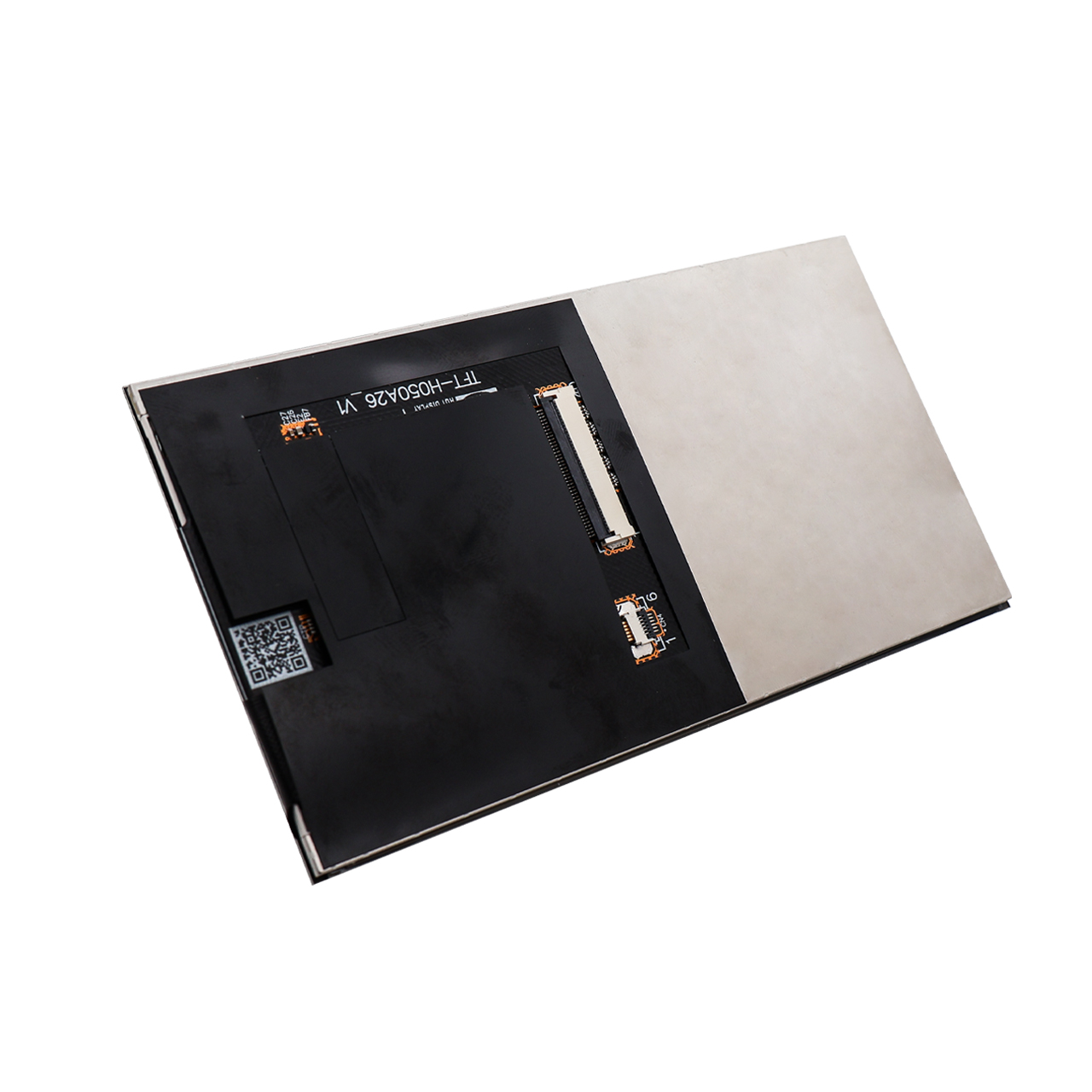

▶ Pin configuration: FPC-40 pin
▶ Interface: MCU
▶ Special notes: ESD protection 8KV
▶ Operating temperature: -20~70℃
▶ Power supply voltage: 3.3V

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

No Back Next

Related Accessories

STM32F103RET6 Development Board - Suitable for MCU or SPI TFT Displays
TFT universal accessories

Product Description
Customized Services
Attributes

TFT-H050A26FWILT6N40 | 5-inch 480x854 TFT LCD Display With MCU Interface LCD Manufaturer
The 480x854 TFT LCD Display is a high-performance visual module engineered to deliver exceptional image quality for a wide range of embedded applications. Featuring an advanced active matrix panel, this 480x854 TFT LCD Display produces sharp content with vibrant color reproduction and consistent contrast across wide viewing angles. The vertical orientation of the display makes it particularly well-suited for applications such as handheld instruments, portable devices, and industrial control panels where detailed information presentation is essential. Without the touch layer, this version offers enhanced optical clarity and reduced power consumption.
The interface design of this 480x854 TFT LCD Display utilizes a standard parallel MCU interface, ensuring seamless compatibility with a broad ecosystem of microcontrollers and processors. This simplifies the hardware integration process significantly, allowing developers to focus on application development rather than complex display driver implementation. The display module maintains excellent brightness levels and fast response times, ensuring smooth visual performance even for content that requires frequent updates.
For applications where touch interaction is not required, this non-touch version of the 480x854 TFT LCD Display provides a cost-effective solution without compromising on visual quality. Of course, users can also choose this 5-inch TFT version with capacitive touch: TFT-H050A26FWILT5C40.The streamlined construction enhances durability in industrial environments and simplifies system design by eliminating unnecessary components. Power efficiency is optimized for both battery-powered portable devices and continuously operated stationary equipment.
Engineered for long-term reliability, this 480x854 TFT LCD Display undergoes rigorous quality testing to ensure consistent performance across varying environmental conditions. Whether you are developing medical monitoring equipment, human-machine interfaces, or specialized instrumentation, this display offers the perfect balance of resolution, size, and ease of integration. Choose this non-touch version when you need pure visual performance with simplified integration and cost efficiency.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
TFT-H050A26FWILT6N40	February 02, 2026	103.06KB

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H050A26FWILT6N40
Diagonal size	5.0”	Inch
Resolution	480x854	Dot

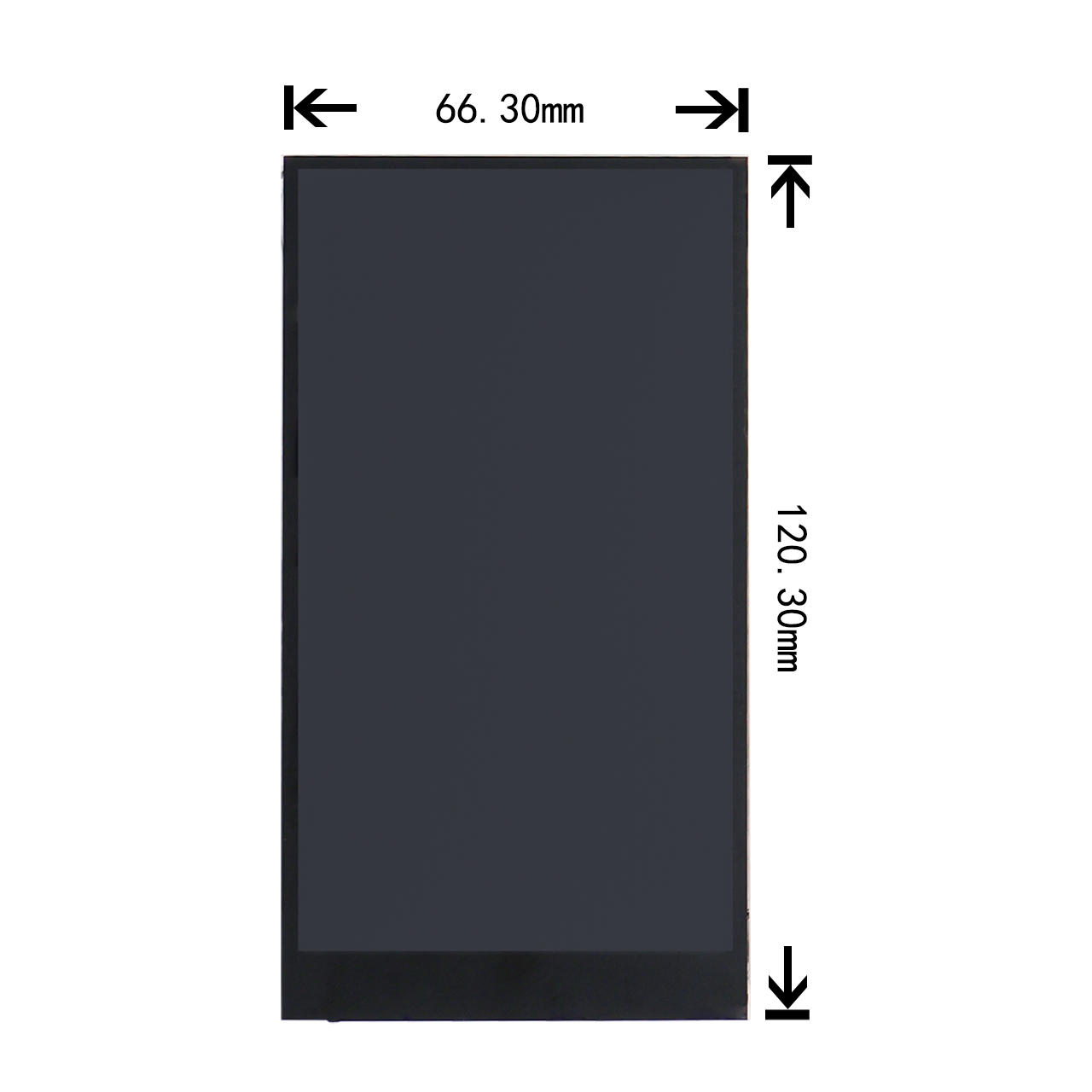

Dimensions	68.5x120.30x2.51	mm
Active area (AA)	61.63x109.65	mm
LCD type	5.0” TFT Module	mm
Display viewing angle	Full View
Aspect ratio	1：2
Backlight type	LED white
TFT driver IC	——
Brightness	600cd/m2	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
