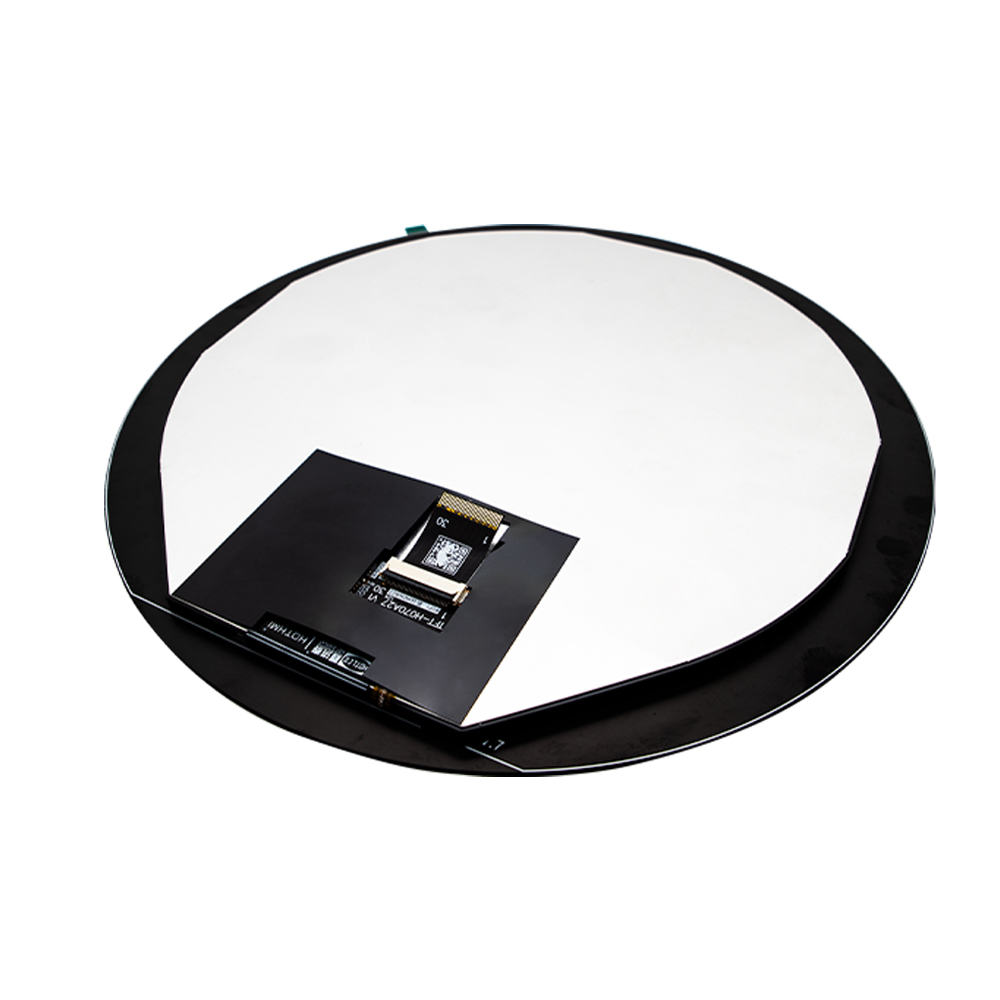

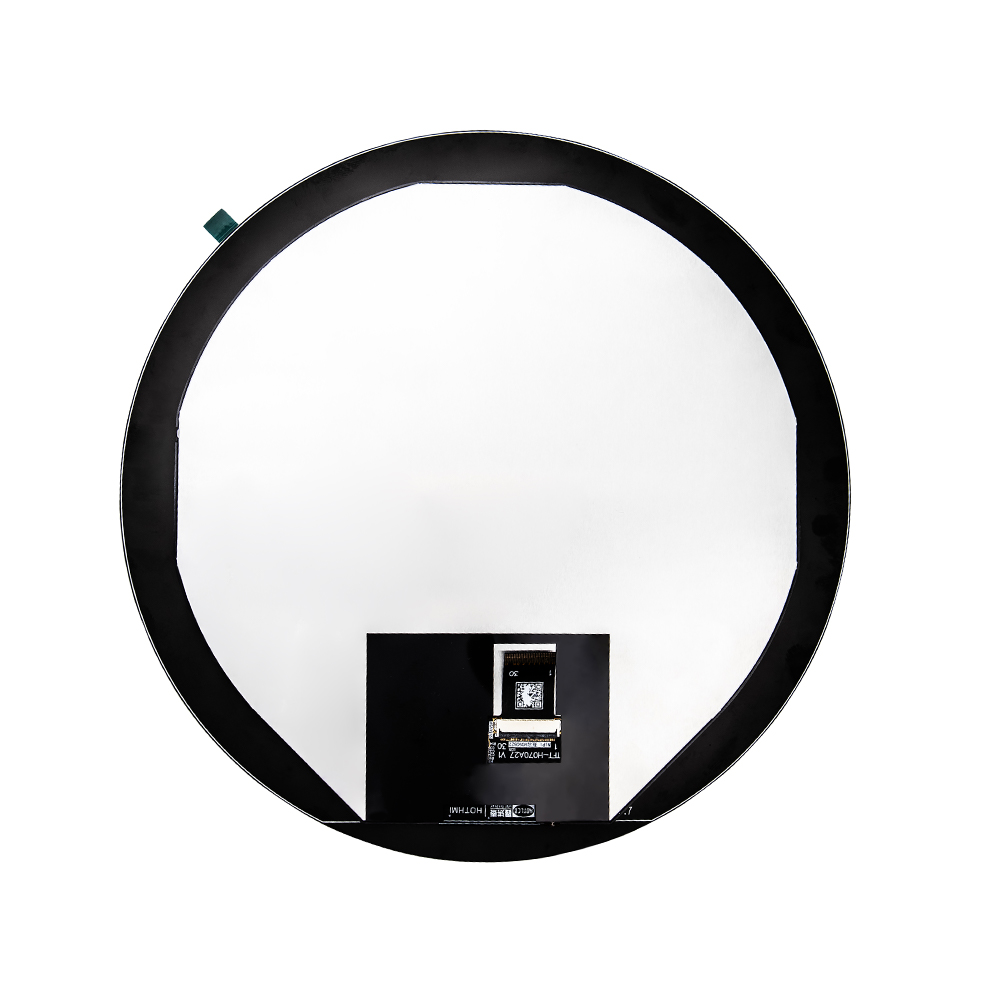

TFT-H070A27ZQIFT6G30 |7-inch Round TFT LCD Display With MIPI DSI Interface FL5893
In a market saturated with standard rectangular screens, the 7-inch Round TFT LCD Display stands out as a rare and sophisticated component designed for applications where aesthetics and functionality must coexist. This specific model breaks the mold by featuring an exceptionally high-definition 1080x1080 resolution. Achieving this pixel density within a circular format is a technical challenge, making this display a unique find for designers looking to create truly distinctive human-machine interfaces.
The primary advantage of this 7-inch Round TFT LCD Display lies in its ability to seamlessly integrate into circular design layouts, such as smart dashboards, central control systems, or industrial panels. Unlike a traditional square screen that would be cropped or masked, this display utilizes the entire circular Active Area perfectly. This allows for gapless, intuitive interfaces, such as speedometers or radial menus, offering a futuristic and clean visual experience.
Engineered with IPS technology, this 7-inch Round TFT LCD Display delivers full viewing angles with vivid colors and high contrast, ensuring that information is clear and vibrant from any perspective. Visibility is further enhanced by a high-brightness backlight, making it readable even in challenging ambient light conditions.
Connectivity and durability are also paramount. The module utilizes a standard FPC-30 pin interface with an MCU interface, ensuring straightforward integration into existing embedded systems. The built-in control chip is optimized to handle the unique pixel arrangement of a round display efficiently, simplifying the development process. Furthermore, robust reliability features are standard, including high-voltage ESD protection and a wide operating temperature range, ensuring stable performance in demanding environments.
With its scarce combination of a large circular form factor and ultra-high definition, this 7-inch Round TFT LCD Display is the ideal solution for innovators seeking to elevate their product design beyond the ordinary.
