2.4-inch High Brightness Anti-Reflective Display IPS free-viewing TFT LCD ST7789

TFT-H024A1QVISTKG40 2.4-inch High Brightness Anti-Reflective Display IPS free-viewing TFT LCD ST7789

Engineered for demanding outdoor environments, this 2.4-inch display redefines visibility under direct sunlight. Designed specifically for Central Control Systems requiring unwavering reliability, this screen utilizes advanced anti-glare technology to deliver an exceptional Anti-Reflective Display experience. By dramatically reducing surface reflections, this Anti-Reflective Display ensures that content remains sharp and vivid, even when ambient light is at its harshest.

The cornerstone of its outdoor performance is the combination of an Anti-Reflective Display treatment with a specialized high-output backlight. This synergy renders the screen truly sunlight readable, eliminating the "washed-out" effect common to standard displays. Whether integrated into marine equipment, automotive dashboards, or industrial kiosks, this Anti-Reflective Display guarantees that critical data is always visible without squinting or shading.

Beyond its superior optical characteristics, the panel boasts full viewing angles courtesy of IPS technology, ensuring consistent colors and contrast from any position. The Anti-Reflective Display surface does not compromise the 240 x 320 resolution; instead, it enhances the perceived contrast by minimizing interference from light sources. Built for rugged use, it features robust ESD protection and operates flawlessly across an extreme temperature range. With a compact form factor and an MCU interface, integrating this Anti-Reflective Display into your central control system provides a seamless, professional finish. Choose this Anti-Reflective Display for applications where clarity, durability, and readability are paramount. The high brightness, when paired with the Anti-Reflective Display properties, offers a viewing experience that remains consistently superior from dawn till dusk.

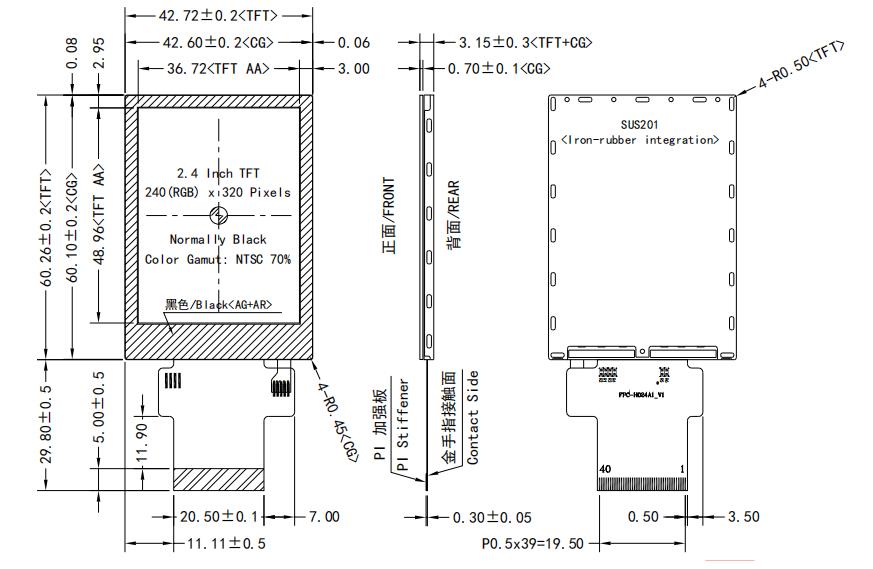

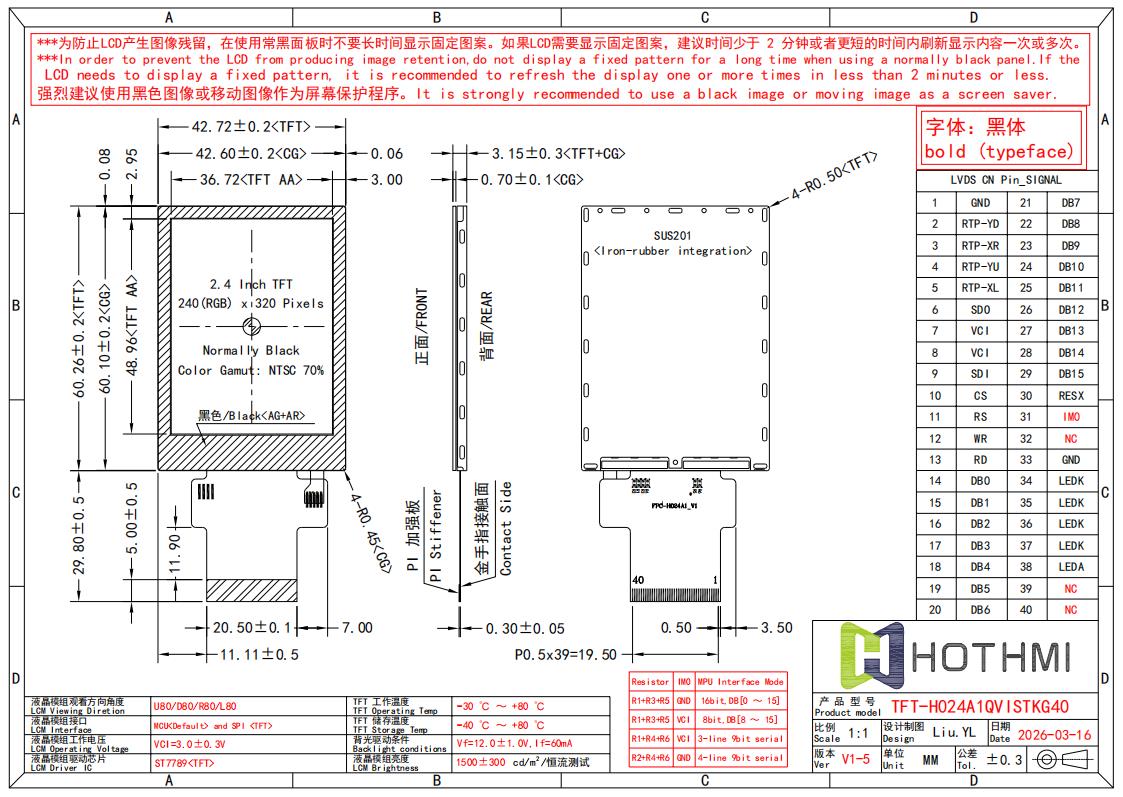

Specification of the 2.4-inch Aniti-Reflective Display

What is the advantages of the Anti-Reflective Display

An Anti-Reflective Display is a specialized screen engineered to minimize surface reflections, ensuring content remains visible in bright ambient light conditions. Unlike standard displays that act like mirrors under sunlight, an Anti-Reflective Display utilizes optical treatments to allow light to pass through the surface rather than bouncing back to the user. This makes it the preferred solution for outdoor devices and high-ambient-light environments.

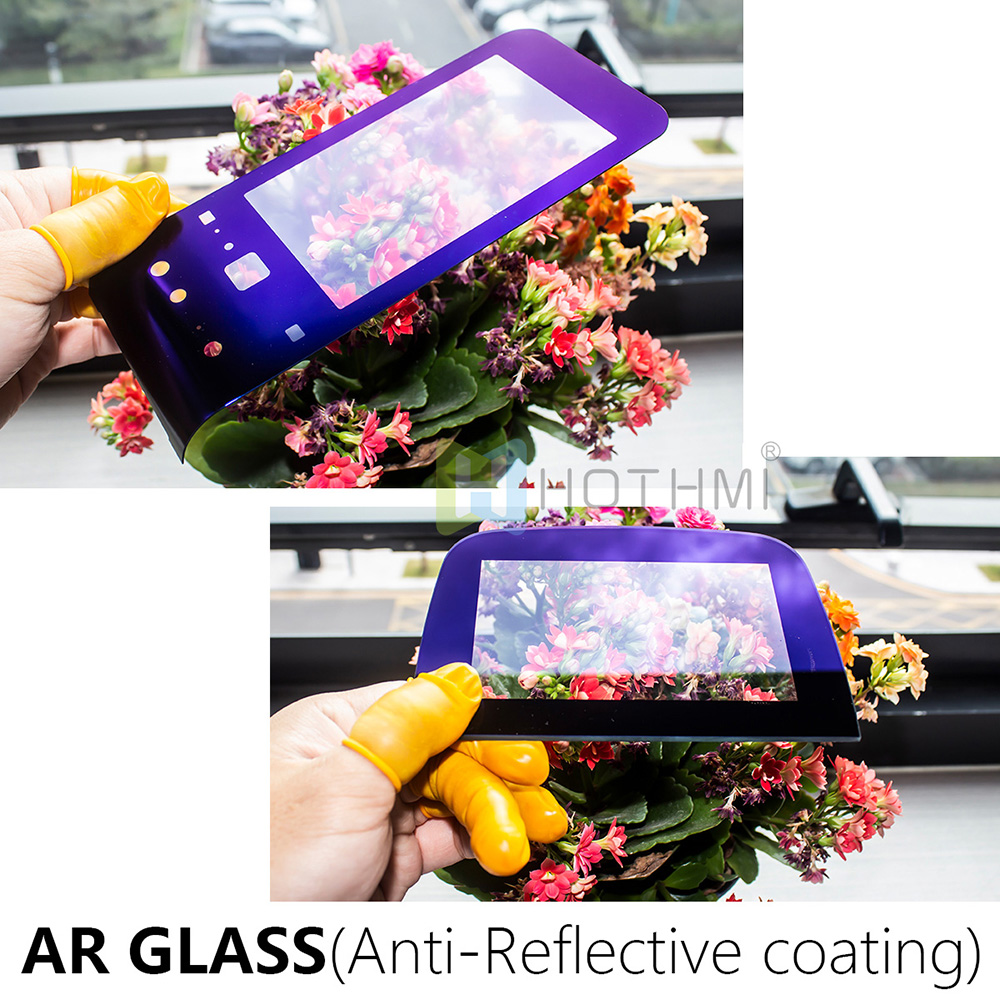

To achieve this performance, manufacturers apply specific treatments to the display glass. The most common method is applying an Anti-Reflective (AR) coating, which uses thin-film interference to cancel out reflected wavelengths. Another technique is surface etching to create an Anti-Glare (AG) layer, which diffuses reflected light. Often, an advanced Anti-Reflective Display combines both methods: an AR coating to reduce reflection intensity and an AG layer to scatter any remaining glare. These treatments are sometimes paired with circular polarizers to further eliminate internal reflections.

The advantages of an Anti-Reflective Display are substantial. Primarily, it drastically improves sunlight readability, reducing eye strain during prolonged outdoor use. By cutting through reflections, it enhances perceived contrast and color saturation, making images appear richer and sharper. This means users do not need to max out backlight power to see the screen, leading to better energy efficiency. Ultimately, an Anti-Reflective Display delivers a professional, crystal-clear viewing experience that remains consistent regardless of lighting conditions, ensuring critical information is always accessible.

Click the video for a more intuitive experience of the viewing quality of the anti-reflective display: Anti-Glare, Anti-Reflective Display.

FAQS about the Anti-Reflective Display

1: Why should I choose this specific 2.4-inch screen for an outdoor Central Control System?
A1: The primary reason is its classification as a true Anti-Reflective Display. Standard screens fail outdoors because they reflect ambient light. However, this Anti-Reflective Display is engineered with advanced surface treatments that slash reflections, ensuring that control interfaces remain crisp and readable. For any Central Control System exposed to sunlight, an Anti-Reflective Display is not an option—it is a necessity for operational safety and clarity.

Q2: How does the "Anti-Reflective" property work with the screen's brightness?
A2: This creates a powerful synergy. The high-output backlight ensures the image is bright, but it is the Anti-Reflective Display surface that prevents that light from being washed out by the sun. Think of it this way: the brightness powers the image, but the Anti-Reflective Display ensures that image reaches your eyes without interference from glare. Together, they make this Anti-Reflective Display truly sunlight-readable.

Q3: Will the Anti-Reflective treatment wear off over time?
A3: The durability of this Anti-Reflective Display is built to last. The optical treatments are integrated into the surface designed to withstand harsh conditions. Given that this Anti-Reflective Display operates reliably between -30°C and 80°C and includes 8kV ESD protection, you can trust that the Anti-Reflective Display properties will maintain their effectiveness throughout the product's lifecycle.

Q4: Does the Anti-Reflective surface distort the image quality or colors?
A4: Not at all. In fact, it enhances them. Because this is an Anti-Reflective Display, it eliminates the haze caused by ambient light reflections. This allows the true IPS full viewing angles and 240 x 320 resolution to shine through. With an Anti-Reflective Display, colors appear more saturated and contrast is higher because there is no white glare layer sitting on top of the screen.

Q5: Is this screen difficult to integrate into my existing control system design?
A5: No, it is designed for straightforward integration. While it features advanced optical properties as an Anti-Reflective Display, it uses a standard MCU interface and a 40-pin FPC connector. You get the benefits of a premium Anti-Reflective Display without complicating your hardware setup. The 3.3V supply voltage is also standard, making this Anti-Reflective Display a drop-in upgrade for projects requiring superior outdoor visibility.
