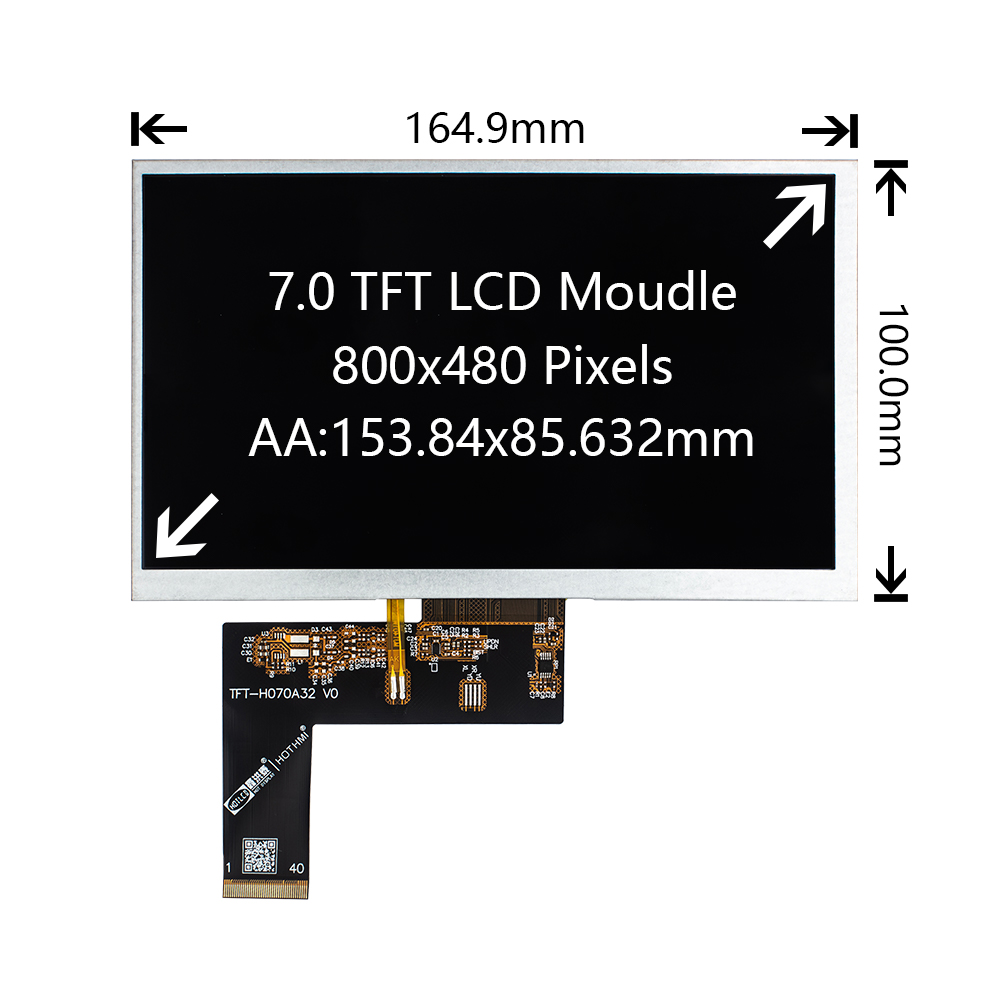

7 Inch IPS Viewing Angle TFT Display with RGB Interface 800x480 Resolution

TFT-H070A32SVIGH4N40 | 7 Inch IPS Viewing Angle TFT Display with RGB Interface 800x480 Resolution

This high-performance 7-inch module represents a sophisticated IPS Viewing Angle TFT Display, meticulously engineered to serve as the premier visual interface for modern central control and human-machine interaction systems. Its fundamental design is centered on the unparalleled visual clarity offered by a true IPS Viewing Angle TFT Display, which guarantees a consistently brilliant and accurate image across an exceptionally broad field of view. This critical characteristic ensures that every piece of data, every graphical element, and every status indicator remains perfectly legible and color-stable, whether viewed directly from the front or from sharp off-axis angles. This eliminates the visual degradation common to conventional panels, making this IPS Viewing Angle TFT Display an indispensable component in multi-operator environments or installations where the screen is not directly aligned with the primary sightline.

The superior visual performance is a direct result of the advanced IPS Viewing Angle TFT Display technology embedded within the panel. This technology stabilizes the liquid crystal molecules to operate in a plane parallel to the screen, thereby maintaining luminance and hue integrity from nearly every conceivable perspective. The display delivers vibrant colors and sharp details, providing an outstanding graphical canvas for maps, schematics, system dashboards, and real-time monitoring feeds. Furthermore, the high brightness level of the backlight ensures that the content on this IPS Viewing Angle TFT Display remains vividly clear even under challenging ambient lighting conditions, from dimly lit control rooms to environments with stronger overhead illumination.

Beyond its optical excellence, this IPS Viewing Angle TFT Display is built for resilience and seamless integration in demanding industrial applications. It incorporates robust protection against electrostatic discharge, safeguarding the sensitive electronics from potential transient events. The module is designed to operate reliably across a wide thermal range, ensuring consistent startup, performance, and longevity in both frigid and elevated temperature environments. Housed in a compact and streamlined form factor, it supports a standard RGB interface via a flexible printed circuit connector, offering engineers straightforward integration into a variety of system architectures. From transportation hubs and industrial automation to advanced instrumentation, this module stands as a testament to the reliability and visual superiority of a professional-grade IPS Viewing Angle TFT Display, making it the optimal choice for any application where viewing freedom, color accuracy, and operational dependability are paramount.

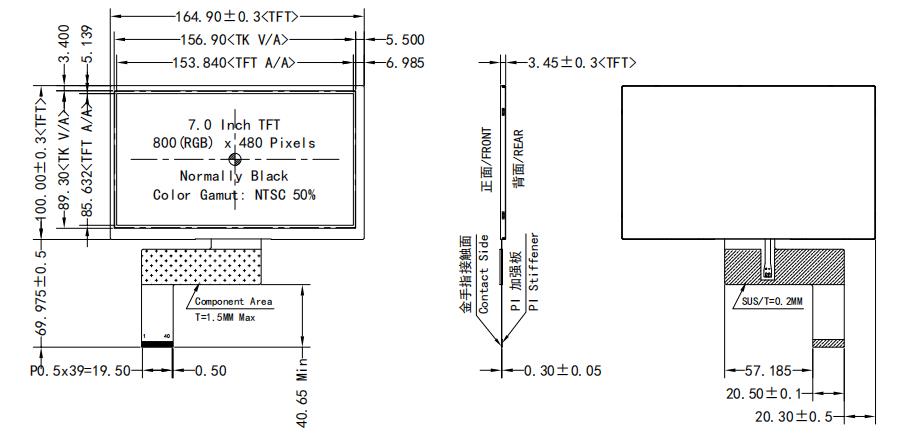

Specification of this 7 inch IPS Viewing Angle TFT Display

What is IPS Viewing Angle TFT Display

An IPS Viewing Angle TFT Display represents a significant advancement in liquid crystal display (LCD) technology, primarily engineered to solve the limited viewing angle problem inherent in conventional Twisted Nematic (TN) panels. The core innovation lies in its In-Plane Switching (IPS) design, which reorients the behavior of the liquid crystals to provide vastly improved visual performance from off-center positions.

Structural differences between IPS Viewing TFT display and TN TFT LCD display

In a traditional TFT display, crystals twist to block or allow light passage. However, this causes color shifting, contrast loss, and even inversion when viewed from the side. An IPS Viewing Angle TFT Display fundamentally alters this mechanism. Here, the liquid crystals are aligned parallel to the panel substrates and rotate horizontally ("in-plane") when voltage is applied. This parallel movement minimizes light obstruction and distortion at oblique angles. Consequently, an IPS Viewing Angle TFT Display consistently delivers exceptional color accuracy, stability, and high contrast ratios across a wide field of view, typically reaching 178 degrees both horizontally and vertically.

The superior performance of an IPS Viewing Angle TFT Display makes it the dominant choice for applications where multiple viewers or variable screen orientations are common. It is the standard for professional monitors for graphic design, medical imaging, and consumer devices like premium smartphones, tablets, and televisions. Users can enjoy consistent, true-to-life images without the color shifts seen in other panel types, making it ideal for collaborative work and media consumption.

It is important to note some trade-offs. Historically, IPS panels had slightly slower response times and higher production costs compared to TN panels, and they can consume marginally more power due to the need for stronger backlighting to maintain brightness. However, modern iterations have largely mitigated these gaps. When prioritizing visual fidelity and wide-angle consistency, an IPS Viewing Angle TFT Display remains the benchmark technology, balancing performance and reliability for the most demanding visual tasks.
