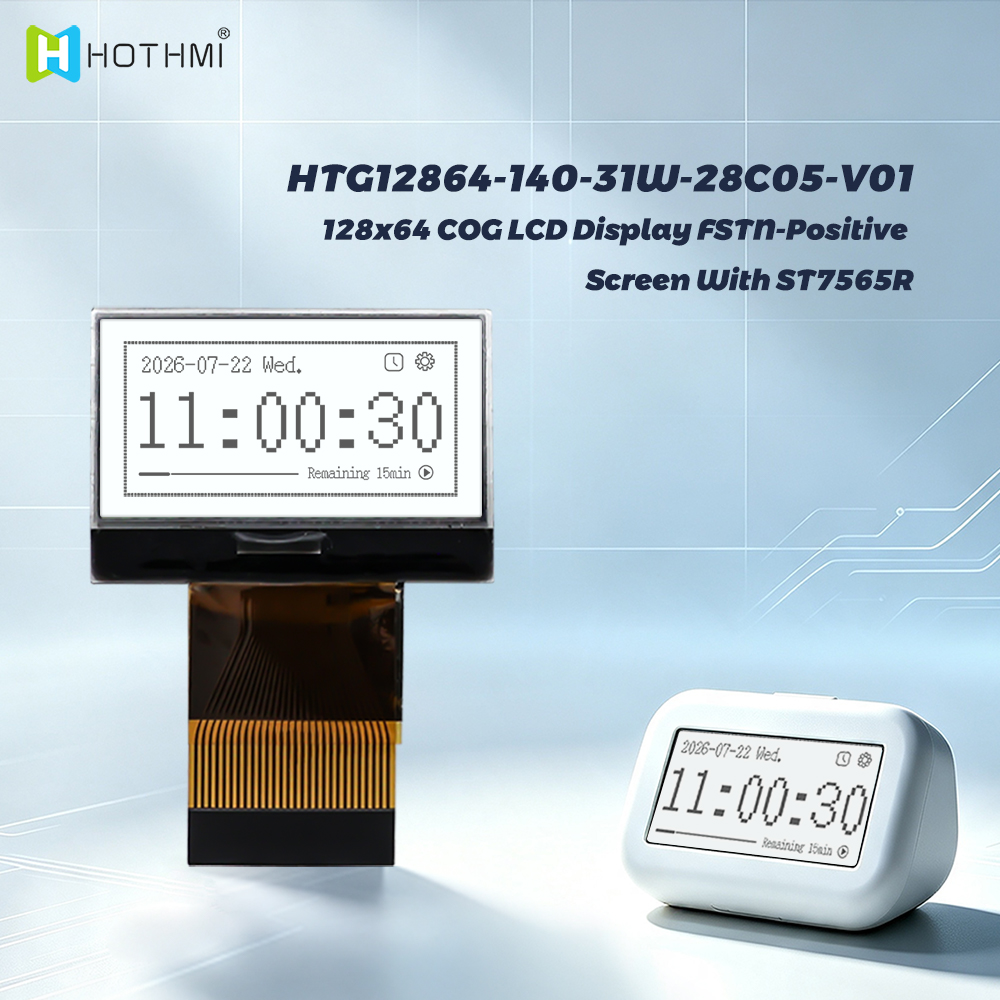

128x64 COG LCD Display FSTN-Positive Screen With ST7565R

▶ Model: HTG12864-140-31W-28C05-V01

▶ Type: 128x64 COG LCD
▶ Display Pixels: 128x64

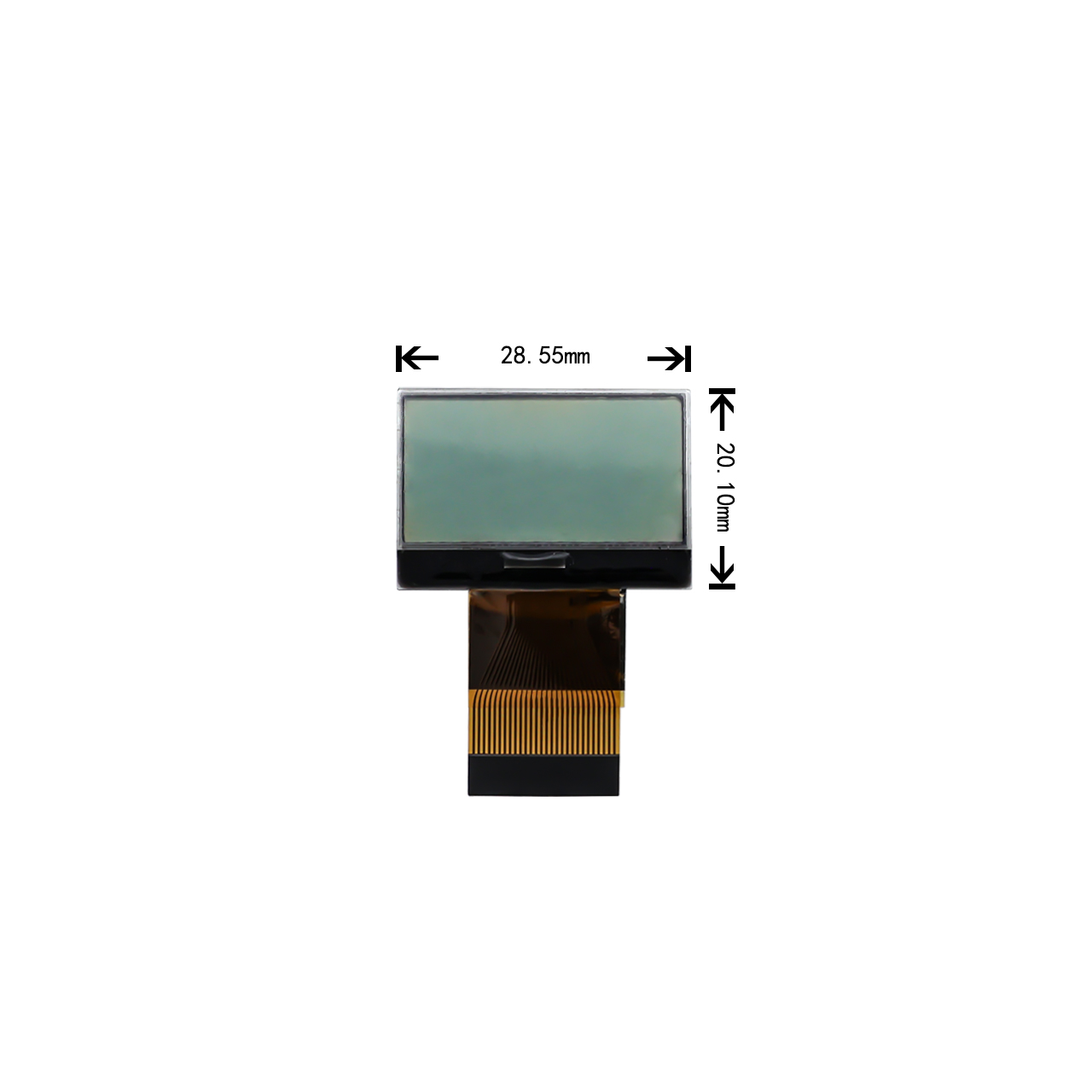

▶ Dimensions (mm): 28.55x20.1x4.3
▶ VA Dimension (mm): 26.15x13.9
▶ AA Dimension (mm): 23.02x8.0
▶ Dot Pitch (mm): 0.18x0.18
▶ Application: Instrumentation
▶ Viewing Angle: 6H
▶ Backlight/Brightness: White Light
▶ Pins: 28PIN
▶ Interface: MCU
▶ Special Notes: ESD Protection 8KV
▶ Operating Temperature: -30℃~+80℃
▶ Supply Voltage: 3.3V
▶ Driver Chip: ST7565R

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

No Back Next

Product Description
Customized Services
Attributes

HTG12864-140-31W-28C05-V01 | 128x64 COG LCD Display FSTN-Positive Screen With ST7565R
Elevate your instrumentation designs with our cutting-edge 128x64 COG LCD Display. Engineered for superior clarity and reliability, this module is the optimal solution for applications demanding consistent performance in challenging environments. Its exceptional stability ensures unwavering operation across a wide thermal range, making it a dependable core for professional and industrial tools.
The standout advantage of this 128x64 COG LCD Display lies in its remarkably low power consumption. By utilizing Chip-on-Glass (COG) technology, it integrates the driver directly onto the glass substrate, significantly reducing energy draw and extending the battery life of portable devices. This efficient design is housed in an ultra-thin and lightweight form factor, enabling sleeker, more compact product designs without compromising on display area or readability.
Durability is at the forefront of this display's design. It features robust built-in protection against electrostatic discharge, safeguarding the module from potential damage during handling and operation. The stable viewing characteristics and crisp white backlight ensure information is always legible. For your next project requiring a reliable, energy-efficient, and space-saving display, choose this versatile 128x64 COG LCD Display. Its perfect balance of thin profile, outstanding stability, and minimal power use makes the 128x64 COG LCD Display an intelligent investment for advanced instrumentation.

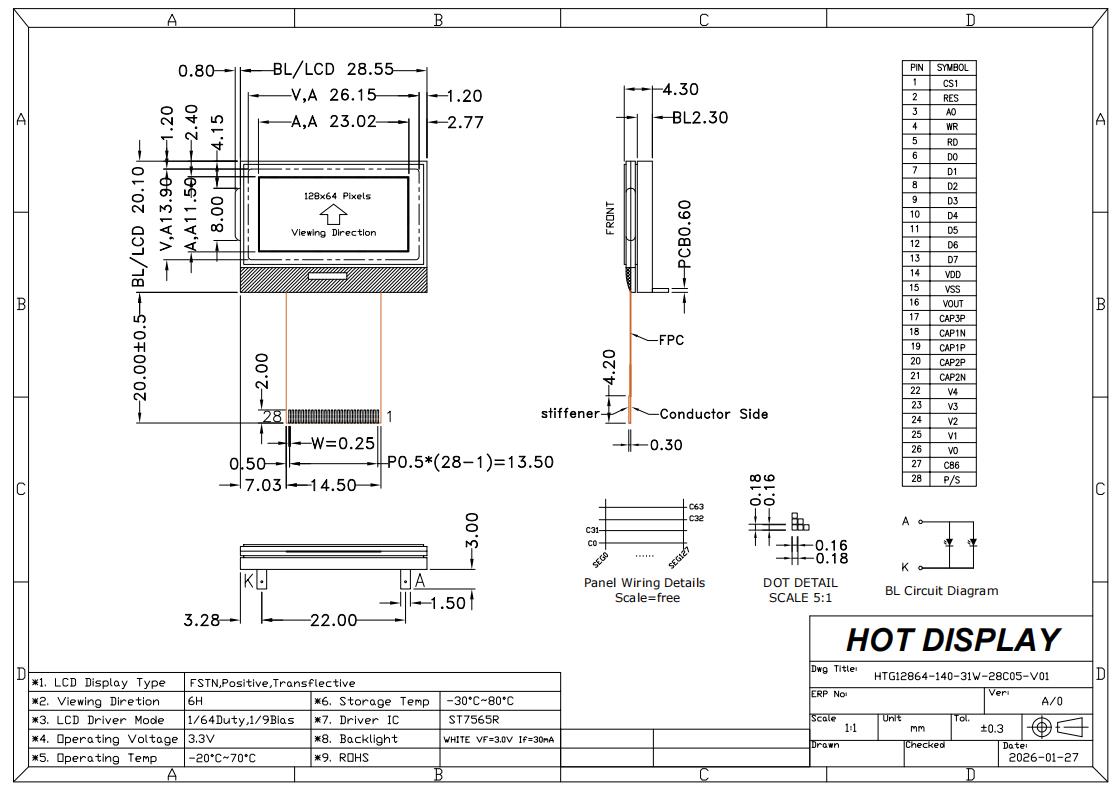

Specification of the 128x64 COG LCD Display

Datasheet for Touch Panel,Controller↓

Name	Date	Size
128x64 COG LCD Display	January 01, 2026	52.49KB

Connector customization: Easily modify any connector on the display to meet your application requirements. Our engineers can solder pin headers, box headers, right-angle connectors, and any other connectors your display may require.

PCB modification: Choose from a variety of changes to the PCB shape, size, pinout, and component layout to perfectly fit your application.

Backlight color customization: The module backlight has a variety of combinations to choose from, including no backlight or yellow-green/blue/white/amber/red/RGB backlight options, with up to 48 effects to choose from. Click on the customization page for reference.

Font Customization: A variety of font libraries are available, including English/Japanese, Western European, Eastern European, Scandinavian European, Cyrillic (Russian), Hebrew/Arabic, and more.

Cable Customization: Adjust cable length, position, and pinout, or add additional connectors. Get a precisely designed cable solution that streamlines and secures your connections.

Shape Customization: Supports customization of specific Graphic LCD display dimensions.

Function Customization: Integrate specific graphic LCD display ICs, sensors, or develop dedicated communication protocols.

ITEM	parameter	Unit
Name	HTG12864-140-31W-28C05-V01
Number of dots	128x64	dots
Module size	28.55x20.1x4.3	mm
VA size	26.15x13.9	mm
AA size	23.02x8.0	mm
Pixel pitch	0.18x0.18	mm
IC	ST7565R
Power supply voltage	3.3V	V
Backlight	White
Display mode	FSTN+
Drive mode (Duty)	1/64 duty cycle
Type	COG LCD
Features	Transflective
