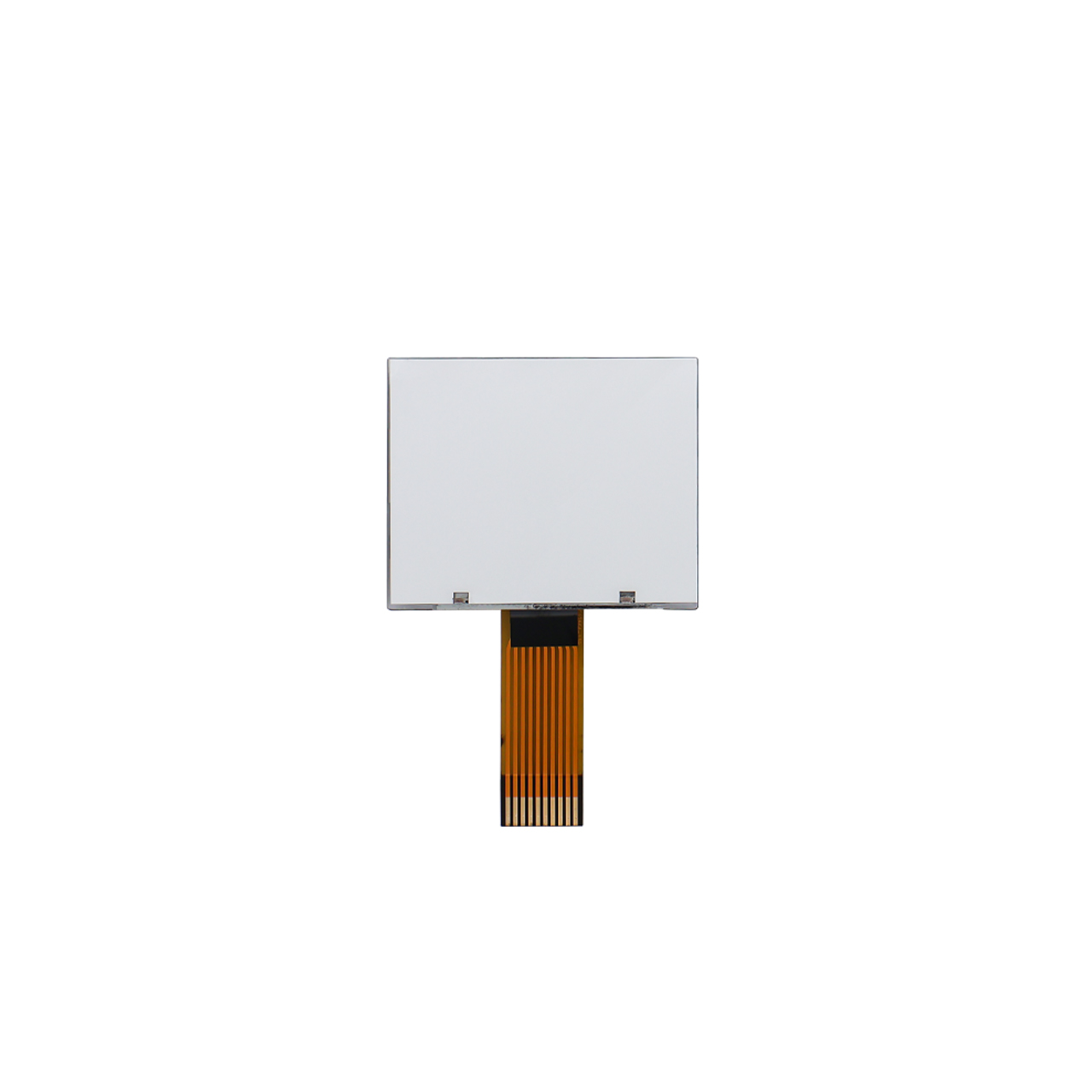

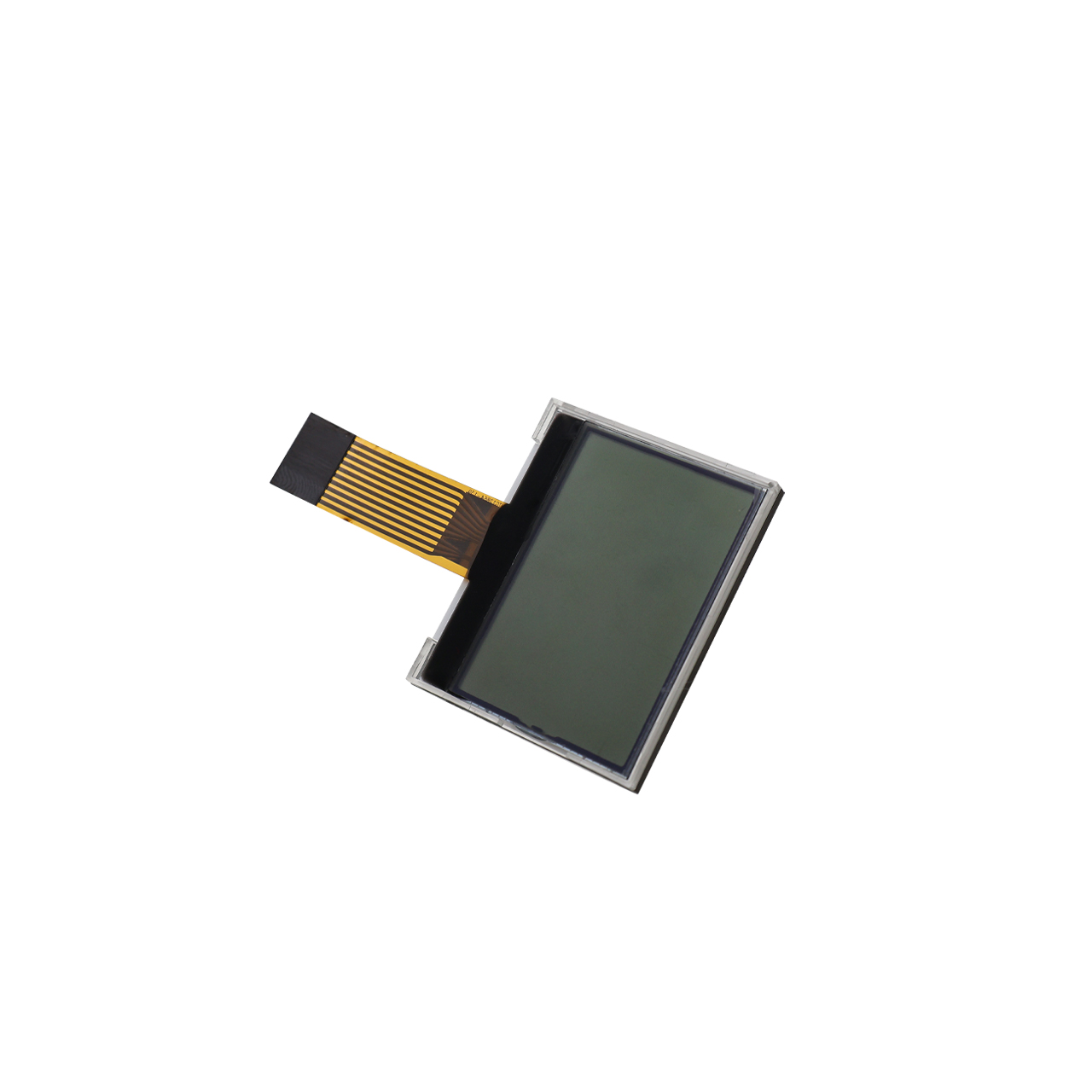

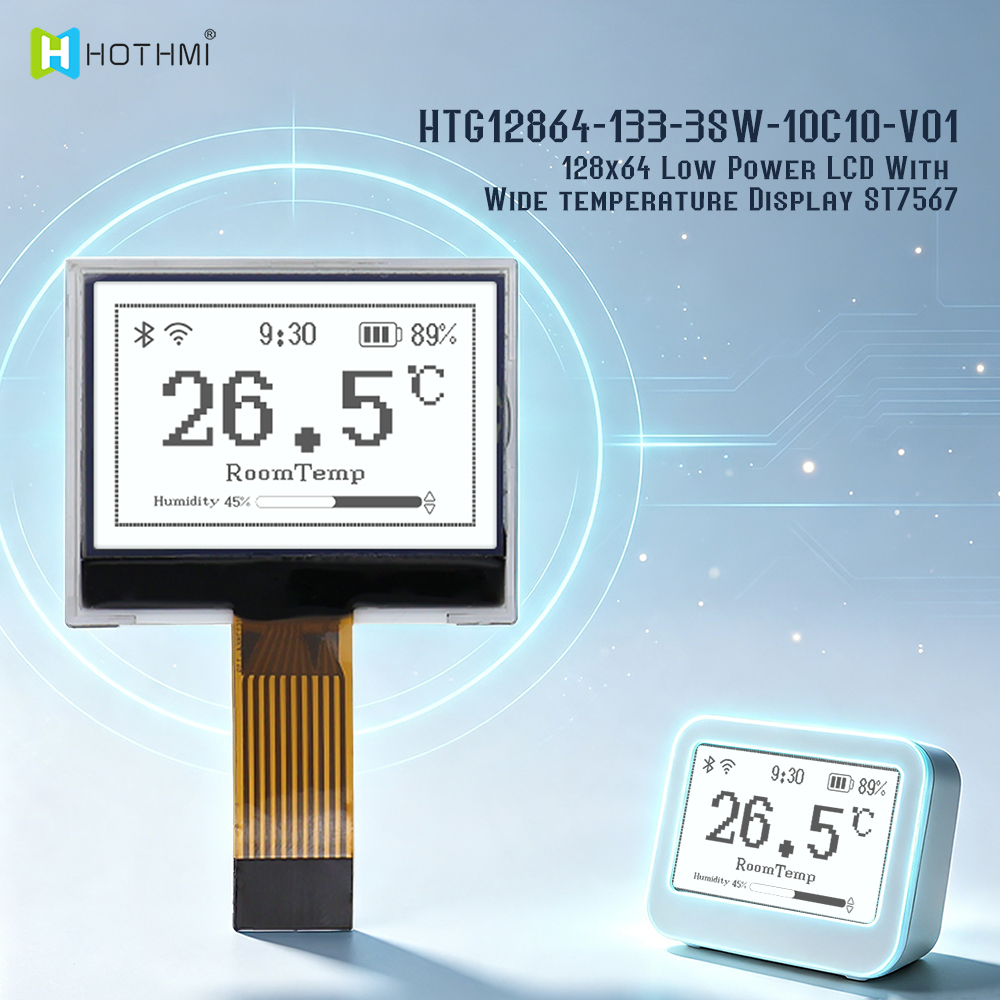

128x64 Low Power LCD With Wide temperature Display ST7567

HTG12864-133-3SW-10C10-V01 | 128x64 Low Power LCD With Wide temperature Display ST7567

The 128x64 Low Power LCD With Wide Temperature Display redefines energy efficiency in visual display technology, standing as the definitive choice for applications where power conservation is paramount. This module's identity as a superior Low Power LCD is not merely a feature—it is its fundamental advantage, delivering extraordinary performance with consumption figures that leave alternatives in its wake.

When positioned against small-size OLED alternatives, the advantages of this Low Power LCD become compelling. While certain OLED displays can indeed be engineered for wide temperature ranges, they face an inherent physical limitation:

size

At the heart of this Low Power LCD lies the ST7567 driver IC, purpose-built for ultra-low-power scenarios. However, the true breakthrough is the module's astonishingly low current draw of just 100µA during operation. To understand the magnitude of this achievement, consider the comparison with small-size OLED displays, which typically require a minimum of 500µA. This Low Power LCD consumes five times less current than its OLED counterpart. Translate this into real-world application: powered by the same battery capacity, a device featuring this Low Power LCD could operate for approximately five years, while an equivalent OLED-powered device would deplete the same battery in just one year. This Low Power LCD effectively extends product lifespan by 500% on a single charge.

The exceptional efficiency of this Low Power LCD stems from multiple innovations. Operating at a low supply voltage, the entire system is optimized for minimal energy draw. The FSTN Positive Transflective technology embedded in this Low Power LCD means static images require only microamps, while the transflective nature allows ambient light to eliminate backlight usage entirely in bright conditions. Even the backlight system—a single LED configuration—reflects the philosophy of this Low Power LCD, consuming minimal power with PWM dimming capability for further optimization.

Constructed with Chip-On-Glass technology, this Low Power LCD eliminates parasitic losses from external components, while the modest 128x64 resolution ensures minimal drive load. Rated for extreme temperatures and featuring robust ESD protection, this Low Power LCD delivers uncompromised reliability alongside its industry-leading power profile. For instrumentation and portable devices where every microamp determines longevity, this Low Power LCD transforms battery life from a limitation into a competitive advantage.

The 128x64 Low Power LCD extends the display's lifespan：The 128x64 Low Power LCD With Wide Temperature Display represents a masterful engineering achievement, harmonizing two traditionally conflicting attributes—extreme energy efficiency and rugged environmental tolerance—into a single, reliable display solution. This Low Power LCD achieves its wide temperature operation through carefully choosed materials and robust construction, functioning flawlessly across severe thermal extremes without sacrificing its core identity as a Low Power LCD. The FSTN technology at its heart consumes minimal power intrinsically, while the ST7567 driver IC incorporates low-power analog circuitry that maintains efficiency even when temperatures fluctuate dramatically. This Low Power LCD proves that demanding industrial environments need not demand high energy consumption.

When positioned against small-size OLED alternatives, the advantages of this Low Power LCD become compelling. While certain OLED displays can indeed be engineered for wide temperature ranges, they face an inherent physical limitation: OLED emissive materials degrade faster at elevated temperatures, and achieving wider temperature tolerance typically requires driving them harder—increasing current and accelerating aging. This Low Power LCD suffers no such compromise. The passive LCD technology means the display itself draws only microamps regardless of temperature, with total current consumption remaining at approximately 100µA. An OLED of identical resolution, even if temperature-hardened, will draw significantly more power—typically 500µA or higher—generating internal heat that compounds the thermal stress. This creates a vicious cycle for OLEDs: higher power consumption leads to faster degradation, particularly in wide-temperature applications. This Low Power LCD breaks that cycle entirely. By consuming a fraction of the power, this Low Power LCD generates negligible heat, ensuring stable performance and exceptional longevity even at temperature extremes. For applications requiring both environmental ruggedness and multi-year battery life, this Low Power LCD delivers what OLED technology fundamentally cannot—true low power consumption that remains low across the entire temperature range, preserving both energy and operational lifespan.
