Graphic COG LCD 2.2" 128X64 | STN+ | Yellow-Green Backlight | MCU

Graphic COG LCD 2.2" 128X64 | STN+ | Yellow-Green Backlight | MCU | Arduino

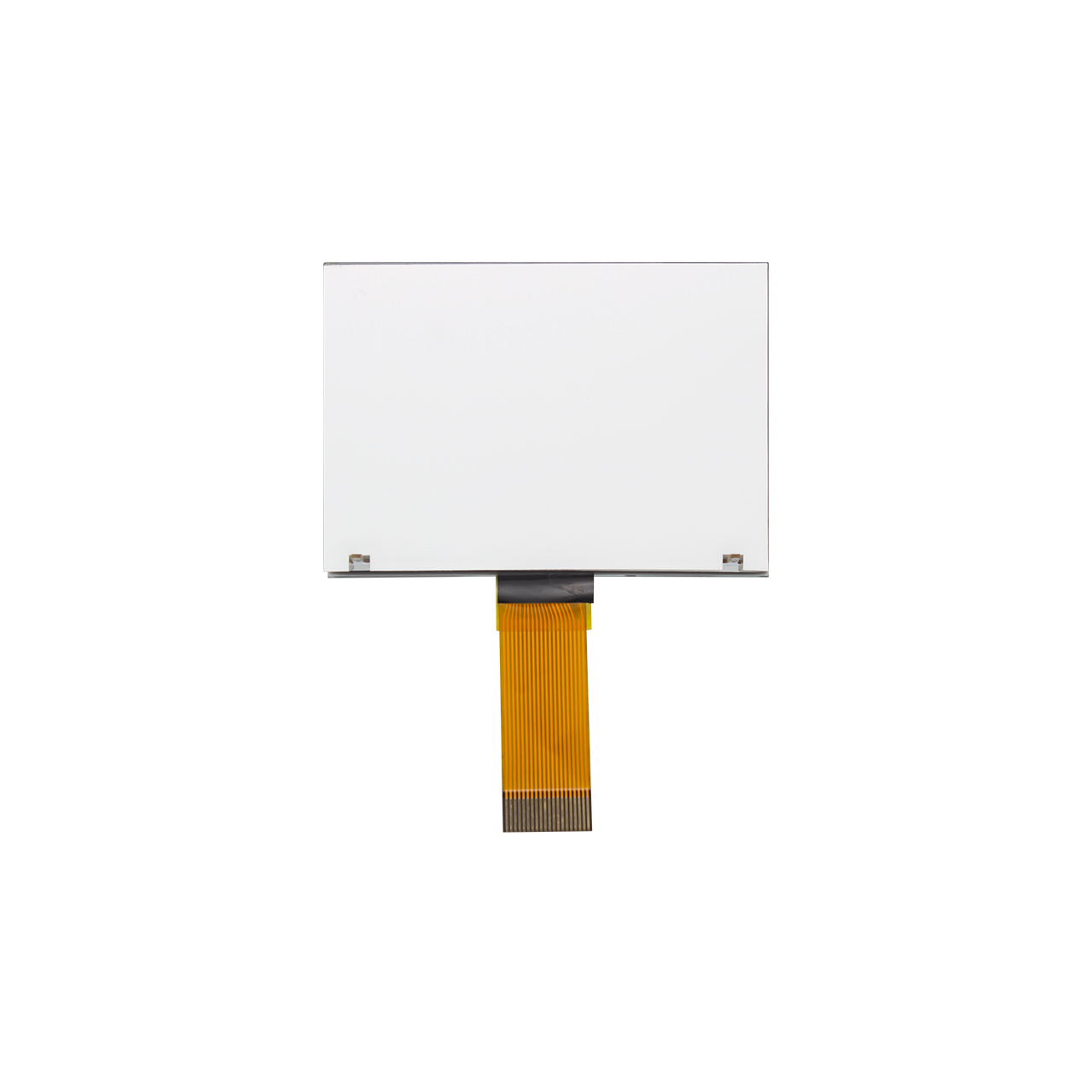

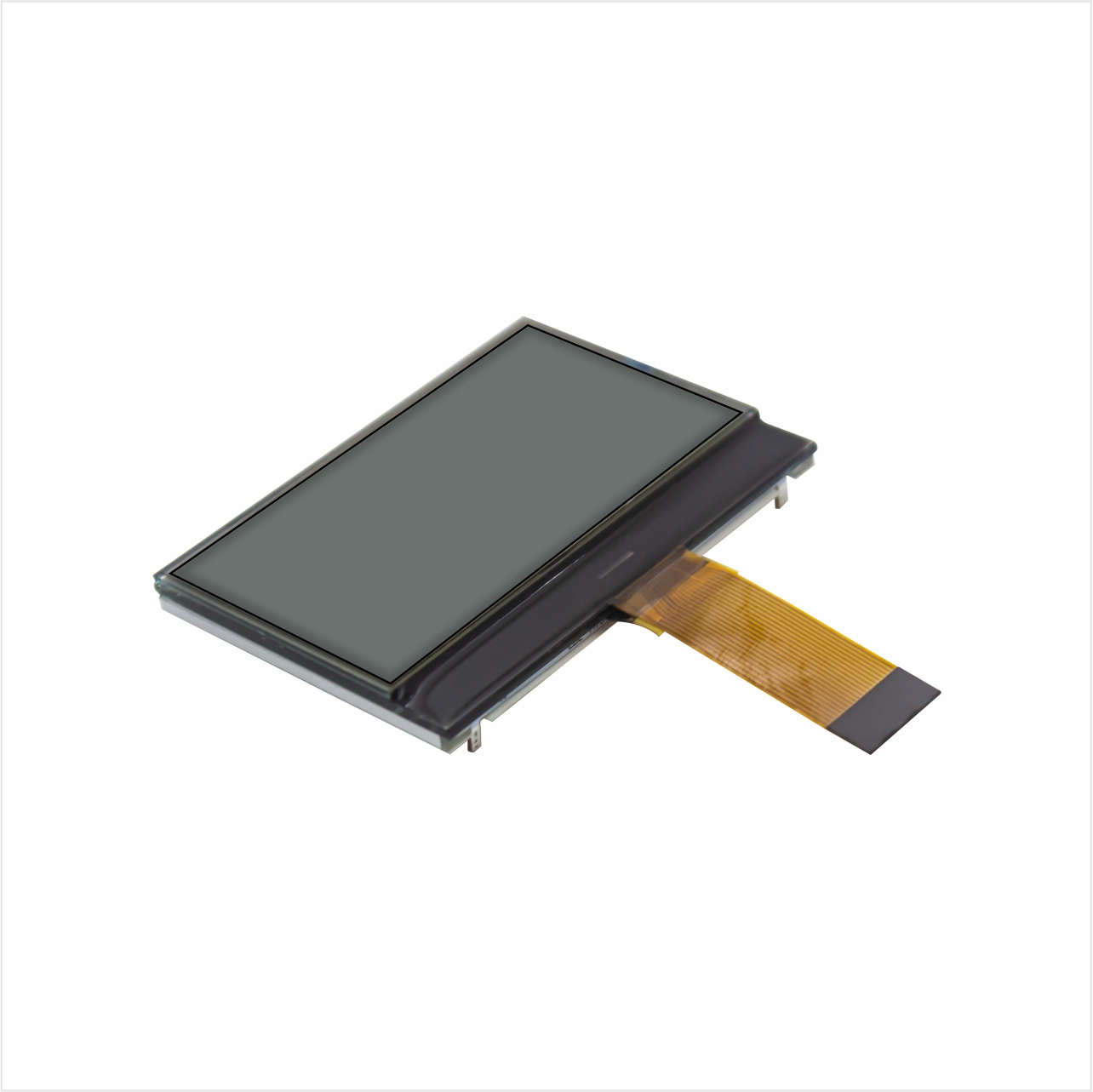

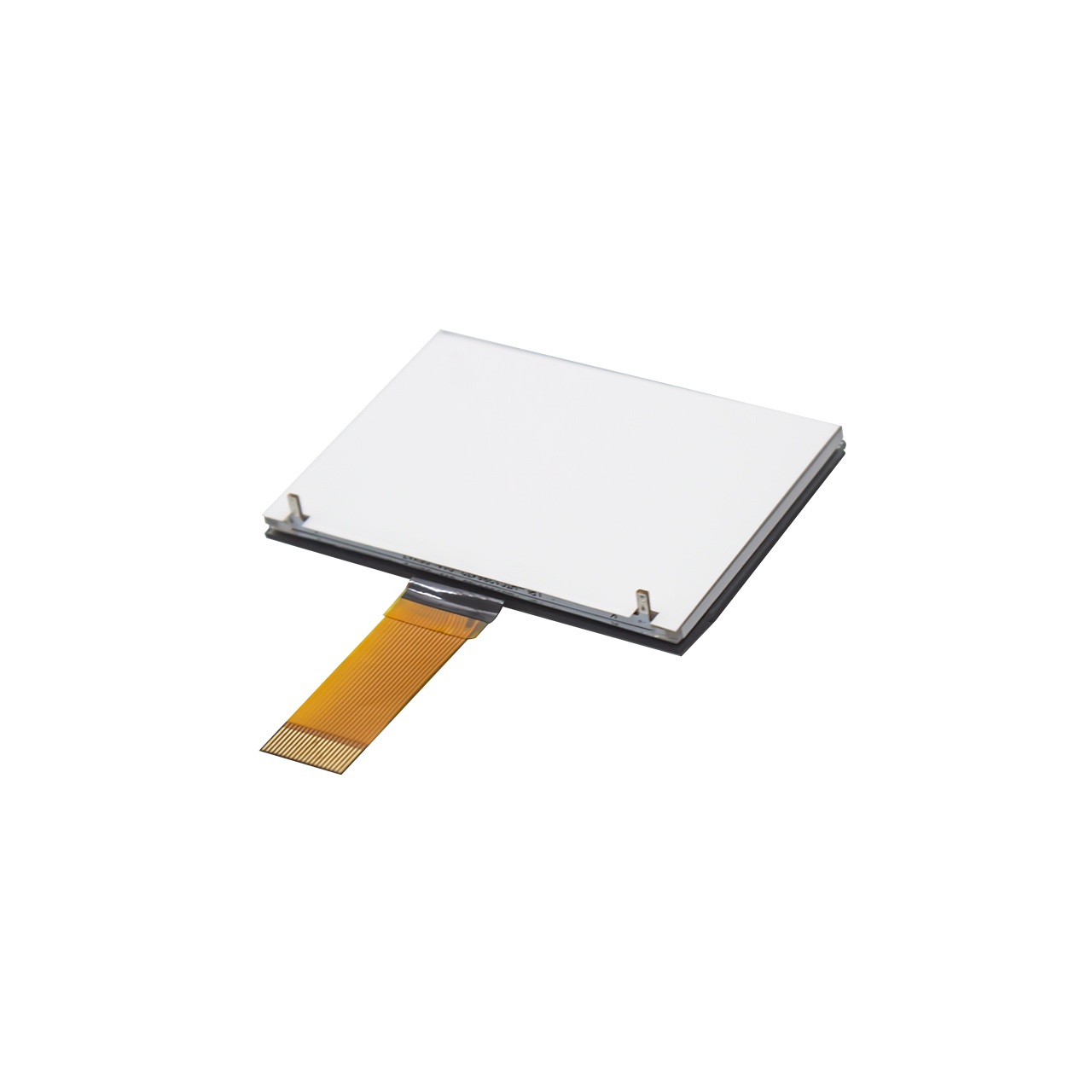

▶ Model: HTG12864T01A-11Y-MCU8080

▶ Type: Graphic COG LCD
▶ Display pixels: 128x64
▶ Display inches: 2.2"

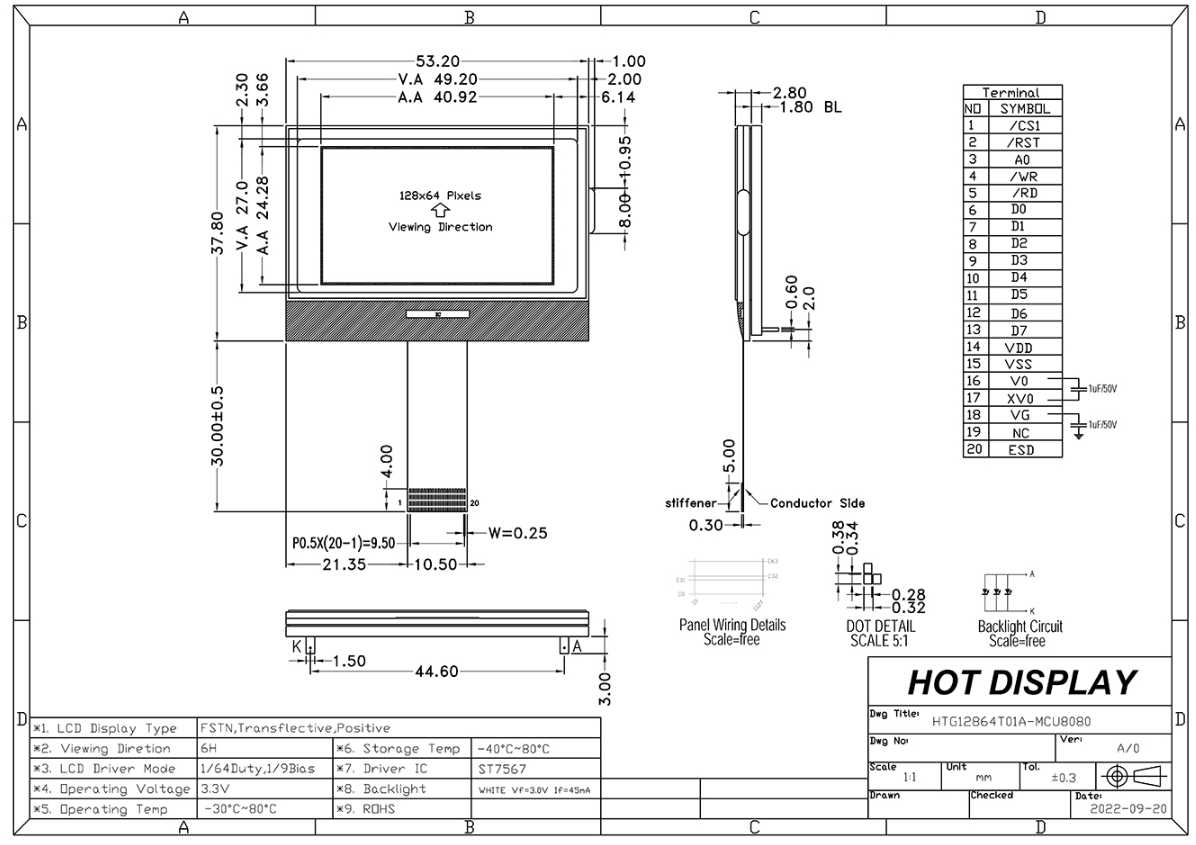

▶ Overall dimensions (mm): 53.2x37.8x4.6
▶ VA size (mm): 49.2x27.0
▶ AA size (mm): 40.92x24.28
▶ Point spacing (mm): 0.38x0.32
▶ Application: Instrumentation
▶ Viewing angle: 6H
▶ Backlight/brightness: yellow-green light
▶ Pin: FPC-20PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -30~80℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7567

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
COG Adapter Board

Product Description
Customized Services
Attributes

Graphic COG LCD 2.2" 128X64 | STN+ | Yellow-Green Backlight | MCU | Arduino

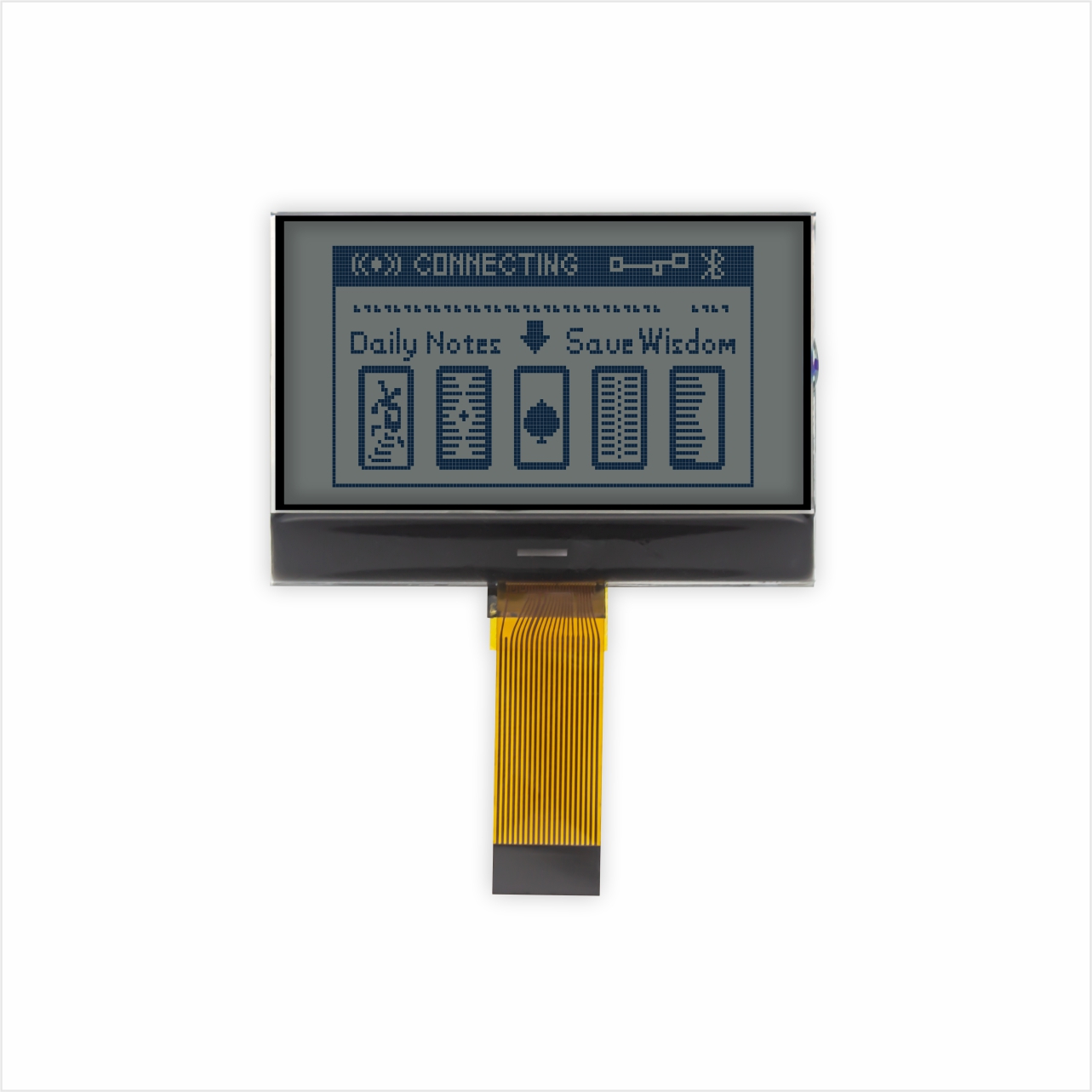

This HTG12864T01A-11Y-MCU8080 Graphic COG LCD dark pixels on a yellow-green background. This transflective LCD display is engineered to provide optimal visibility in a variety of lighting conditions in many different environments. In bright sunlight, the display utilizes its reflective layer to reflect ambient light back to the viewer, making the screen easy to read, and when there is no backlight, it presents a gray background with dark pixel images in ambient light conditions. In darker environments, the LCD has a strong backlight built in to provide high contrast and display clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.
This graphic LCD display module is fully compatible with Arduino/C8051 and can be seamlessly connected with other electronic systems for a variety of applications. This model is designed to withstand harsh operating conditions and will not function properly when used in temperatures ranging from -30 to 80 degrees Celsius. This LCD has an optimal viewing angle of 6:00, operates at 3.3V, and is RoHS compliant.

Item	specification	Unit
Name	HTG12864T01A-11Y- MCU8080
Number of dots	128 × 64	dots
Module size	53.2 x 37.8 x 4.6 (MAX)	mm
Viewable (VA) area	49.2 x 27	mm
AA size	40.92 x 24.28	mm
Dot (pixel) pitch	0.38 x 0.32	mm
IC	ST7567
Applied voltage	3.3V	V
Backlight	Yellow-green
Mode	STN(+)
Drive mode (Duty)	1/64 duty cycle
Type	Graphic LCD COG
Polarizer type	Transflective
