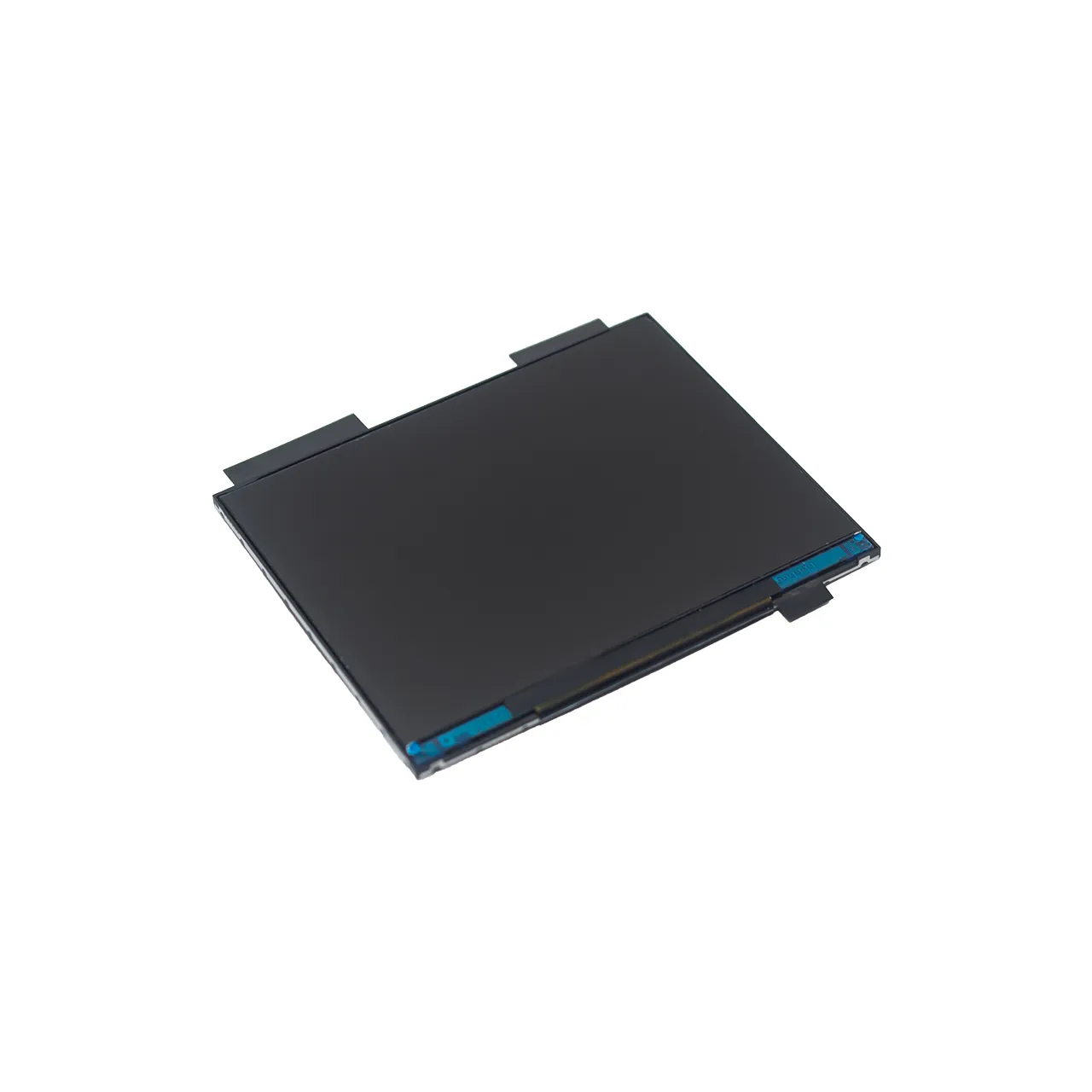

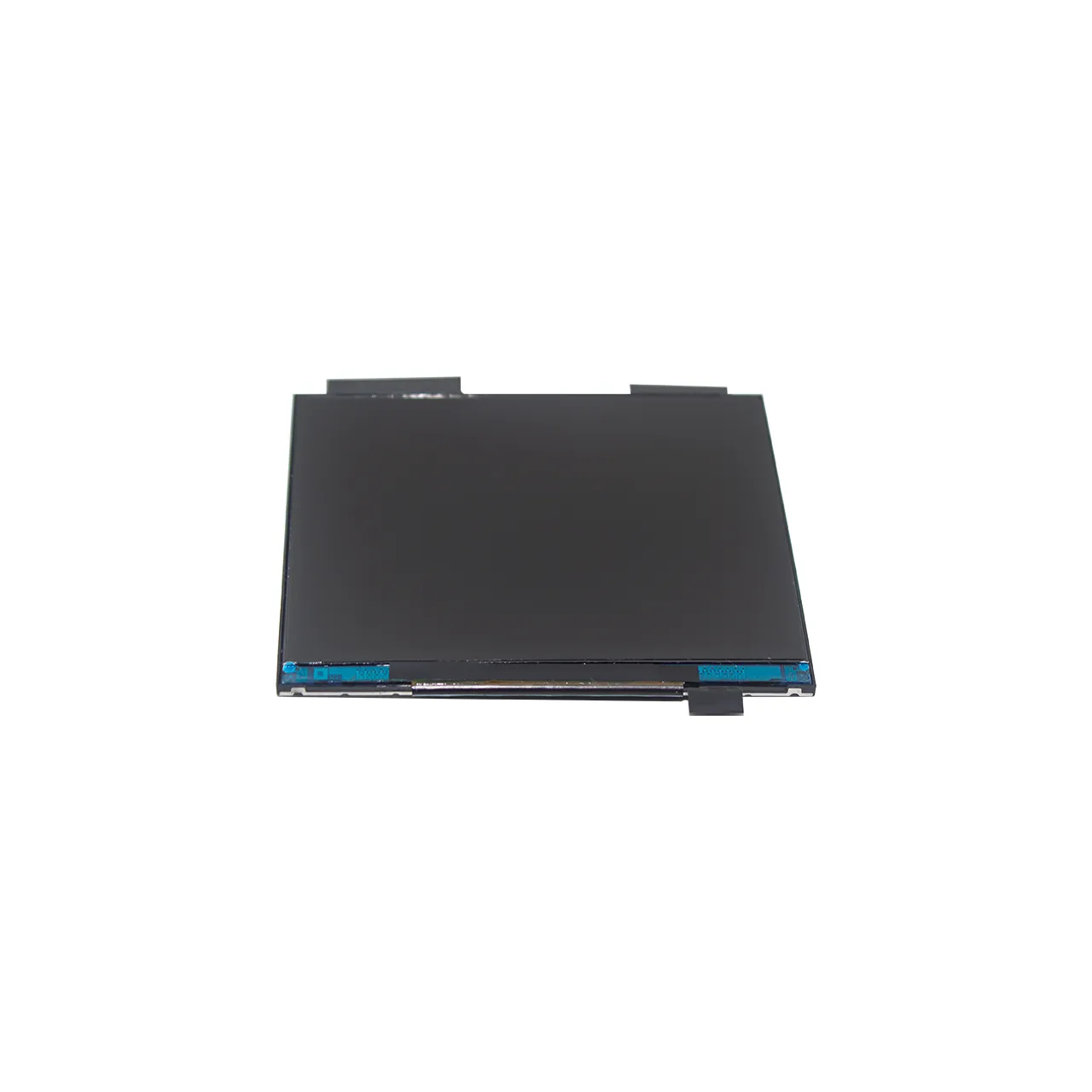

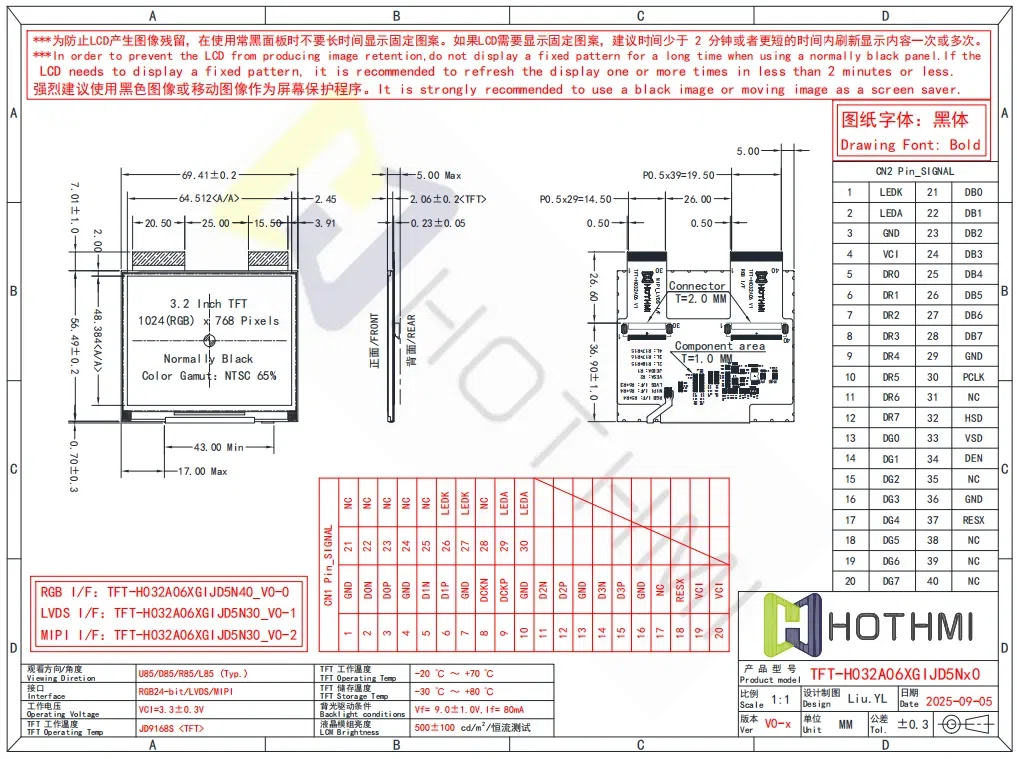

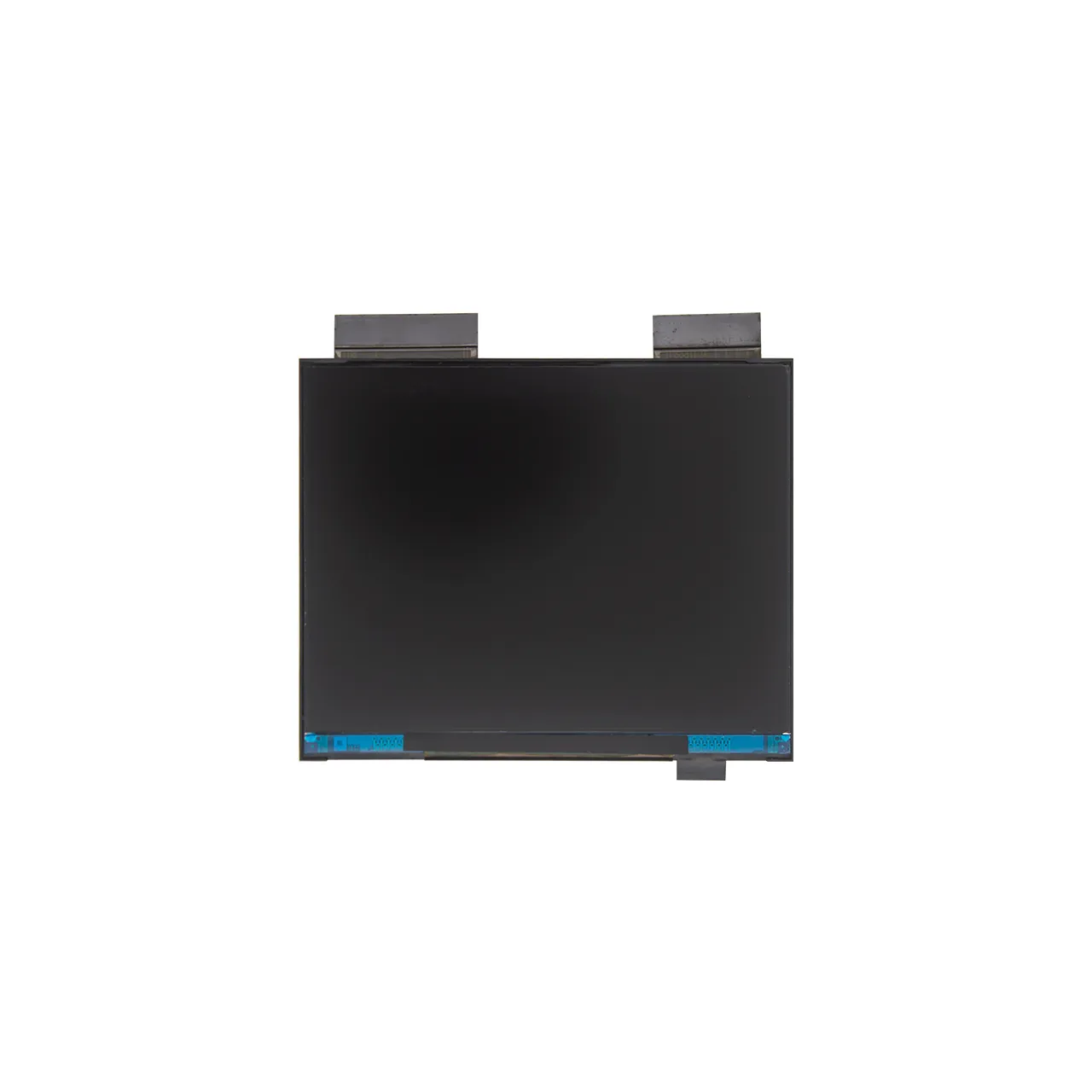

TFT-H032A06 XGIJD5Nx0 | 3.2-inch TFT Display, 1024x768 Resolution | XGA Standard TFT LCD Display
This 3.2-inch TFT display is a high-resolution XGA module designed for applications demanding exceptional clarity and reliability. With a native resolution of 1024x768 pixels, it features a standard XGA 4:3 aspect ratio, which is particularly unique among small displays, offering exceptionally clear and sharp images, fine text, and rich graphics, making it ideal for complex instrumentation and advanced portable electronic devices.
This 3.2-inch TFT display utilizes an advanced IPS (In-Plane Switching) panel, providing a full viewing angle and ensuring consistent color reproduction and clear visibility from virtually any angle. High brightness of 500 nits (cd/m²) ensures excellent readability even in bright environments or direct sunlight. This robust and durable 3.2-inch TFT display offers superior performance and longevity, featuring a high 8kV ESD protection rating to effectively prevent electrostatic discharge events. Its flexible operating temperature range of -20°C to +70°C ensures stable operation in various environmental conditions.

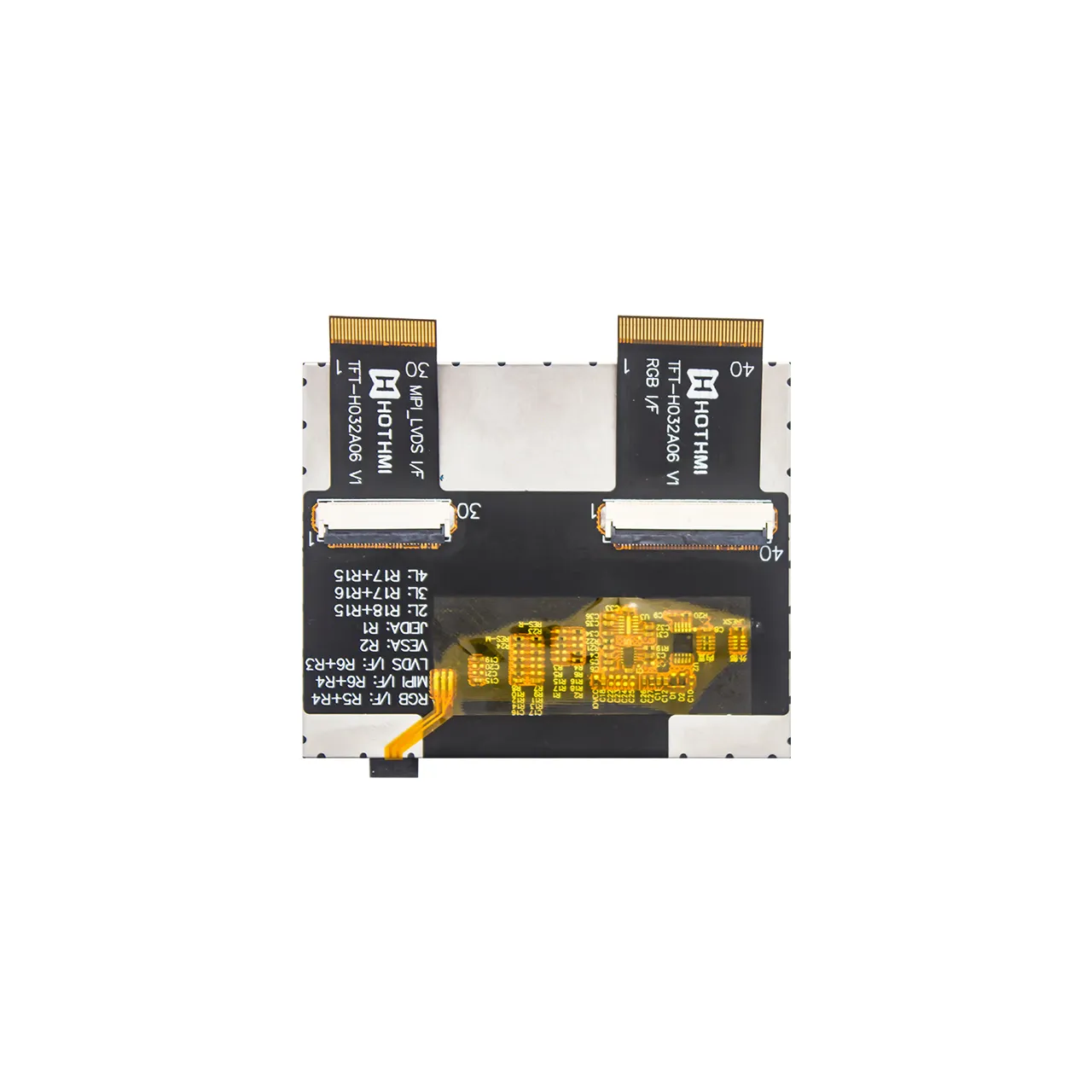

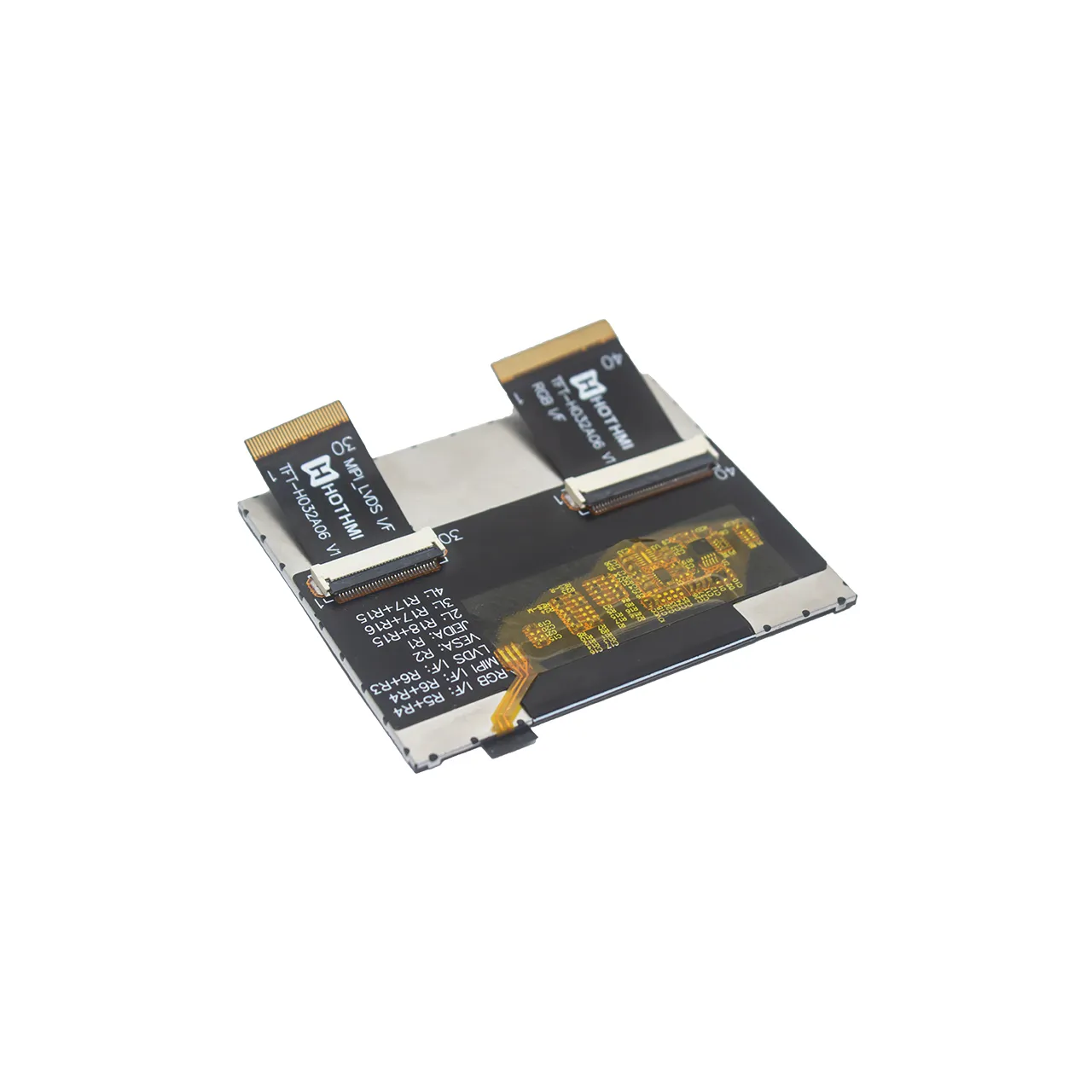

To provide design flexibility, this module, manufactured by a leading display manufacturer, supports multiple interface options, including RGB, LVDS, and MIPI, allowing engineers to select the most suitable connection method for their system architecture. The integrated driver IC JD9168S ensures reliable control and performance. Powered by a single 3.3V supply and featuring a 40-pin FPC connector for simplified connectivity, this 3.2-inch TFT display perfectly combines high-end visual performance, robust construction, and design flexibility, making it an ideal choice for your most demanding projects.
