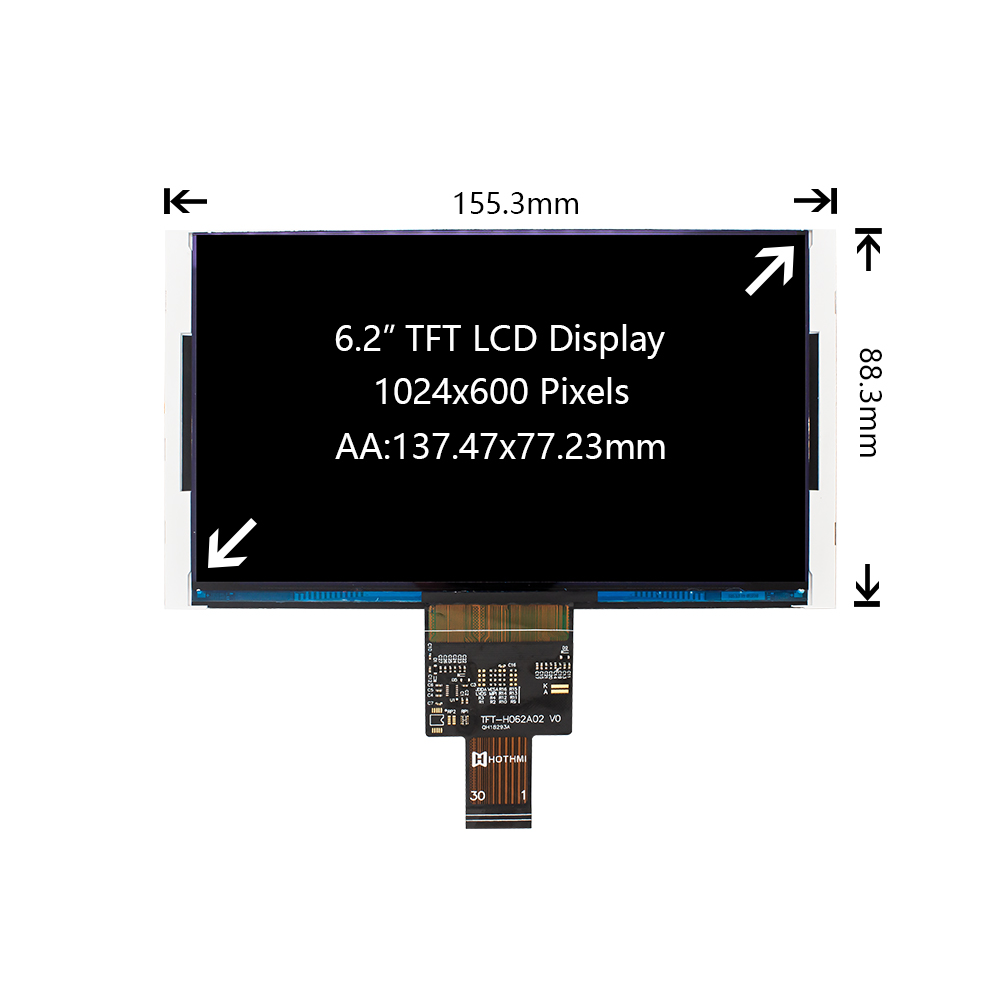

6.2-inch Wide Temperature TFT LCD 1024x600 Resolution Display With High Brightness JD9168

TFT-H062A02WSIJD9N40 6.2寸宽温1024x600分辨率TFT LCD高亮度显示屏 JD9168

Engineered for reliability in the harshest environments, this 6.2-inch Wide Temperature TFT LCD is purpose-built to deliver uncompromised visual performance where standard displays fail. With an operational range spanning from -30°C to 80°C, this 6.2-inch Wide Temperature TFT LCD ensures absolute stability in extreme cold, scorching heat, or rapid thermal fluctuations. This wide temperature capability eliminates the risk of screen blackouts or sluggish response times in outdoor settings and industrial zones, guaranteeing uninterrupted operation for critical systems.

The display features an exceptional brightness of 900 cd/m², ensuring clear visibility even under direct sunlight. Driven by the robust JD9168 driver IC and equipped with advanced ESD protection up to 8kV, this 6.2-inch Wide Temperature TFT LCD offers superior electromagnetic compatibility and durability against electrostatic discharge, significantly enhancing system reliability. Despite its robust construction, it maintains a compact and streamlined form factor, allowing for seamless integration into space-constrained assemblies without sacrificing screen real estate. Supporting an IPS full viewing angle and a sharp 1024x600 resolution, it delivers vivid imagery and accurate color reproduction from any perspective.

Ideal for central control systems, automotive dashboards, and outdoor industrial equipment, this 6.2-inch Wide Temperature TFT LCD combines rugged thermal resilience with high-performance optical characteristics, making it the definitive choice for engineers seeking a display that withstands the toughest conditions while maintaining sleek, modern design aesthetics.

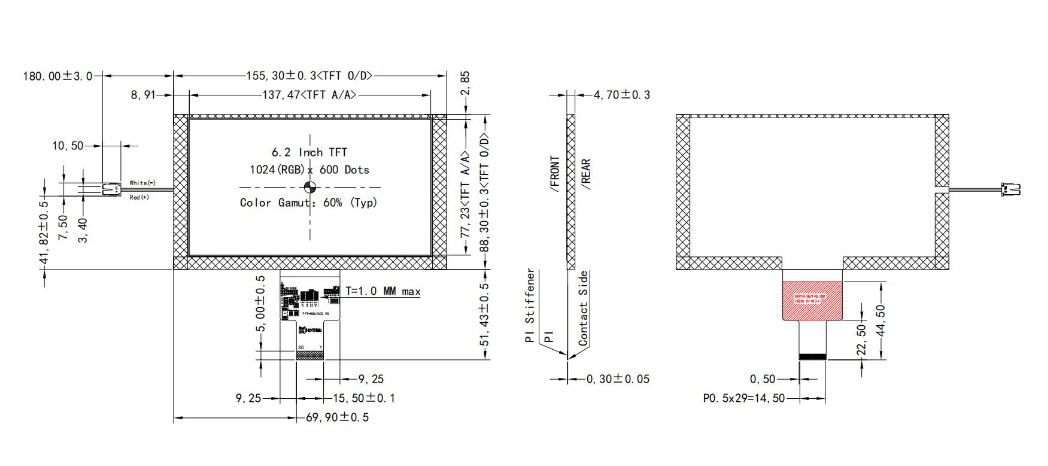

Specification of the 6.2-inch Wide Temperature TFT LCD

What is a Wide Temperature TFT LCD?

A Wide Temperature TFT LCD is a specialized display engineered to operate reliably beyond the standard commercial temperature range (typically 0°C to 50°C). Unlike standard displays that become sluggish in freezing conditions or suffer image degradation in extreme heat, this category of display is built to withstand harsh thermal environments.

Key Differentiators:

The 6.2-inch Wide Temperature TFT LCD featured here utilizes specialized liquid crystal materials and robust backlight designs to maintain consistent optical performance across extreme conditions. This specific model also incorporates a JD9168 driver IC and 8kV ESD protection, ensuring that the 6.2-inch Wide Temperature TFT LCD remains functional in environments with significant temperature fluctuations and electrostatic risks. By guaranteeing operation from -30°C to 80°C, this display eliminates the need for external heating or cooling elements, simplifying system design while enhancing overall durability. In essence, it transforms a standard visual interface into a rugged component capable of performing in the most demanding environmental conditions.

Professional Buying Guide & Technical Considerations

Selecting a 6.2-inch Wide Temperature TFT LCD requires careful evaluation beyond just size and resolution. Engineers must verify the display’s ability to meet system-level requirements for thermal management, interface compatibility, and environmental protection.

Technical Decision Matrix:

When sourcing a 6.2-inch Wide Temperature TFT LCD, verify that the stated operating temperature covers the entire system environment, not just ambient air. This model’s JD9168 driver IC is critical for stable timing control across temperature variations. Additionally, the 8kV ESD protection is a vital specification for applications involving frequent human interaction or dry environments. For central control systems, the 6.2-inch Wide Temperature TFT LCD with 1024x600 resolution ensures crisp graphics for user interfaces. Always confirm that the 6.2-inch Wide Temperature TFT LCD you select offers a balance of high brightness and thermal resilience to avoid costly external modifications like custom heaters or shade boxes.
