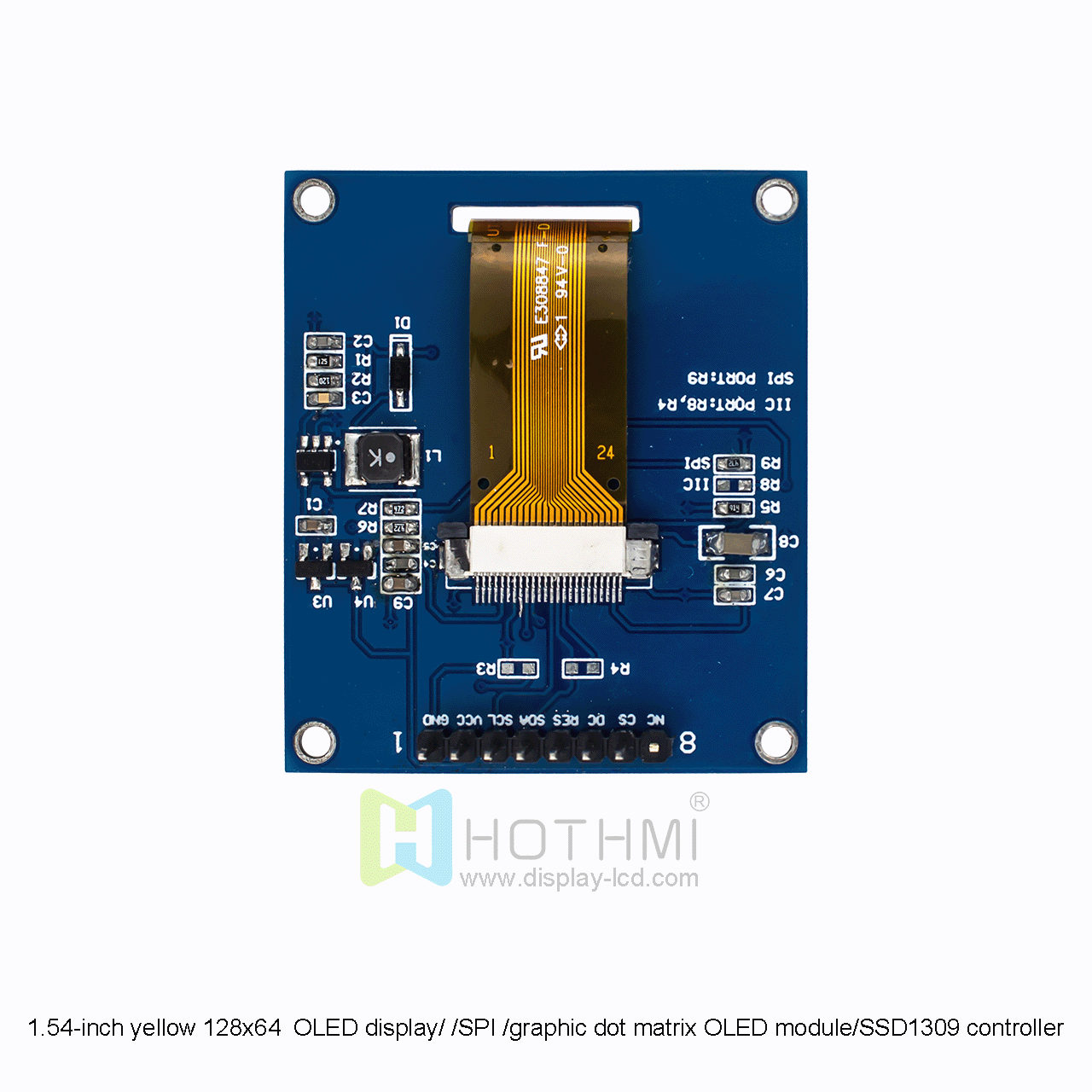

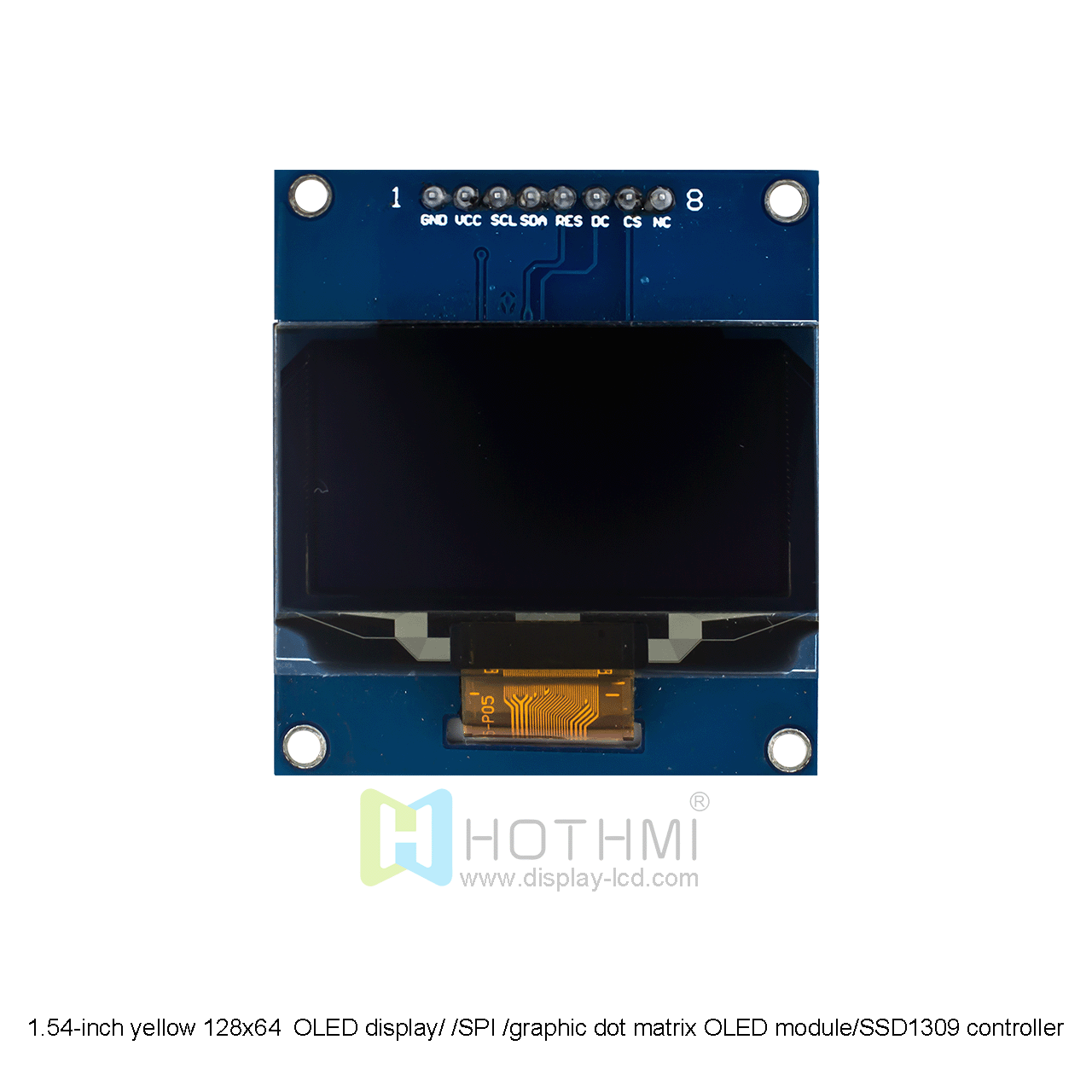

1.54 inch display / 128x64 yellow dot matrix OLED / Arduino / SPI interface / 8-pin connector / SSD1309

1.54 inch display / 128x64 yellow dot matrix OLED / Arduino / SPI interface / 8-pin connector / SSD1309

▶ Model: HTM-OLED1.54-SPI-Y

▶ Display type: 1.54 inch display
▶ Size: 1.54 inches diagonal
▶ Display format: 128x64 pixels
▶ Display color: monochrome yellow
▶ Appearance (mm): 42.4x48.7x2.8
▶ VA (mm): 37.05x19.2
▶ AA (mm): 35.05x17.52
▶ Dot pitch (mm): 0.27X0.27
▶ Supply voltage: 3.3V
▶ Interface: SPI
▶ Backlight brightness: 90cd/m2
▶ Compatibility: Arduino
▶ Controller model: SSD1309
▶ Operating temperature: -40°C~85°C
▶ Storage temperature: -40°C~90°C
▶ New function: EMI shielding
Product ConsultationDatasheets Download
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

HTM-OLED1.54-SPI-Y|1.54 inch display / 128x64 yellow dot matrix OLED / Arduino / SPI interface / 8-pin connector / SSD1309
This product 1.54 inch display. OLED display technology is self-luminous and is designed to provide high visibility and ensure easy reading from any angle in different environments. This model has a resolution of 128x64 and is a graphic OLED display with high viewing contrast, showing bright yellow graphics on a deep black background. We also have blue and white options for the same product. With this OLED, you can expect the fastest response time. It is a passive matrix display with a built-in SPI interface option, fully compatible with Arduino, and seamlessly integrates with many different electronic systems for a variety of applications. The display also comes with an 8-pin connector and a built-in SSD1309 controller. The HTM-OLED1.54-SPI-B model is designed to withstand extreme working conditions and performs well when used in a temperature range of -40 to 85 degrees Celsius. It requires a 3.3V power supply to operate and is RoHS compliant.

ITEM	Parameter Description	UNIT
OLED Model	HTM-OLED 1.54-SPI-Y
Diagonal Size	1.54”	“
Pixels	128x64	Dot
Appearance Size	42.4x48.7x2.8	mm
VA Size	37.05x19.2	mm
Active Area (AA)	35.05x17.52	mm
Dot Pitch	0.27X0.27	mm
Supply Voltage	3.3	v
Driver IC	SSD1309
Drive Mode	1/64 duty
Interface	SPI
Type	Oled Module
Display Color	Yellow
Operating Temperature	-40°C~85°C	℃
Storage Temperature	-40°C~90°C	℃
