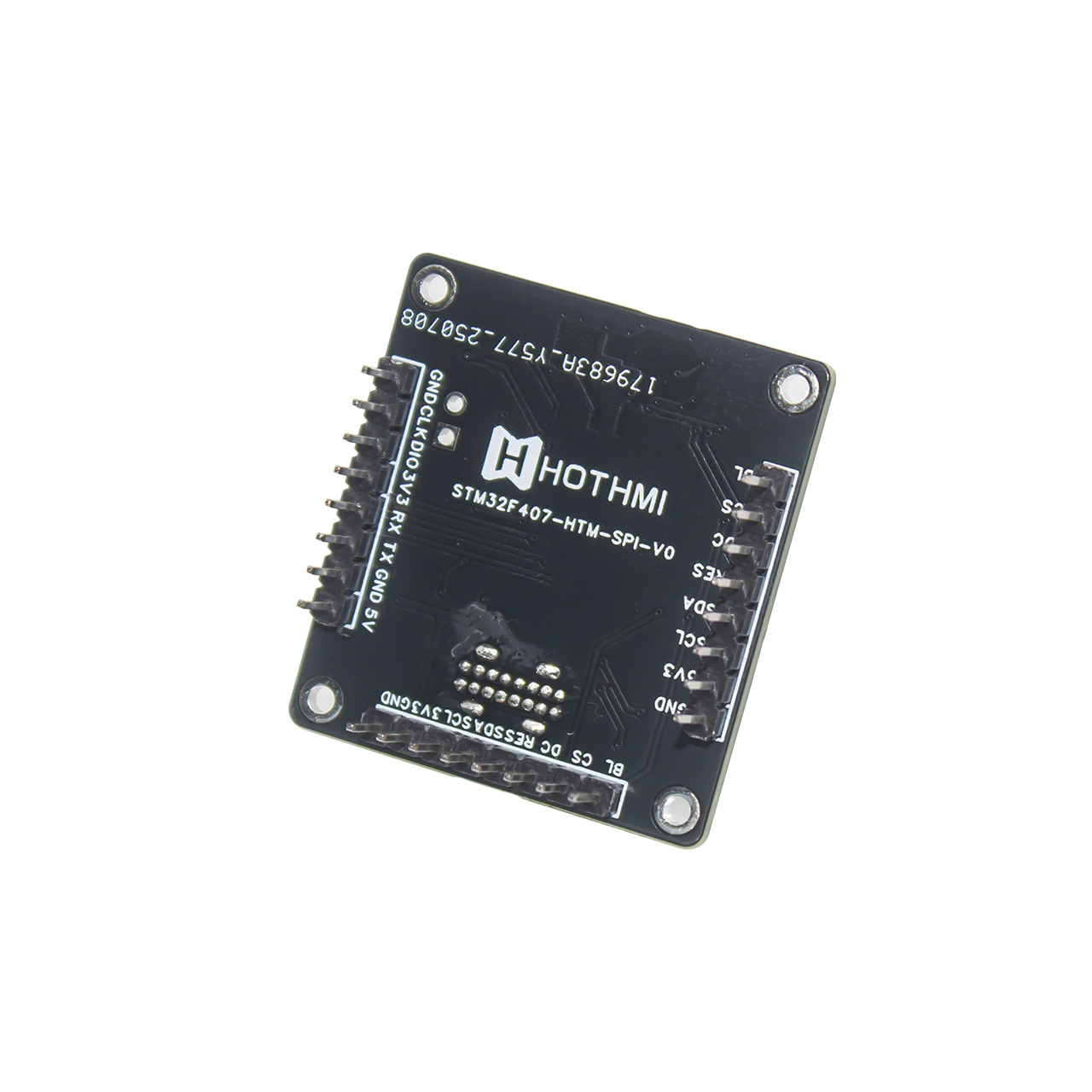

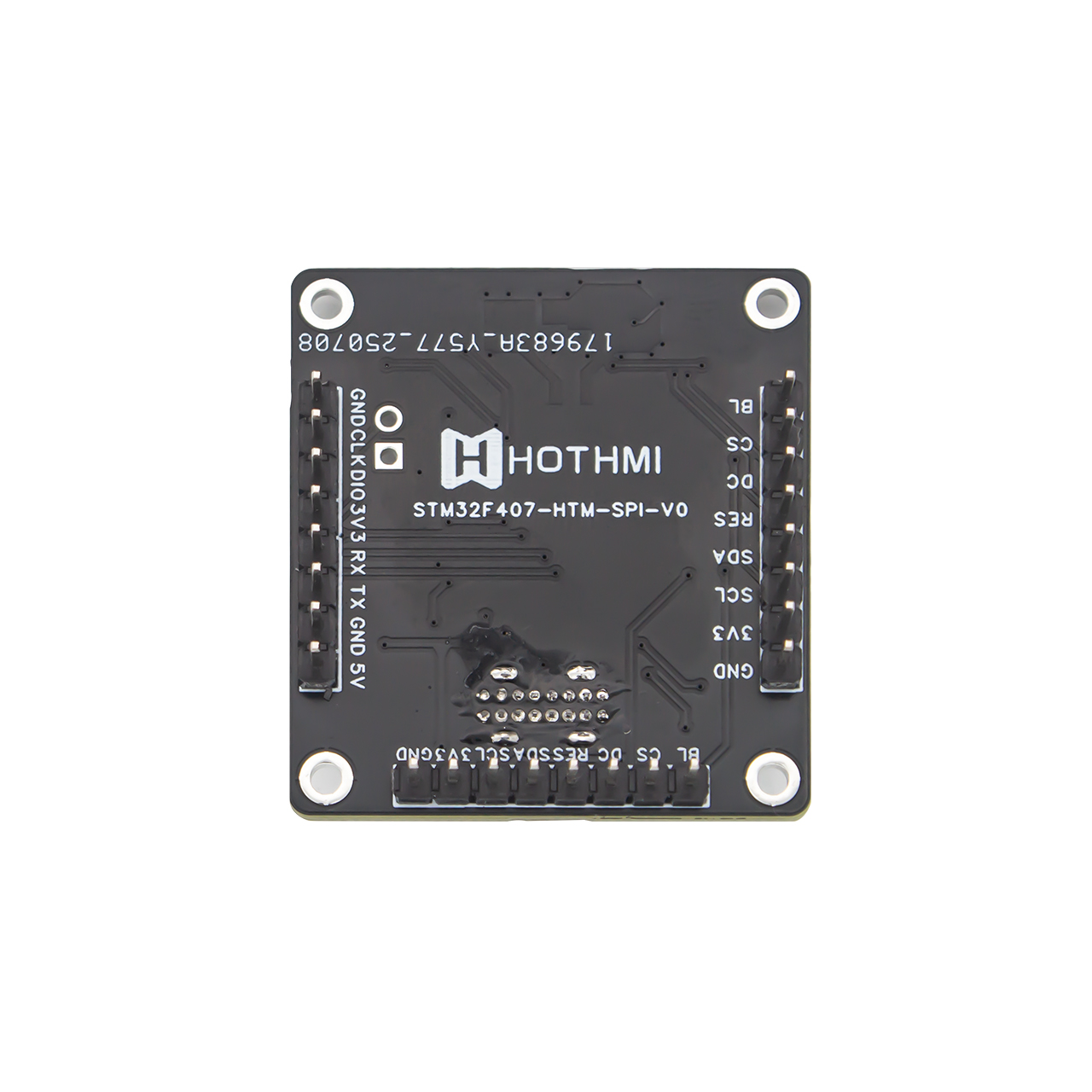

The STM32F407 Motherboard: The Core Engine of High-Performance Embedded Display Systems
When the high-performance STM32F407 motherboard is combined with a display, a powerful and responsive embedded graphics display system can be built. It is widely used in industrial control, smart home control, instrumentation, and other human-machine interface applications.
This motherboard, with its 168MHz Cortex-M4 core and hardware FPU, provides the system with exceptional graphics processing capabilities. It not only smoothly draws complex UIs, renders multiple fonts, and 2D graphics, but also easily handles computationally intensive display tasks such as real-time data waveforms and dynamic charts.
For display connectivity, the motherboard provides flexible solutions:
For SPI displays: The motherboard provides multiple high-speed SPI interfaces, combined with DMA technology, for fast, latency-free data transfer. It efficiently drives color displays based on popular chipsets such as the ILI9341 and ST7789, achieving high refresh rates and low CPU utilization.
For parallel interface displays: The motherboard's built-in dedicated LCD-TFT controller can directly drive RGB interface digital displays, supporting higher resolutions and refresh rates without the need for an external driver chip, resulting in a more detailed and vibrant display.
Furthermore, the motherboard's powerful expandability is a major highlight. Its extensive GPIO, ADC, and communication interfaces (such as UART, CAN, and Ethernet) allow for simultaneous connection of peripherals such as buttons, touch screens, sensors, and network modules. This enables the system to not only display but also perceive and control, becoming a truly complete intelligent terminal integrating information presentation, user input, and data processing.
