TFT-H070B13HDIIL4C40 | 7.0 Inch TFT LCD With PCAP | 800x1280 Resolution ILI9881C Controller

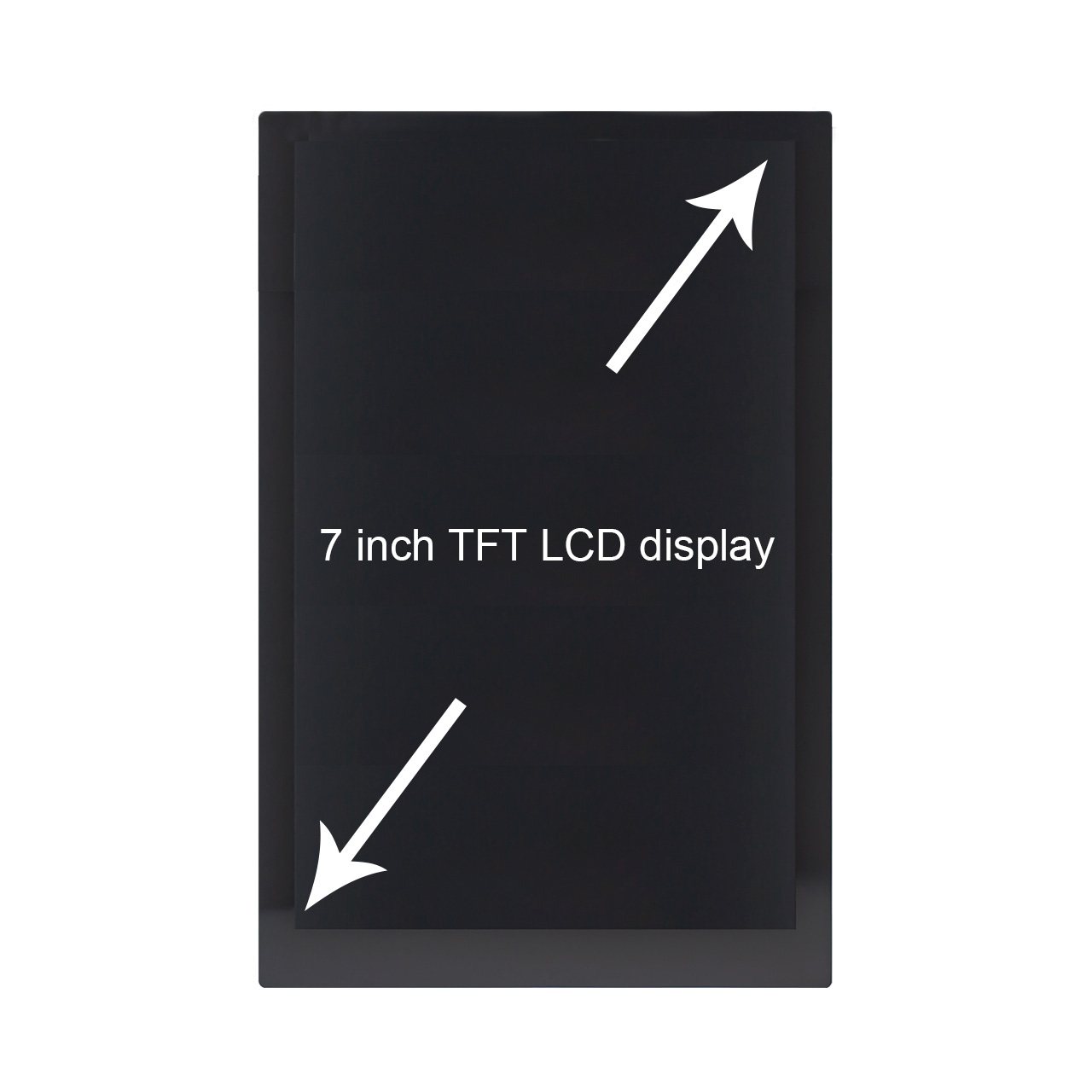

The TFT-H070B13 series LCD modules deliver a stunning 800×1280 pixel HD resolution. The 7-inch active display area is like a transparent window. Combined with IPS technology for a wide viewing angle and moderate brightness, they deliver high-quality images. Whether used for production line monitoring or outdoor equipment, images remain stable and clear, eliminating grayscale and color casts.

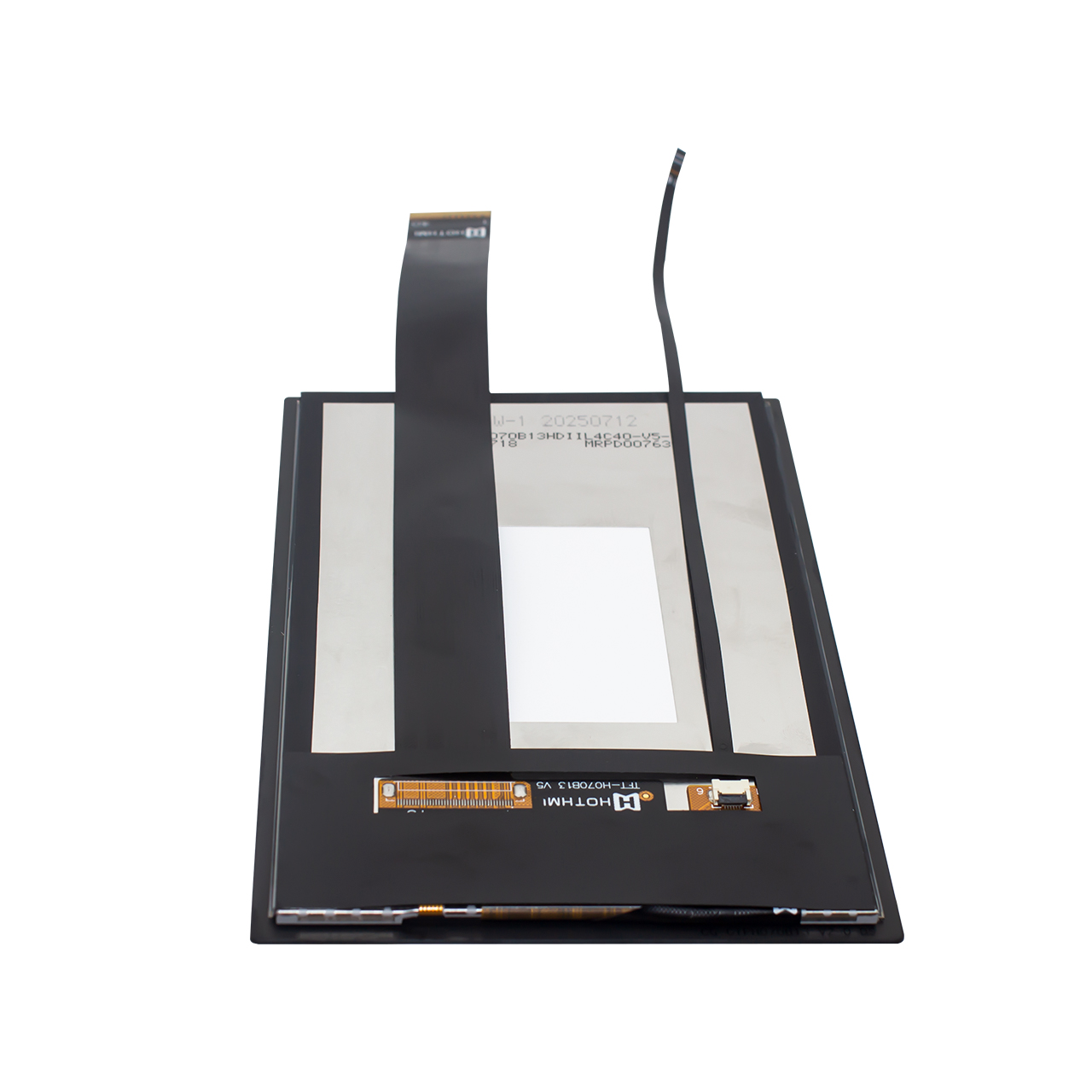

Feel free to touch with a light touch. The 6H hardness glass panel, powered by the GT911 capacitive touch chip, boasts over 80% light transmittance, ensuring precise, lag-free touch, even in humid environments and when operated with gloves. A typical brightness of 450 cd/m² penetrates strong light interference, and the NTSC 50% color gamut restores true colors, making parameter charts and fault alarms vivid and eye-catching.Under exquisite craftsmanship, they offer composure in harsh environments. The module's slim design fits into compact spaces, and the MIPI 4-lane interface ensures rock-solid data transmission. A hardware reset protection mechanism eliminates the risk of data corruption even in the event of a power outage.
From medical devices to in-vehicle central control systems, from industrial HMIs to smart terminals, the TFT-H070B13 uses light and shadow as its language and touch as its bridge, condensing reliable performance and sensory experience into a compact form factor, bringing tangible vitality to smart devices.
We also offer a non-touch version, the TFT-H070B13HDIIL5N40. We're not limited to these 7.0-inch TFTs; we also offer a 7.0-inch bar-shaped TFT LCD, the TFT-H070A21ZBINV6N40, and an ultra-bright, sunlight-readable 7-inch TFT LCD, the TFT-H070B26WSIJDKC40. For users lacking development capabilities, we also offer a simple and easy-to-use 7-inch smart display module.
