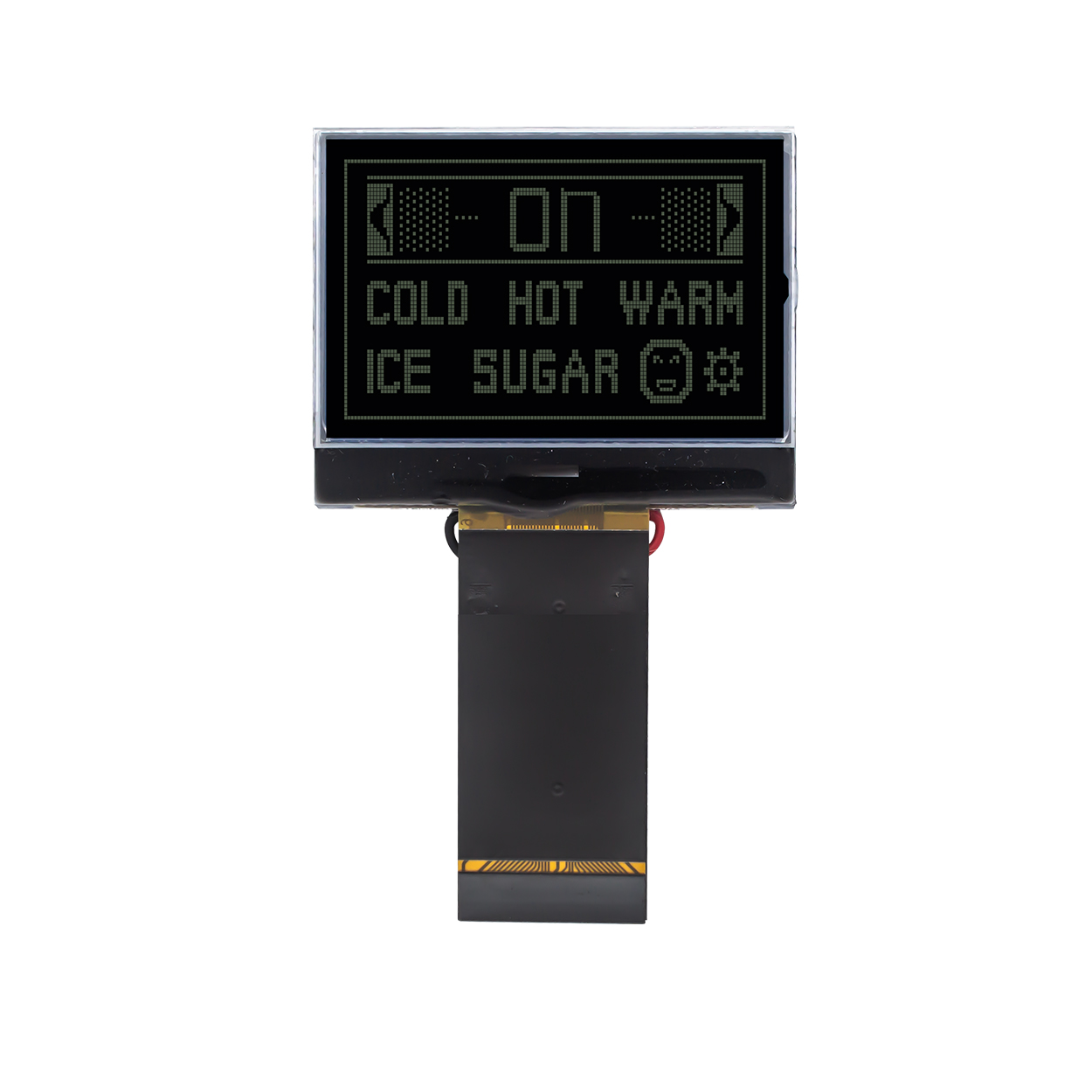

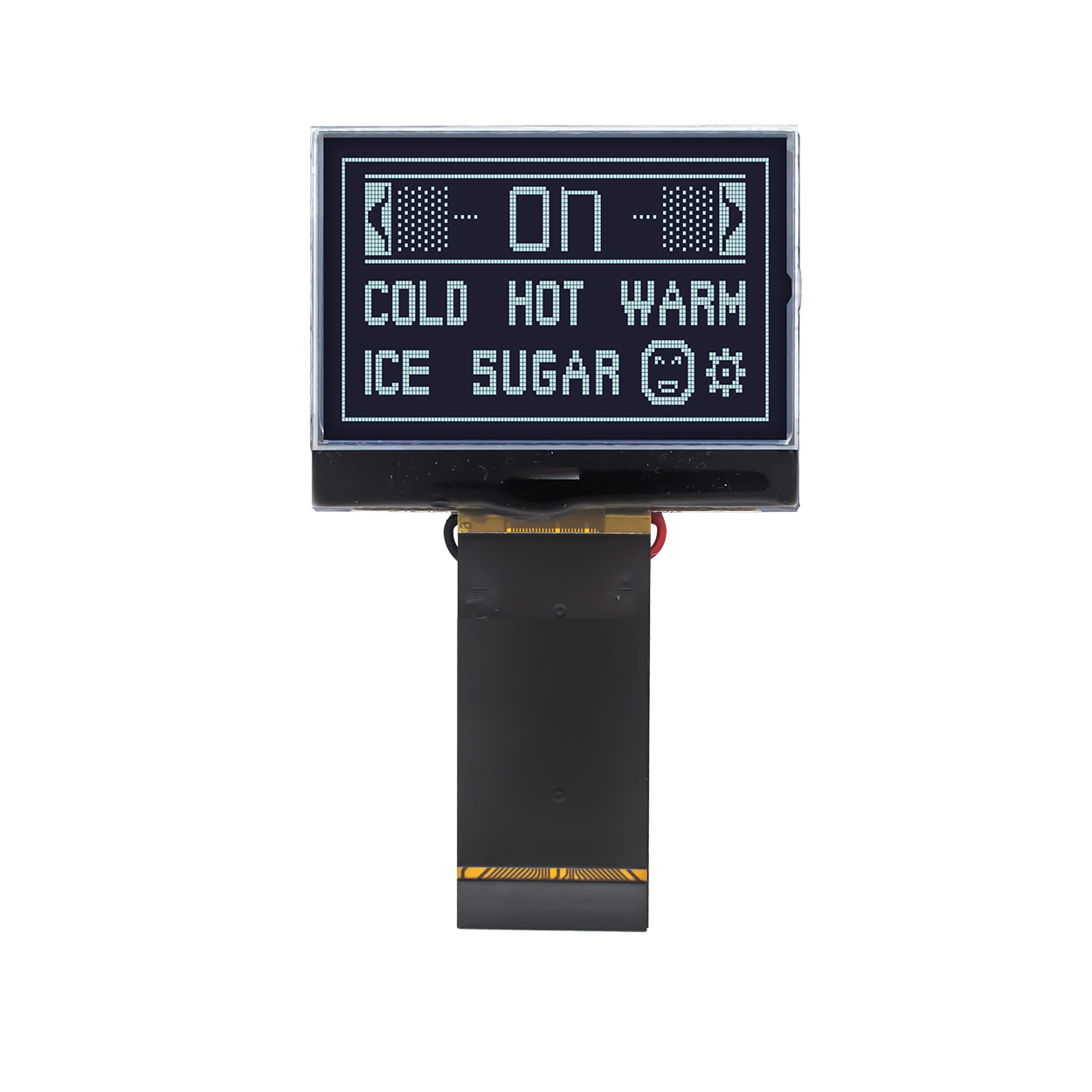

1.5" 128x64 DFSTN(-) Graphic LCD COG | 12864 Black Background White Character COG LCD | ST7565R | Arduino
In the trend of miniaturization of embedded devices, this 128x64 Graphic LCD has become an ideal visual solution with its extremely integrated design. Its core adopts a 1.5-inch white background monochrome dot matrix LCD screen. The driver chip is directly encapsulated on the glass substrate through the advanced COG (Chip on Glass) process, achieving a breakthrough compression of module thickness and volume, providing a high-density integration solution for space-constrained scenarios.
Equipped with the ST7567 controller and optimized interface architecture, the 128x64 Graphic LCD module has excellent hardware compatibility. Whether it is the traditional 8051/PIC/AVR architecture or the modern Arduino platform, ARM processor or Raspberry Pi, plug-and-play connection can be achieved, significantly reducing the threshold for embedded system development.
In terms of optical performance, the innovative semi-transparent display mode achieves environmental adaptation. In a dark environment, the built-in yellow-green backlight penetrates the liquid crystal layer to present a bright and sharp positive display effect; in natural light conditions, the reflective mode is activated to use ambient light to clearly display the content. This dual-mode collaboration ensures full-scene visibility from industrial control cabinets to outdoor equipment.
Manufacturers provide deep customization support to meet diverse needs: users can choose display technologies such as STN(±)/FSTN(+)/DFSTN(-), with appearance combinations such as gray background with blue text, white background with black text, or black background with white text. It can also be pre-configured according to the device installation location (such as below the console or on the top of the instrument) with the best viewing direction of 6:00 (bottom viewing angle) or 12:00 (top viewing angle) to ensure that the end user always has a comfortable reading experience.
This 128x64 Graphic LCD combines compact structure, wide compatibility, environmental adaptive display and multi-dimensional customization capabilities, making it the preferred human-computer interaction interface for industrial instruments, portable medical devices and smart hardware.
