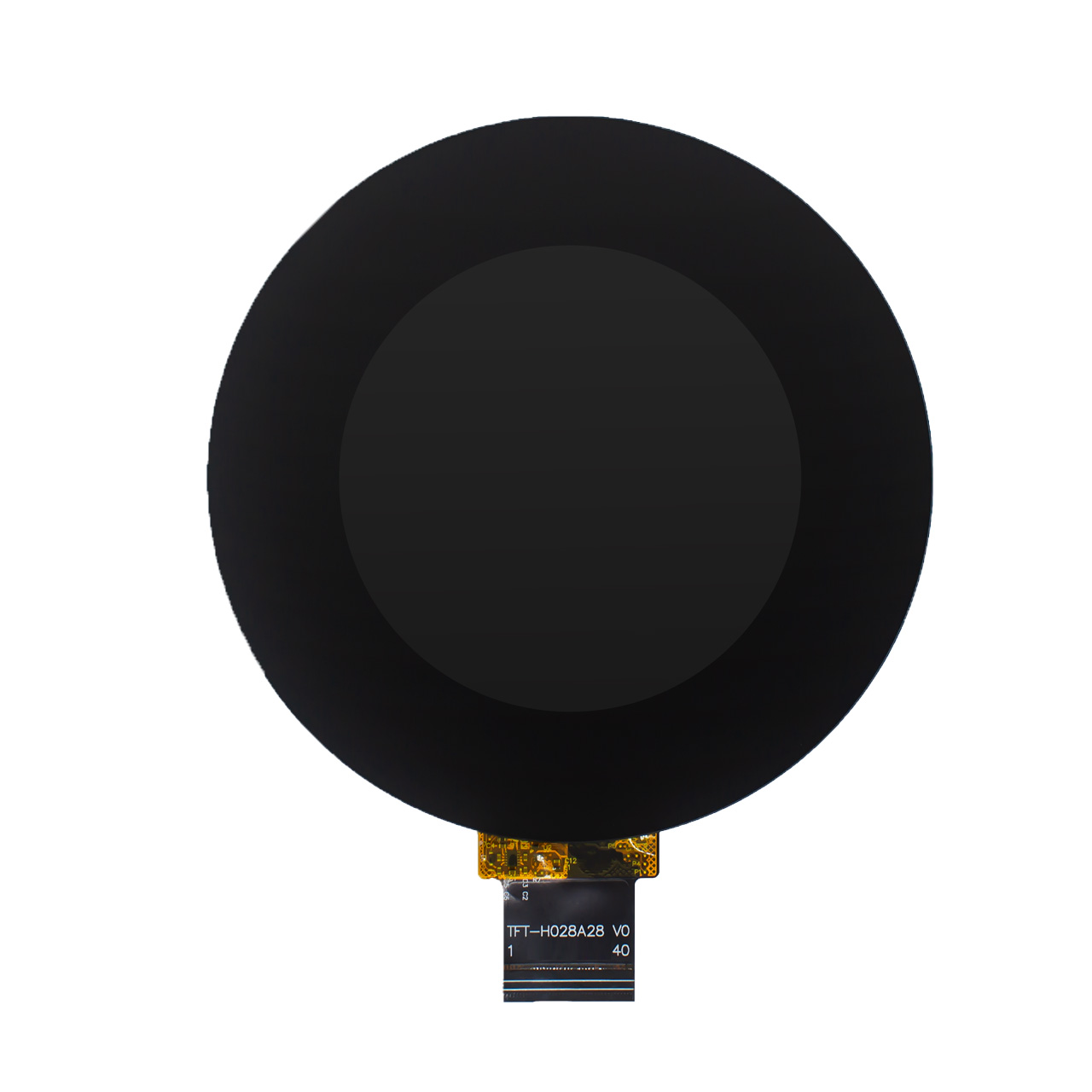

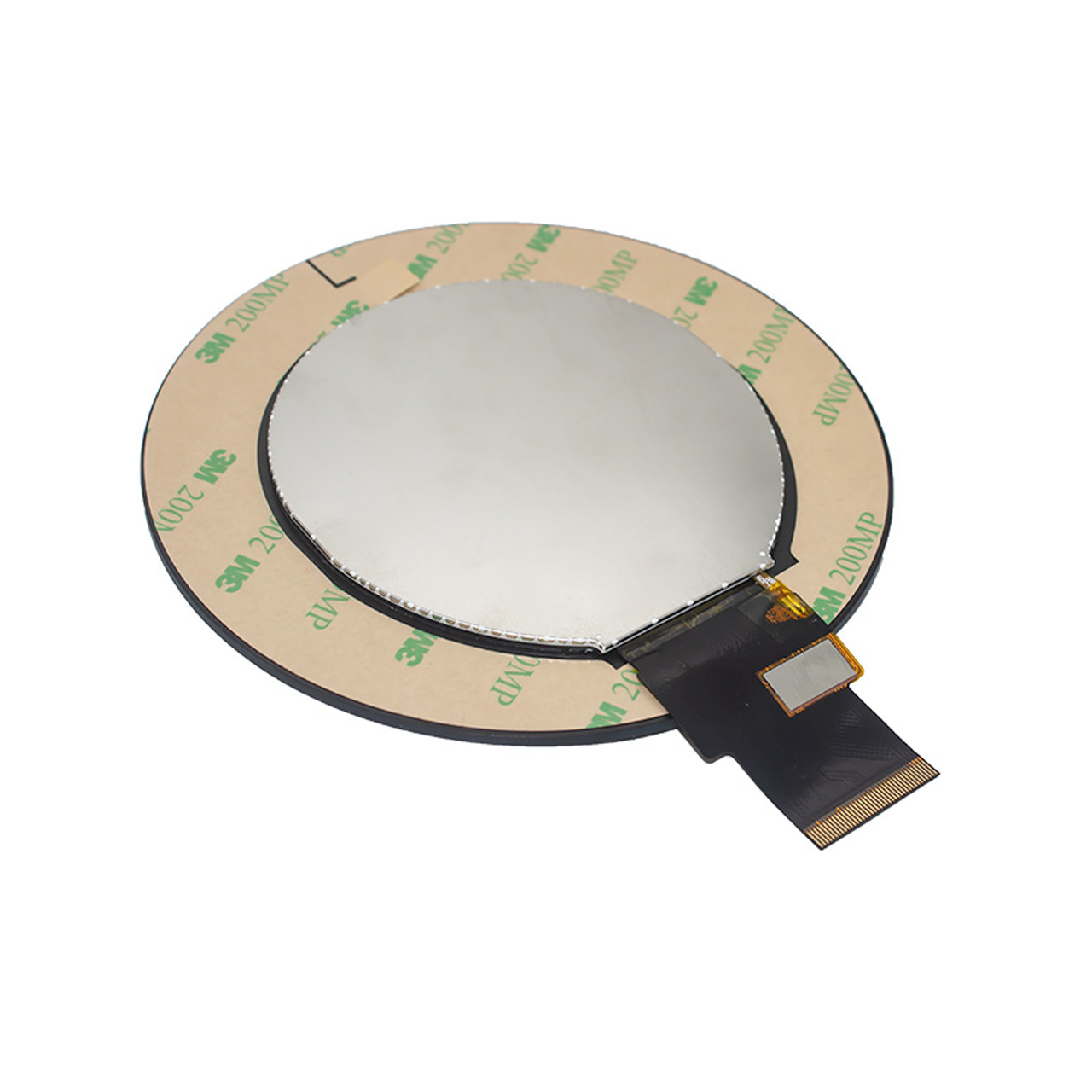

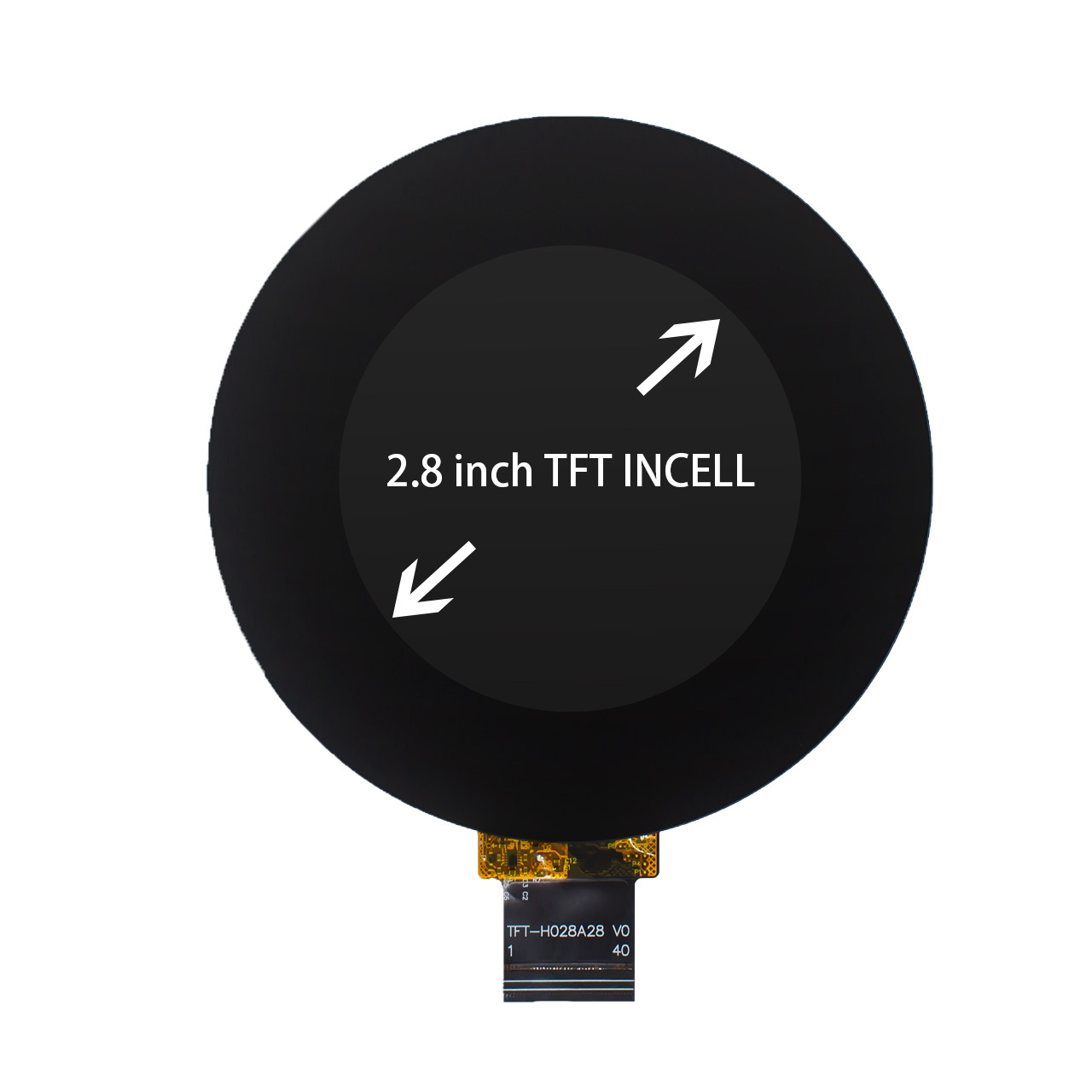

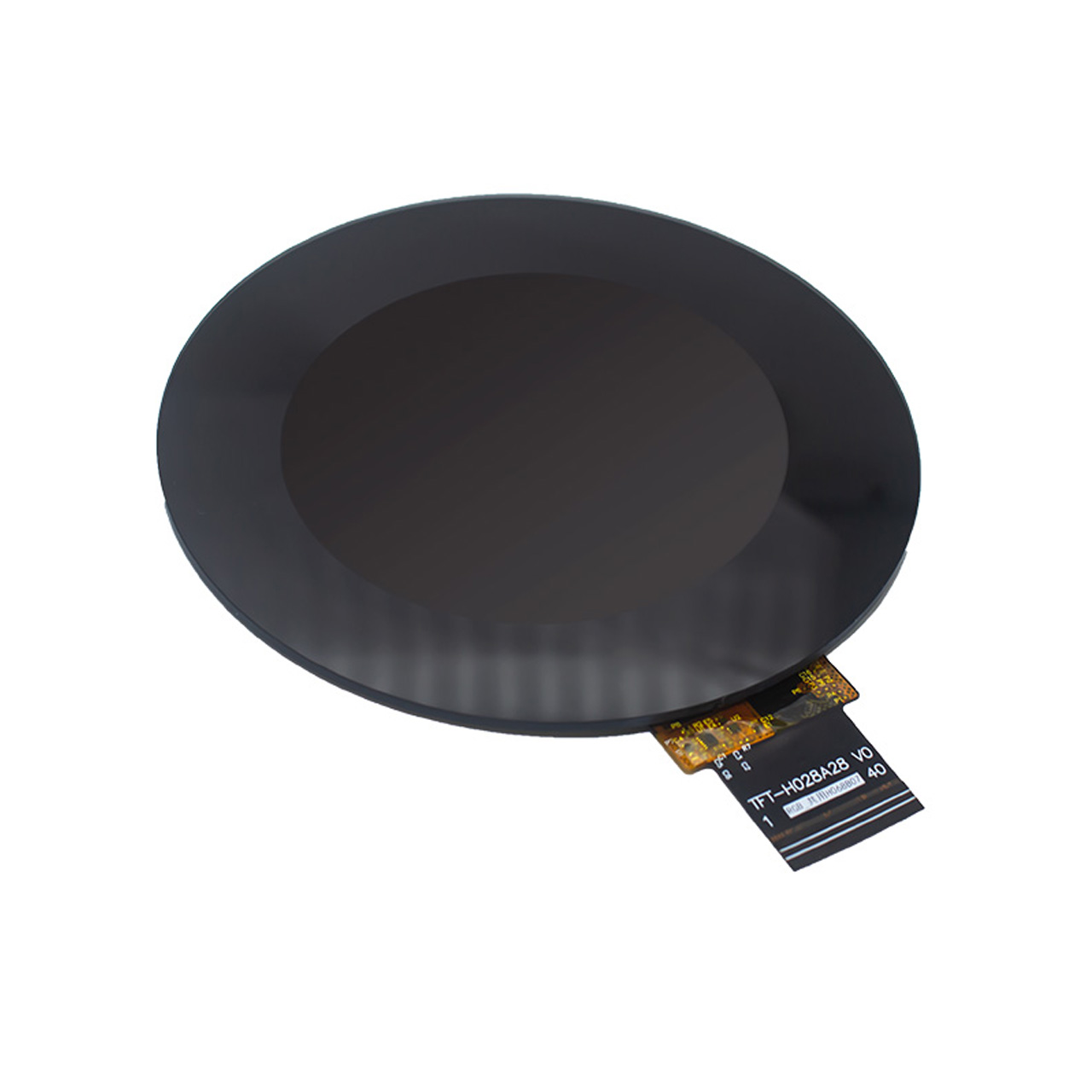

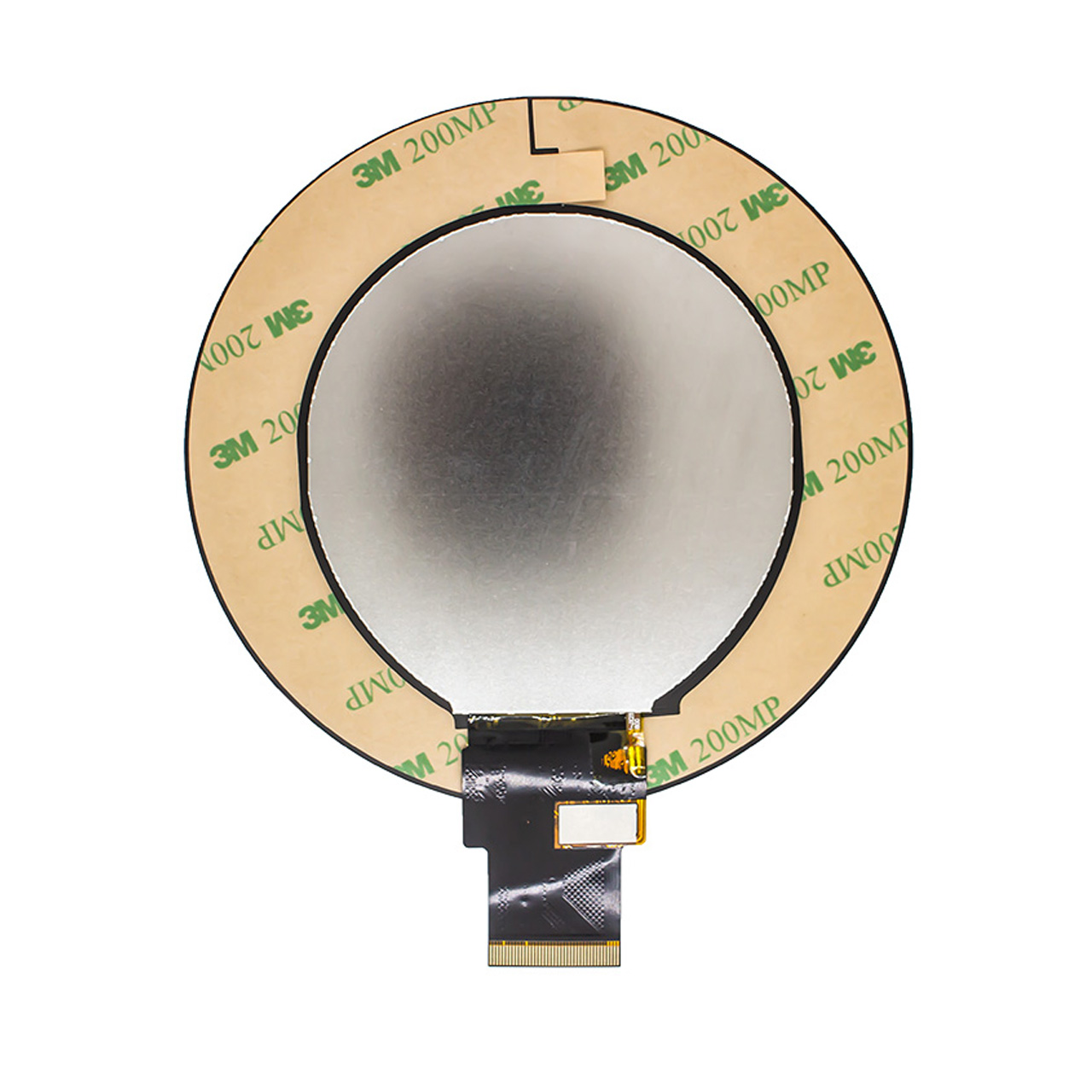

2.8-inch TFT LCD screen with in-cell capacitive touch, 540x540 pixel industrial monitor with RGB wide temperature range.

▶ Model: TFT-H028A28ZUIAX4G40

▶ Model: TFT-H028A28ZUIAX4G40
▶ Type: TFT circular in-cell
▶ Display Pixels: 540x540 Px

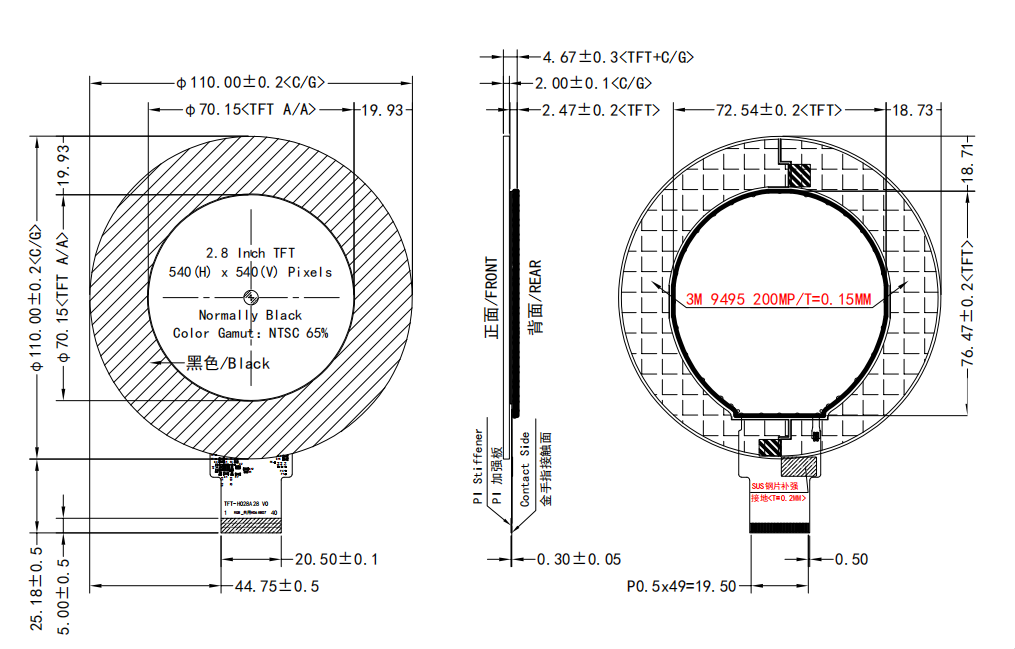

▶ Dimensions (mm): 110x110x4.67
▶ Display Inches: 2.8"
▶ Effective Size (mm): 70.15x70.15
▶ Applications: Smart home appliances, robot vacuums
▶ Viewing Angle: IPS full viewing angle
▶ Brightness: 400cd/m²
▶ Pins: FPC-40PIN
▶ Interface: RGB
▶ Special Note: ESD protection 8KV
▶ Operating Temperature: -20~70℃
▶ Power Supply Voltage: 3.3V
▶ Driver Chip: AXS15260D <TFT+CTP>

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

No Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
COG Adapter Board

Product Description
Customized Services
Attributes

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H028A28ZUIAX4G40
Diagonal size	2.8”	Inch
Resolution	540x540	Dot
Dimensions	110x110x4.67	mm
Active area (AA)	70.15x70.15	mm
LCD type	2.4 inch TFT LCD display	mm
Display viewing angle	Full View
Aspect ratio	1:1
Backlight type	LED white
TFT driver IC	AXS15260D
Brightness	400	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
