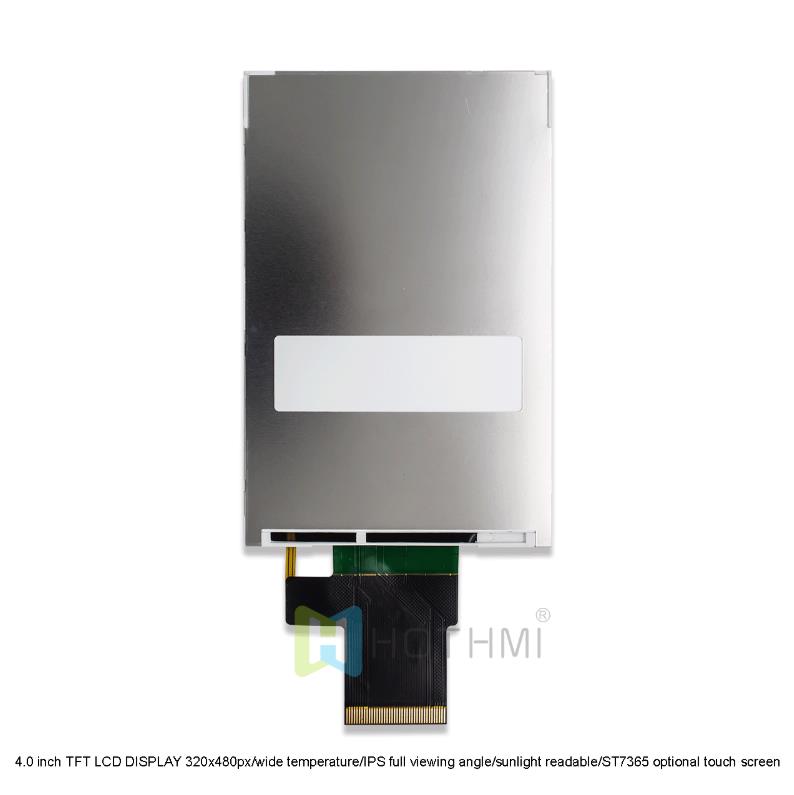

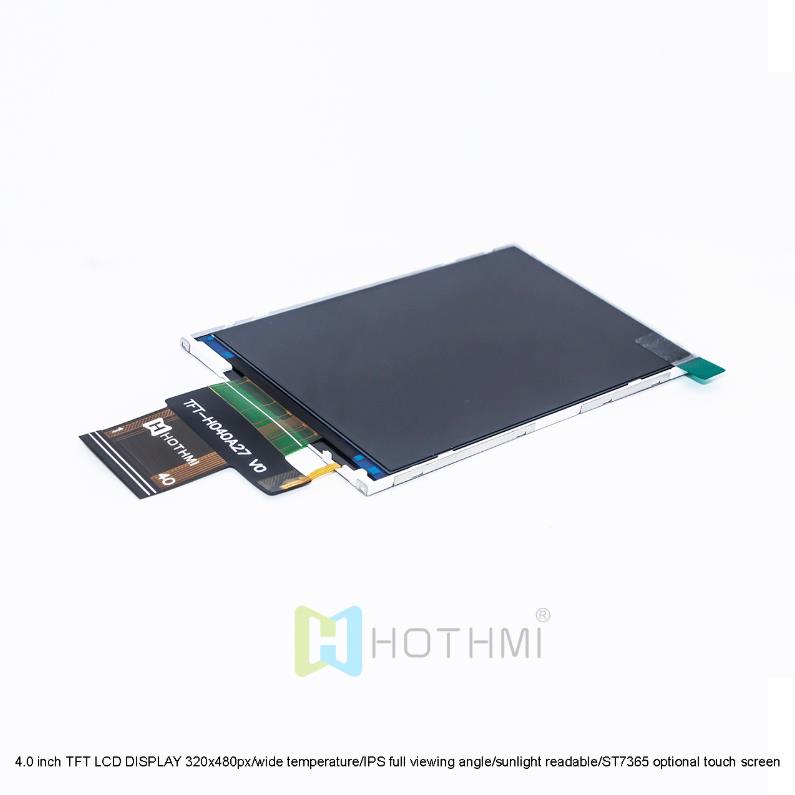

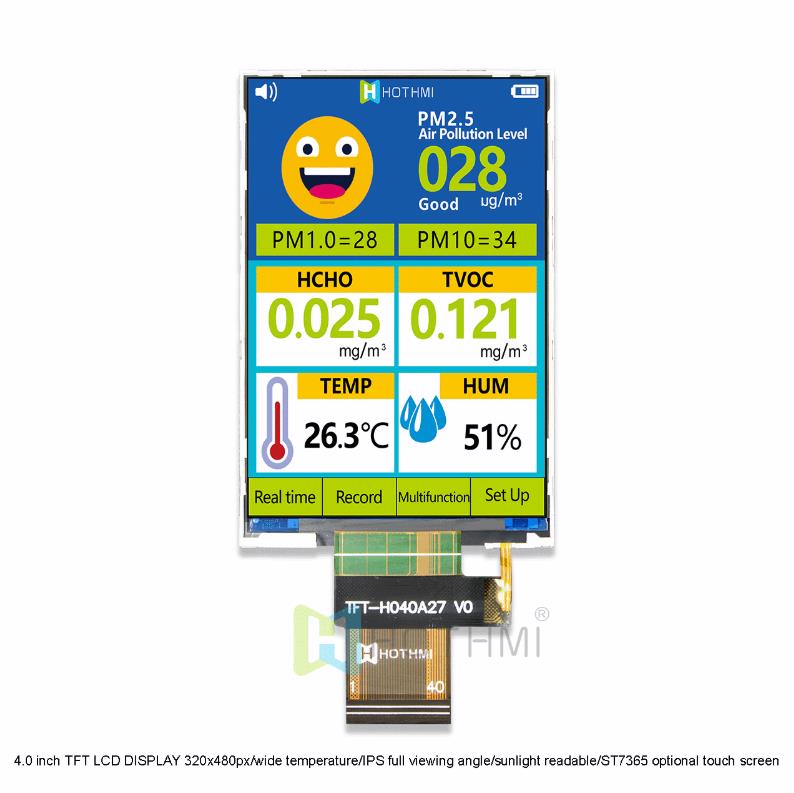

4.0 Inch TFT Display SPI LCD Module for Embedded Product ST7365

4.0 Inch TFT Display SPI LCD Module for Embedded Product ST7365

▶ Model: TFT-H040A27FWIST5N40

▶ Type: TFT vertical screen
▶ Display pixels: 320x480 Px
▶ External dimensions (mm): 60.88x94.57x2.3
▶ Display inches: 4.0"
▶ Effective size (mm): 55.68x83.52
▶ Application: C8051/Arduino/STM32
▶ Perspective: IPS (U80/D80/L80/R80)
▶ Brightness: 500cd/m2
▶ Pin: FPC-40PIN
▶ Interface: MCU
▶ Special reminder: Anti static ESD 8KV
▶ Working temperature: -30~80 ℃
▶ Power supply voltage: 3.3V
▶ Driver chip: ST7365
Product ConsultationDatasheets Download
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

No Back Next

Product Description
Customized Services
Attributes

TFT-H040A27FWIST5N40 4.0 Inch TFT Display SPI LCD Module for Embedded Product ST7365
The 4.0 Inch TFT Display SPI LCD Module, powered by the ST7365 driver IC, is a high-performance display solution designed for embedded product development.
The 4.0 Inch TFT Display SPI LCD Module, powered by the ST7365 driver IC, is a high-performance display solution designed for embedded product development. This SPI LCD Module features a sharp 320(RGB)×480 pixel resolution with IPS technology, delivering exceptional wide viewing angles (U89/D89/L89/R89 typical) and vibrant color reproduction. The active display area measures 55.68mm × 83.52mm, while the compact module dimensions of 60.88mm × 94.57mm × 2.30mm make it ideal for space-constrained applications.
This versatile SPI LCD Module supports multiple host interfaces, including 4-line 8-bit serial I/F, 8-bit 8080 MCU parallel bus, and 16-bit parallel bus (default). The 4-wire SPI interface allows seamless connection with low-pin-count microcontrollers, while the integrated tearing effect (TE) pin enables smooth frame synchronization. The module operates at a digital power supply of 3.0V typical and includes a built-in backlight driver with typical forward voltage of 3.0V and current of 160mA, achieving 500 cd/m² typical luminance.
Designed for reliability, this SPI LCD Module operates across a wide temperature range of -30°C to +80°C and can be stored between -30°C and +80°C. Optional capacitive touch panel is available upon request. The module includes comprehensive initialization code in the datasheet, simplifying software development. Typical applications include industrial HMIs, medical devices, smart home control panels, and portable instrumentation. With its robust construction, excellent optical performance, and flexible interface options, this SPI LCD module delivers the perfect balance of performance and integration for your next embedded project.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
4.0 Inch TFT Display SPI LCD Module for Embedded Product	April 04, 2026	1.46MB

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).
