character LCD modules |1X16 FSTN+ RGB backlight-Arduino-1601B

character LCD modules |1X16 FSTN+ RGB backlight-Arduino-1601B

▶ Model: HTM1601B-35S-A5P

▶ Type: character LCD modules
▶ Display content: 16x1 characters
▶ Overall dimensions (mm): 151.0x40.0x9.6
▶ VA size (mm): 120.0x23.0
▶ AA size (mm): 114.0x14.54
▶ Point spacing mm: 1.212x1.825
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight type:RGB
▶ Number of PINs: 16PIN
▶ Interface: MCU
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0v
▶ Driver chip:ST7066U
Product ConsultationDatasheets Download Shopping
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

character LCD modules |1X16 FSTN+ RGB backlight-Arduino-1601B

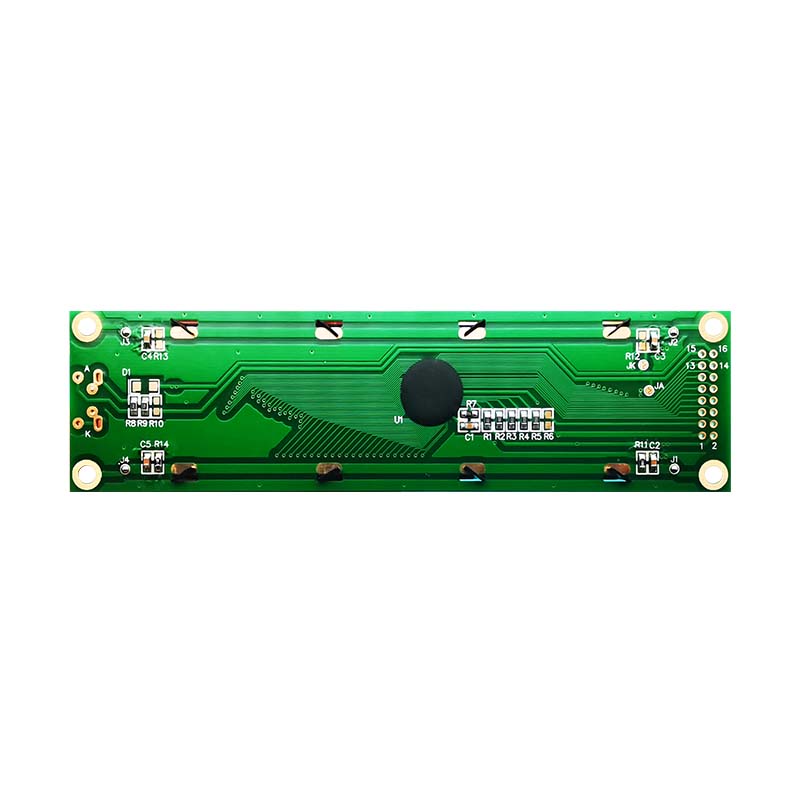

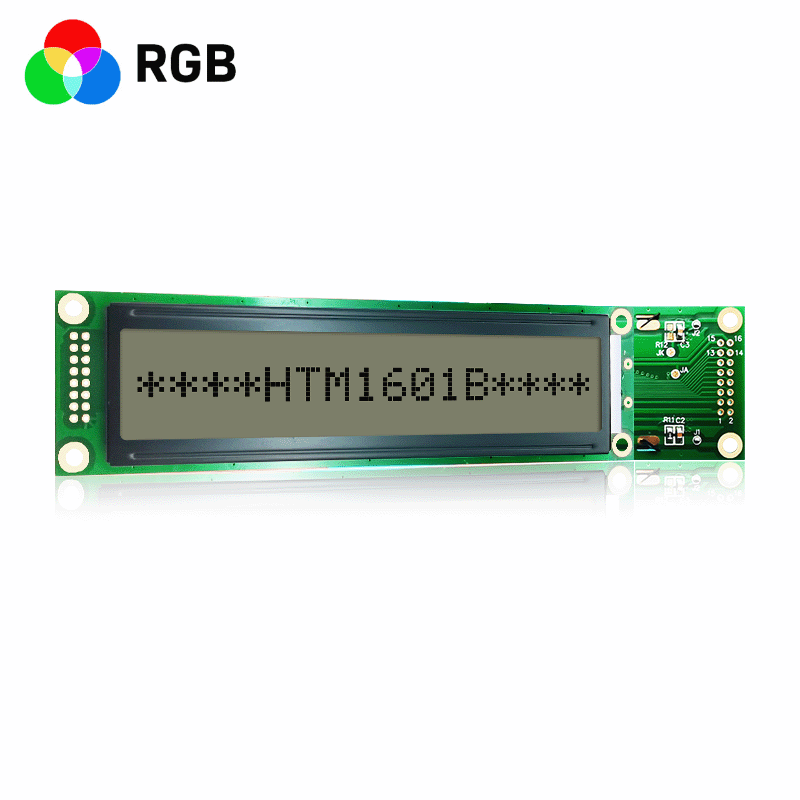

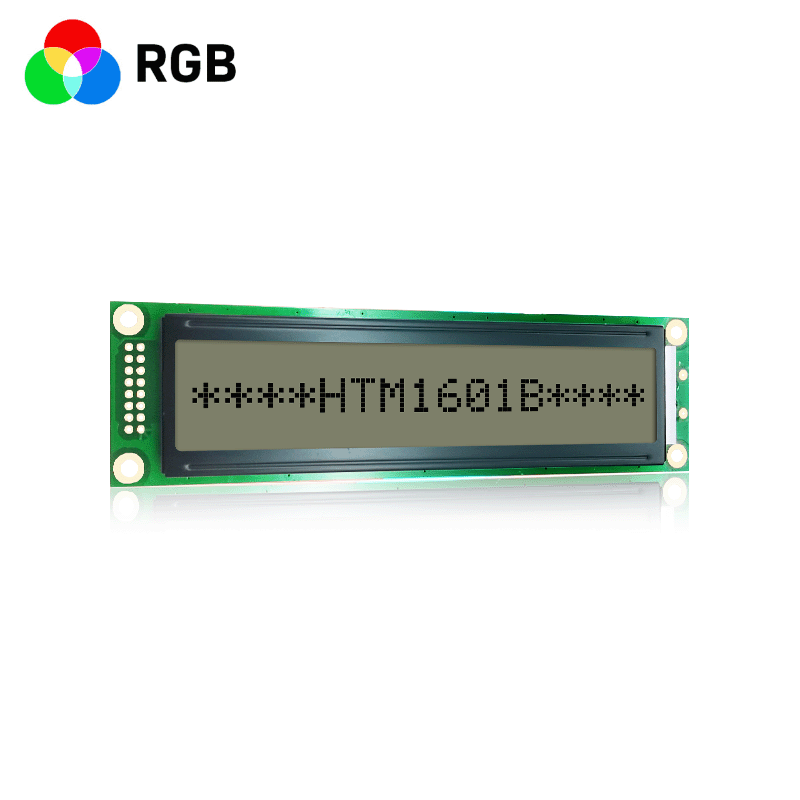

This character LCD modules 16*1 character LCD can display up to 16 characters simultaneously by showing 16 characters per line. It shows dark pixels on a bright gray background. It has three types of backlight: red, green, and blue, and you can freely choose the color scheme.The transflective LCD mode allows this LCD to be visible with natural light or in low-light environments. It operates in a wide operating temperature range (-20 to 70 C) and a 5V supply voltage. This long character display is compatible with Arduino and other dev boards.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
HTM1601B-35S-A5P-V03	March 03, 2024	32.44KB

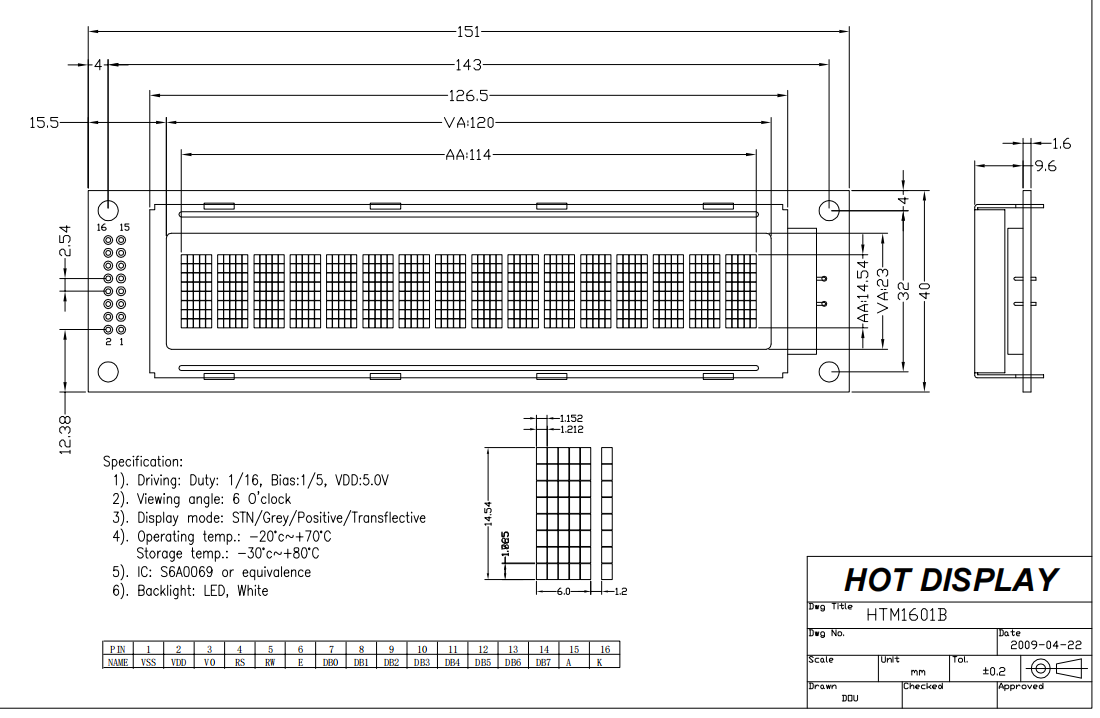

Projecy	Parameter Description	Unit
name	HTM-1601B-35S-A5P
Number of dots	16x1 character	dots
Module size	151.0 × 40.0 × 9.6 (MAX)	mm
VA size	120.0（W） × 23.0（H）	mm
AA size	114.0（W） × 14.54（H）	mm
Pixel pitch	1.212x1.825	mm
IC	ST7066
voltage	5.0V	V
backlight	Red green blue
display mode	FSTN+
Drive mode (Duty)	1/16 duty cycle
type	character module
characteristic	Totally transflective polarizer
