Character LCD Modules|1X16 mono STN+ Yellow/Green Background with Yellow/Green Backlight-Arduino

Character LCD Modules|1X16 mono STN+ Yellow/Green Background with Yellow/Green Backlight-Arduino

▶ Model: HTM1601C-01Y-A5P

▶ Product type: Character LCD Modules
▶ Display content: 16x1 characters

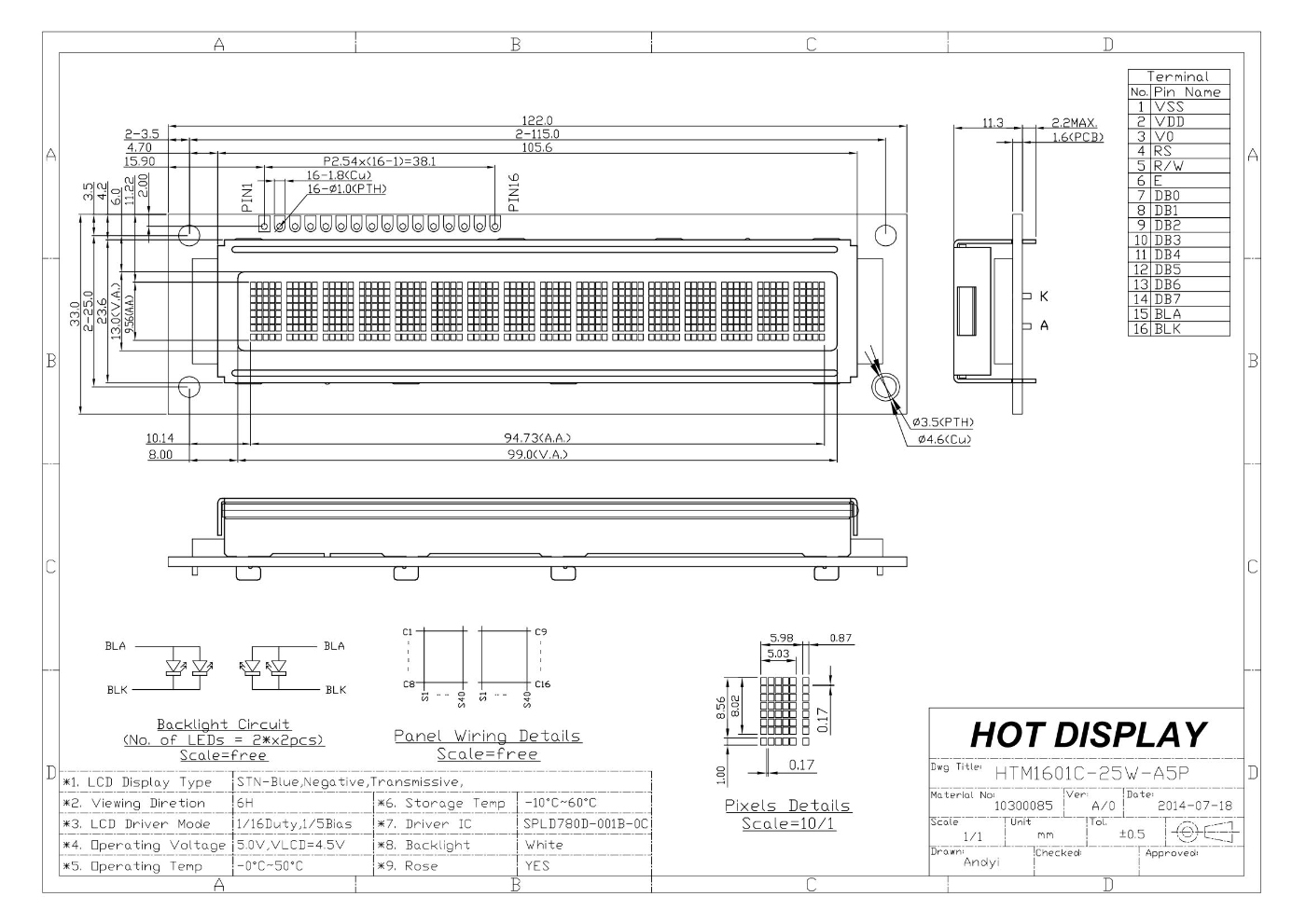

▶ Overall dimensions (mm): 122.0x33.0x8.0
▶ View window size (mm): 99.0x13.0
▶ Display size (mm): 94.73x9.56
▶ Point spacing mm: 1.17x1.04
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight: yellow-green light
▶ Number of PINs: 16PIN
▶ Interface: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0v
▶ Driver chip: SPLD780D
Product ConsultationDatasheets Download Shopping
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

Character LCD Modules|1X16 mono STN+ Yellow/Green Background with Yellow/Green
Backlight-Arduino

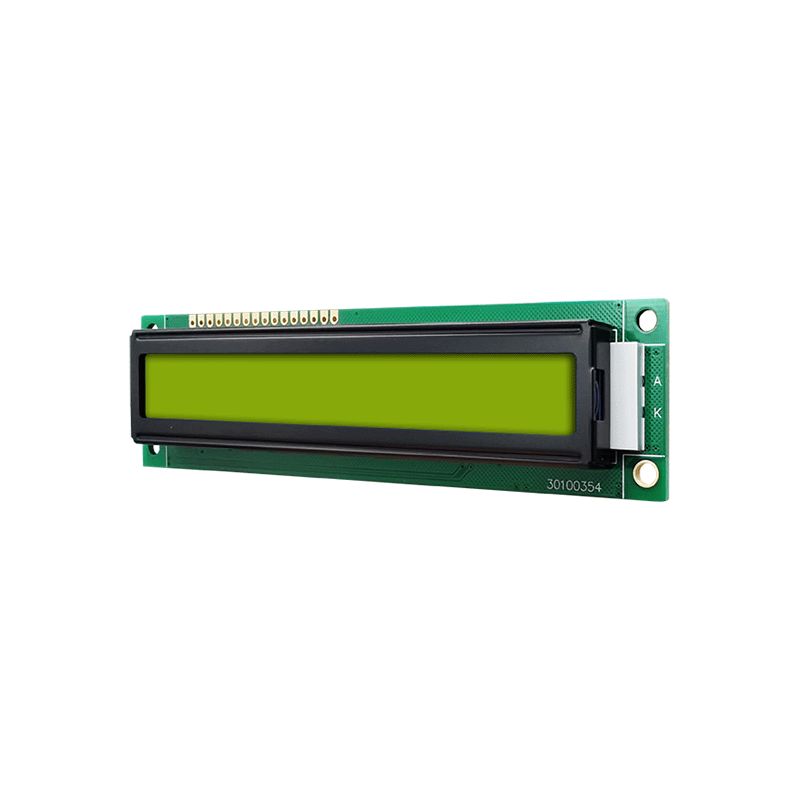

The Character LCD Modules hot display model is a 1x16 character LCD with yellow/green display and backlight. This is a reflective LCD, meaning it can be seen in ambient light, or the backlight can be turned on in dimly lit conditions for better visibility. The display has a wide operating temperature range of -20 to 70 degrees centigrade, making it suitable for different applications.
The display characters are black pixels on a bright yellow/green background. The backlight is yellow/green LED, which provides uniformity for the entire display screen.

item	Specification content	uint
model	HTM1601C-01Y-A5P
words × lines	16 words × 1line	dots
Module size	122.0x33.0x8.0 (MAX)	mm
VA size	99（W） × 13.0（H）	mm
AA size	94.73x9.56	mm
Point (pixel) spacing	1.17（W） × 1.040（H）mm	mm
IC	SPLD780D
Application voltage	5V	V
backlight	Yellow /green
model	STN+
Drive mode	1/16 duty cycle
type	Character LCD module
Polarizer type	transflective
