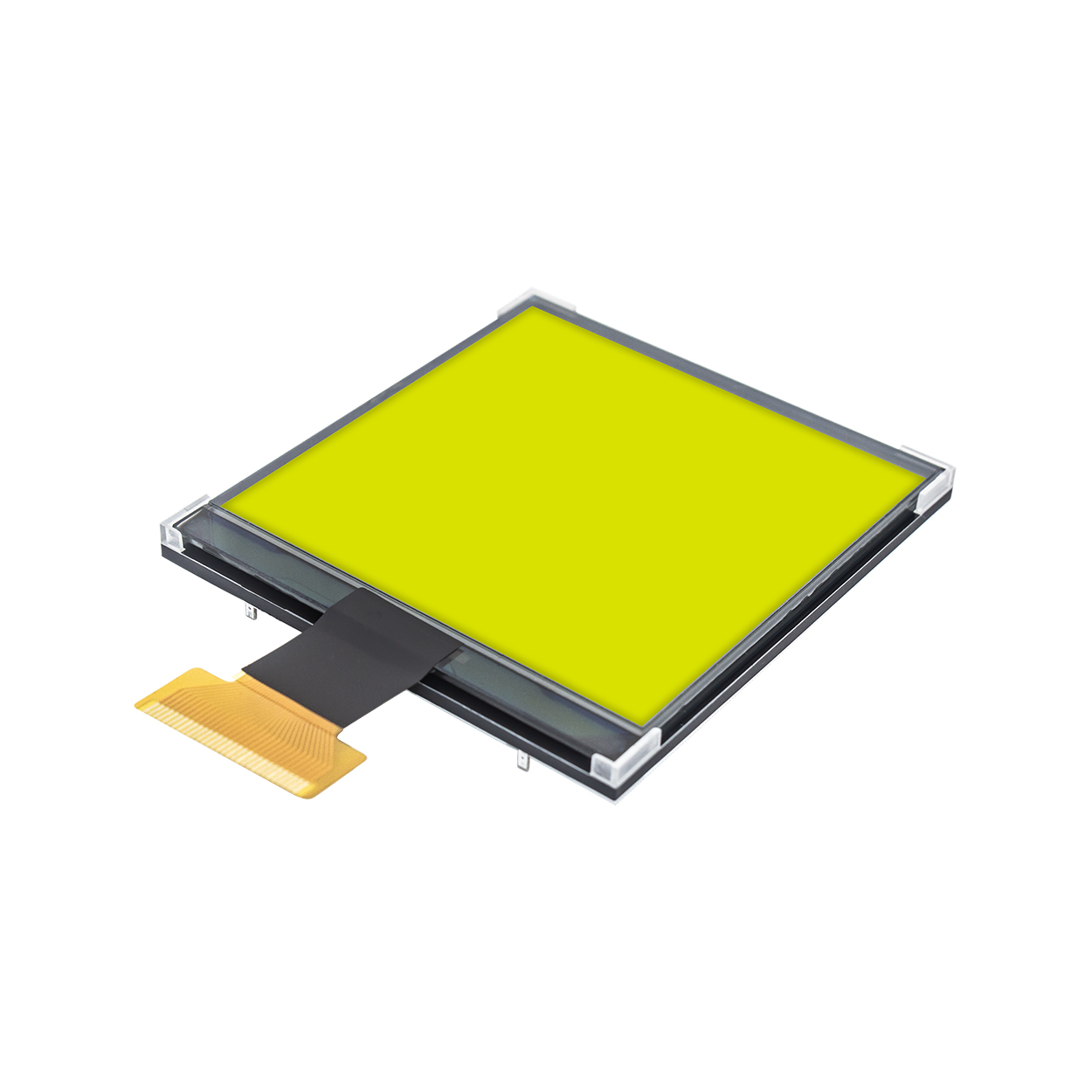

3.3-inch 128x128 square COG LCD display | STN+yellow green COG

3.3-inch 128x128 square COG LCD display | STN+yellow green COG | Arduino

▶ Model: HTG128128E-01Y

▶ Type: COG graphic dot matrix
▶ Display pixel: 128x128
▶ Dimensions (Mm): 66x71.5x4.85
▶ Display inches: 3.3“
▶ VA size (mm): 60.0x59.6
▶ AA size (mm): 55.02x55.02
▶ Point spacing (mm): 0.43x0.43
▶ Application: Frequency converter
▶ Perspective: 6H
▶ Backlight/Brightness: Yellow Light
▶ Pin: FPC-31PIN
▶ Interface method: SPI
▶ Special note: Anti static ESD 8KV
▶ Working temperature:- 20~70℃
▶ Supply voltage: 3.3V
▶ Driver chip: SSD1848
Product ConsultationDatasheets Download
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
COG Adapter Board

Product Description
Customized Services
Attributes

3.3-inch 128x128 square COG LCD display | STN+yellow green COG | Arduino

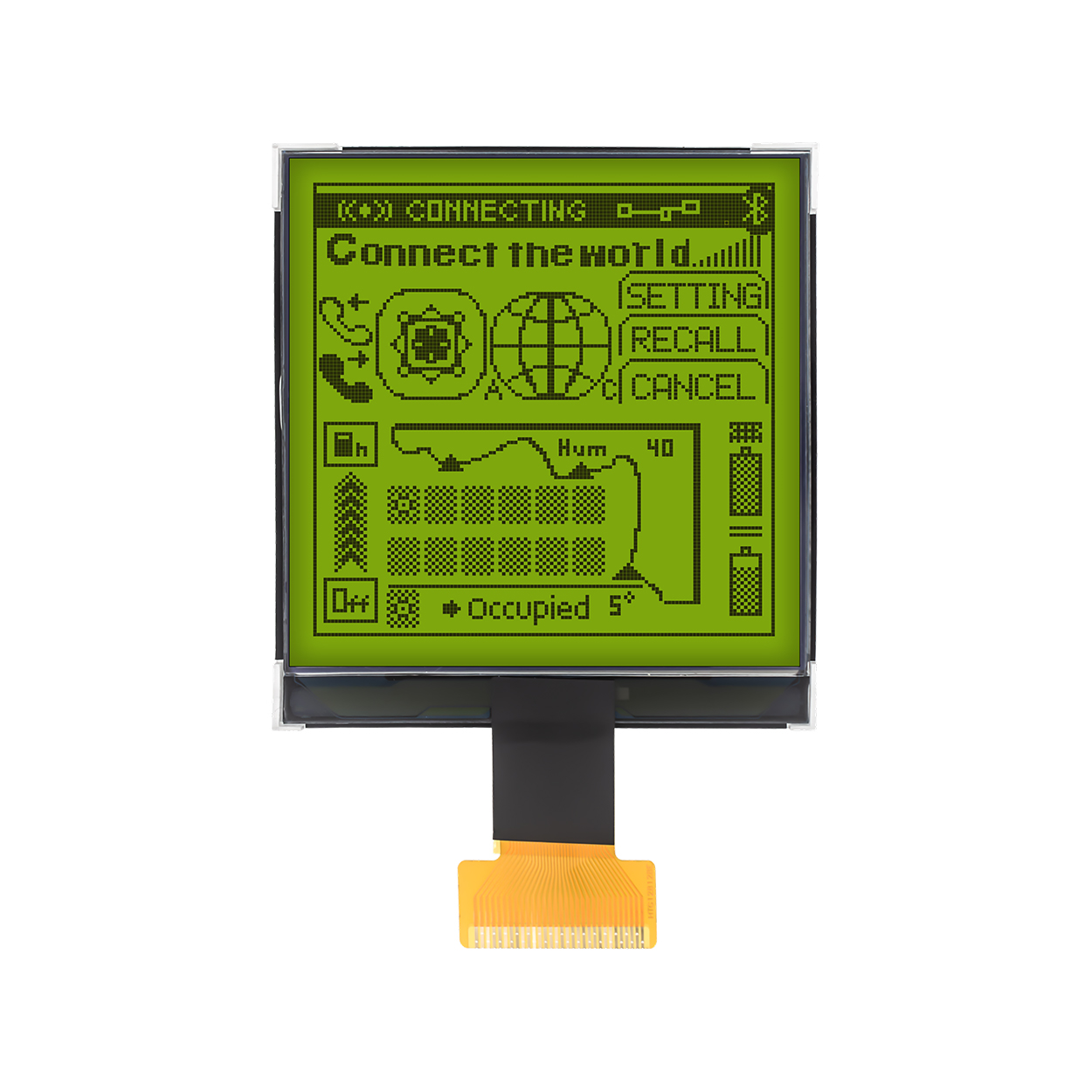

HTG128128E-01Y is a high-performance LCD display screen designed specifically for applications that require high clarity and reliability. This display screen adopts STN (Thin Film Super Twisted Nematic) technology, which has a transparent and reflective forward display characteristic, ensuring clear visual effects under various lighting conditions.
Main features
High resolution: 128x128 pixels, providing delicate display effects, suitable for applications that require fine image display.
Wide viewing angle: 6 o'clock directional viewing angle, ensuring clear display effect when viewed from different angles.
Wide temperature range: The working temperature range is -20 ° C to 70 ° C, and the storage temperature range is -30 ° C to 60 ° C, suitable for various environmental conditions.
Low power design: The working voltage is 3.3V, the backlight uses white LED, the voltage is 3V, and the current is 60mA, which is energy-saving and efficient.
High reliability: Adopting SSD1848 driver IC to ensure stable performance and long lifespan.
Application area
HTG128128E-01Y LCD display screen is widely used in industrial control, medical equipment, smart home, consumer electronics and other fields, especially suitable for devices that require high reliability and clear display.

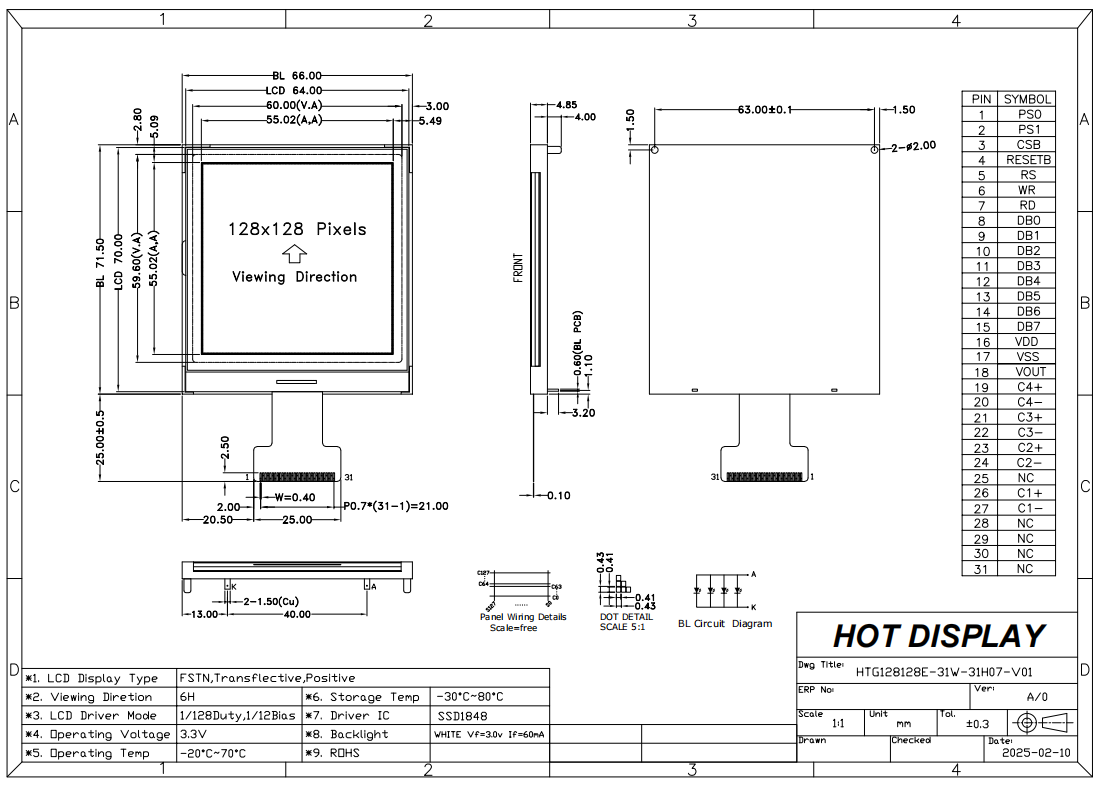

Datasheet for Touch Panel,Controller↓

Name	Date	Size
HTG128128E-01Y-31H07-V01	March 03, 2025	62.83KB

Parameter	Specification content	Unit
name	HTG128128E-01Y
graphic display	128 × 128	dots
External dimensions	66x71.5x4.85 (MAX)	mm
VA size	60.0x59.6	mm
AA size	55.02x55.02	mm
Pixel pitch	0.43x0.43	mm
Driver chip	SSD1848
applied voltage	3.3V	V
Backlighting	Y/G
display mode	STN(+)
drive mode	1/128 duty cycle
product type	Graphic COG
Polarizer type	Transflective
