16x1 Character LCD Modules | STN+ Gray with Yellow/Green Backlight

16x1 Character LCD Modules | STN+ Gray with Yellow/Green Backlight

▶ Model：
HTM1601A-11Y-A5P

▶ Product type: Character LCD Modules
▶ Display content: 16x1 characters
▶ Overall dimensions (mm): 80.0x36.0x13.1
▶ View window size (mm): 64.5x16.0
▶ Display size (mm): 59.46x5.96
▶ Point spacing mm: 0.65x0.75
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight: yellow-green light
▶ Number of PINs: 16PIN
▶ Interface: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0v
▶ Driver chip:ST7066U
Product ConsultationDatasheets Download
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

Character LCD Modules |Arduino-1X16 STN MONO+ Gray with Yellow/Green Backlight

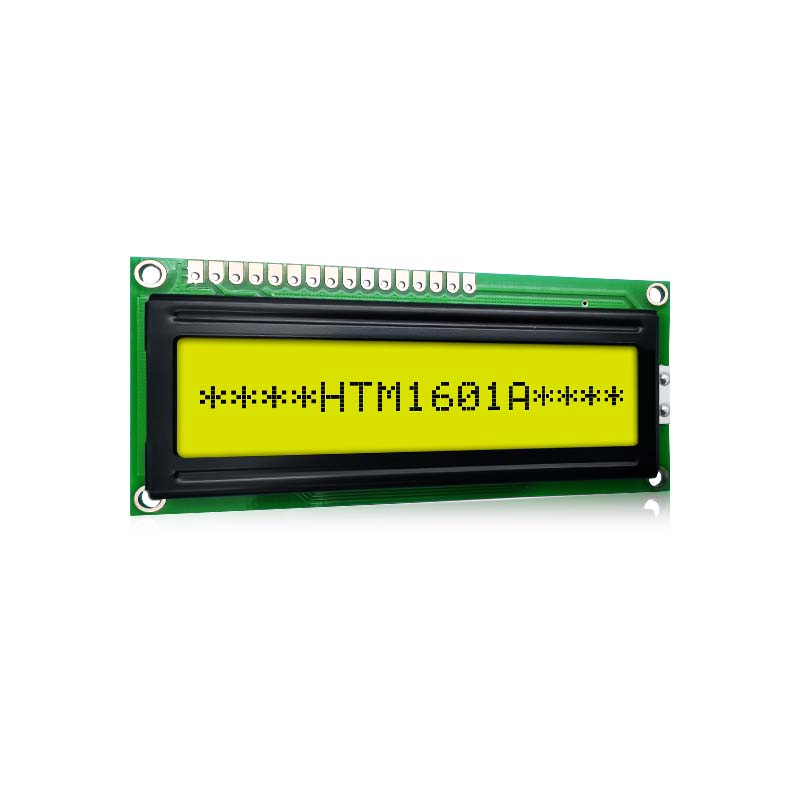

Character LCD Modules This high quality 16 character single line LCD displays characters with dark pixels on a very bright yellow/green background when opened. The Controller / driver of this model is the st7066u. Operates at a supply voltage of 5V and is RSP compliant, ensuring it meets health and environmental standards. LCD displays have a wide operating temperature range of -20 to 70 degrees Celsius and are suitable for a wide variety of environments. This 1601a - 11y - a5p transmission LCD can be viewed in ambient light or backlight, providing flexibility in various lighting conditions. The ideal viewing angle for this arduino compatible 16 character LCD is 6:00.

Projets	Specification content	unit
model	HTM1601A-11Y-A5P
words × lines	16 words × 1 line	dots

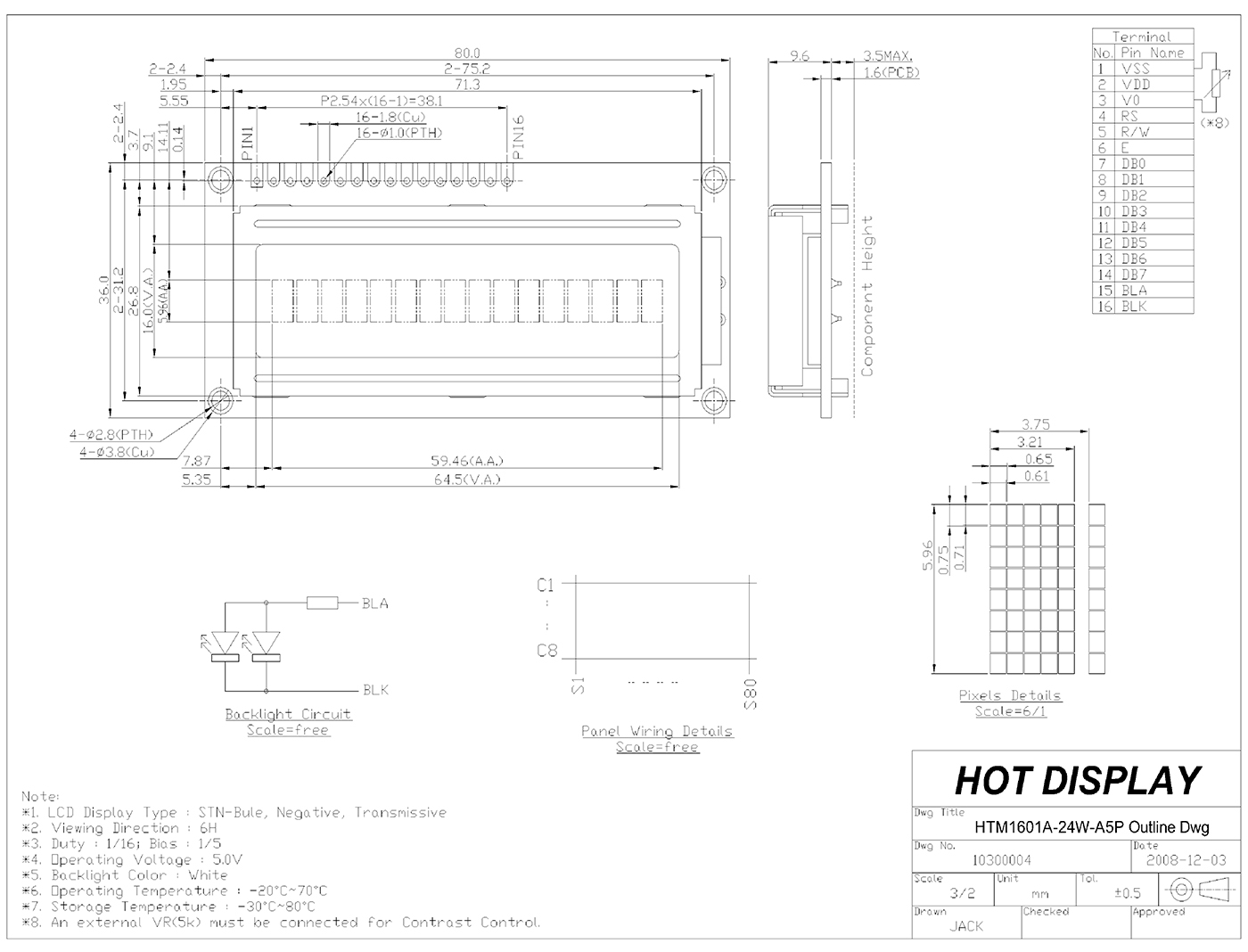

Module size	80.0x36.0x13.1 (MAX)	mm
Visual (VA) area	64.5x16.0	mm
Valid (AA) area	59.46x5.96	mm
Point (pixel) spacing	0.65x0.75	mm
IC	ST7066U
voltage	5V	V
backlight	Yellow/green backlight
model	STN(+)
Drive mode (Duty)	1/16 duty cycle
type	Character liquid crystal module
characteristic	Semi-transparent reflection polarizer
