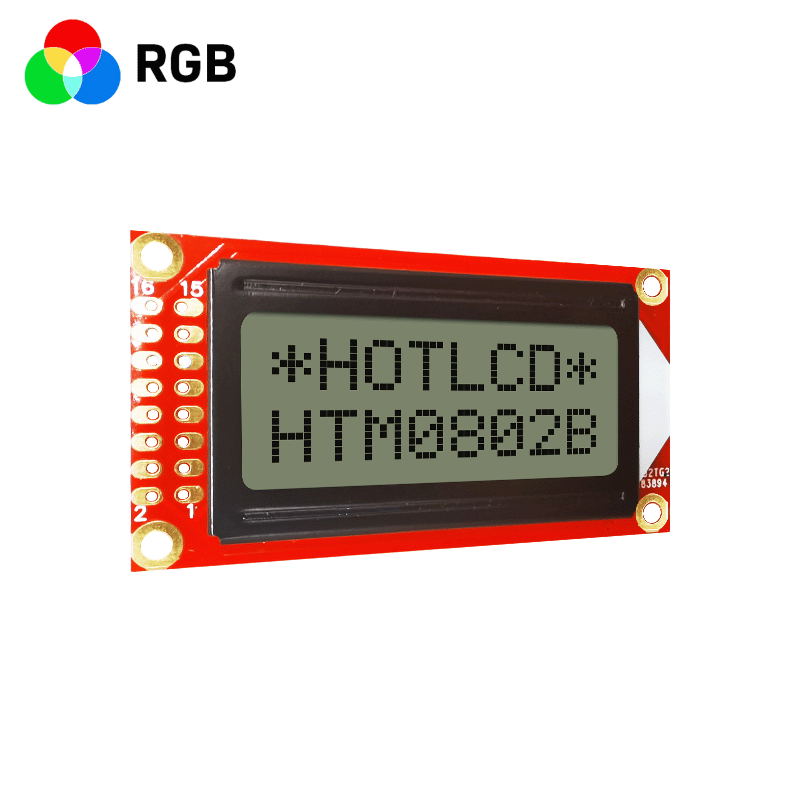

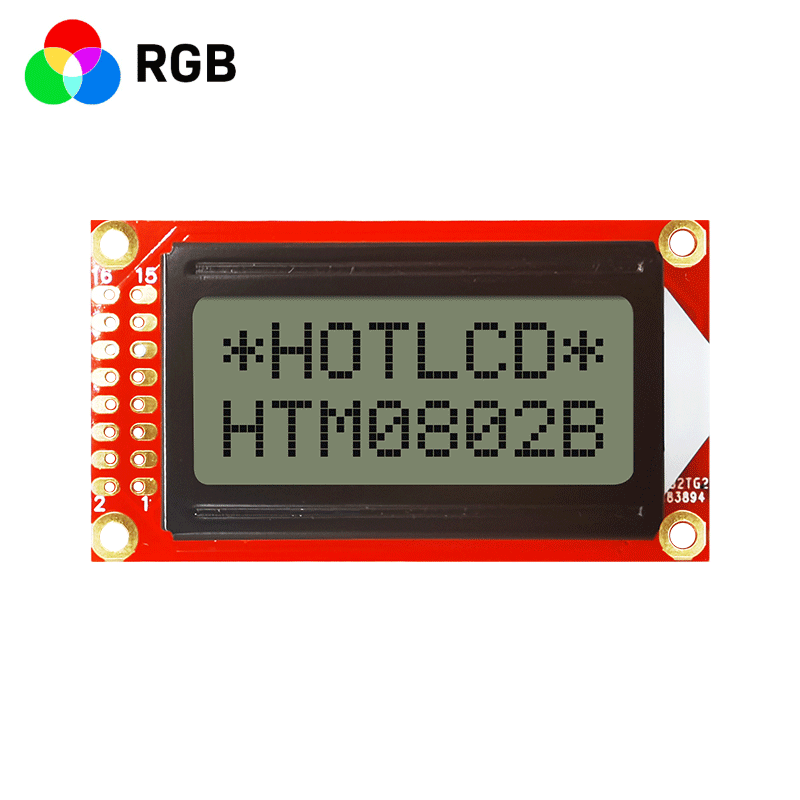

HTM-0802B-35S-A5P | 2x8 Character Display | Transflective LCD | RGB LED Backlight | FSTN (+) Positive Display
HTM-0802B-35S-A5P | 2X8 Character LCD Display | FSTN+ RGB Backlight-Arduino shows up to 16 characters as two rows each with sixteen
characters of dark pixels on a light gray background. The RGB display includes three backlight colors built into each display, which enables you
to choose from a red, green or a blue backlight color. You can also mix the intensities of those colors to create new custom colors.
This transflective LCD Display ensures excellent visibility with ambient light or in low light conditions with the built-in LED backlight. It features
a wide operating temperature range from -20 to 70 degrees Celsius. This Arduino compatible HTM-0802B-35S-A5P display has an optimal
view of 6:00. This display operates at 5V supply voltage and is RoHS compliant.
The LCD display has a built-in ST7066U controller, ensuring high compatibility with various interfaces and development boards such as Arduino.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |
PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
