HTG240160L-3SW-18C10-V08 — 240×160 Low-power COG Display with Ultra-Wide Operating Temperature

The HTG240160L-3SW-18C10-V08 is a 240×160 pixel Low-power COG display built for industrial instruments, measuring equipment, control terminals, meters, and other embedded devices that demand reliable graphic output with minimal energy consumption. Combining an FSTN, Positive, Transflective display mode with a Chip-on-Glass structure, this module delivers clear readability and long-term stability in compact device designs.

✔️ Ultra-Wide Operating Temperature: -30°C to +80°C

One of the defining strengths of this Low-power COG display is its ultra-wide operating temperature range of -30°C to +80°C. Whether deployed in outdoor metering cabinets, cold-storage monitoring equipment, or heat-generating industrial control panels, the module maintains consistent display performance across extreme environments. The FSTN Transflective structure further enhances adaptability under varying ambient lighting conditions, making this Low-power COG display suitable for equipment that must continuously show numerical values, characters, menus, status information, or simple graphic interfaces.

✔️Low Power Consumption for Embedded Systems

Designed with energy efficiency in mind, this Low-power COG display operates at a typical voltage of 3.0–3.3 V and uses three white LEDs for backlighting, keeping overall power draw low for battery-sensitive and continuously running embedded applications. The integrated UC1698U controller/driver IC is mounted directly onto the glass substrate, eliminating the space required by a conventional PCB-based driver structure and providing greater flexibility for compact, power-conscious designs. For engineers seeking a Low-power COG display that balances resolution, durability, and efficiency, this module is a practical choice.

Key Features of the 240×160 Low-power COG Display

●240×160 pixel Low-power COG display with FSTN, Positive, Transflective mode

●Ultra-wide operating temperature: -30°C to +80°C

●Low power consumption, typical voltage 3.0–3.3 Vpe

●UC1698U controller/driver IC integrated on glass substrate

●1/160 Duty, 1/12 Bias, 6H viewing direction

●8-bit parallel interface (DB0–DB7) with /CS, /RST, A0, /WR, /RD

●Three white LED backlight

With its combination of a Low-power COG display architecture, an ultra-wide -30°C to +80°C operating temperature range, and a compact COG form factor, the HTG240160L-3SW-18C10-V08 meets the demanding requirements of industrial and embedded display applications.

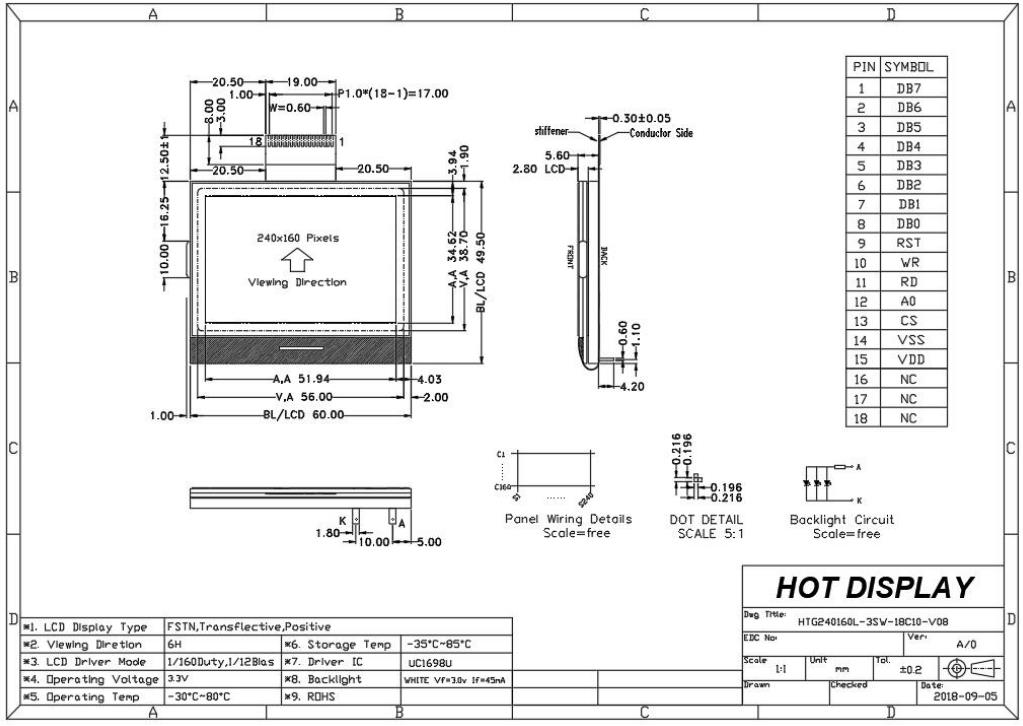

Specification of the 240×160 Low-power COG Display

240×160 Low-power COG Display Application

Based on its 240×160 resolution, Low-power COG display architecture, -30°C to +80°C ultra-wide operating temperature, and 3.0–3.3 V low-power characteristics, this module is suitable for the following application scenarios:

Industrial Instruments and Measuring Equipment

✓ Display interface for portable or benchtop measuring instruments such as digital multimeters, oscilloscopes, and signal generators.
✓ Numerical display for pressure, flow, temperature, and level transmitters and data acquisition terminals.
✓ Status information and menu display for laboratory analytical instruments and calibration equipment.

Industrial Control Terminals

✓ Parameter setting and status monitoring for PLC handheld programmers and HMI operation panels.
✓ Operating parameter display for inverters, servo drives, and motor controllers.
✓ Graphical operation interface for industrial remote controls and handheld terminal devices.

Metering and Meters

✓ Reading and status display for smart electricity, water, gas, and heat meters.
✓ Local display unit for prepaid metering terminals and remote meter-reading devices.
✓ Continuous display for portable testing meters in outdoor or high-temperature-differential environments.

Embedded Devices

✓ Low-power display interface for portable medical devices such as glucose meters, blood pressure monitors, and monitoring terminals.
✓ Graphic and character display for warehouse logistics handheld terminals and barcode scanning devices.
✓ Menu and status prompts for security control panels and access control terminals.
✓ Always-on interface for outdoor embedded devices such as agricultural environment monitoring and weather stations.

Harsh Temperature Environments

✓ Outdoor metering cabinets and cold-storage monitoring equipment (low-temperature end -30°C).
✓ Heat-generating industrial control cabinets and control panels near motors (high-temperature end +80°C).
✓ Wide-temperature scenarios such as in-vehicle auxiliary displays and construction machinery instruments.

Low-Power / Battery-Powered Scenarios

✓ Battery-powered portable instruments and handheld devices.
✓ Remote monitoring terminals requiring long-term continuous operation with low power sensitivity.
✓ Embedded display nodes powered by solar energy or energy harvesting.

FSTN Transflective Structure Scenarios

✓ Applications with large indoor-outdoor lighting variations, balancing transmissive and reflective display effects.
✓ Equipment requiring readability under strong light while also needing backlight display in dark conditions.

In summary, with its ultra-wide operating temperature, low power consumption, and compact COG structure, this Low-power COG display is widely suited to industrial instruments, control terminals, metering devices, and outdoor/wide-temperature embedded equipment.
