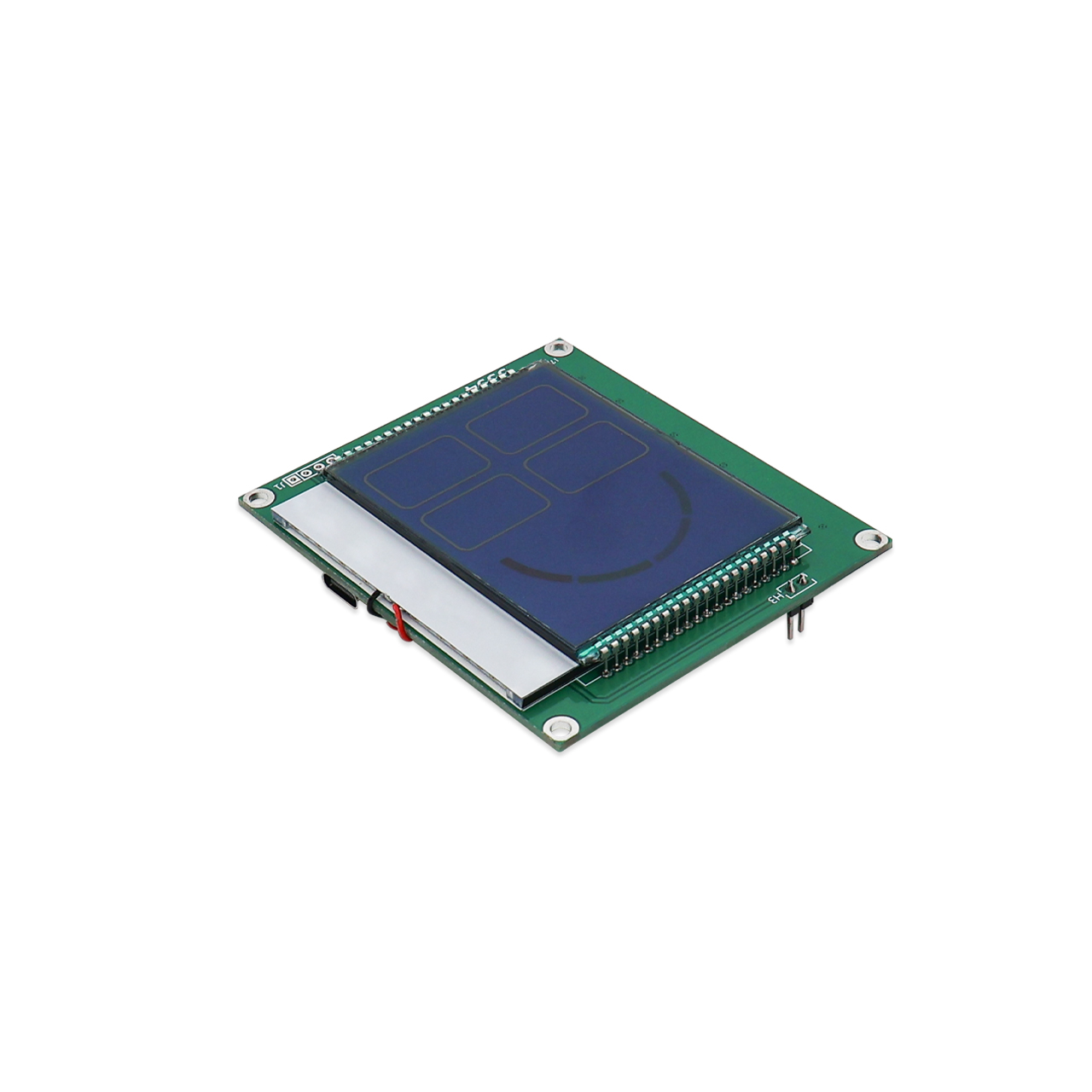

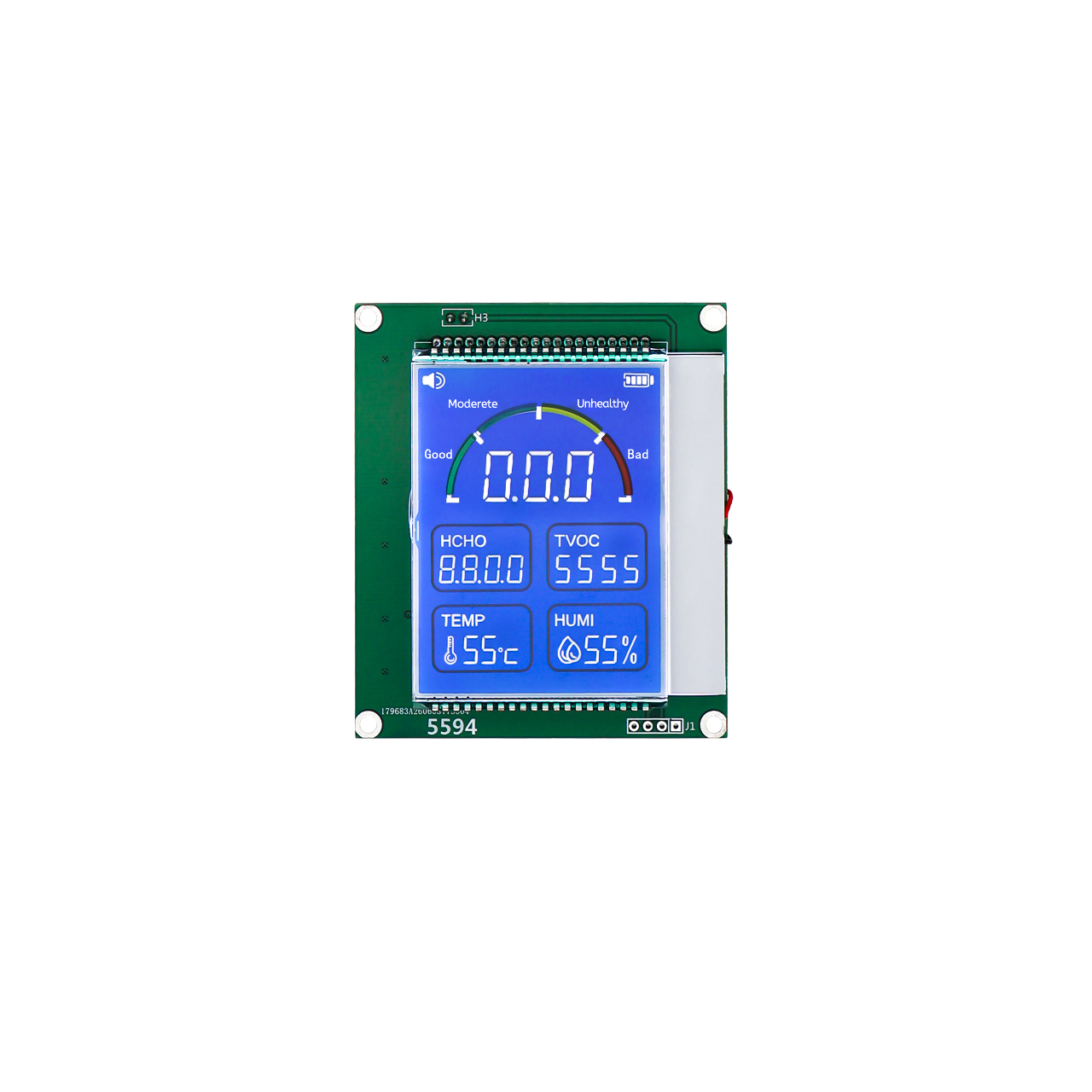

Wide Temperature Segment LCD STN Display for Industrial Control
Product Description
This Wide Temperature Segment LCD is a ruggedized STN display designed specifically for industrial control applications where reliability under extreme conditions is non-negotiable. Built with a segment display format and a 6 o'clock viewing angle, it delivers clear, stable readings in environments that would compromise standard commercial displays.

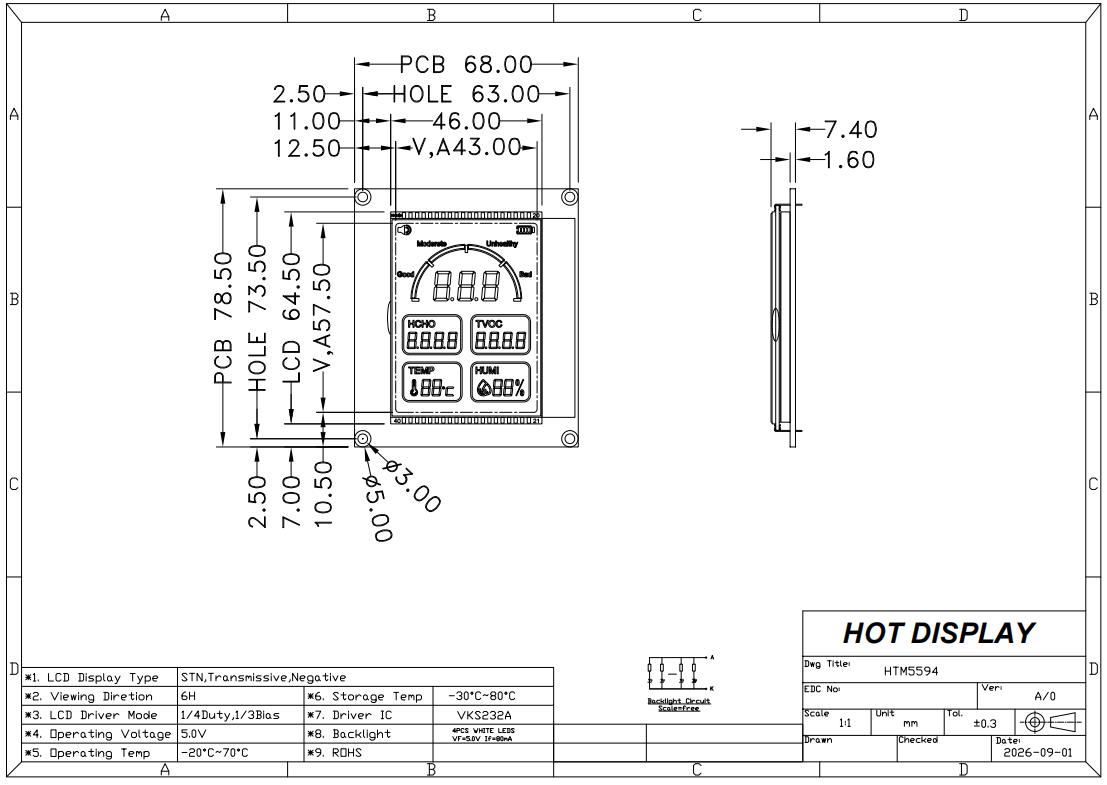

The Wide Temperature Segment LCD operates reliably from -20°C to 70°C, making it suitable for factory floors, outdoor cabinets, and industrial equipment exposed to temperature fluctuations. With a driving mode of 1/4 Duty and 1/3 Bias, and a supply voltage of 5.0V, this display integrates smoothly into existing industrial control systems.

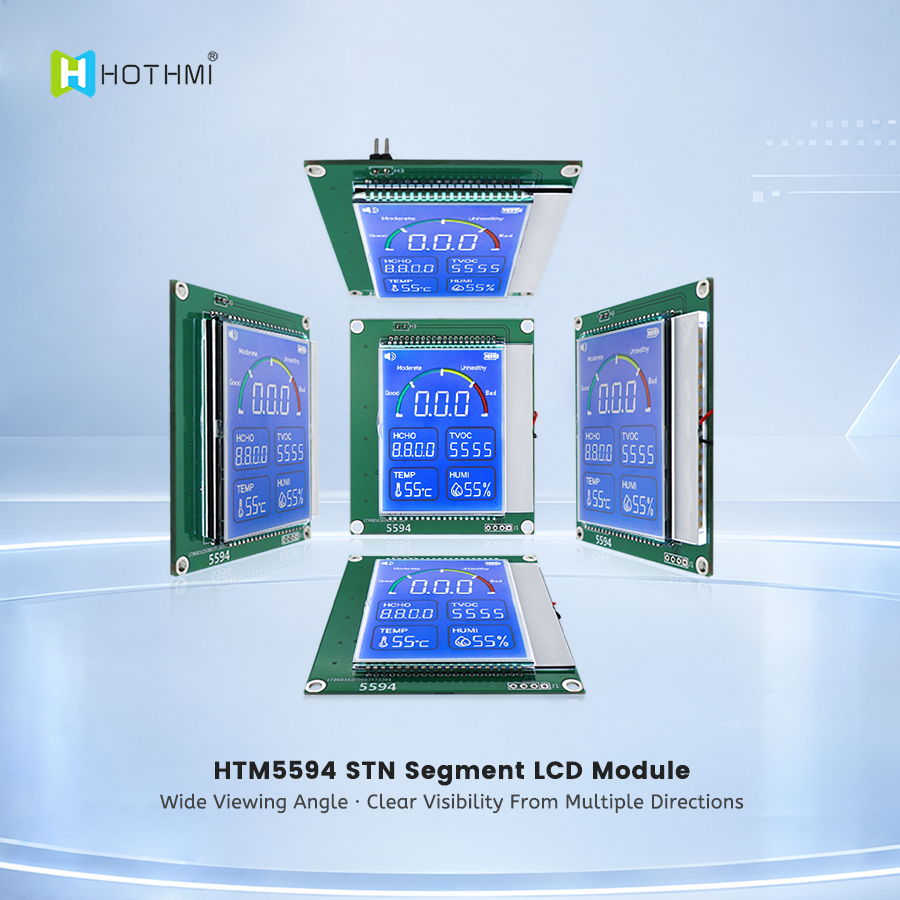

As a Wide Temperature Segment LCD, it leverages STN technology to provide wider viewing angles and higher information density than TN displays, while maintaining the low power consumption and cost-effectiveness that segment displays are known for. The STN construction ensures stable performance across the rated temperature range, with no risk of burn-in and strong resistance to electromagnetic interference.
Customization Capabilities
This Wide Temperature Segment LCD is fully customizable to meet specific industrial requirements. We offer:
Process options: TN, HTN, STN, FSTN, and VA technologies
Optical modes: Transmissive, reflective, transflective, and RDF
Glass thickness: Multiple options for thin or rugged designs
Pin pitch: 2.54mm, 2.0mm, 1.8mm, 1.5mm, and 1.27mm
Backlight colors: Up to 48 combinations including white, blue, amber, and RGB
Voltage range: 2.5V to 25V
Segment types: 7-segment and 16-segment configurations
Every Wide Temperature Segment LCD can be tailored in outline shape, connector type, and temperature range to match your exact industrial application.
Why Choose This Wide Temperature Segment LCD
Reliability in harsh environments. The Wide Temperature Segment LCD is engineered for industrial control panels, instrumentation, and outdoor equipment where temperature extremes are routine.
Cost-effective performance. Compared to TFT or OLED alternatives, this Wide Temperature Segment LCD offers superior cost-efficiency for long-lifecycle industrial products.
Low power consumption. Its passive display technology draws microwatt-level power, ideal for battery-backed or energy-sensitive industrial systems.
Stable supply chain. With mature STN manufacturing and full in-house process control, this Wide Temperature Segment LCD ensures long-term availability and consistent quality.
For industrial control applications demanding dependable performance across wide temperature ranges, this Wide Temperature Segment LCD delivers the durability, customization, and value your project requires.
