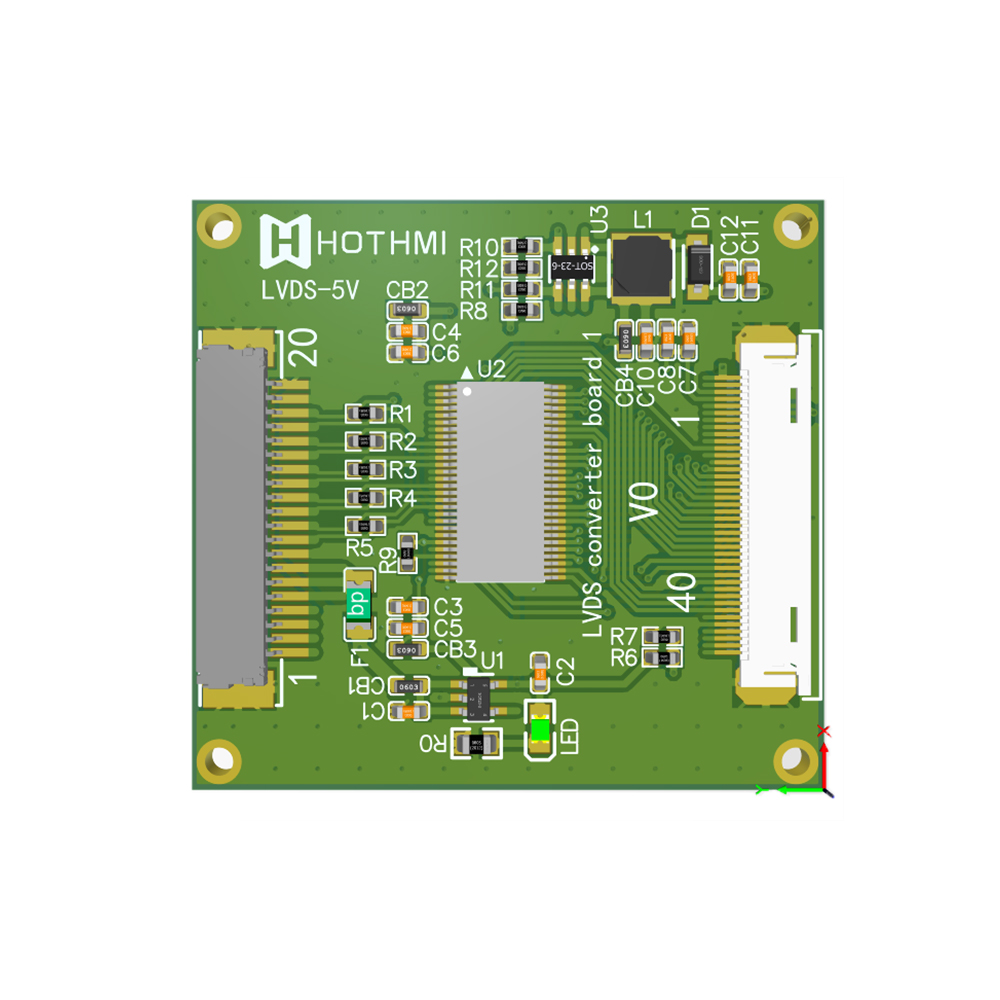

LVDS-to-RGB Adapter Board

LVDS-to-RGB Adapter Board

▶ Model: LVDS converter board 1-V0

▶ Power Supply Voltage: 5V ± 0.1V / 1A
▶ Input Clock Frequency: 20 MHz – 85 MHz
▶ Input Clock Period: 11.76 ns – 50 ns
▶ Input Signals: 4 LVDS data streams and 1 LVDS clock signal (compliant with EIA/TIA-644 standard)
▶ Output Signals: 28-bit LVTTL/LVCMOS data and 1 LVTTL/LVCMOS clock signal
▶ Total Data Rate: 2380 Mbps
▶ ESD Capability: 2 kV
▶ Operating Temperature Range: -30°C – 80°C
▶ Storage Temperature Range: -40°C – 90°C
Product ConsultationDatasheets Download
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Product Description
Customized Services
Attributes

Product Description: LVDS-to-TTL Converter Module for RGB Displays
This compact LVDS-to-TTL converter module enables a mainboard that outputs only LVDS signals to drive a standard RGB (TTL) interface display. It accepts four differential LVDS data lanes and one LVDS clock lane (compliant with EIA/TIA-644), and decodes them into 28-bit parallel TTL data plus control signals. The converted output includes 8-bit red, 8-bit green, and 8-bit blue (RGB) data buses, along with pixel clock (PCLK), horizontal sync (HSD), vertical sync (VSD), and data enable (DEN). Thus, any RGB TTL display with a 3.3V parallel interface can be directly driven.

Key specifications: The LVDS input clock ranges from 20 MHz to 85 MHz, supporting total data rates up to 2380 Mbps. The module works with popular LVDS transmitters such as DS90CR285, SN65LVDS93, and GM8283C. It is ideal for VGA, SVGA, SXGA, and UXGA resolutions. A built-in backlight driver can power up to 10 series LEDs or 3S10P arrays. Power requirement is 5V ±0.1 / 1A, and the operating temperature spans -30°C to +80°C.

In practical use, the mainboard’s LVDS output connects directly to the module’s LVDS input pins (DCLK±, D0± to D3±). The module then outputs RGB parallel data and timing signals, which connect to the RGB TTL display. This solves the common problem of driving legacy RGB panels from modern LVDS-only processors. With robust ESD protection (2KV) and wide storage temperature range (-40°C to +90°C), this LVDS-to-RGB bridge is reliable for industrial control, automotive displays, and embedded systems where LVDS sources must interface with RGB TTL screens. The module’s compact form factor and clear pin mapping (including backlight enable BL_EN) make it easy to integrate without extra glue logic. Whether upgrading an existing RGB display or designing a new system, this LVDS converter ensures seamless signal translation from LVDS to RGB while preserving signal integrity up to 85 MHz.

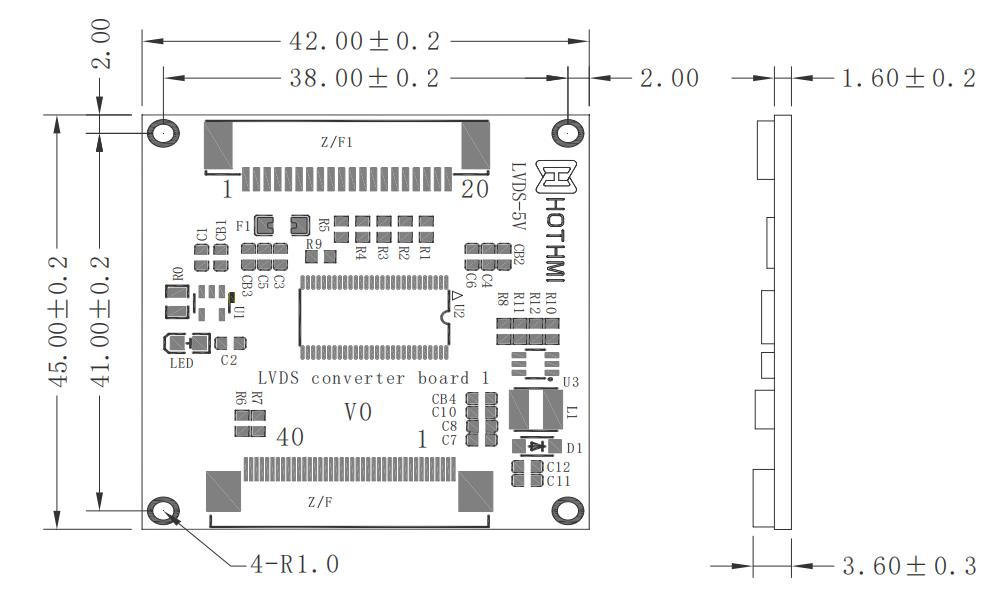

Specification
