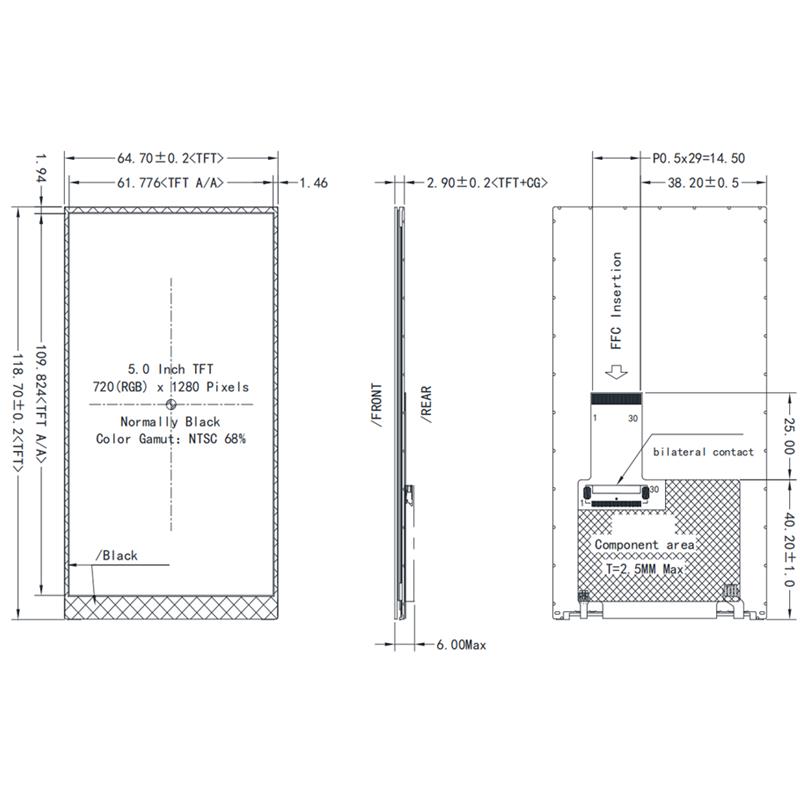

5 Inch In-cell TFT LCD Display 720x1280 MIPI DSI Interface ST7123

TFT-H050A20HDIST6G30  5 Inch In-cell TFT LCD Display 720x1280 MIPI DSI Interface ST7123

The 5 Inch In-cell TFT LCD Display represents a significant leap in embedded display technology, seamlessly merging high-definition visuals with a sleek, integrated touch structure. This model, identified with driver IC ST7123P, boasts a crisp resolution of 720(RGB) x 1280 pixels, delivering exceptional detail and clarity for any user interface. One of its primary advantages is the MIPI DSI interface. Unlike older parallel interfaces, the MIPI interface reduces the number of pins required for connection, minimizes electromagnetic interference (EMI), and supports high-speed data transmission. This makes the 5 Inch In-cell TFT LCD Display incredibly efficient for modern processors, including those used in C8051, Arduino, and STM32 platforms, ensuring smooth video playback and responsive GUI rendering.

The In-cell technology is a standout feature. By embedding the touch sensors directly into the LCD cells, the display becomes thinner and lighter while significantly improving optical clarity. This integration eliminates the air gap found in traditional touch screens, reducing dust ingress and enhancing sunlight readability. The optical specifications of this 5 Inch In-cell TFT LCD Display are impressive: it offers an IPS full viewing angle of U85/D85/R85/L85 (typically 80 degrees in all directions), ensuring colors remain vibrant even when viewed from extreme angles. With a typical brightness of 600 cd/m² (with CTP) and a contrast ratio of 1500:1, the display remains visible even in brightly lit environments.

Furthermore, the electrical characteristics provide stability and safety. The 5 Inch In-cell TFT LCD Display operates with an I/O voltage (IOVCC) of 1.8V and a digital power supply (VCI) of 3.3V, making it compatible with low-power microcontroller units (MCUs). The module also supports a wide operating temperature range from -20°C to 70°C and features anti-static protection (ESD 8KV), ensuring robust performance in industrial or outdoor settings. The inclusion of a 40-pin FPC with a clear pinout for MIPI lanes (D0P/N, D1P/N, D2P/N, D3P/N, and Clock) simplifies hardware design, allowing engineers to quickly integrate this high-performance 5 Inch In-cell TFT LCD Display into their next-generation products.

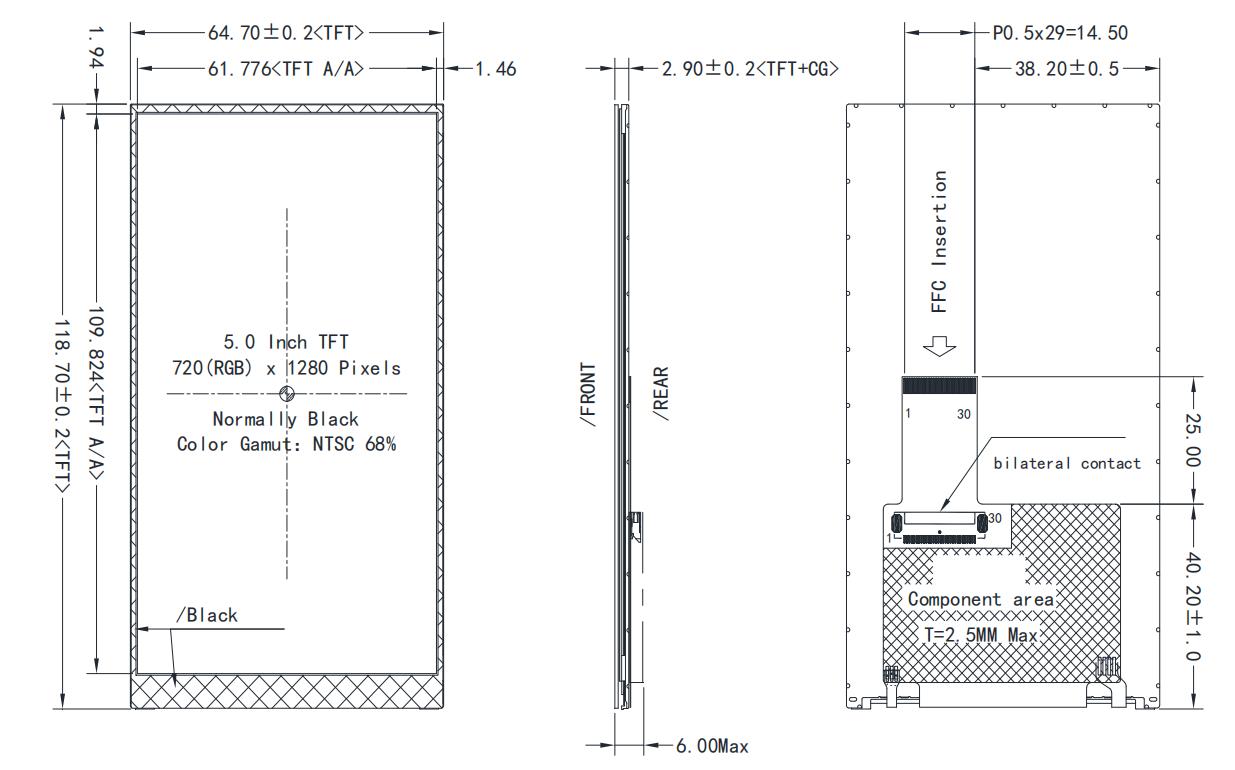

Specification of the 5 Inch In-cell TFT LCD Display

What is In-cell Touch Technology?

In-cell touch technology is a revolutionary method of manufacturing displays that integrates the touch sensor function directly into the liquid crystal cell itself, rather than laminating a separate touch panel on top. To understand its value, one must first look at traditional displays. Older "On-cell" or "Out-cell" (add-on) touch screens consist of a separate TFT layer for displaying images and a distinct sensor glass layer for detecting touch. These two layers are bonded together, resulting in a thicker module, potential air gaps that cause light reflection, and lower optical transmittance.

The 5 Inch In-cell TFT LCD Display utilizes a different architecture. In this design, the touch sensing electrodes are embedded between the TFT array and the color filter substrate—inside the liquid crystal cell. This eliminates the need for an additional touch sensor layer. The primary benefit of applying In-cell technology to the 5 Inch In-cell TFT LCD Display is the reduction in thickness. By removing the separate touch layer, the entire module becomes slimmer, which is critical for modern smartphones, portable medical devices, and slim industrial controls.

Secondly, optical performance is drastically improved. Since there is no air gap between the LCD and the touch sensor, light scattering is minimized. The 5 Inch In-cell TFT LCD Display achieves higher brightness (600 cd/m²) and better contrast (1500:1) because more light from the backlight passes directly through to the user's eyes without internal reflections. Thirdly, it improves mechanical durability. With fewer laminated layers, there is less risk of delamination or dust particles entering between the screens. However, it is worth noting that implementing In-cell technology requires complex driver ICs like the ST7123P used in this 5 Inch In-cell TFT LCD Display, as the chip must handle both pixel driving and touch signal processing simultaneously, often using time-division multiplexing to separate display updates from touch scanning. This sophisticated integration makes the display more responsive and environmentally stable, perfect for applications requiring high reliability.

Integration and Operational Guidelines for the 5 Inch In-cell TFT LCD Display

Successfully integrating the 5 Inch In-cell TFT LCD Display into a custom embedded system requires careful attention to power sequencing, mechanical handling, and software configuration. First, referring to the electrical characteristics, engineers must supply stable voltages. The 5 Inch In-cell TFT LCD Display requires a VCI (analog supply) of 3.3V and an IOVCC (I/O supply) of 1.8V. It is critical to follow the Power On/Off Sequence (Section 6.5 of the manual). Specifically, the MIPI lanes must enter LP-11 state after IOVCC is ready before sending the Sleep Out command (0x11). After releasing the RESX pin, a delay of at least 120ms is required before sending display commands. Failing to observe these timings with the 5 Inch In-cell TFT LCD Display could result in latch-up or improper initialization.

Regarding the initialization code, the manual provides a specific routine for the ST7123P driver. Users must implement the sequence: Hardware Reset -> Delay 120ms -> Sleep Out (0x11) -> Delay 250ms -> Display On (0x29). The MIPI DSI interface uses four data lanes (D0-D3) and a clock lane. The PCB layout for the 5 Inch In-cell TFT LCD Display should maintain a differential impedance of 100 ohms for the MIPI traces and keep trace lengths matched to avoid skew. The FPC-30PIN (or 40-pin as per diagram) pinout assigns specific pins for I2C touch signals (TP_SDA, TP_SCL) and interrupts (TP_INT), which must be connected to the host MCU’s I2C bus with pull-up resistors.

Handling precautions are paramount. Since the 5 Inch In-cell TFT LCD Display is constructed of glass and CMOS LSIs, it is highly sensitive to electrostatic discharge (ESD). The manual recommends grounding your body and workbench, using ion blowers, and keeping humidity above 50% RH. When removing the protective film, pull it slowly at a 30-degree angle to prevent static buildup. Additionally, to prevent image retention (sticking), do not display static patterns for longer than 2 minutes. The manual recommends using moving or black screen savers. Finally, ensure the operating environment does not exceed 70°C or drop below -20°C, as extreme temperatures may temporarily darken the liquid crystal material. By following these guidelines for the 5 Inch In-cell TFT LCD Display, developers can ensure long-term reliability (30,000 hours LED life) and optimal optical performance.
