128X64 Graphic LCD Module | FSTN+ display with white side backlight with Chinese and English font library

128X64 Graphic LCD Module | FSTN+ display with white side backlight with Chinese and English font library

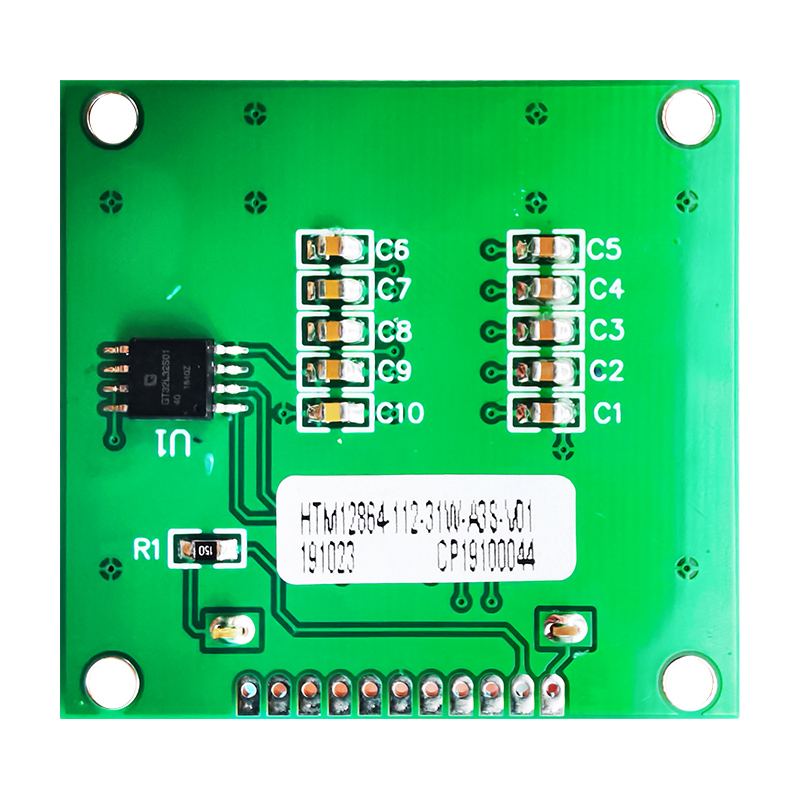

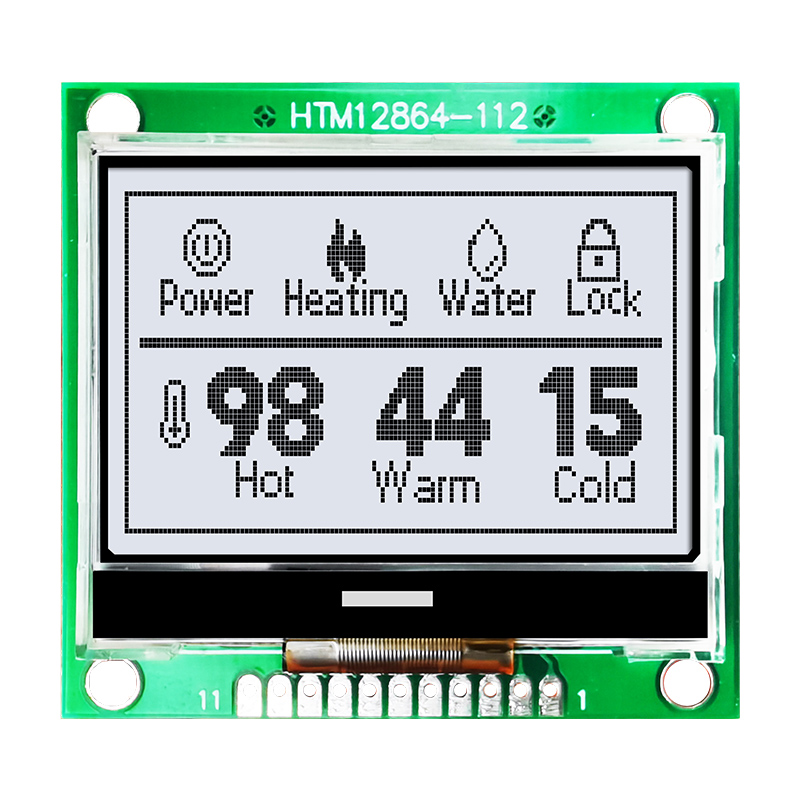

▶ Model: HTM12864-112-31W-A3S

▶ Type: LCM with Chinese and English font library
▶ Display content: 128x64

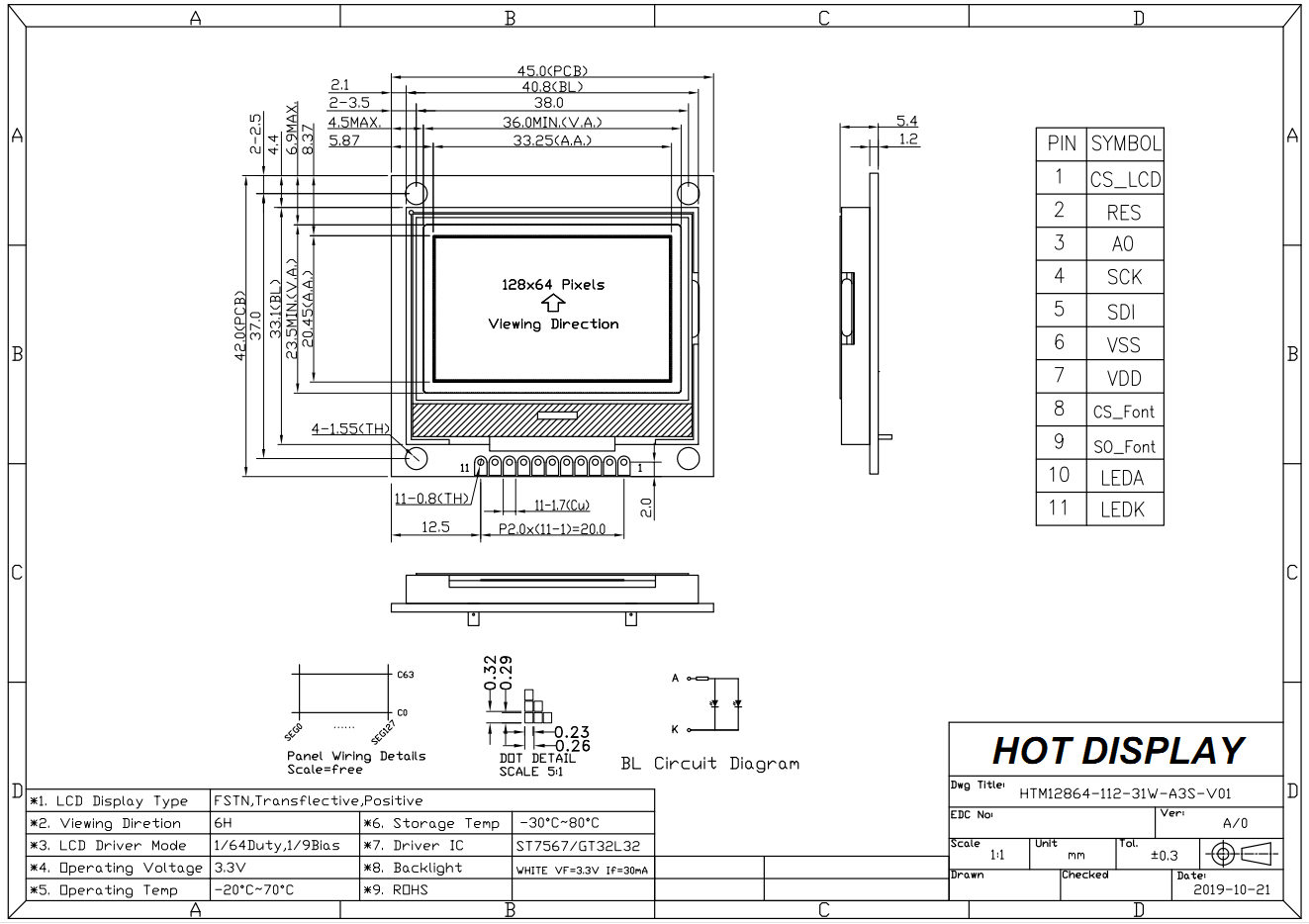

▶ Overall dimensions (mm): 45.0x42.0x5.4
▶ VA size (mm): 36.0x33.5
▶ AA size (mm): 33.25x20.45
▶ Point spacing mm: 0.32x0.26
▶ Application: Instrumentation
▶Viewing angle: 6H
▶ Backlight: White
▶ Number of PINs: 11PIN
▶Interface: SPI
▶ Working temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7567
