High-Contrast 132x64 Dot Matrix COG LCD STN Transmissive Graphic Display with ST7567 Controller

HTG13264I-05G-10H10-V01 | High-Contrast 132x64 Dot Matrix COG LCD STN Transmissive Graphic Display with  ST7567 Controller

The 132x64 Dot Matrix COG LCD represents a refined balance of compact integration and crisp visual output, purpose-built for instrumentation applications where space, clarity, and reliability are paramount. This Chip-On-Glass (COG) display module delivers 132x64 pixels of graphic resolution, enabling precise rendering of alphanumeric characters, custom icons, and simple waveform patterns essential for professional measurement and control interfaces.

At the heart of this 132x64 Dot Matrix COG LCD lies the ST7567 driver chip, a proven controller that simplifies host integration through a 10-pin SPI interface. The SPI connection minimizes wiring overhead while maintaining smooth data throughput, making this 132x64 Dot Matrix COG LCD an ideal choice for embedded systems with limited I/O resources. Operating at a standard 3.3V logic supply, the module aligns seamlessly with modern microcontroller platforms, eliminating the need for additional level-shifting circuitry and reducing overall system power consumption.

The display is engineered with a 6 o'clock viewing direction, ensuring optimal readability when positioned below eye level, a common scenario in benchtop instruments, panel meters, and handheld test equipment. The green backlight provides a comfortable visual experience with balanced luminance, suitable for both dimly lit laboratories and well-illuminated factory floors. With an operating temperature range spanning from -20°C to +70°C, this 132x64 Dot Matrix COG LCD performs reliably across diverse environmental conditions, from cold storage monitoring to warm industrial enclosures.

Durability is further reinforced by an integrated anti-static protection of ESD 8KV, significantly reducing the risk of damage during assembly, handling, and field operation. This feature is particularly critical for instrumentation applications where long-term stability and low failure rates directly impact user confidence and operational uptime. The COG construction itself contributes to enhanced mechanical robustness by eliminating the PCB interposer found in conventional modules, resulting in a thinner profile with fewer solder joints that could otherwise become failure points over time.

Whether deployed in precision measurement equipment, portable diagnostic tools, or industrial controllers, this 132x64 Dot Matrix COG LCD offers a dependable visual interface backed by mature technology, generous temperature tolerance, and thoughtful ESD protection. Its combination of SPI simplicity, 3.3V compatibility, and compact pin count makes it a versatile building block for engineers seeking a ready-to-integrate display solution without compromising on performance or longevity.

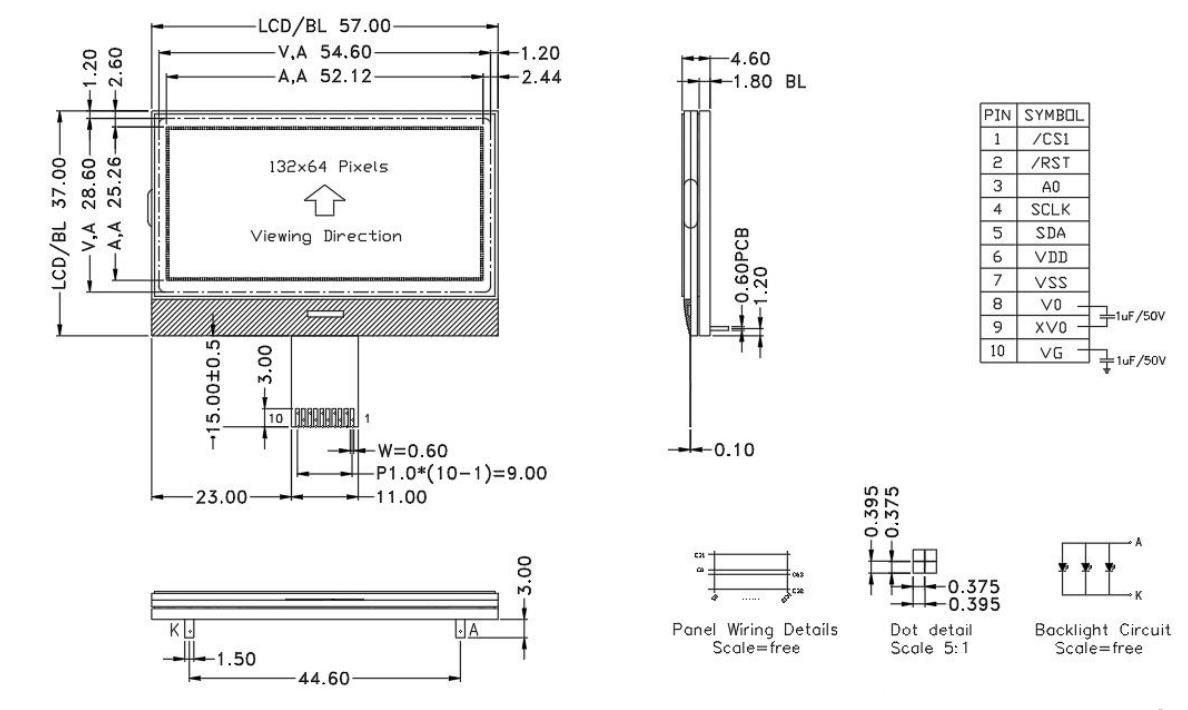

Specification of the 132x64 Dot Matrix COG LCD

Key Advantages – Reliability, Thinness, and Stable Performance

The 132x64 Dot Matrix COG LCD distinguishes itself through three core strengths that engineers and procurement professionals consistently prioritize: reliability, ultra-thin construction, and stable performance across demanding use cases.

Reliability is engineered into every layer of this 132x64 Dot Matrix COG LCD. The Chip-On-Glass architecture eliminates the traditional PCB interposer, substantially reducing the number of solder joints that could potentially degrade over thermal cycles or mechanical vibration. Fewer interconnects translate directly to fewer failure points, a critical advantage for instrumentation systems that must operate continuously for years without maintenance. The integrated ESD protection rated at 8KV adds another defensive layer, safeguarding the 132x64 Dot Matrix COG LCD against electrostatic discharge during assembly, handling, and field service. This robust protection is especially valuable in dry environments or facilities where operators frequently interact with equipment panels.

Thinness defines the physical profile of this 132x64 Dot Matrix COG LCD. By mounting the ST7567 driver IC directly onto the glass substrate, the module achieves a remarkably slim form factor that fits effortlessly into space-constrained instrument housings. This slim profile enables product designers to create more compact, ergonomic handheld devices without sacrificing display area or readability.

Performance stability remains consistent across the entire -20℃ to +70℃ operating temperature range. The 132x64 Dot Matrix COG LCD maintains crisp contrast and responsive pixel control whether deployed in cold storage monitoring systems or warm industrial control cabinets. The green backlight delivers uniform illumination, while the SPI interface ensures reliable data transmission with minimal signal degradation. Together, these attributes make the 132x64 Dot Matrix COG LCD a trusted visual component for applications where downtime is not an option.

Application of the 132x64 Dot Matrix COG LCD

The 132x64 Dot Matrix COG LCD serves a diverse range of application markets, with instrumentation remaining its primary deployment arena. Within this sector, the 132x64 Dot Matrix COG LCD is frequently integrated into benchtop multimeters, portable oscilloscopes, signal generators, and frequency counters, where its 132x64 pixel resolution provides sufficient detail for numeric readouts, simple waveform visualization, and menu-driven user interfaces. The 6 o'clock viewing direction aligns naturally with benchtop equipment placement, ensuring operators can read measurements clearly from a seated position.

Beyond traditional instrumentation, this 132x64 Dot Matrix COG LCD is increasingly adopted in medical monitoring devices such as portable vital sign monitors, infusion pumps, and handheld diagnostic tools. The module's stable performance and ESD 8KV protection are particularly valued in clinical environments where patient safety and equipment reliability are non-negotiable. The 3.3V operation and SPI interface simplify integration with battery-powered medical systems, extending operational life between charges.

Industrial automation represents another growing market for this 132x64 Dot Matrix COG LCD. Programmable logic controllers (PLCs), human-machine interface (HMI) panels, and industrial sensors benefit from the module's wide temperature tolerance and compact footprint. The green backlight offers excellent visibility on factory floors with varying ambient lighting conditions.

Additional applications include portable consumer electronics like handheld GPS units, smart home thermostats, and electronic scales. The 132x64 Dot Matrix COG LCD also finds use in automotive diagnostic tools and laboratory analytical instruments. For each market segment, the combination of reliability, slim design, and consistent performance makes the 132x64 Dot Matrix COG LCD a versatile, cost-effective display solution that meets the demanding requirements of professional and industrial environments.
