High Resolution 10.1 inch TFT LCD Display For medical devices

▶ Model: TFT-H101D16WUIWZKN30

▶ Type: TFT standard display
▶ Display pixels: 1920x1200

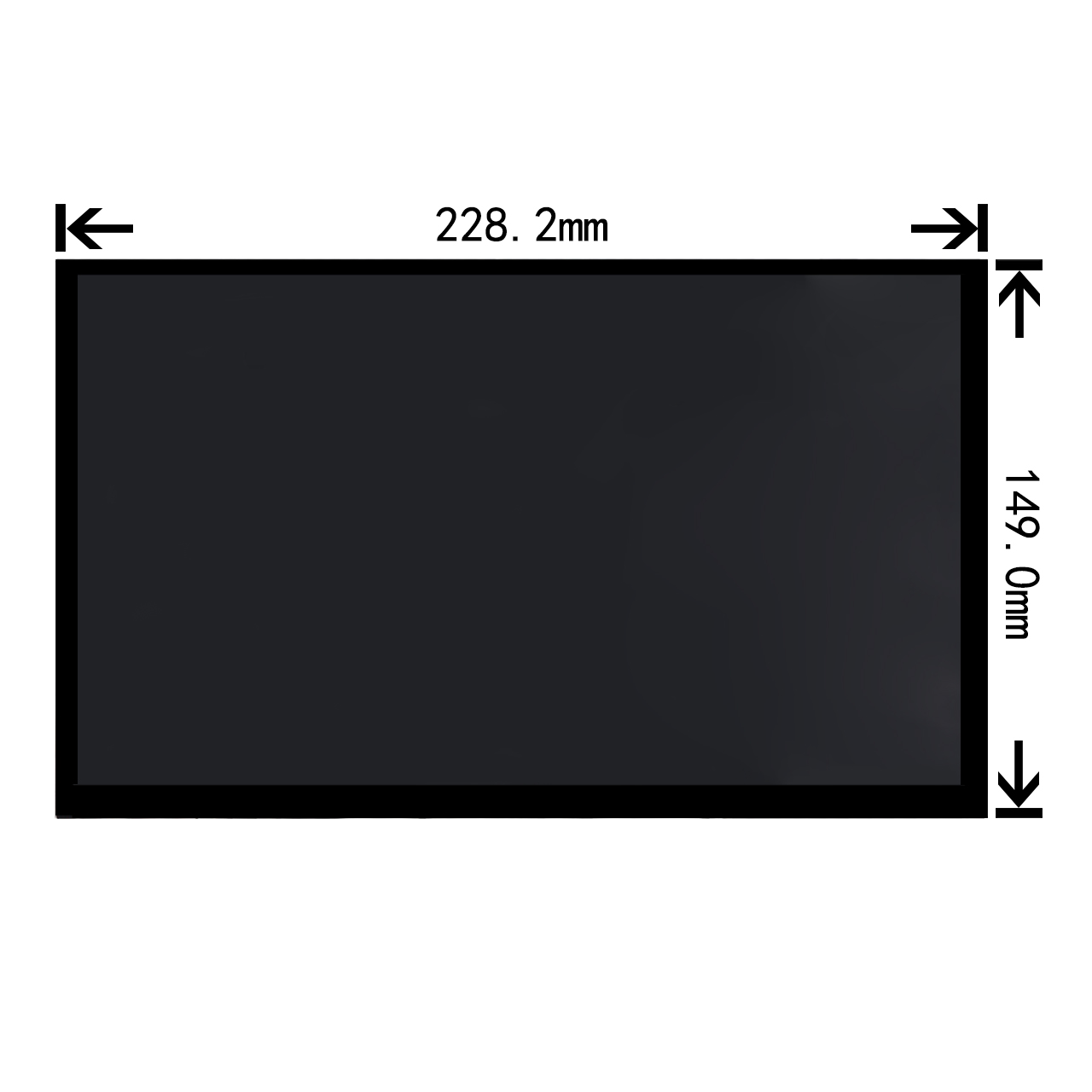

▶ Dimensions: 228.2x149x2.35 mm
▶ AA size (mm): 216.576x135.36
▶ Display inches: 10.1 inches
▶ Applications: Medical equipment, industrial control
▶ Viewing angle: IPS full viewing angle
▶ Backlight/brightness: 1000 cd/m²
▶ Pin configuration: FFC-30 PIN
▶ Interface: MIPI/LVDS
▶ Special features: ESD protection 8KV
▶ Operating temperature: -30~80℃
▶ Power supply voltage: 3.3V

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Product Description
Customized Services
Attributes

TFT-H101D16WUIWZKN30 High-resolution 10.1-inch TFT display | eDP interface 1920x1200 ultra-high-definition TFT suitable for medical devices
HOTDISPLAY High Resolution 10.1 inch TFT LCD Display, engineered to deliver exceptional visual performance for the most critical and diverse environments. At the core of its brilliance is a stunning 1920x1200 resolution, which, when combined with a super-high 1000 nits brightness, produces incredibly sharp, vibrant, and easily readable images even in brightly lit conditions. This High Resolution 10.1 inch TFT LCD Display ensures that every detail is rendered with absolute precision, making it an indispensable component for medical imaging devices, industrial control panels, outdoor digital signage, and advertising screens.

The integration of IPS technology guarantees an IPS full viewing angle, providing consistent color and clarity from virtually any perspective without distortion. This feature is crucial for collaborative medical diagnostics and multi-operator industrial workstations. The exceptional image quality of this High Resolution 10.1 inch TFT LCD Display is further enhanced by its robust eDP interface, ensuring efficient and orderly high-speed data transmission for seamless video performance.

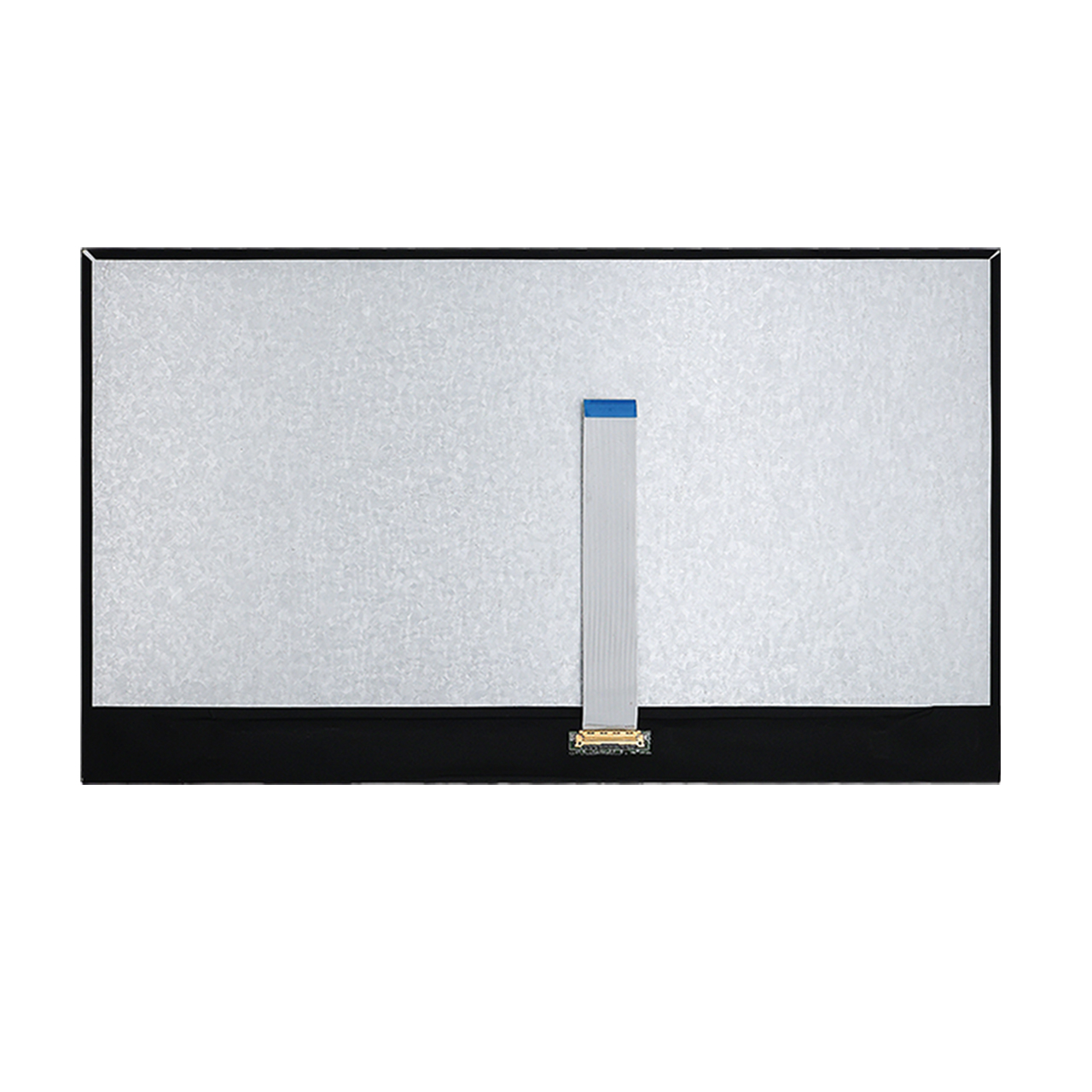

We have designed this High Resolution 10.1 inch TFT LCD Display with flexibility and reliability in mind. It features a dedicated FFC connector port, allowing users to effortlessly integrate it using FFC cables of varying lengths to suit specific design needs. With an extended operating temperature range of -30~80°C and 8KV ESD protection, this display is built to withstand challenging operational conditions. This High Resolution 10.1 inch TFT LCD Display provides developers with the ultimate combination of superior ultra-high-definition visuals, versatile connectivity, and unwavering reliability.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
TFT-H101D16WUIWZKN30	October 10, 2025	1.00MB

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H101D16WUIWZKN30
Diagonal size	10.1”	Inch
Resolution	1920x1200	Dot

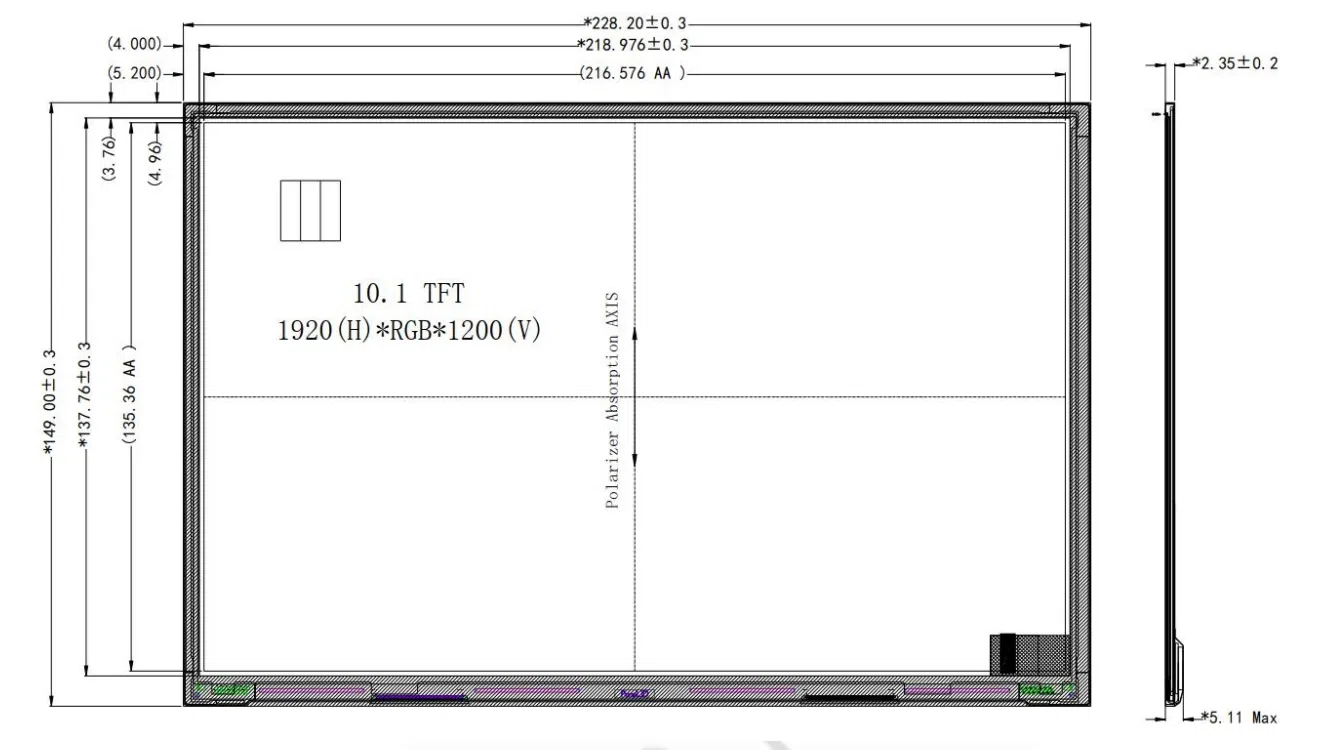

Dimensions	228.2x149x2.35	mm
Active area (AA)	216.576x135.36	mm
LCD type	10.1” TFT Module	mm
Display viewing angle	Full View
Aspect ratio	3:2
Backlight type	LED white
TFT driver IC	-
Brightness	1000cd/m2	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
