7-inch 1080x1080 round TFT LCD Display MIPI DSI Interface Free view screen FL5893 driver chip

7-inch 1080x1080 round TFT LCD Display MIPI DSI Interface Free view screen FL5893 driver chip

▶ Model: TFT-H070A27ZQIFT6N30

▶ Type: 7-inch circular TFT display module
▶ Display pixels: 1080x1080

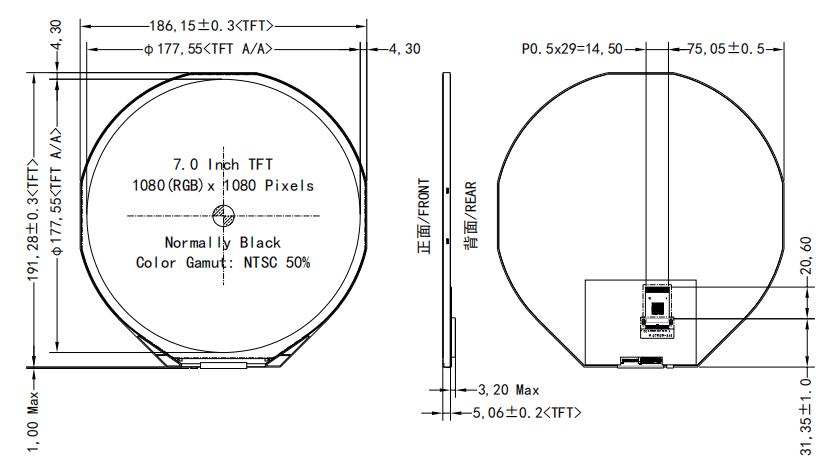

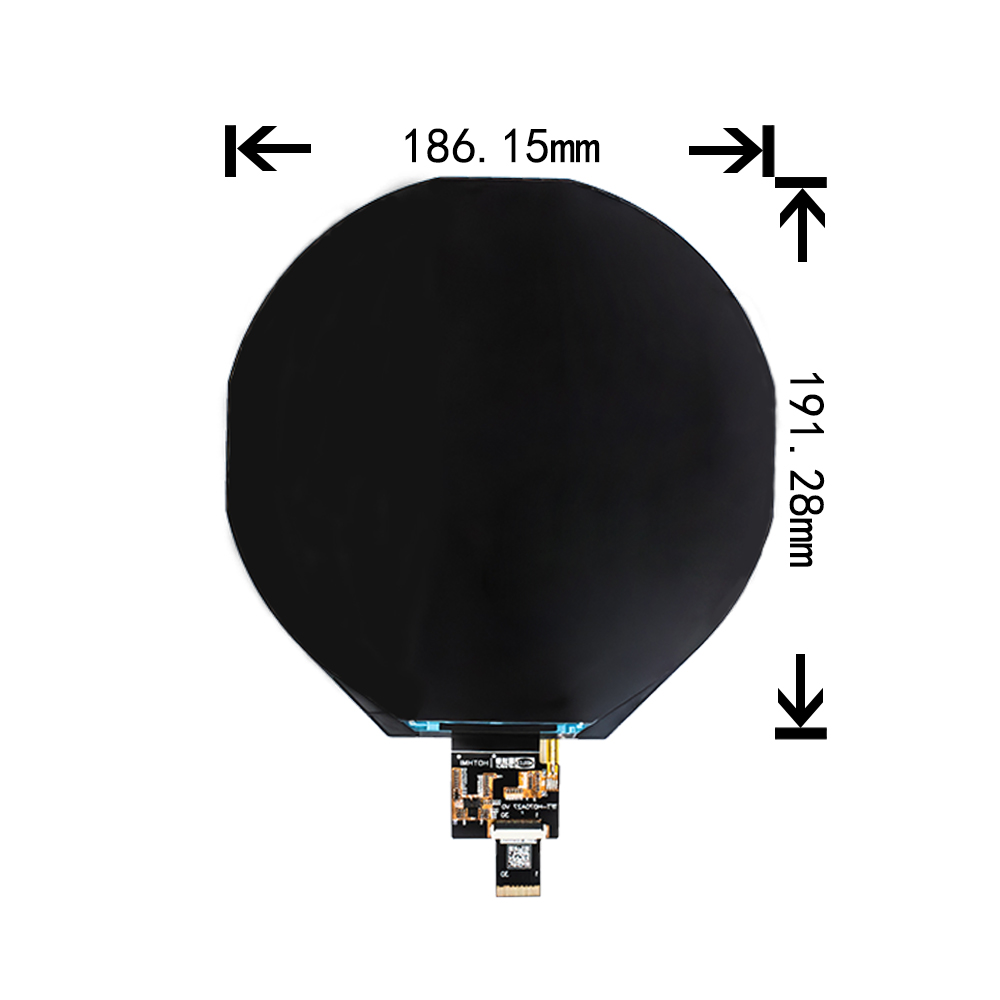

▶ Dimensions: 186.15x191.28x5.06 mm
▶ AA size (mm): 177.55x177.55 mm
▶ Display inches: 7”
▶ Application: Central control system
▶ Viewing angle: IPS full viewing angle
▶ Backlight/brightness: 600 cd/m²
▶ Pin configuration: FPC-30 pin
▶ Interface: MCU
▶ Special features: ESD protection 8KV
▶ Operating temperature: -20~70℃
▶ Power supply voltage: 3.3V
▶ Driver chip: FL5893

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

No Back Next

Related Accessories

TFT universal accessories
ESP32-P4 Motherboard For RGB LCD Display

Product Description
Customized Services
Attributes

TFT-H070A27ZQIFT6N30 | 7-inch 1080x1080 round TFT LCD Display MIPI DSI Interface Free view screen FL5893 driver chip
This 1080x1080 round TFT LCD Display redefines visual clarity with its unique square pixel format, delivering an astonishing 1080x1080 resolution that ensures every detail is rendered with exceptional sharpness and vibrancy. Whether showcasing critical data or immersive multimedia, the high pixel density of this 1080x1080 round TFT LCD Display guarantees text and graphics appear crystal clear without distortion.

Designed for seamless integration, this 1080x1080 round TFT LCD Display utilizes a high-speed MIPI interface, ensuring rapid data transmission for smooth, lag-free video playback and real-time updates—essential for dynamic industrial and automotive environments. The industrial-grade components of this 1080x1080 round TFT LCD Display provide reliable operation across a wide temperature range, making it ideal for rugged applications such as smart home hubs, marine instrumentation, or in-vehicle dashboards. Furthermore, the circular form factor of this 1080x1080 round TFT LCD Display offers a captivating 360-degree viewing experience, allowing for innovative and symmetrical user interface designs that stand out.

To meet diverse aesthetic and functional requirements, this 1080x1080 round TFT LCD Display is available with a custom cover lens version. This flexibility allows for enhanced durability, anti-glare surfaces, or branded designs without compromising the display’s stunning optical performance. With its combination of ultra-high definition, rapid connectivity, and customizable options, the 1080x1080 round TFT LCD Display (TFT-H070A27ZQIFT6G30) sets a new benchmark for round displays, ensuring your project benefits from both exceptional imagery and unwavering reliability.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
TFT-H070A27ZQIFT6N30	February 02, 2026	97.18KB

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H070A27ZQIFT6N30
Diagonal size	7.0”	Inch
Resolution	1080x1080	Dot
Dimensions	186.15x191.28x5.06	mm
Active area (AA)	177.55x177.55	mm
LCD type	7” TFT Module	mm
Display viewing angle	Full View
Aspect ratio	1：1
Backlight type	LED white
TFT driver IC	FL5893
Brightness	600cd/m2	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
