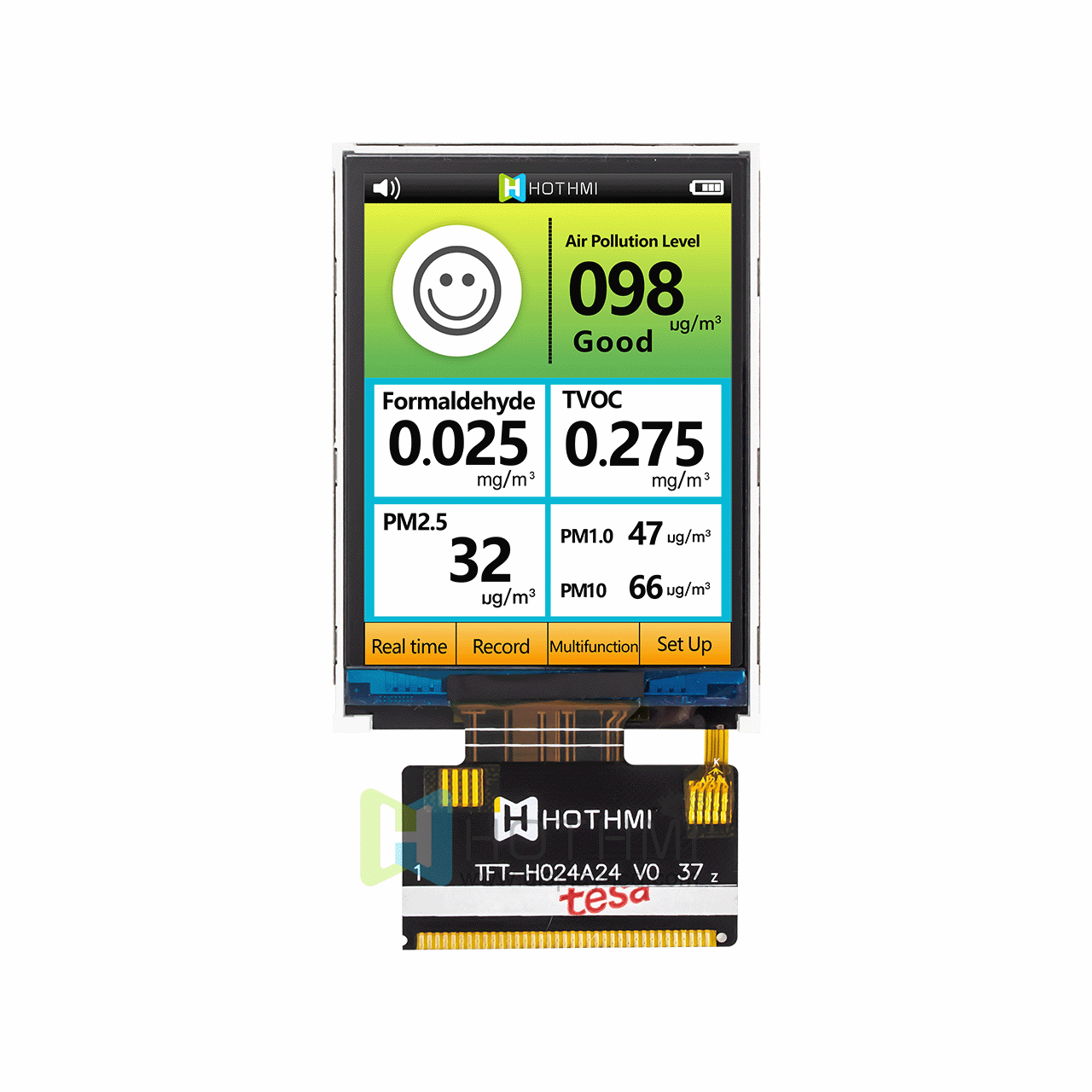

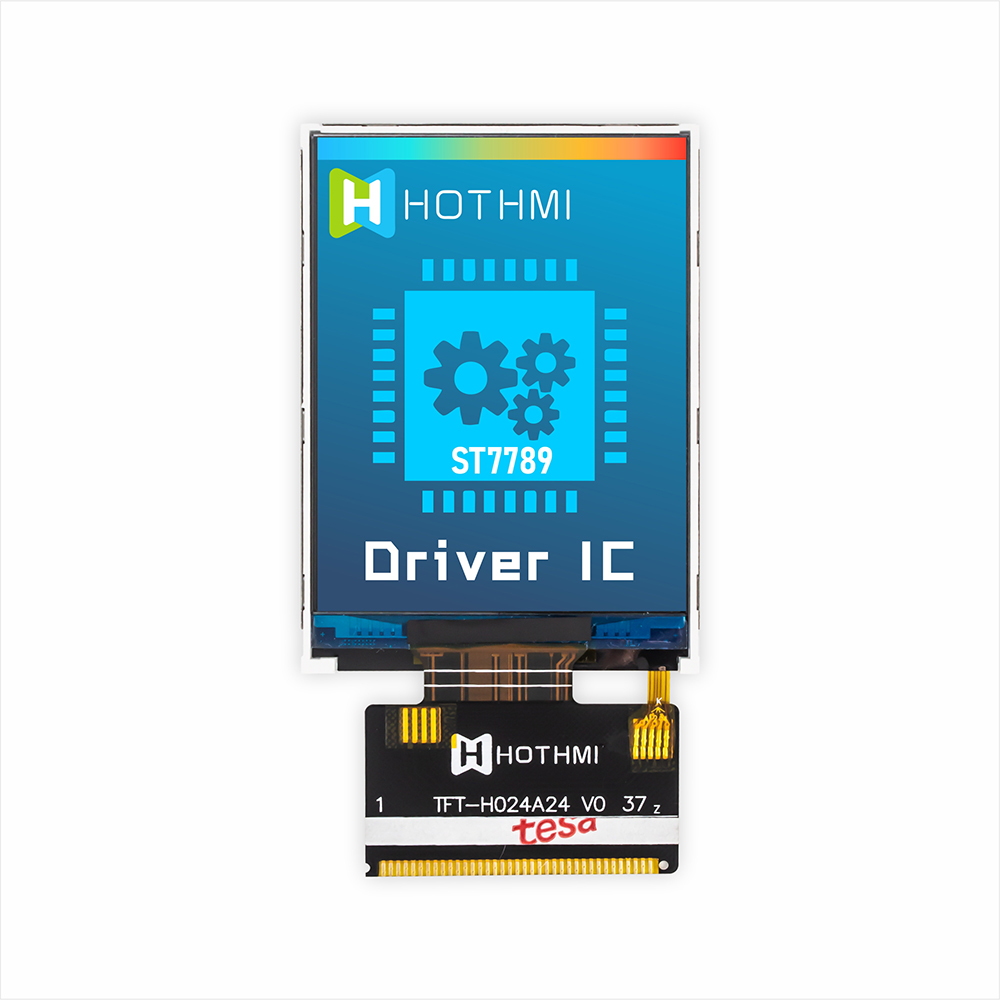

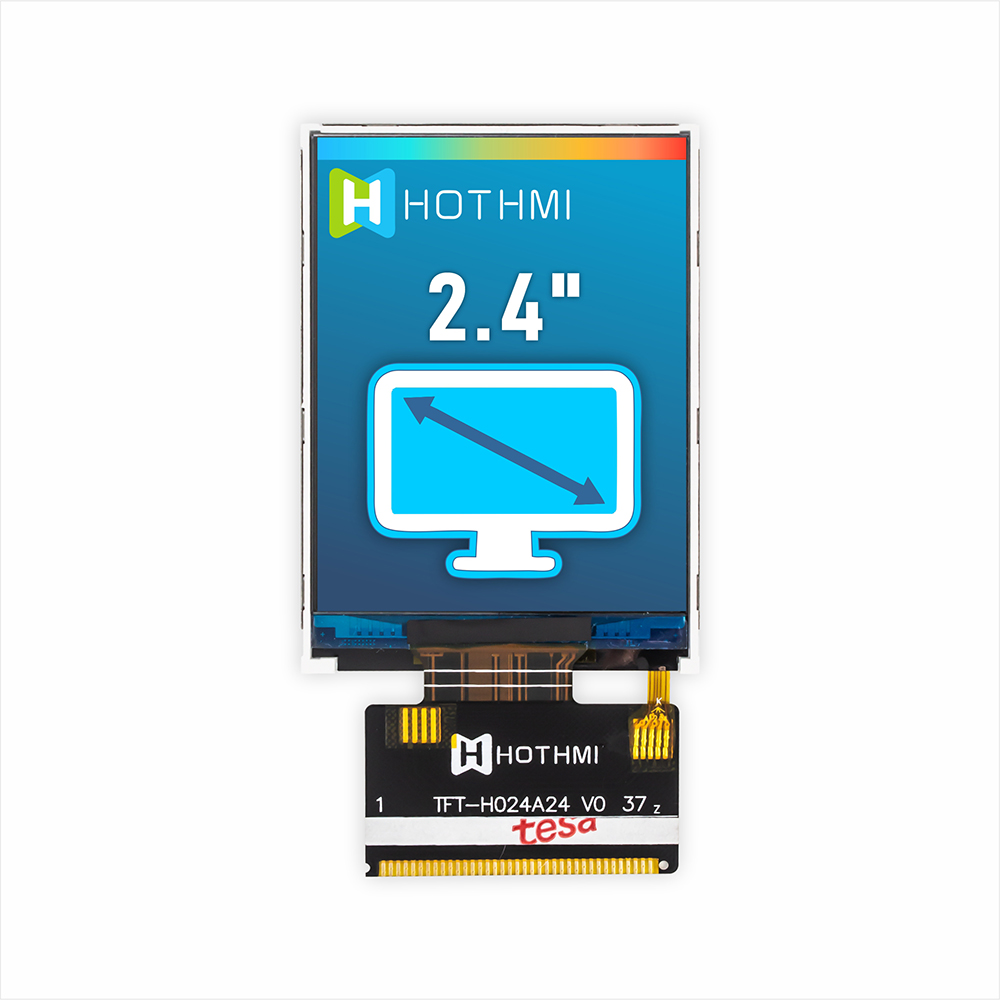

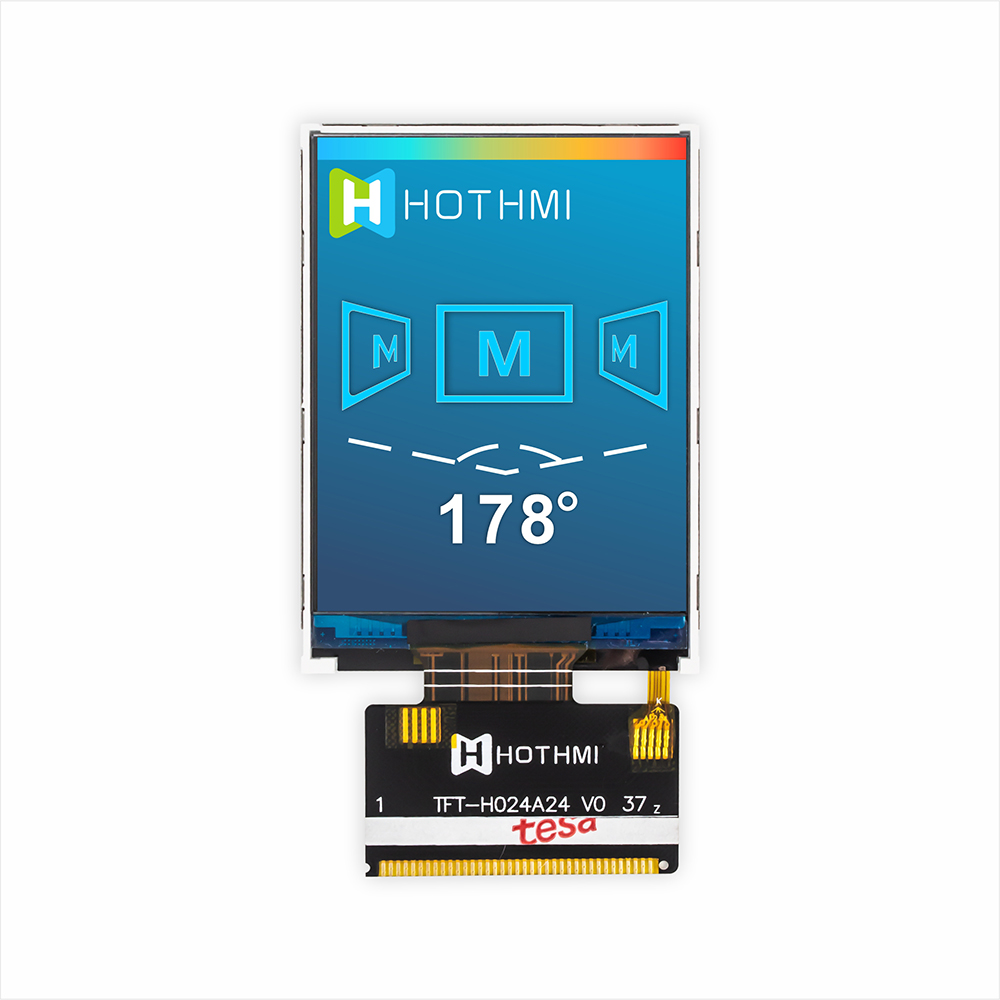

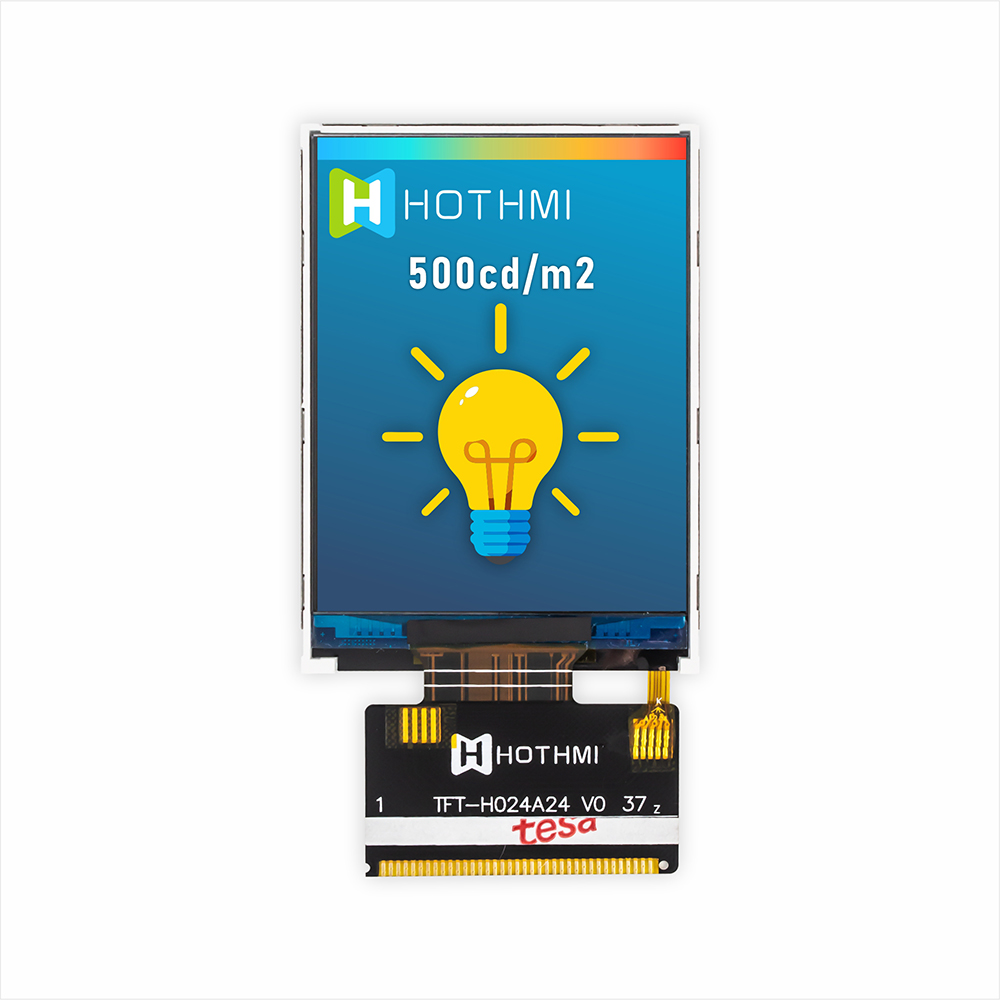

  • 2.4-inch color TFT display/plug-in FPC/240x320 resolution/MCU interface/ST7789 controller

    2.4-inch color TFT display/plug-in FPC/240x320 resolution/MCU interface/ST7789 controller TFT-H024A24QVTST3N37 is a 2.4-inch color display. The best viewing angle is U40/D20/L45/R45. The standard brightness LED backlight is 350 nits, which is moderately bright. This transmissive LCD requires a 2.8 voltage power supply and includes an MCU 8 bit or MCU 16 bit interface. It uses a flexible cable FPC cable, which is easy to connect and remove. It has multi-touch and is sensitive and smooth, making it a great choice for projects that require simple touch functions. The touch screen will allow users to interact with your application intuitively and create opportunities for interactive menus, control systems, or more engaging user experiences. Some industries and applications include industrial control panels, acreage meters, consumer products, home appliances, etc. This display has a very high cost-effectiveness and is suitable for end-product applications. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.

  • H024A24.png

  • ITEM

    PARAMETER DESCRIPTION

    UNIT

    TFT series

    TFT-H024A24QVTST3N37


    Diagonal size

    2.4

    Inch

    Resolution

    240X320

    Dot

    Dimensions

    42.72x60.26x2.5

    mm

    Active area (AA)

    36.72X48.96

    mm

    LCD type

    TFT LCD Display

    mm

    Display viewing angle

    Full View


    Aspect ratio

    1:1.1


    Backlight type

    LED white


    TFT driver IC

    ST7789


    Brightness

    350

    cd/m2

    Operating temperature

    -20~70

    Storage temperature

    -30~80
