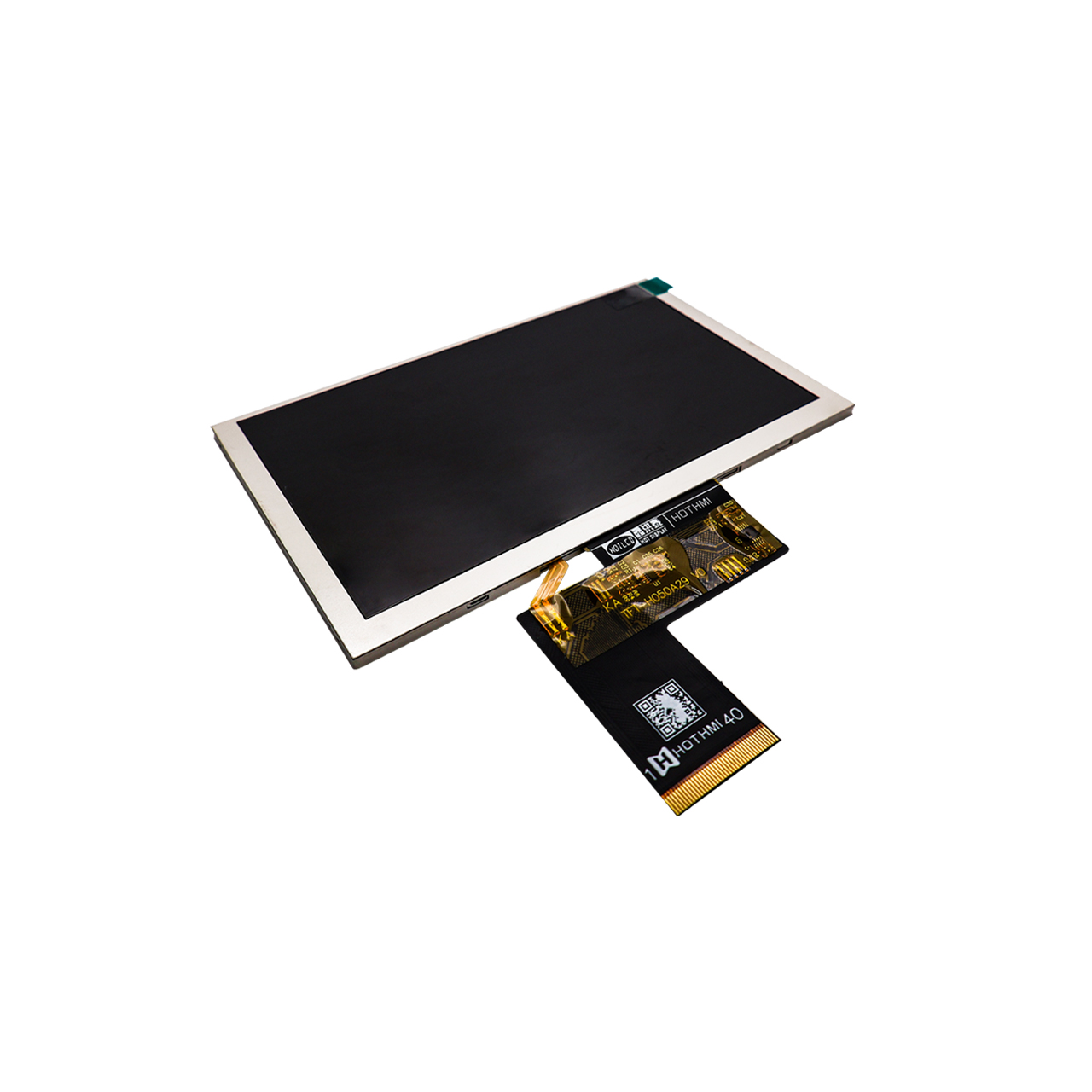

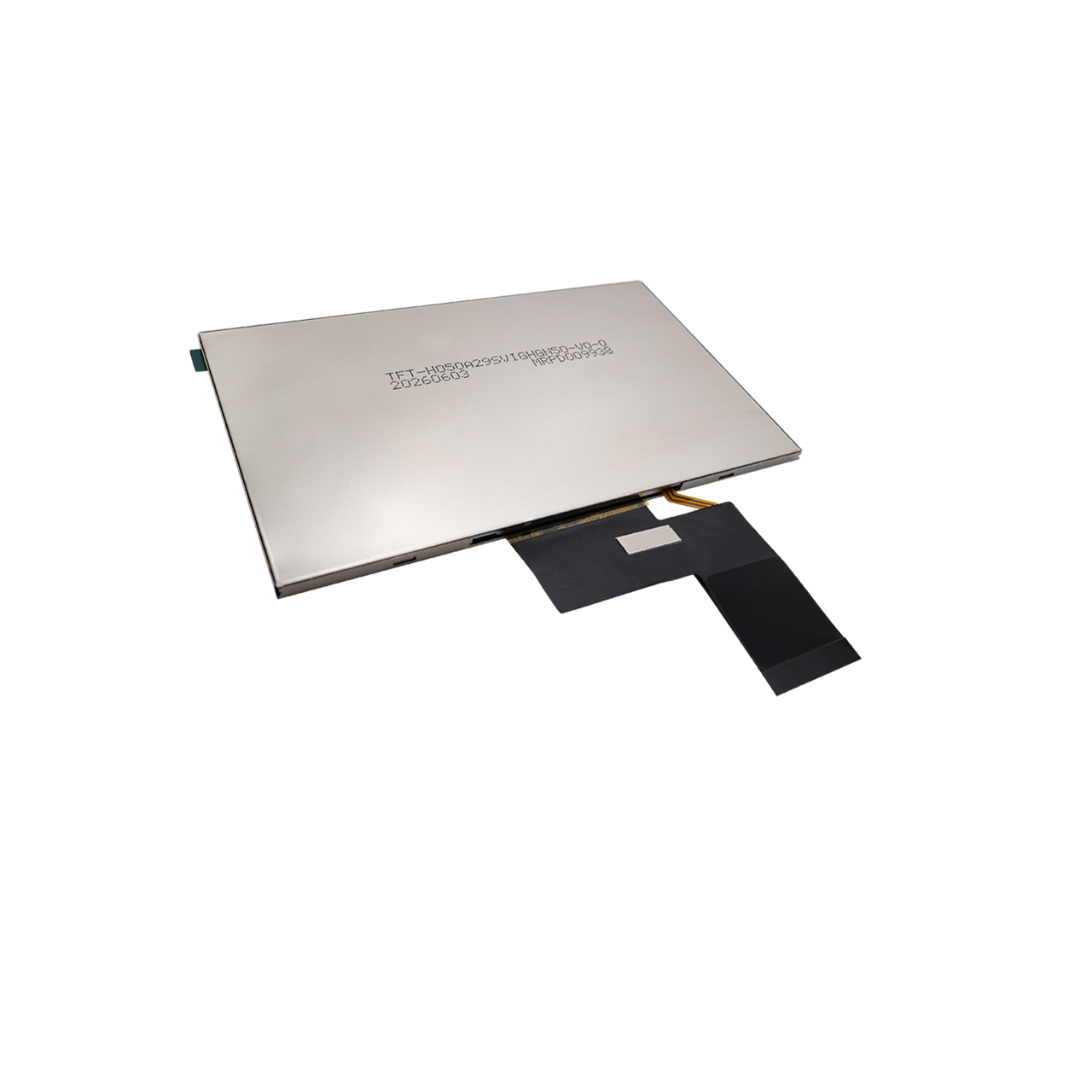

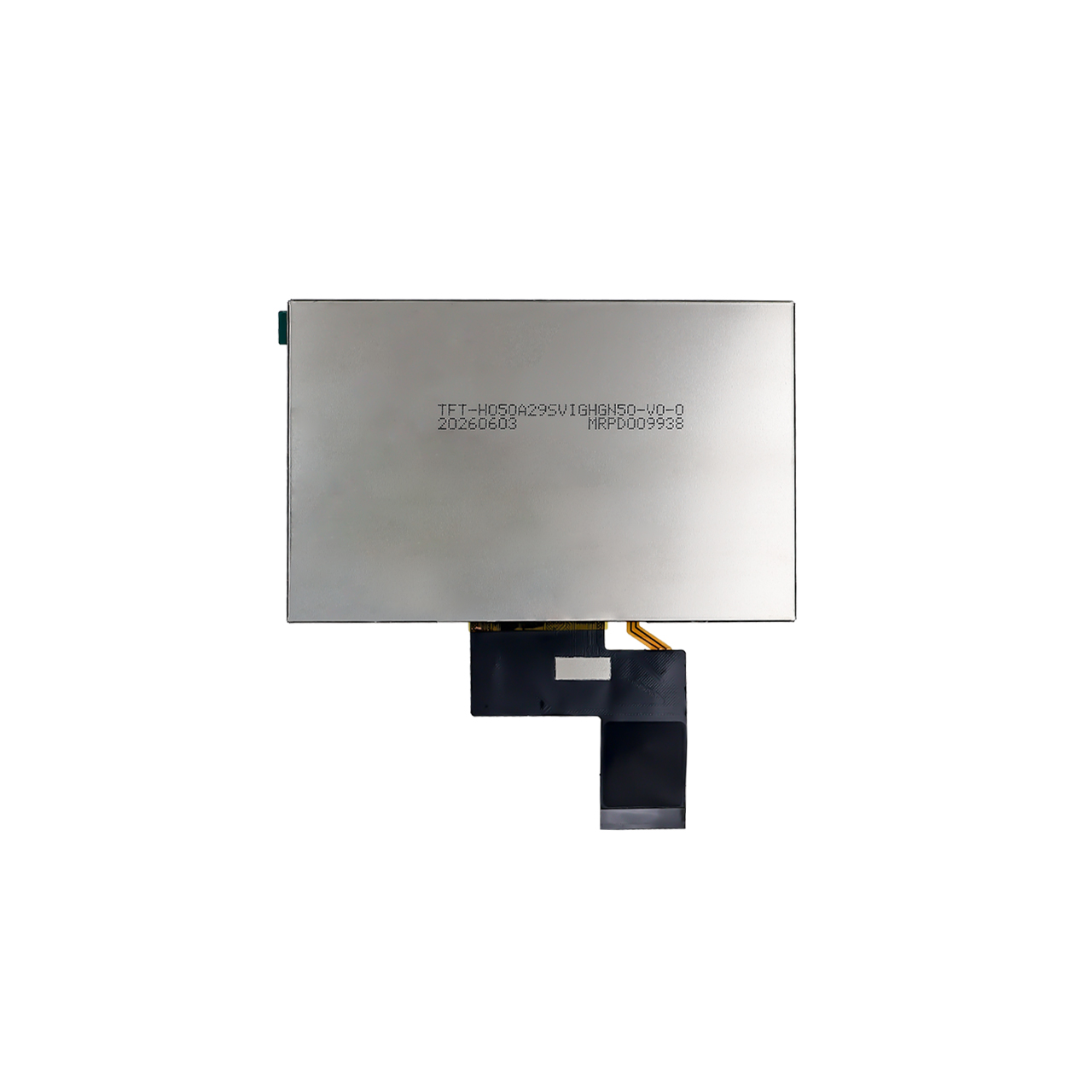

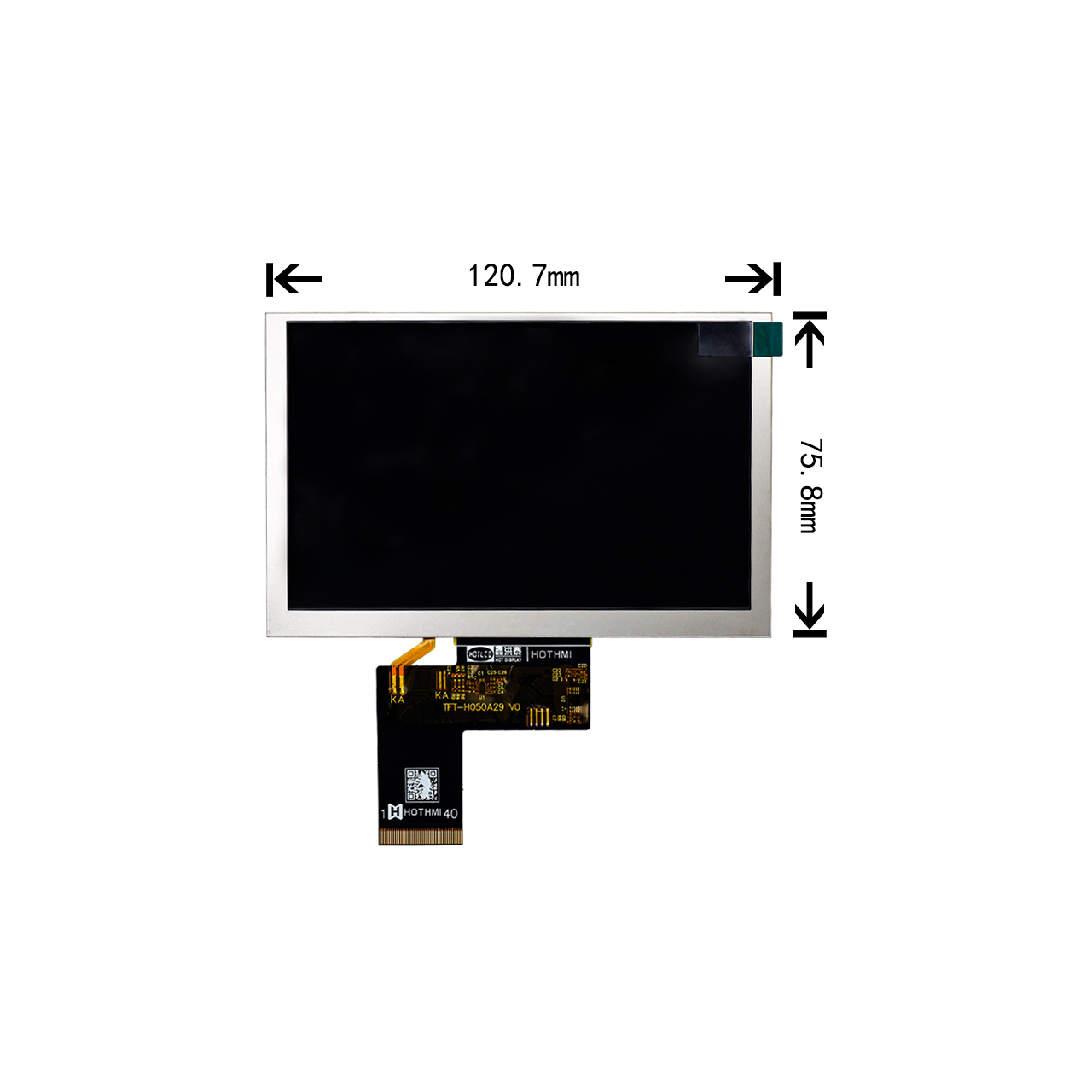

5.0-Inch Ultra-High Brightness TFT LCD Module 800x480 Sunlight Readable Display

TFT-H050A29SVIGHGN40 | 5.0-Inch Ultra-High Brightness TFT LCD Module 800x480 Sunlight Readable Display

The 5.0-Inch Ultra-High Brightness TFT LCD Module (Model: TFT-H050A29SVIGHGN40) is a professional-grade display solution engineered for environments where standard screens fail. With a compact 5.0-inch diagonal and sharp 800x480 resolution, this module delivers crisp, detailed visuals while maintaining outstanding power efficiency for its class.

Unlike consumer displays that become unusable under direct sunlight, this 5.0-Inch Ultra-High Brightness TFT LCD Module achieves an extraordinary 1700 cd/m² brightness – nearly 6 times brighter than typical tablets (250–300 nits). The IPS full viewing angle technology ensures vivid colors and 80-degree off-axis visibility, critical for outdoor kiosks and industrial dashboards. With an RGB interface and a flexible FFC-40 PIN connection, integration into existing systems is straightforward.

Built for harsh conditions, the module operates flawlessly from -30℃ to 80℃, making it suitable for freezing dawns and scorching afternoons. The ESD protection (8KV) guarantees reliable operation in electrically noisy environments like factories or vehicle cabins. Running on a low 3.3V power supply, it minimizes heat generation and energy consumption despite its high brightness. Whether you're designing an outdoor ATM, a farming vehicle display, or a marine navigation system, this 5.0-Inch Ultra-High Brightness TFT LCD Module offers the durability and performance you need.

Specification of the 5.0-Inch Ultra-High Brightness TFT LCD Module

Ultra-High Brightness TFT LCD Module make it a Sunlight Readable Display

For a display to be truly sunlight-readable, three conditions must be met: sufficient luminance, low reflectivity, and high contrast retention. Standard 300-nit displays appear black when outdoors because ambient light overwhelms the backlight. A sunlight-readable screen typically requires at least 1000 cd/m² to overcome diffuse solar glare, plus an optical bonding or anti-reflective layer to reduce surface reflection.

The 5.0-Inch Ultra-High Brightness TFT LCD Module not only meets but exceeds these requirements. With 1700 cd/m² backlight intensity, it delivers nearly double the industry baseline for sunlight readability. Even under direct midday sun (100,000 lux), the effective contrast ratio remains above 10:1, ensuring text and graphics stay legible. The IPS panel further enhances outdoor visibility by maintaining color accuracy and brightness at all viewing angles – a critical advantage when users glance at the screen from different positions.

Why is this specific module so effective in bright environments? First, its high-luminance LED backlight uses advanced heat-dissipation packaging to prevent thermal degradation. Second, the 800x480 resolution balances pixel density with aperture ratio, allowing more light to pass through each pixel. Finally, the wide operating temperature range (-30~80°C) ensures the liquid crystals respond quickly even when the sun heats the module surface past 70°C. Cheaper displays lose brightness or develop motion blur under such conditions; this 5.0-Inch Ultra-High Brightness TFT LCD Module remains stable.

Application Scenarios of the 5.0-Inch Ultra-High Brightness TFT LCD Module and Problem-Solving for Users

The 5.0-Inch Ultra-High Brightness TFT LCD Module excels in three major scenarios:

1. Outdoor Equipment (Parking Meters, EV Chargers, ATMs)
Problem solved: Standard screens become invisible in sunlight, forcing users to shade the display with their hands. This leads to errors, frustration, and abandoned transactions.
Solution: With 1700 cd/m² brightness, this module maintains full readability without hoods or shade structures. Parking meters in desert cities or beachside EV chargers remain usable from dawn to dusk. The 8KV ESD protection also prevents static discharge failures from dry, windy outdoor environments.

2. Industrial Control & Heavy Machinery (Forklifts, Excavators, Agricultural Vehicles)
Problem solved: Factory and construction site lighting varies wildly – from dim indoor warehouses to blinding outdoor pits. Operators need instant readability without adjusting settings. Frequent temperature shifts also cause consumer-grade LCDs to freeze or black out.
Solution: The -30~80°C operating range and 1700 cd/m² brightness ensure visibility whether the machine is in a freezer warehouse or a sun-baked quarry. The IPS full viewing angle allows operators to read diagnostics from side windows or awkward positions. The 3.3V low-voltage design reduces failure risks in machines with unstable power supplies.

3. Marine & Automotive (Boat Dashboards, Bus Stop Timetables, Off-road Vehicle Displays)
Problem solved: Water reflection and glare from waves or windshields make typical screens illegible. UV exposure degrades plastic covers and LCD polarizers within months.
Solution: The 5.0-Inch Ultra-High Brightness TFT LCD Module combines high luminance with durable polarizers resistant to UV yellowing. Boat captains can read GPS data even with sun glare bouncing off the water. Bus stop displays refresh clearly under reflected headlights. Automotive aftermarket users benefit from the 8KV ESD rating, as vehicle cabins generate significant static from seat friction.

Summary of User Benefits:

• Cost savings: No need for external sun shields or heating/cooling enclosures.

• Safety: Critical data (fuel levels, temperature alarms, backing cameras) remains visible instantly.

• Reliability: ESD protection and wide temperature range reduce warranty returns.

• Easy integration: Standard RGB interface, 40-pin FFC, and 3.3V power fit most controllers.

For any project requiring reliable outdoor visibility, the 5.0-Inch Ultra-High Brightness TFT LCD Module (Model TFT-H050A29SVIGHGN40) provides a ready-to-implement, field-proven solution.

Custom Touch Panel Solutions for 5.0-Inch Ultra-High Brightness TFT LCD Module

We offer pre-assembled LCD + touch panel modules – delivered as a single, optically bonded unit. This saves you development time, reduces assembly costs, and ensures perfect alignment.

Assembly Options:

• Air Bonding Assembly: Touch panel attached with adhesive frame (lower cost, field-replaceable)

• Optical Bonding:Full lamination with UV-cured resin (best optical performance, anti-condensation, increased mechanical strength)

For more customized touch solutions, please visit the webpage:Customized Touch Solution

Pin Definition Table – 5.0-Inch Ultra-High Brightness TFT LCD Module (FFC-40 PIN)

Backlight Module Information of 5.0-Inch Ultra-High Brightness TFT LCD Module

LED Backlight Specification

FAQS about the 5.0-Inch Ultra-High Brightness TFT LCD Module

1. Can this 5.0-Inch Ultra-High Brightness TFT LCD Module be used outdoors under direct sunlight?

Answer:
Yes. With a brightness level of 1700 cd/m², this 5.0-Inch Ultra-High Brightness TFT LCD Module is specifically designed for direct sunlight readability. Unlike standard displays (250–300 nits) that become unreadable outdoors, this module maintains clear visibility even under intense midday sun (up to 100,000 lux ambient light). Combined with IPS full viewing angle and 800x480 resolution, users can see sharp, color-accurate content from any angle without shadowing or glare interference. It is ideal for outdoor kiosks, EV chargers, agricultural machinery, and marine dashboards.

2. What is the operating temperature range of this module, and can it handle extreme environments?

Answer:
This 5.0-Inch Ultra-High Brightness TFT LCD Module operates reliably from -30℃ to 80℃. This wide temperature tolerance makes it suitable for both freezing cold storage facilities and scorching outdoor environments such as deserts or industrial furnaces. Many standard LCDs fail below -20℃ or above 70℃, leading to slow response times, image retention, or complete blackout. This module maintains consistent performance across the entire range, ensuring your equipment runs safely and dependably in harsh climates without external heating or cooling enclosures.

3. Does this display require any additional optical bonding or anti-glare treatment for outdoor use?

Answer:
No – the 5.0-Inch Ultra-High Brightness TFT LCD Module delivers sunlight readability without mandatory optical bonding. The 1700 cd/m² backlight already provides enough luminance to overcome ambient light reflection. However, if your application demands extreme anti-glare performance (e.g., direct overhead sun on a marine console), you may optionally add an anti-reflective (AR) or anti-glare (AG) cover glass. The module’s FPC-40 pin RGB interface remains compatible with standard touch panels or protective lenses. For most outdoor applications (parking meters, industrial controls, bus stop displays), the native performance is fully sufficient.

4. How do I connect this module to my controller, and what power supply is required?

Answer:
This 5.0-Inch Ultra-High Brightness TFT LCD Module uses a standard RGB interface via a 40-pin FFC (Flexible Flat Cable) connector. The pin configuration follows industry-standard pinouts for 5.0-inch RGB displays, simplifying integration with popular MCUs (e.g., STM32, Raspberry Pi, or industrial SBCs). The module operates on a 3.3V power supply voltage, consuming significantly less power than many high-brightness displays of comparable size. Low voltage also reduces heat generation – critical for compact enclosures. A detailed pinout diagram and initialization code are available in the product datasheet upon request.
