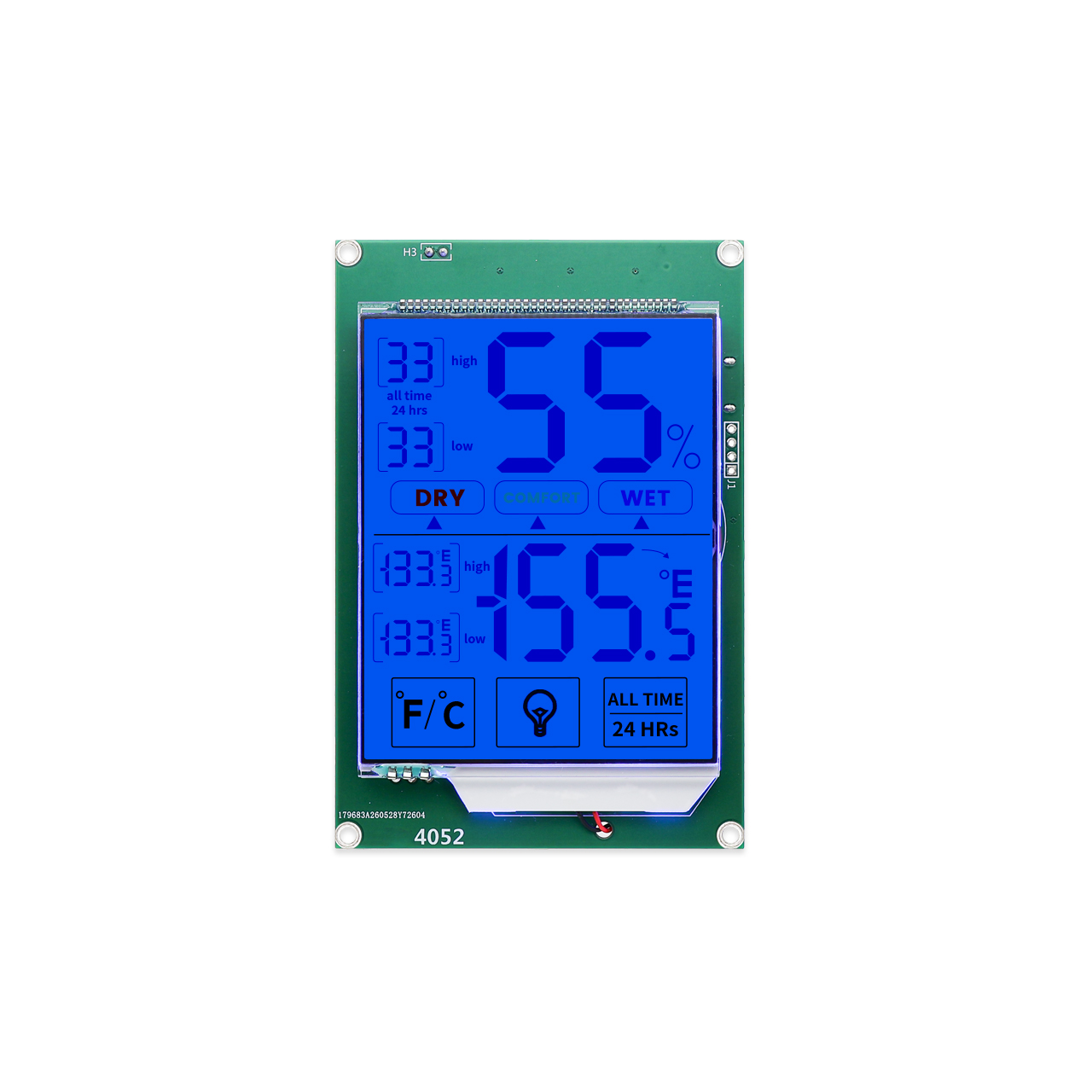

Custom HTN LCD Transflective Segment Display With Backlight

Custom HTN LCD Transflective Segment Display With Backlight

▶ Model：
HTM4052

▶ Type: Custom HTN LCD Transflective Segment Display
▶ Display pixels: segment code

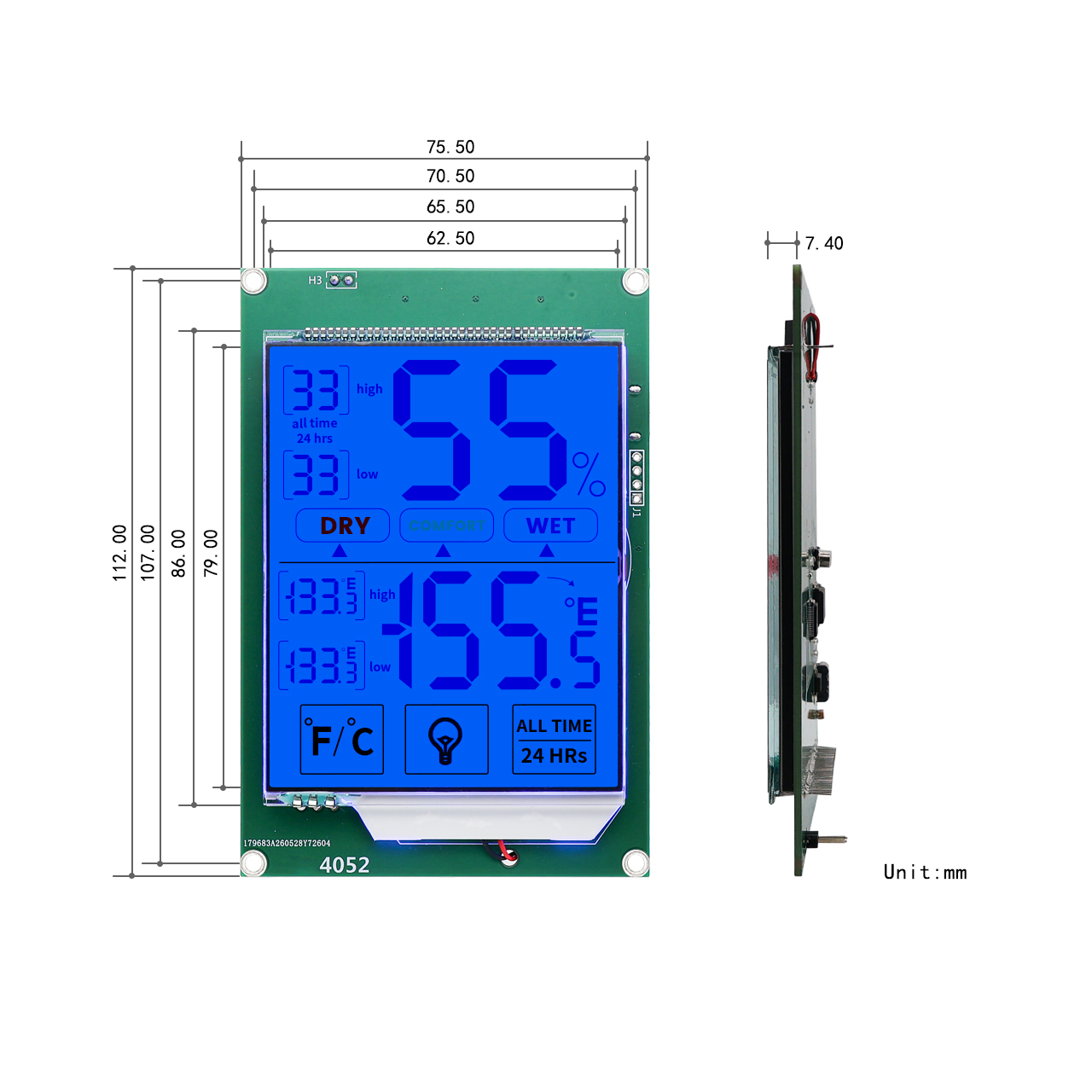

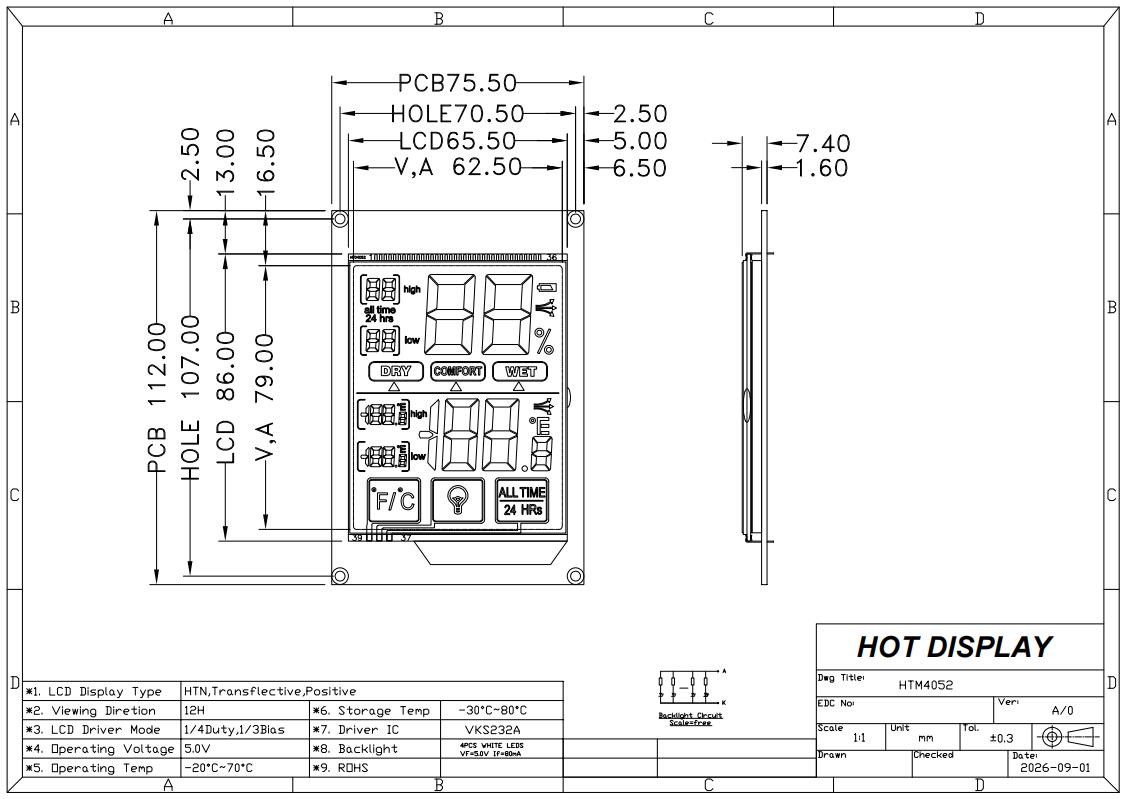

▶ Overall dimensions (mm): 75.5x112.0x7.4
▶ Viewing angle: 12H
▶ LCD Driver Mode：1/4Duty；1/3Bias
▶ Working temperature: -20℃~70℃
▶ Supply voltage: 5.0V
Product ConsultationDatasheets Download
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

No Back Next

Product Description
Customized Services
Attributes

Custom HTN LCD Transflective Segment Display with Backlight
Product Overview
This Custom HTN LCD Transflective Segment Display is engineered for applications that demand reliable readability in both bright outdoor conditions and dim indoor environments. Combining HTN (High Twisted Nematic) technology with a transflective polarizer, this display delivers the best of both worlds: reflective performance under sunlight and transmissive clarity with backlight in low-light settings.
Key Specifications
- Type: Custom HTN LCD Transflective Segment Display
- Display Pixels: Segment code
- Overall Dimensions: 75.5 × 112.0 × 7.4 mm
- Viewing Angle: 12H
- LCD Driver Mode: 1/4 Duty, 1/3 Bias
- Working Temperature: -20°C to +70°C
- Supply Voltage: 5.0V
Why Choose This Custom HTN LCD Transflective Segment Display?
The transflective design allows this Custom HTN LCD Transflective Segment Display to remain legible even under direct sunlight, while the integrated backlight ensures clear visibility at night or in dark environments. With a 12H viewing angle and 1/4 Duty, 1/3 Bias drive mode, it is ideal for instruments, meters, medical devices, and industrial control panels.
Full Customization Services from Hotdisplay
As a professional LCD manufacturer with over 20 years of experience, Hotdisplay offers comprehensive customization for this Custom HTN LCD Transflective Segment Display:
1. Process Type Customization – TN, HTN, STN, FSTN, and VA full-viewing-angle options.
2. Optical Mode Customization – Transmissive, reflective, transflective, and RDF (Reflective Display Film).
3. Mechanical Customization – Glass thickness from 2.8mm to 1.4mm; pin pitch options: 2.54mm, 2.0mm, 1.8mm, 1.5mm, 1.27mm; irregular shapes (hexagonal, curved, circular); maximum size up to 345mm × 396mm.
4. Electrical Customization – Up to 1/240 Duty, 640 × 240 dot matrix, voltage range 2.5V to 25V, minimum line width 10μm.
5. Backlight Customization – Yellow-green, blue, white, amber, red, RGB, and 48 combinations.
6. Segment Display Interface Customization – 7-segment and 16-segment (alphanumeric) layouts, silkscreen color patterns.
7. Interface & Temperature Customization – Multiple connector options and wide temperature ranges.
Applications
This Custom HTN LCD Transflective Segment Display is widely used in:
- Smart electricity meters
- Blood pressure monitors
- Industrial control panels
- Handheld instruments
- Solar inverters
- Medical equipment
Order Your Custom HTN LCD Transflective Segment Display Today
Whether you need a standard specification or a fully tailored solution, Hotdisplay provides end-to-end support—from drawing design and sample testing to mass production. Contact us to discuss your Custom HTN LCD Transflective Segment Display requirements and receive a quote within 24 hours.
