10.1-inch 1280x800 TFT LCD Display Module LVDS Interface NV3051F

10.1-inch 1280x800 TFT LCD Display Module LVDS Interface NV3051F

▶ Model: HTM-H101A19-LVDS-A01

▶ Type: TFT standard display module
▶ Display pixels: 1280x800

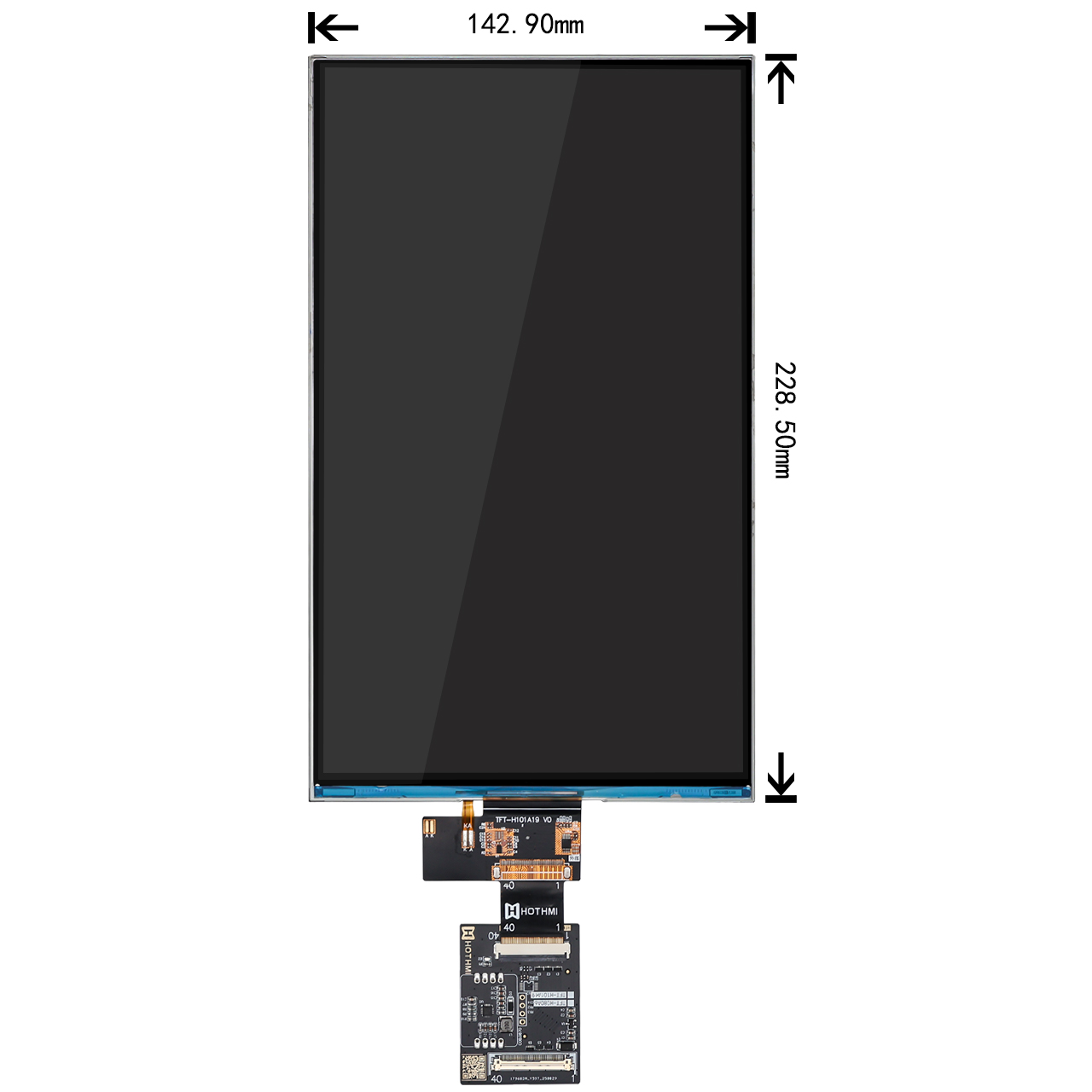

▶ Dimensions: 142.9x228.5x2.67 mm
▶ AA size (mm): 135.36x216.576
▶ Display inches: 10.1”
▶ Application: Central control system
▶ Viewing angle: IPS full viewing angle
▶ Backlight/brightness: 450 cd/m²
▶ Pin configuration: FPC-40 pin
▶ Interface: LVDS
▶ Special notes: ESD protection 8KV
▶ Operating temperature: -30~80℃
▶ Control chip: NV3051F
▶ Power supply voltage: 3.3V

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

No Back Next

Product Description
Customized Services
Attributes

HTM-H101A19-LVDS-A01 | 10.1-inch 1280x800 TFT LCD Display Module LVDS Interface NV3051F
This high-performance 1280x800 TFT LCD Display Module is engineered to deliver exceptional visual clarity and robust reliability for demanding industrial applications. Featuring a generous screen size, this TFT LCD Display Module is perfectly suited as the visual interface core for central control systems, providing operators with a broad, detailed, and intuitive viewing platform.

Designed around a quality TFT standard display module, the product boasts an IPS panel that ensures consistent, accurate colors and stable images across a full viewing angle. This makes the display easily readable from various positions, a critical feature for panel-mounted systems. The screen offers excellent brightness levels, ensuring clear visibility even in challenging lighting environments.

A key strength of this 1280x800 TFT LCD Display Module lies in its advanced and reliable internal architecture. It utilizes a mainstream LVDS interface for high-speed, low-noise signal transmission, ensuring superior image integrity. The module is driven by the powerful NV3051F control chip, which guarantees smooth graphics processing and stable operation. Furthermore, the module incorporates significant ESD protection, safeguarding the electronics from transient voltage spikes and enhancing its durability in industrial settings.

Built to endure rigorous operating conditions, this display module functions flawlessly across an extensive temperature range. Its power design is streamlined for efficiency, requiring a single, low-voltage supply. The compact mechanical design, with a narrow border maximizing the active display area, allows for efficient integration into space-conscious designs.

In summary, this 1280x800 TFT LCD Display Module represents a perfect fusion of a large viewing area, high-resolution visuals, and industrial-grade resilience. Its combination of the LVDS interface, NV3051F driver, and robust protection features makes it an outstanding and reliable choice for next-generation central control system interfaces.

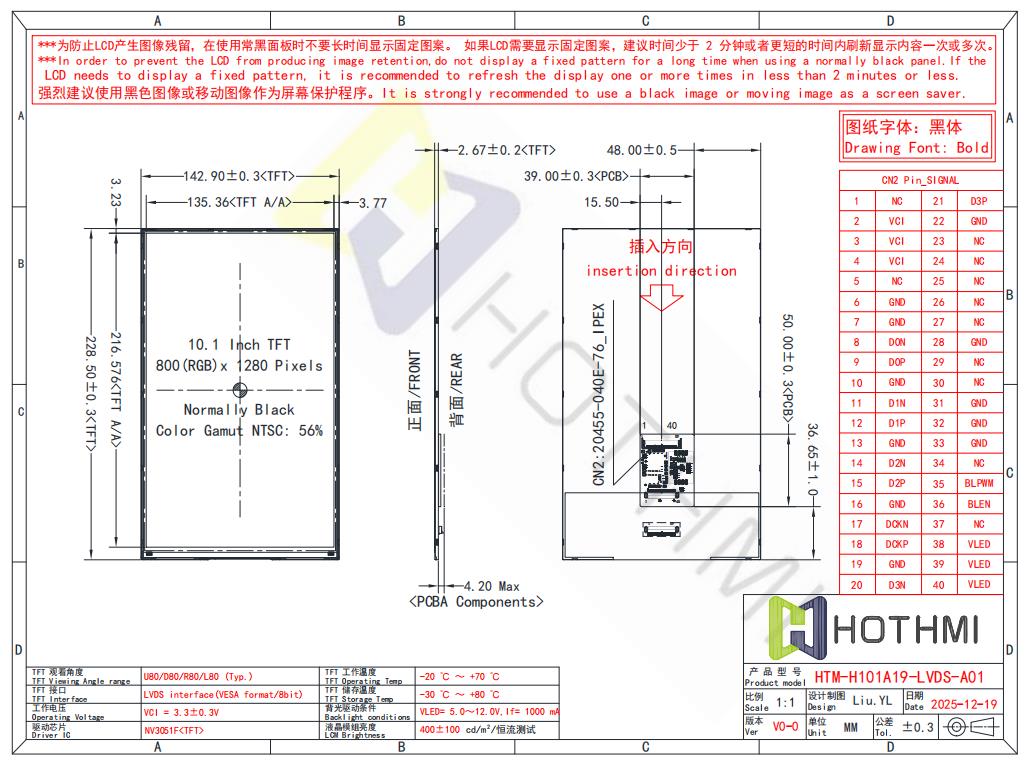

The Specification of the 10.1-inch 1280x800 TFT LCD Display Module

Datasheet for Touch Panel,Controller↓

Name	Date	Size
HTM-H101A19-LVDS-A01	February 02, 2026	1.43MB

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	HTM-H101A19-LVDS-A01
Diagonal size	10.1”	Inch
Resolution	1280x800	Dot
Dimensions	142.9x228.5x2.67	mm
Active area (AA)	135.36x216.576	mm
LCD type	10.1” TFT Module	mm
Display viewing angle	Full View
Aspect ratio	3：2
Backlight type	LED white
TFT driver IC	NV3051F
Brightness	400cd/m2	cd/m2
Operating temperature	-30~85℃	℃
Storage temperature	-30~85℃	℃
