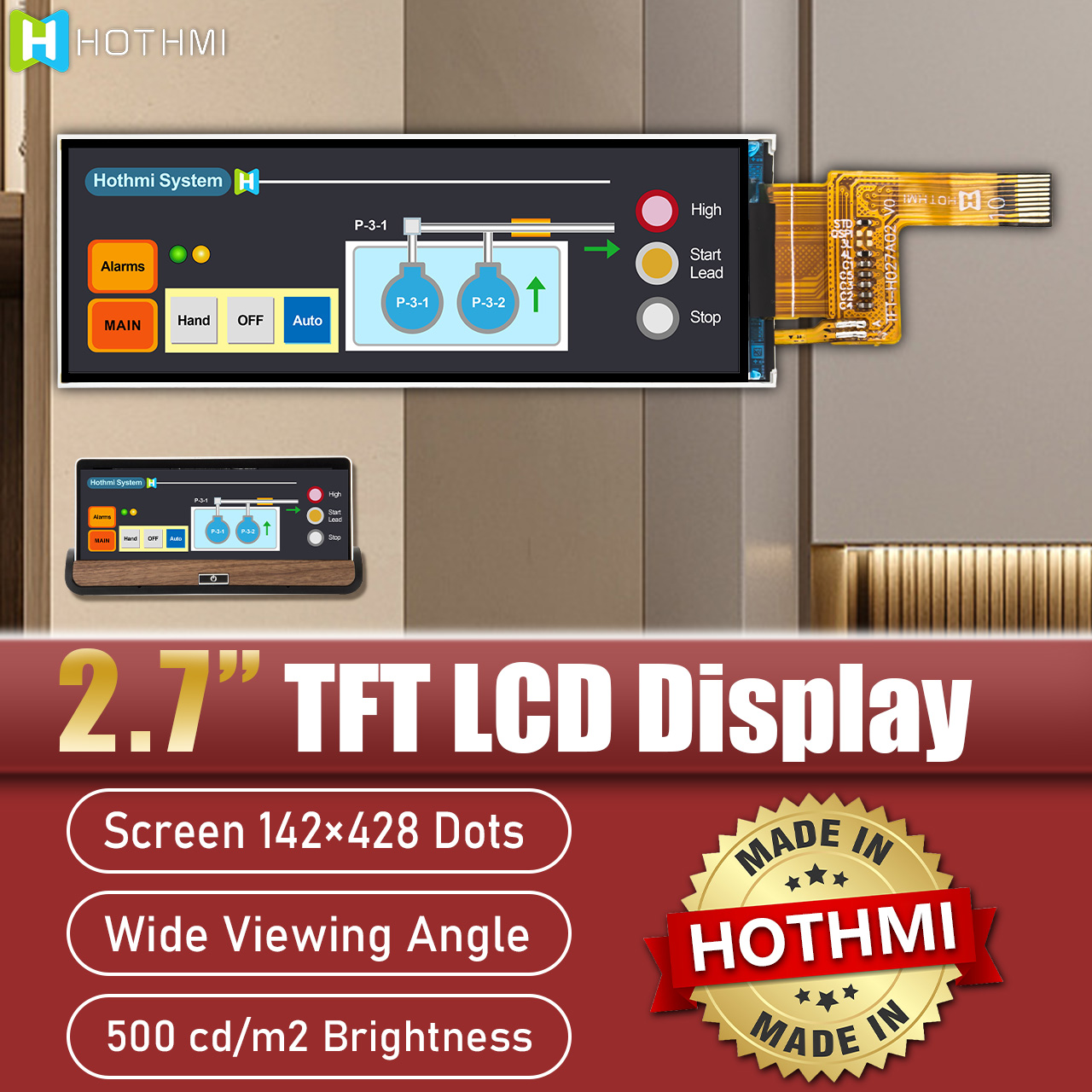

2.7" TFT LCD Display | 142x428 Bar TFT Display | NV3007

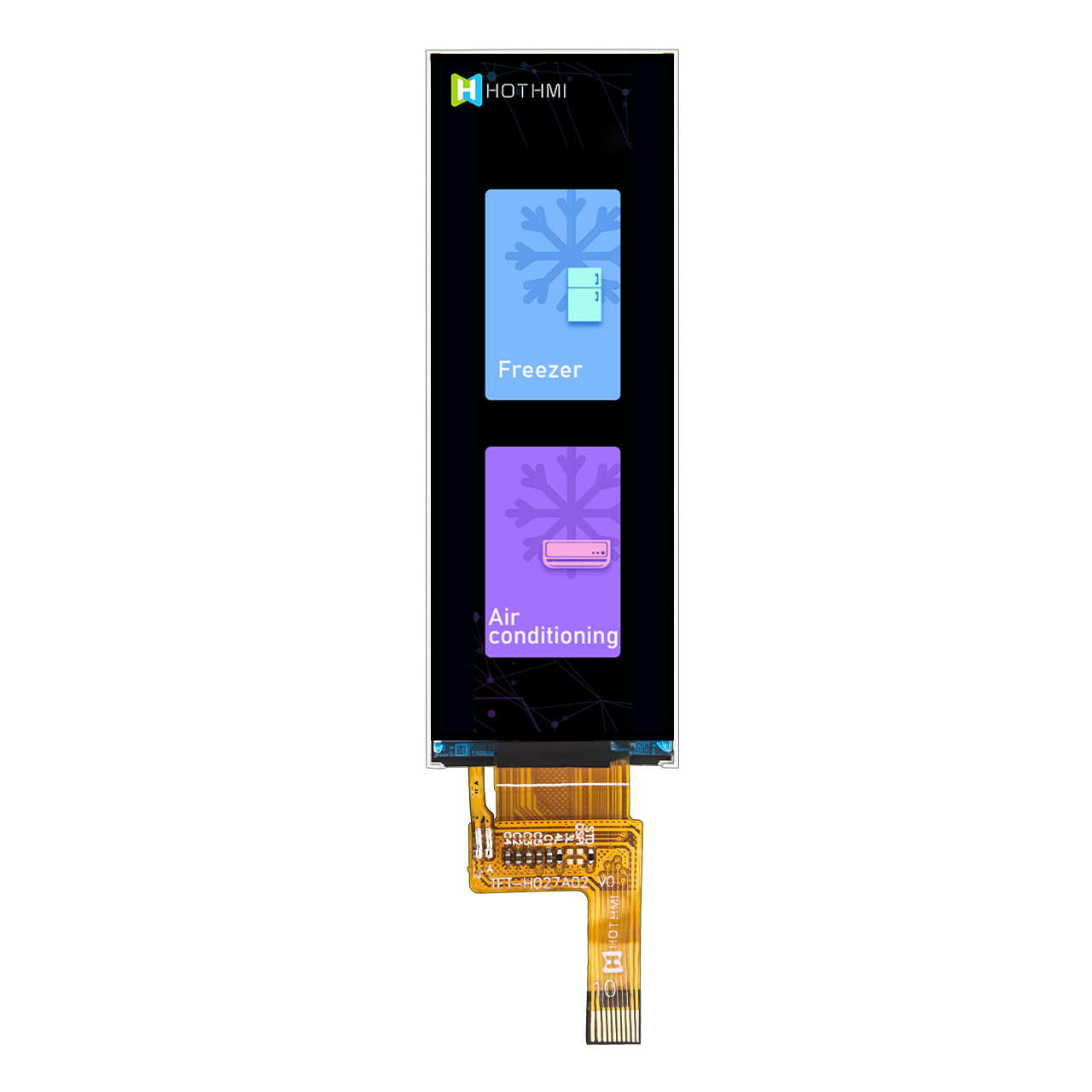

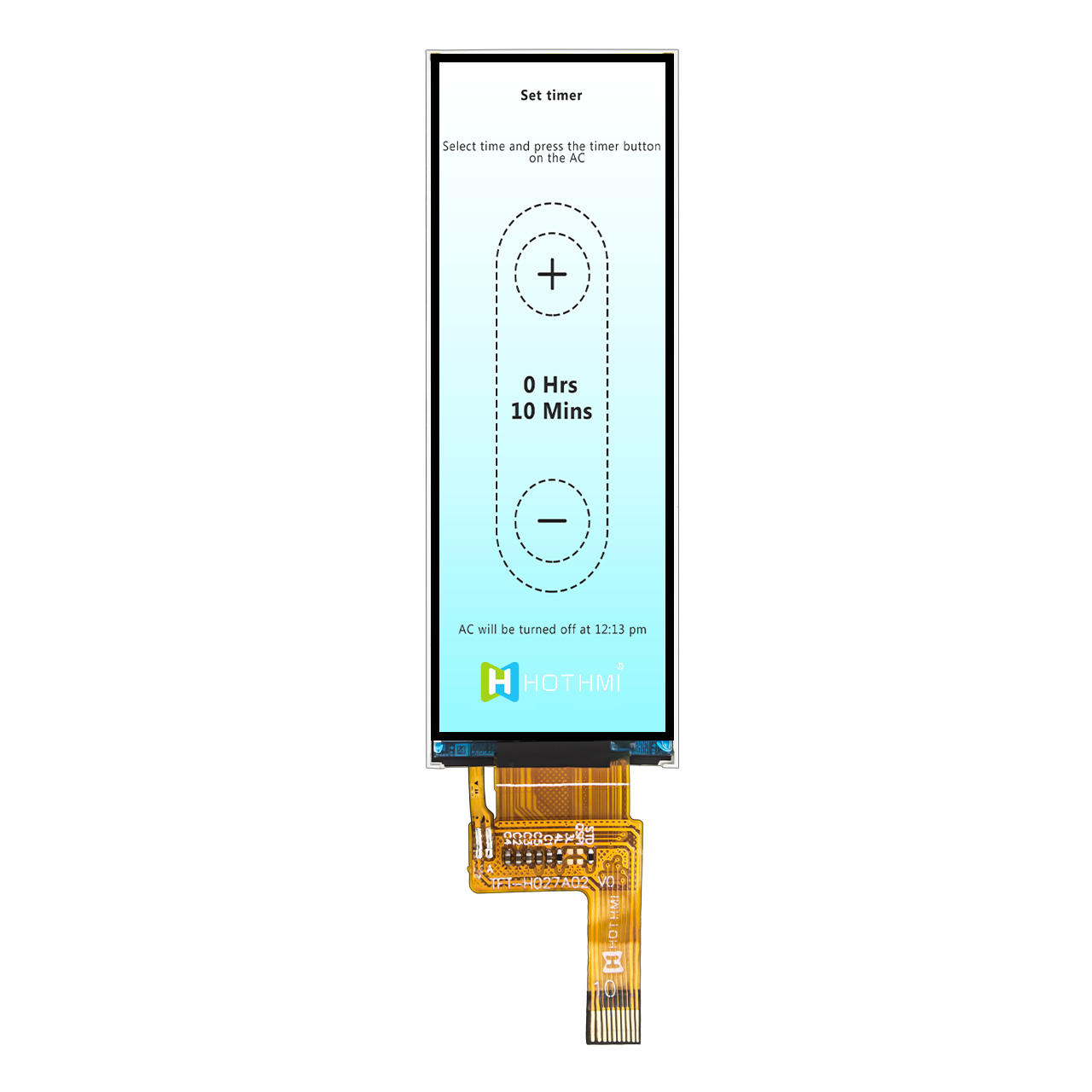

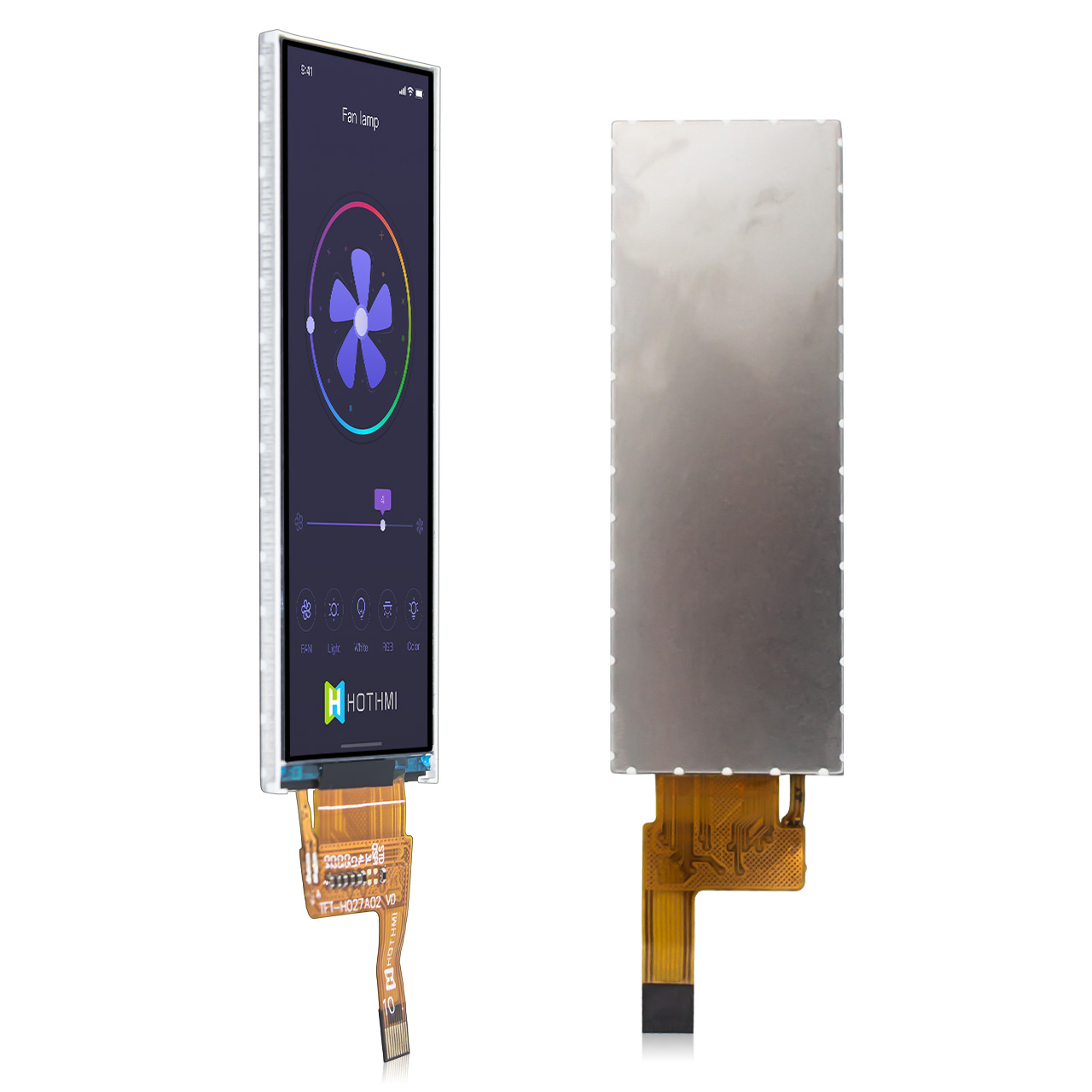

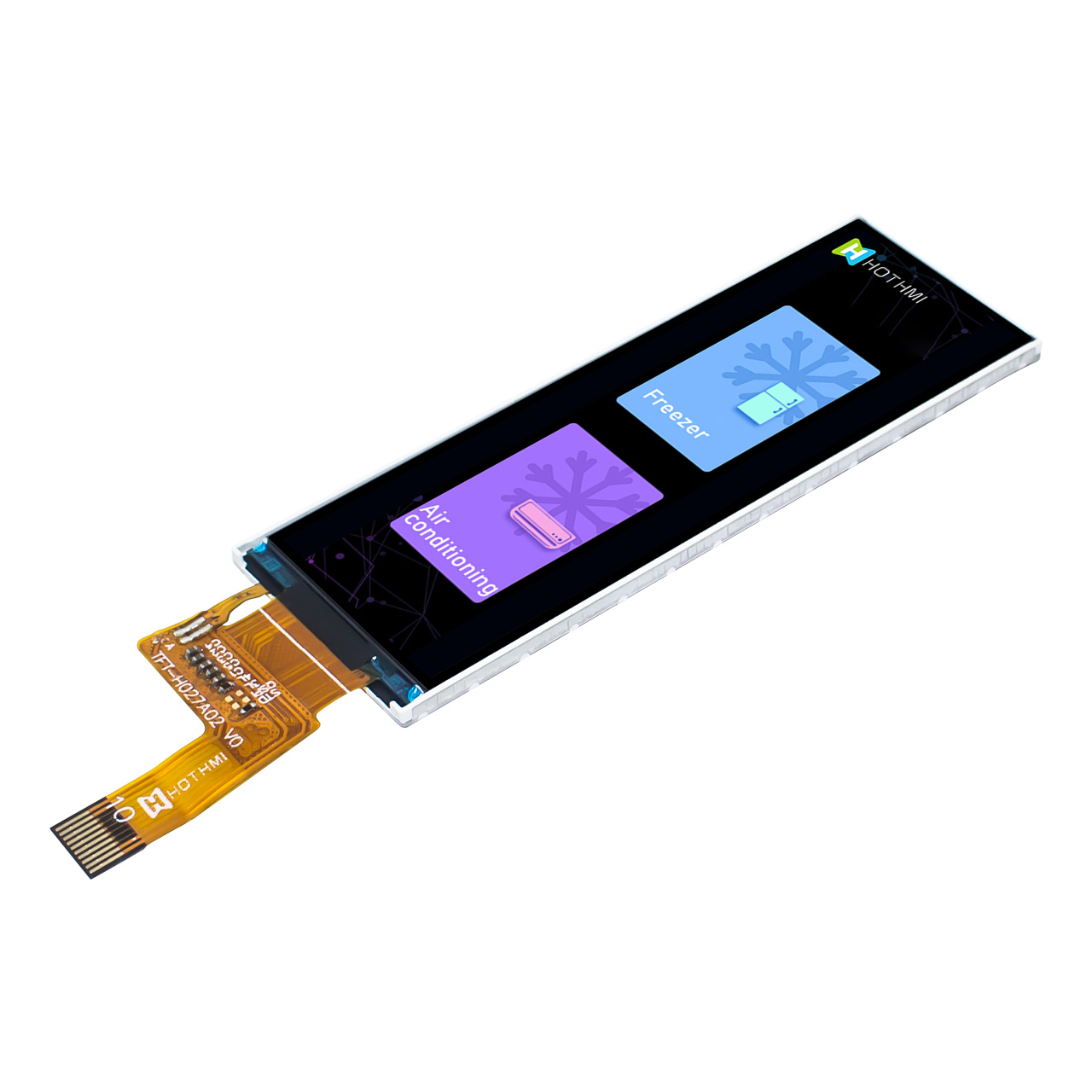

The 2.7" TFT LCD Display TFT-H027A02ZPINV5N10 redefines small display solutions with high-definition picture quality and long-lasting reliability. The display uses 142×428 pixel resolution and NTSC 70% wide color gamut technology to present bright and rich colors and sharp details, fully meeting the needs of high-precision visual presentation in industrial, medical and other fields. This 2.7" TFT LCD Display excellent durability supports a wide operating temperature environment of -30℃ to +80℃, and with the Normally Black mode design, it can maintain clear contrast even under strong light conditions, ensuring stable display effects in outdoor or high-light scenes.
To enhance the user experience, the product adopts a 3.0~3.3V low-power design, combined with an efficient 4-wire 8-bit serial interface, to achieve a perfect balance between fast response and energy-saving performance. Through the intelligent screen saver function (it is recommended to refresh the screen within 2 minutes or use dynamic images) and 500 cd/m² high-brightness constant current backlight drive, the image retention problem is effectively eliminated and the screen life is significantly extended.

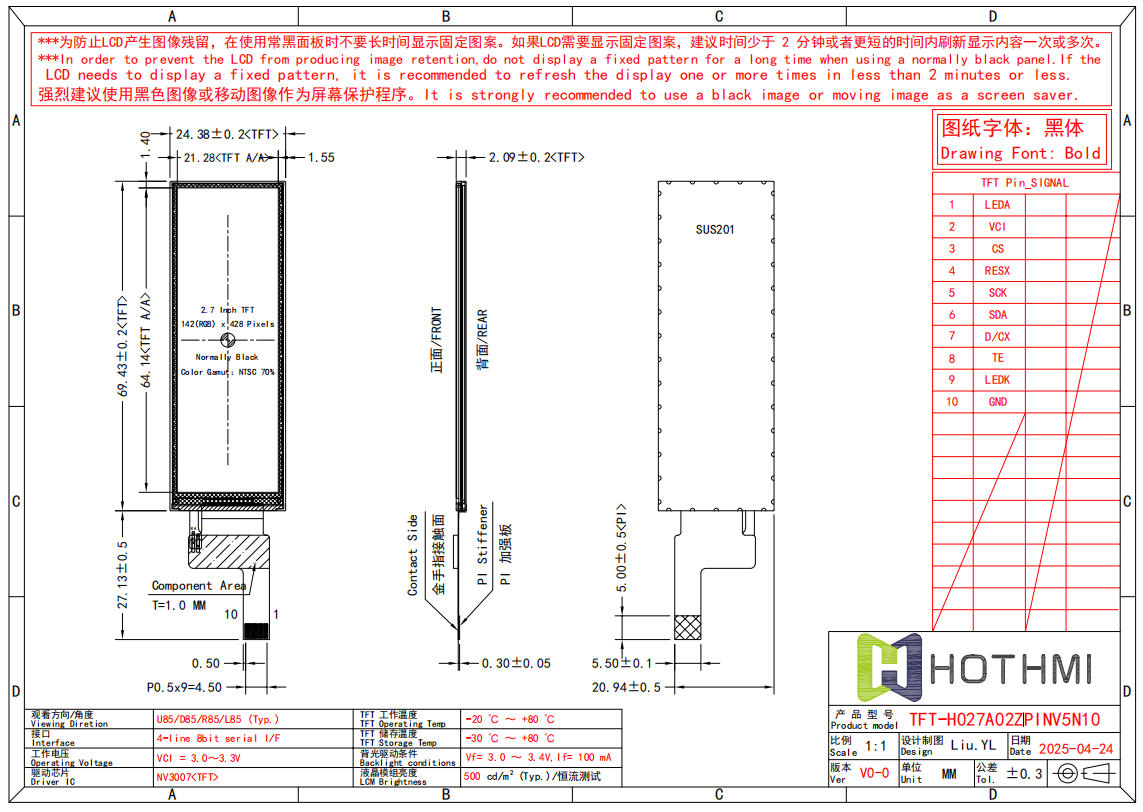

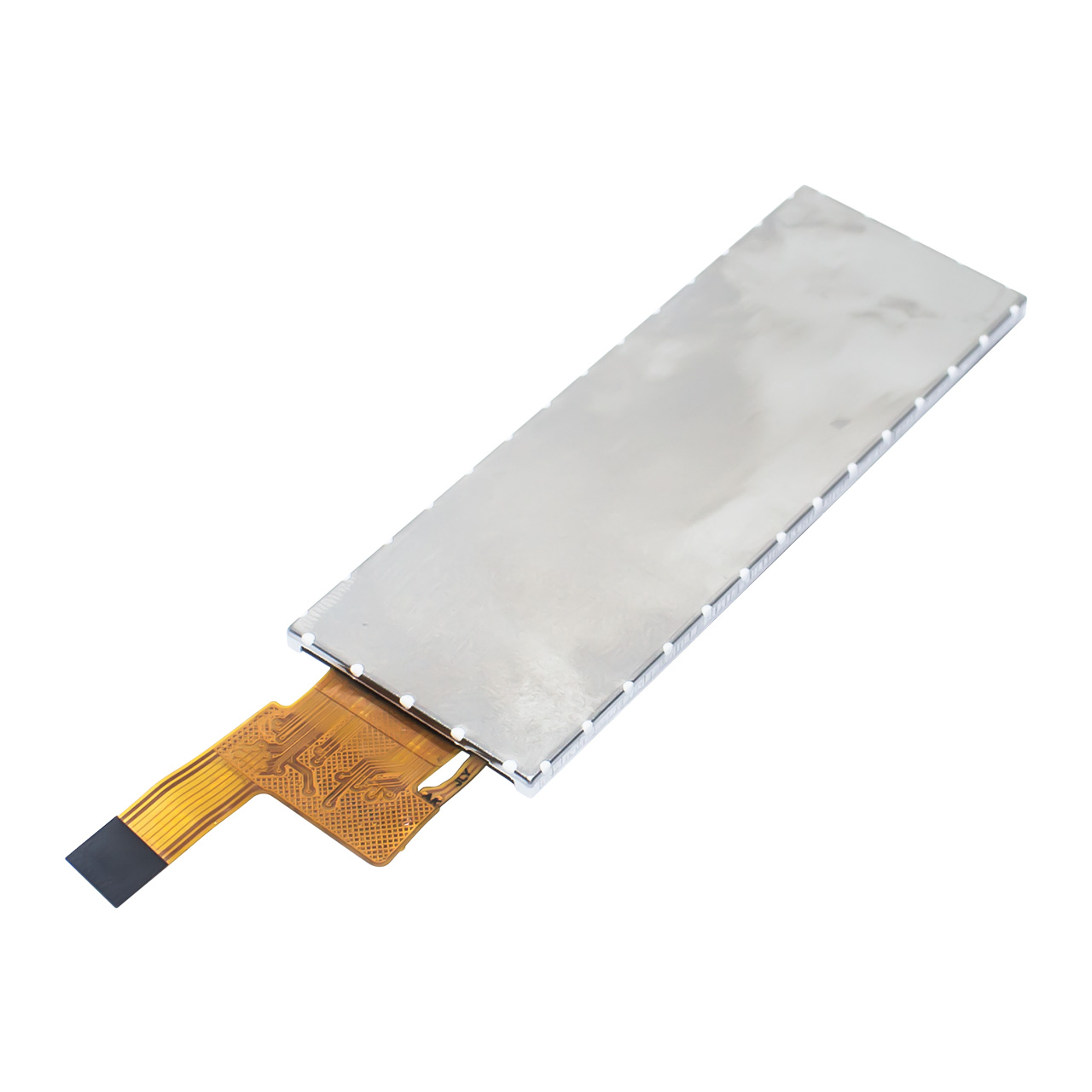

The 2.7" TFT LCD Display has achieved a breakthrough in mechanical strength and signal stability with its compact structure (27.13±0.5mm) and PI reinforcement board design, and the gold finger interface design further simplifies the integration process. Compatible with Vf=3.0~3.4V backlight drive solutions, the plug-and-play feature allows it to quickly adapt to diverse scenarios such as industrial HMI, portable instruments, vehicle-mounted equipment and smart home control panels. Whether it is a harsh outdoor environment or high-precision display requirements, TFT-H027A02ZPINV5N10 can light up every frame with professional quality, providing reliable support for product development.
This 2.7" TFT LCD Display Technical parameters: 2.7-inch TFT display, NV3007 driver chip, 4-wire serial interface, brightness 500 cd/m², storage temperature -20℃~+80℃.
