1.54-inch TFT LCD Display Module With UART Interface

▶ Model: HTM-H015A2-UART-A02

▶ Type: 1.54-inch TFT LCD Smart Display Module
▶ Display Pixels: 240x240
▶ Dimensions (mm): 45.0x58.0x1.95
▶ Effective Dimensions (mm): 27.72x27.72
▶ Display Size: 1.54 inches
▶ Application: Smart Wearable Devices
▶ Viewing Angle: IPS
▶ Brightness: 350cd/m²
▶ Special Note: ESD Protection 8KV
▶ Operating Temperature: -20~70℃
▶ Power Supply Voltage: 3.3V

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

No Back Next

Product Description
Customized Services
Attributes

Features of the 1.54-inch TFT LCD Smart Display Module
Elevate your smart device projects with our next-generation 1.54-inch TFT LCD Display, a premium smart display module engineered for seamless integration and outstanding performance. Designed as a dedicated smart display with a built-in UART interface, it simplifies communication and control, allowing developers and innovators to focus on creativity rather than complex wiring. This 1.54-inch TFT LCD Display is the ideal solution for adding a vivid, interactive visual element without the hassle.
Crafted with an advanced IPS panel, this smart display delivers wide viewing angles and exceptional clarity, ensuring your content looks brilliant from any perspective. Its robust construction includes high-level ESD protection, ensuring reliability in varied environments, while its wide operating temperature range makes it suitable for both indoor and outdoor applications. The integrated UART interface enables straightforward command-based control, reducing development time and making it accessible even for those with limited hardware experience.
The versatility of this 1.54-inch TFT LCD Display shines across numerous applications. It is perfectly suited for smart wearable devices, such as fitness trackers and compact smartwatches, where space is limited but visual feedback is crucial. Beyond wearables, it excels in portable IoT gadgets, handheld instruments, smart home controllers, and DIY electronic projects—anywhere a compact, reliable, and easy-to-use display is needed. With its low power consumption and user-friendly UART protocol, integrating a professional-grade display into your product has never been more efficient.
Choose the 1.54-inch TFT LCD Display to bring your innovative ideas to life. Whether you're a professional developer or an electronics enthusiast, this smart display module offers the perfect blend of quality, simplicity, and adaptability for your next breakthrough project.

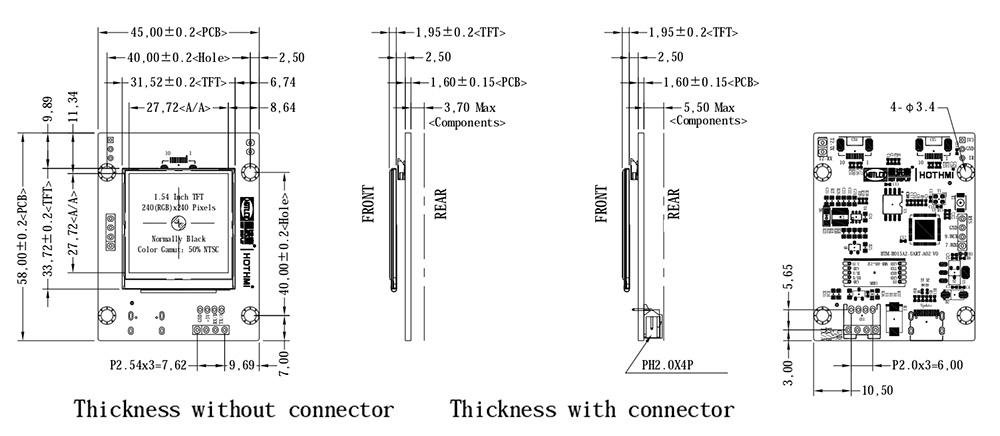

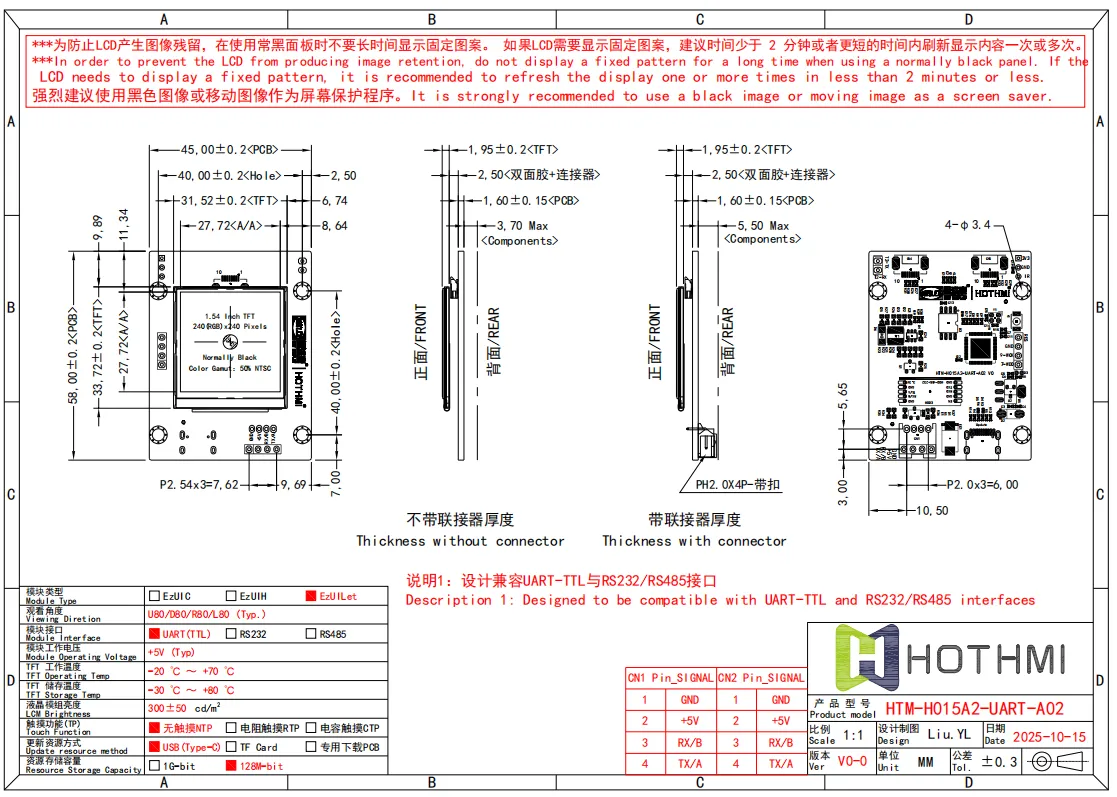

Specification of the 1.54-inch TFT LCD Display

Datasheet for Touch Panel,Controller↓

Name	Date	Size
1.54-inch TFT LCD Display HTM-H015A2-UART-A02	January 01, 2026	231.27KB

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	HTM-H015A2-UART-A02
Diagonal size	1.54”	Inch
Resolution	240x240	Dot
Dimensions	45.0x58.0x1.95	mm
Active area (AA)	27.72x27.72	mm
LCD type	1.54” TFT Module	mm
Display viewing angle	Full View
Aspect ratio	1：1
Backlight type	LED white
TFT driver IC	——
Brightness	350cd/m2	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
