Character LCD Modules | STN 1X16 - Bule Display with WHITE Backlight Arduino display

Character LCD Modules | STN 1X16 - Bule Display with WHITE Backlight Arduino display

▶ Model: HTM1601C-25W-A5P

▶ Product type: Character LCD Modules
▶ Display content: 1x16 characters

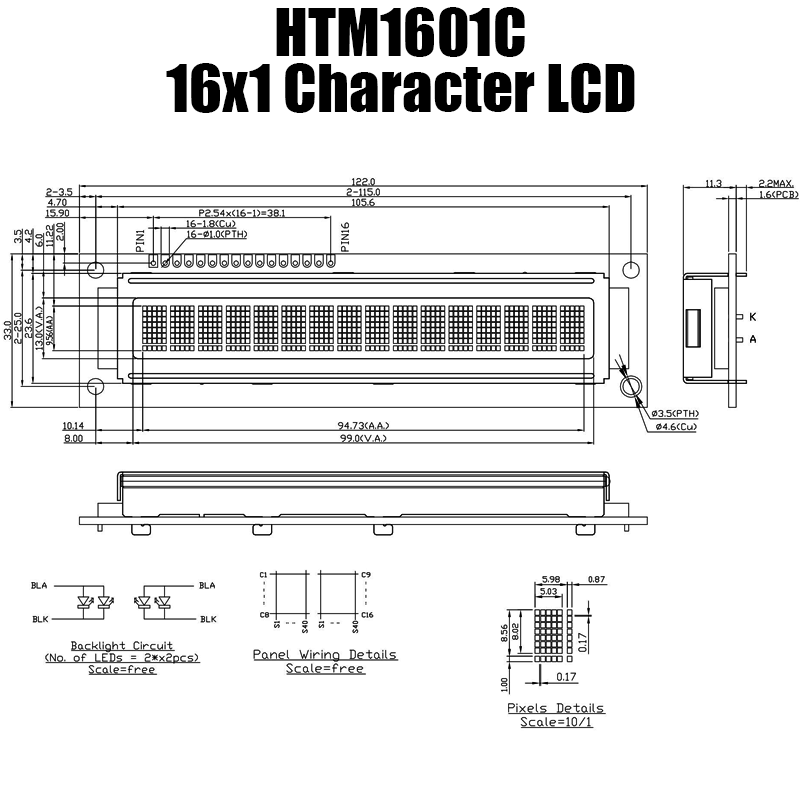

▶ Overall dimensions (mm): 122x33x11.3
▶ VA size (mm): 99x13
▶ AA size (mm): 94.73x9.56
▶ Point spacing mm: 1.04x1.17
▶ Product application: Instrumentation
▶ Viewing angle: 6H
▶ Backlight type: white
▶ Number of PINs: 16pin
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Supply voltage: 5.0V
▶ Driver chip model: SPLD780D
Product ConsultationDatasheets Download Shopping
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

Character LCD Modules | STN 1X16 - Bule Display with WHITE Backlight Arduino display

Character LCD Modules Display Characteristics: When powered on, this LCD will display characters with black pixels on a very bright yellow/green background, providing a clear and prominent display.
Controller/Driver: This model employs the SPLD780D controller/driver, ensuring efficient display control and stability.
Operating Voltage: The operating voltage for HTM1601C-25w-A5P is 5V, in compliance with RoHS standards, ensuring adherence to health and environmental standards during usage.
Operating Temperature Range: The LCD has a wide operating temperature range, suitable for various environmental conditions ranging from -20 to 70 degrees Celsius.
Flexibility: This LCD screen can be viewed under ambient light or backlight, offering flexibility in various lighting conditions.
Arduino Compatibility: HTM1601C-25w-A5P is Arduino/C8051-compatible, providing developers with broader application possibilities and creative potential.
Optimal Viewing Angle: The best viewing angle for this model is 6:00, ensuring a clear display from various viewing perspectives.
In summary, HTM1601C-25w-A5P stands out with its excellent display performance, reliable controller, and versatile applicability, making it a dependable choice for various environments and projects.

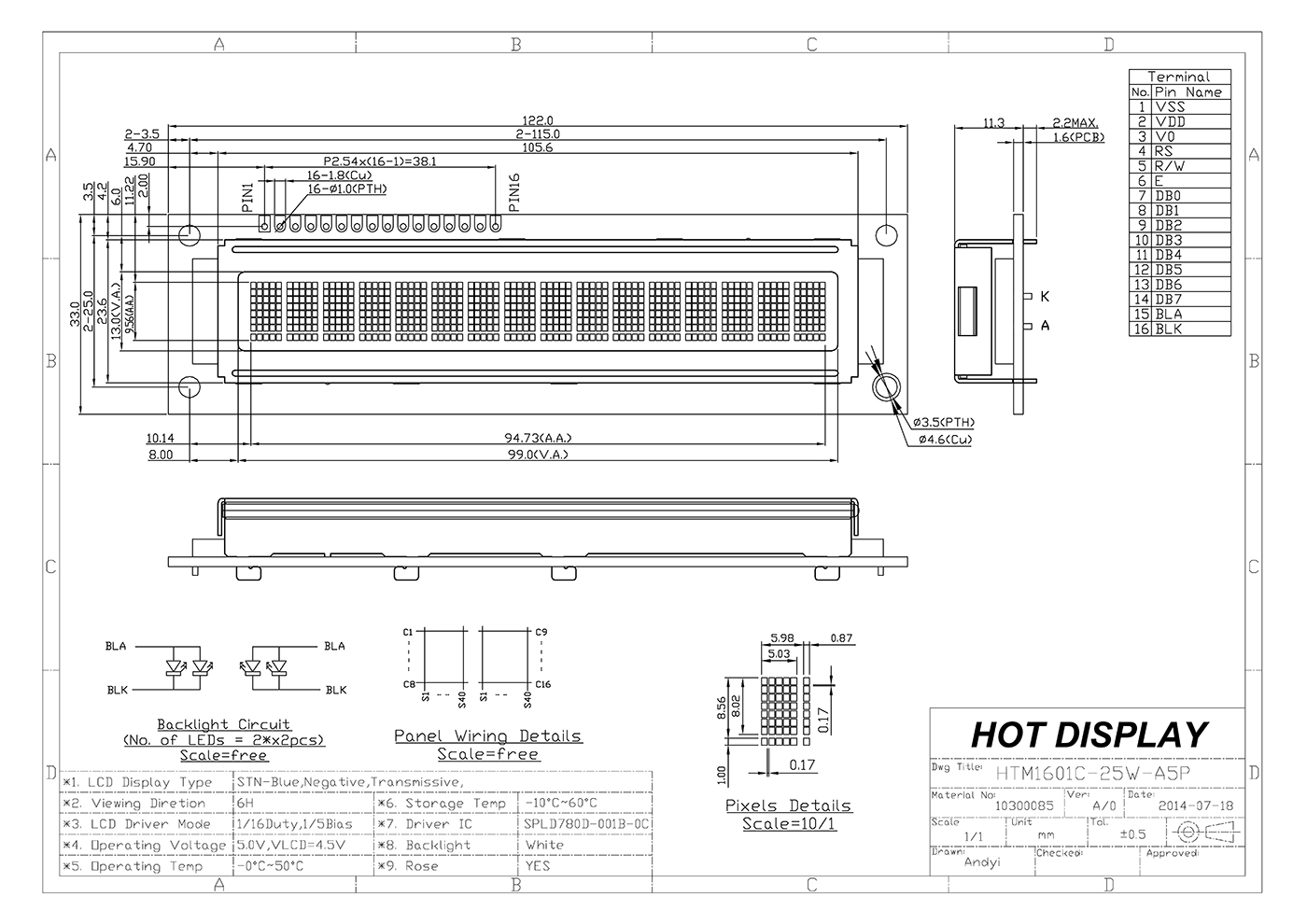

Item	Specification content
model	HTM1601C-25W-A5P
words × lines	16 words × 1 line
Module size	122x33x11.3 (MAX)
Visual (VA) area	99x13
Valid (AA) area	94.73x9.56
Point (pixel) spacing	1.04x1.17
IC	SPLD780D
voltage	5V
backlight	White
model	STN(-)
Drive mode (Duty)	1/16 duty cycle
type	Character LCD module
characteristic	Totally transflective polarizer
