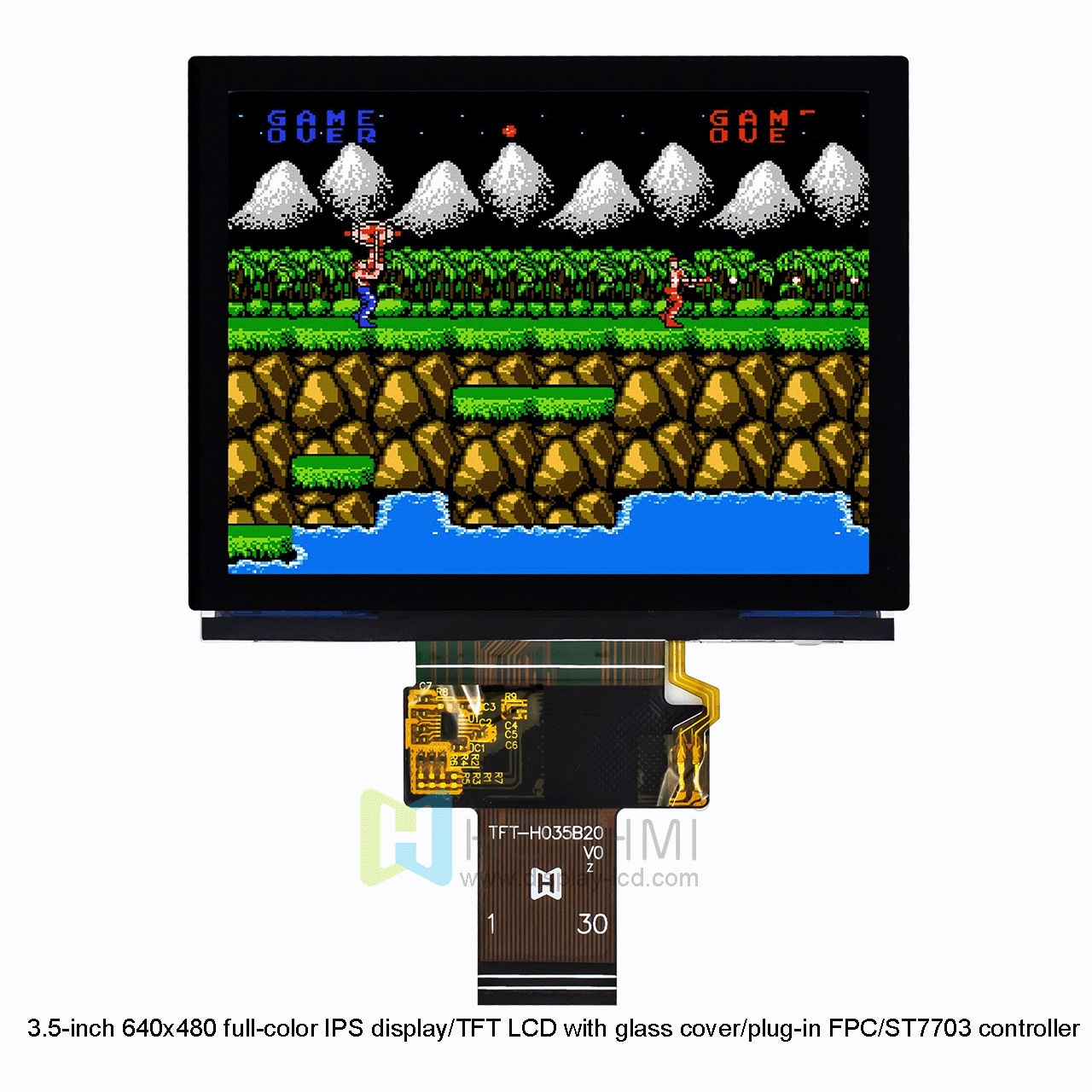

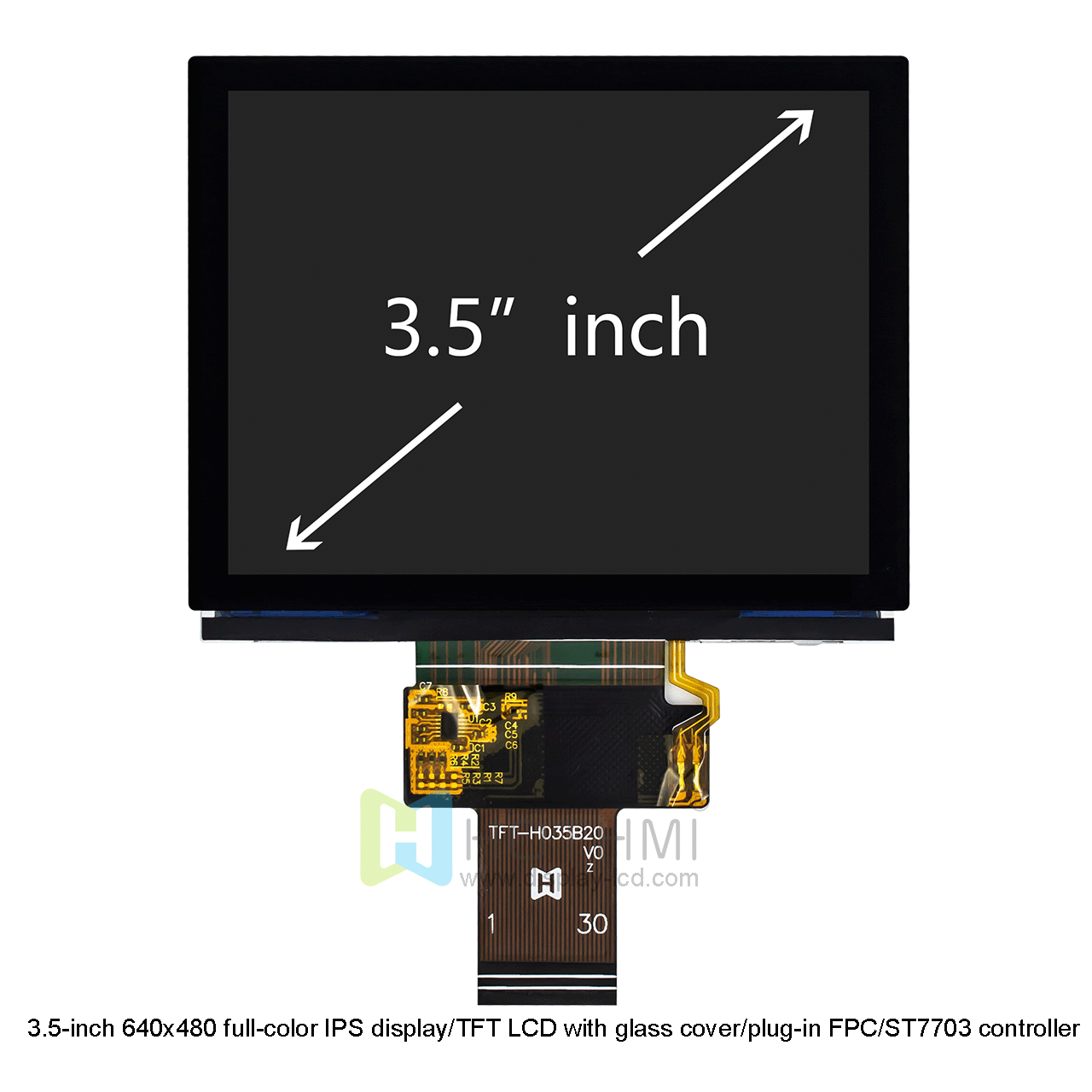

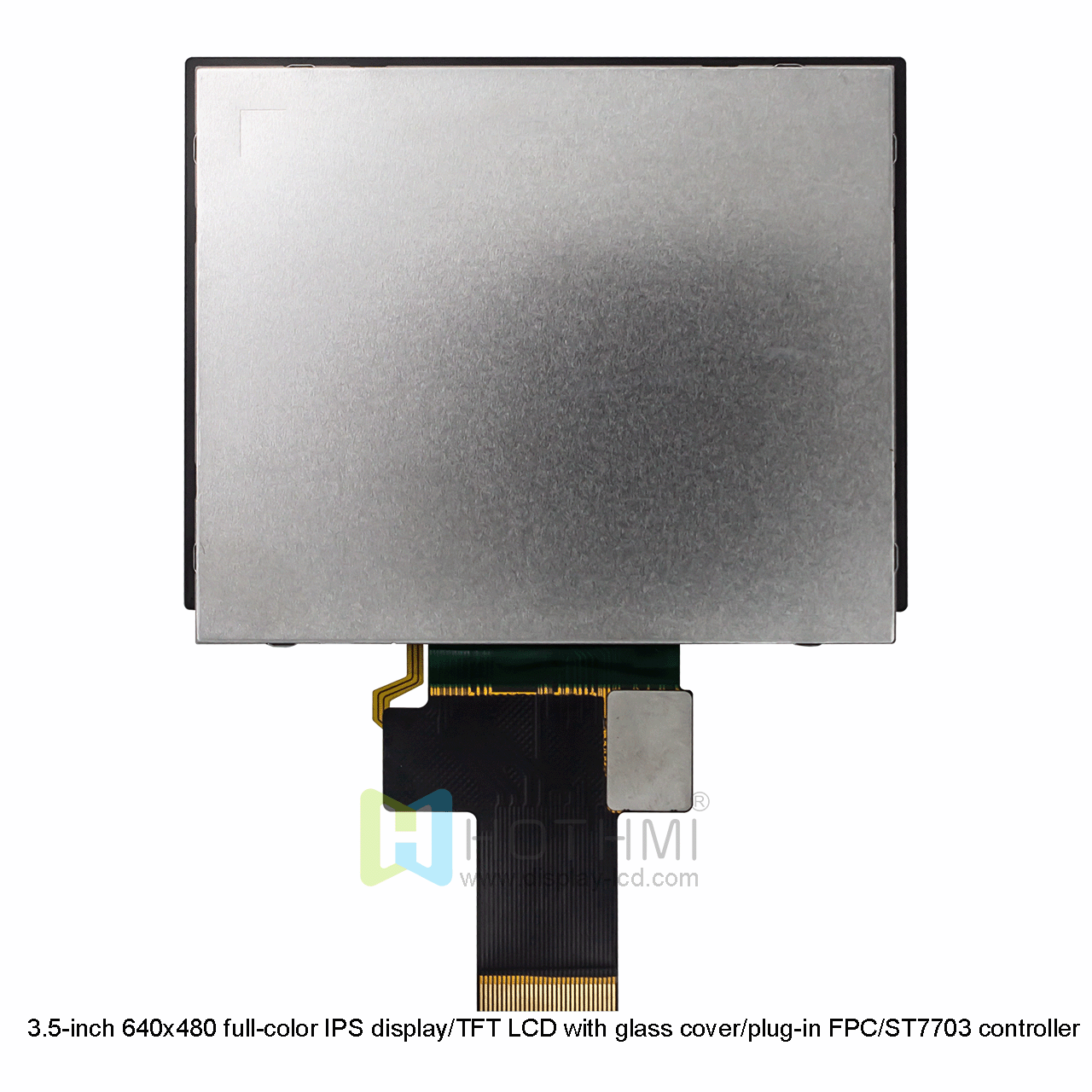

3.5-inch 640x480 full-color IPS display/TFT LCD with glass cover/plug-in FPC/ST7703 controller

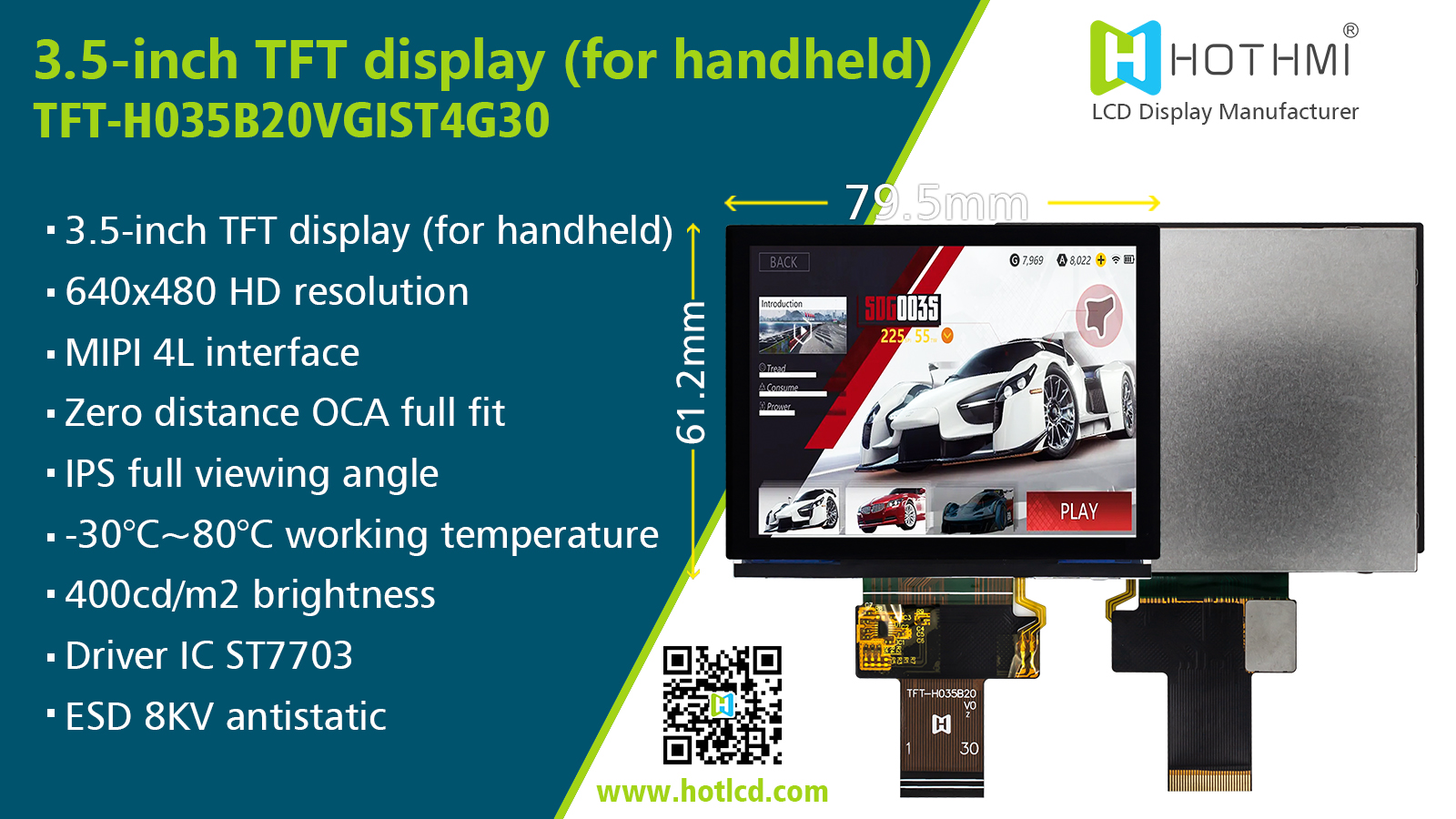

This TFT-H035B20VGIST4G30 4.0-inch TFT display is very powerful. It has a brightness of 400 nits, a contrast ratio of 800:1, and a pixel count of 640x480, and detailed images are clear and sharp. Powered by a 3.3V power supply, it provides amazing clarity, excellent color reproduction, better image consistency, and high contrast at all viewing angles due to the built-in IPS technology. You can choose the MIPI 4L interface, which makes this display compatible with a variety of Arduino models and other similar circuit boards, allowing seamless integration with Arduino projects. This display also has a 30-pin FFC, a 0.5mm pitch connection method, EMI shielding, and is powered by an ST7703 controller. This model is equipped with a high-transparency and thickened glass cover, with a high appearance and high quality.
All our displays are RoHS compliant and adhere to strict environmental and safety standards.
Product highlights: wide temperature (operating temperature -30 ℃ ~ 80 ℃), IPS full viewing angle, with high-transmittance glass cover, compact and light
