7-inch High Brightness TFT LCD Display 1200x1920 Resolution-China LCD TFT Display Manufacturer, Global Supplier

China LCD TFT Display Manufacturer, Global Supplier

7-inch High Brightness TFT LCD Display 1200x1920 Resolution

▶ Model: TFT-H070D12ZFIHXTC40

▶ Type: Standard TFT Display
▶ Display Resolution: 1200x1920
▶ Dimensions (mm): 111.0 x 166.0 x 3.3
▶ Active Area: 94.5 x 151.2
▶ Display Size: 7.0 inches
▶ Applications: Instrumentation, Portable Electronic Devices
▶ Viewing Angle: IPS Full Viewing Angle
▶ Backlight/Brightness: 2000 cd/m²
▶ Pin Arrangement: 40 PIN
▶ Interface: MIPI
▶ Special Notes: ESD 8kV
▶ Operating Temperature: -30°C to 80°C
▶ Supply Voltage: 3.3V
▶ Control Chip: HX8279

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

No Back Next

Product Description
Customized Services
Attributes

TFT-H070D12ZFIHXTC40 | 7-inch High Brightness TFT LCD Display 1200x1920 Resolution
This High Brightness TFT LCD module is engineered to deliver exceptional visual performance under the most demanding lighting conditions. Designed with a robust IPS panel, it offers a full viewing angle, ensuring consistent, vivid color reproduction and sharp imagery from any perspective. Its core advantage lies in the extreme luminous intensity, making this High Brightness TFT LCD perfectly suited for applications where superior readability is critical, such as instrumentation and portable electronic devices used outdoors or in bright indoor environments.
The product features a modern MIPI interface for high-speed data transmission and is driven by a reliable control chip. Built to endure harsh conditions, it operates effectively across a wide temperature range and incorporates significant ESD protection. The compact design, with a generous active display area relative to its form factor, provides excellent space efficiency for integration.
Ultimately, this display stands out for its unparalleled luminance. The High Brightness TFT LCD ensures clear, vibrant, and power-efficient visuals, guaranteeing optimal visibility and reliability where it matters most. This High Brightness TFT LCD is the definitive solution for applications requiring uncompromising display performance.

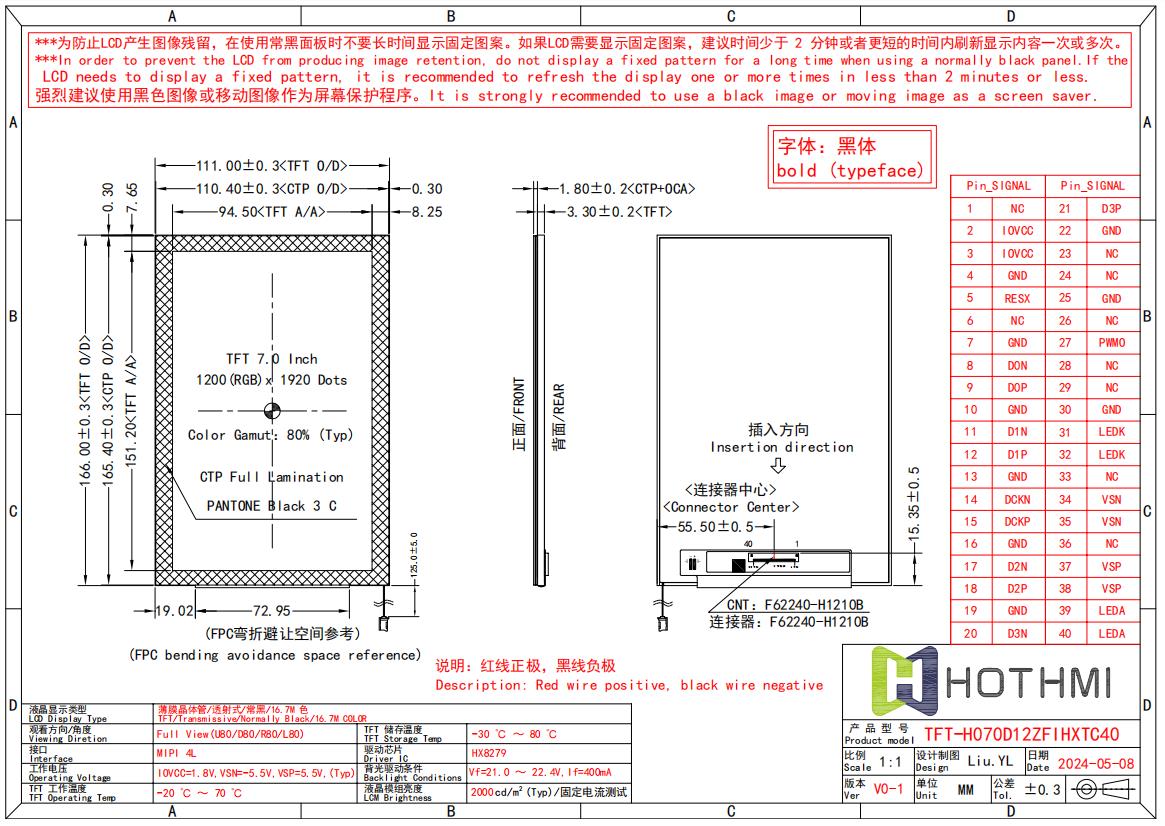

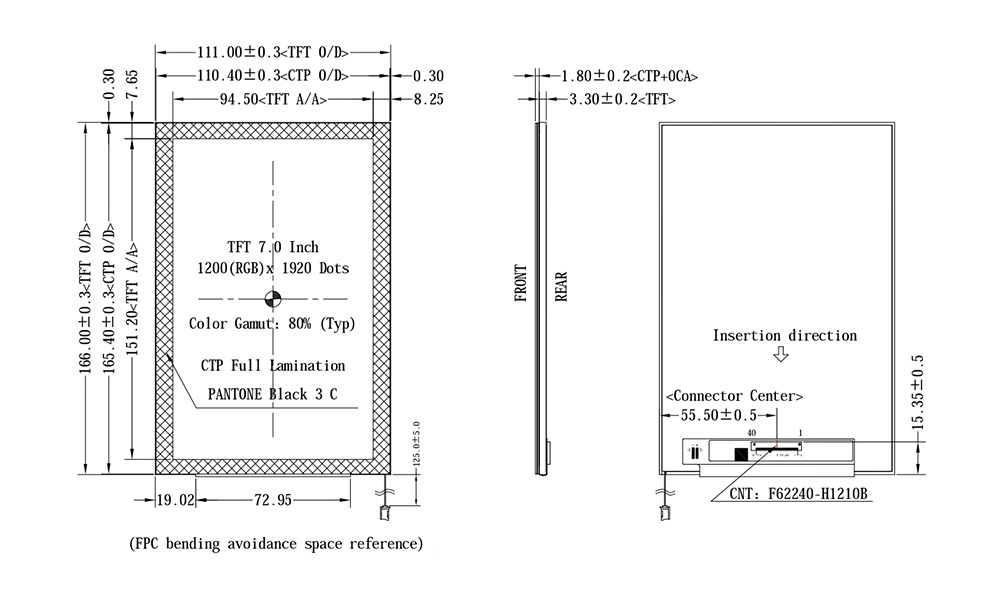

Datasheet for Touch Panel,Controller↓

Name	Date	Size
TFT-H070D12ZFIHXTC40	January 01, 2026	61.17KB

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H070D12ZFIHXTC40
Diagonal size	7”	Inch
Resolution	1200x1920	Dot
Dimensions	111.0x166.0x3.3	mm
Active area (AA)	94.5x151.2	mm
LCD type	7” TFT Module	mm
Display viewing angle	Full View
Aspect ratio	3：2
Backlight type	LED white
TFT driver IC	HX8279
Brightness	2000cd/m2	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
