Character LCD Modules STN+ 4X20 Gray Display with White Backlight Arduino display

▶ Model: HTM2004-2-11W-A5P

▶ Type: Character LCD Modules
▶ Display content: 20x4 characters

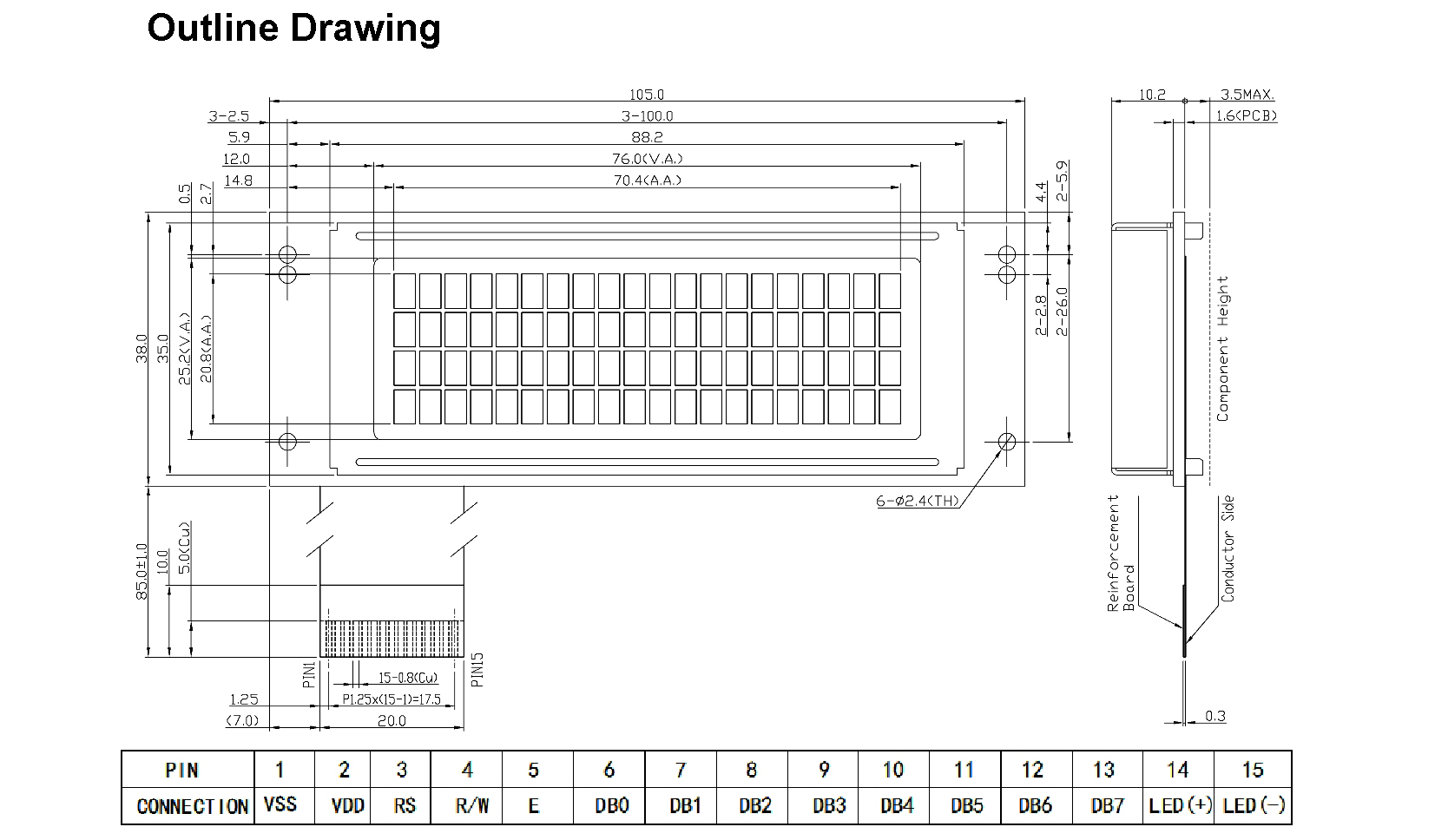

▶ Overall dimensions (mm): 105.0x38.0x10.2
▶ VA size (mm): 76.0x25.8
▶ AA size (mm): 70.4x20.8
▶ Point spacing mm: 0.60x0.60
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight type: white light
▶ Number of PINs: 15PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0V
▶ Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

Character LCD Modules STN+ 4X20 Gray Display with White Backlight Arduino display

Character LCD Modules 20x4 character Liquid Crystal Display shows characters with dark, blue pixels on a gray background. This transflective LCD Display is visible with ambient light or a backlight while offering a wide operating temperature range from -20 to 70 degrees Celsius. This HTM2004-2-11W-A5P display has an optimal view of 6:00. This display operates at 5V supply voltage, is compatible with Arduino/C8051, and is RoHS compliant.

Project	Specifications	Unit
name	HTM2004-2-11W-A5P
Number of dots	20x4 Character	dots
Module size	105.0x38.0x10.2 (MAX)	mm
VA size	76（W） × 25.8（H）	mm
AA size	70.4（W） × 20.8（H）	mm
Pixel pitch	0.60 × 0.60	mm
IC	ST7066
voltage	5.0V	V
backlight	White
display mode	STN+
Drive mode (Duty)	1/16 duty cycle
type	Character LCD
characteristic	Transflective Polarizer

Search keyword：lcd 20x4, lcd 20 x 4, 20x4 lcd, 20 x 4 lcd
