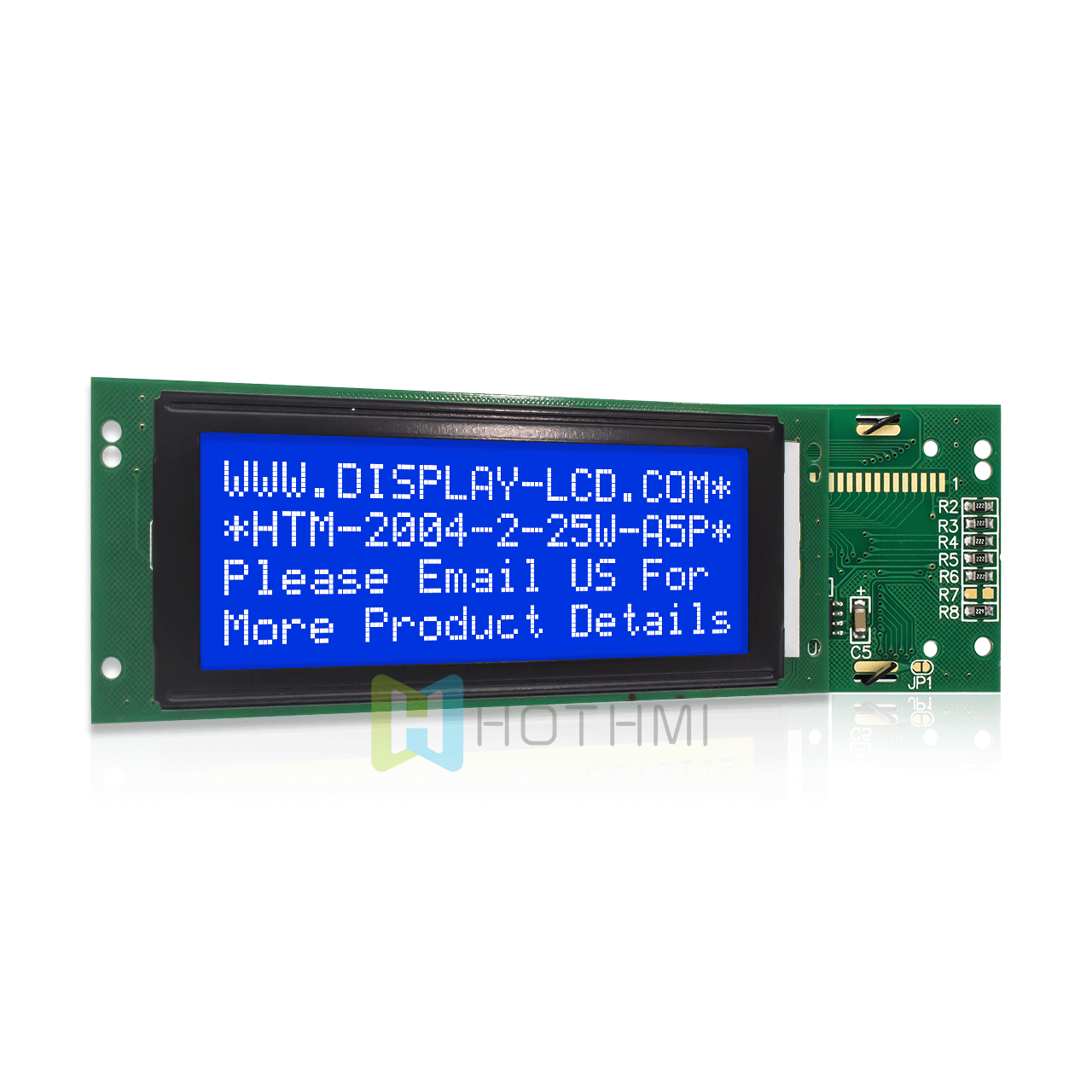

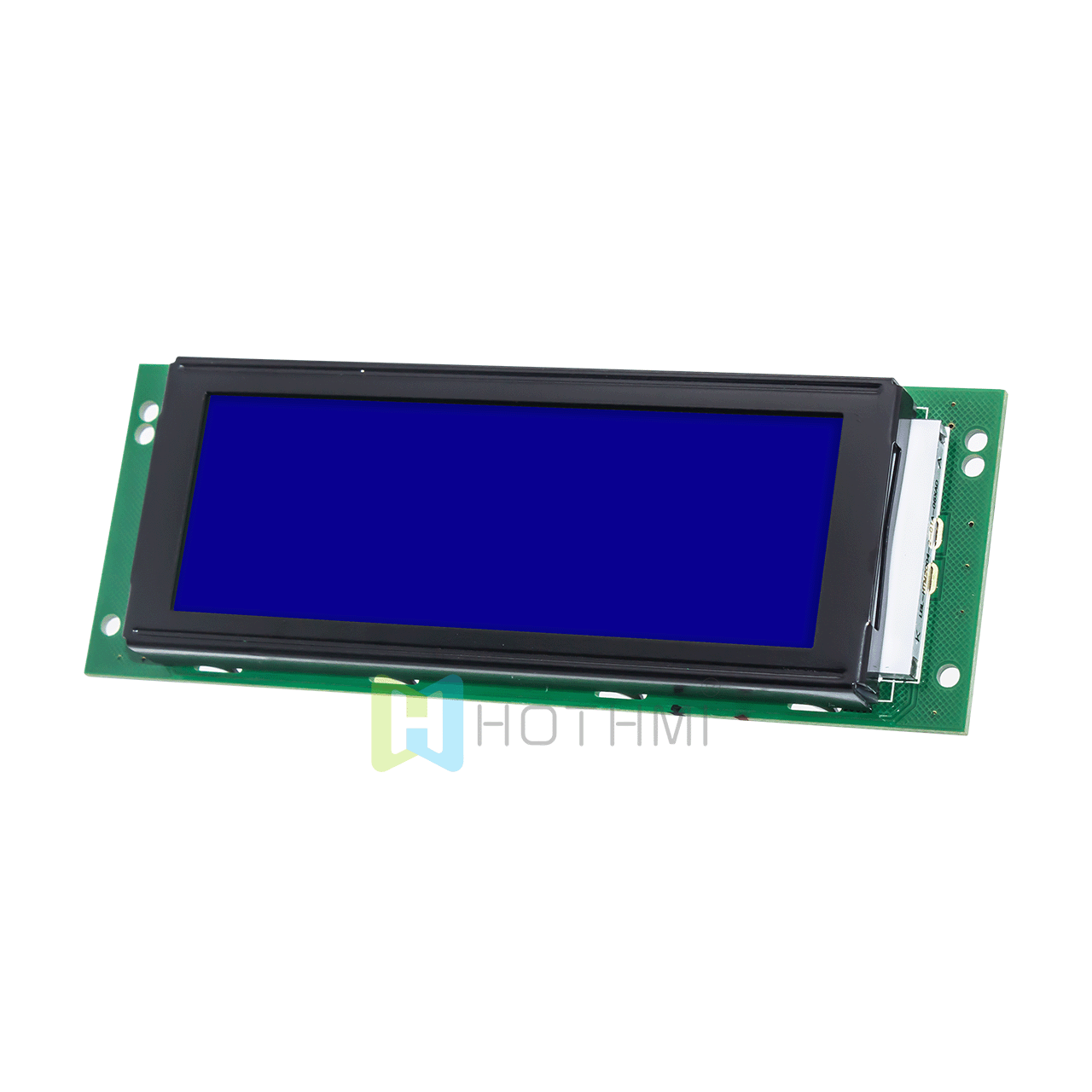

4X20 character LCD module/STN monochrome blue display screen/with white backlight/Arruino display screen/blue background with white text/total transparent reflective LCD display screen/5.0v

20X4 Character LCD Module | STN- Blue Display With White Backlight

▶ Model: HTM2004-2-25W-A3P

▶ Type: 4X20 character LCD module
▶ Display content: 20x4 characters
▶ Overall dimensions (mm): 105.0x38.0x10.2
▶ VA size (mm): 76.0x25.8
▶ AA size (mm): 70.4x20.8
▶ Point spacing mm: 0.60x0.60
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight type: white light
▶ Number of PINs: 15PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 3.3V
▶ Driver chip:ST7066U
Product ConsultationDatasheets Download
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Customized Services
Attributes

4X20 character LCD module/STN monochrome blue display screen/with white backlight/Arruino display screen/blue background with white text/total transparent reflective LCD display screen
The 4X20 character LCD module characters with white pixels on a blue background when turned on. This fully transmissive LCD screen requires a backlight to be visible while offering a wide operating temperature range from -20 to 70 degrees Celsius. This HTM-2004-2-25W-A5P serial interface shield is fully compatible with Arduino, making it an affordable choice for DIY electronics projects and educational purposes. This screen has an optimal 6:00 view, operates on a 5V supply voltage, and is RoHS compliant.

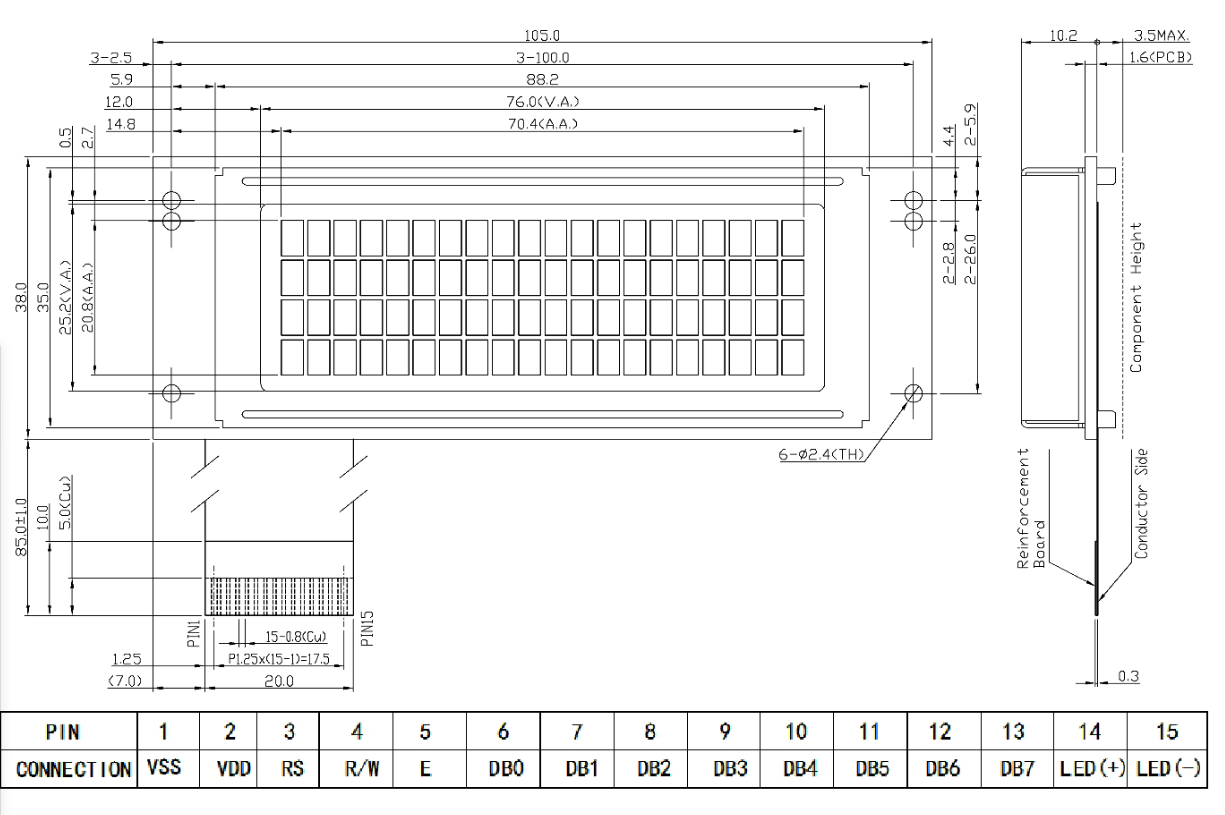

Project	Specifications conntent	Unit
Name	HTM-2004-2-25W-A3P
Number of dots	20 x 4	dots
Module size	105.0（W） × 38.0（H） × 10.2 （T）	mm
Viewable area (VA)	76.0 × 25.8	mm
AA size	70.4（W） × 20.8（H）	mm
Dot (pixel) spacing	0.6（W） × 0.6（H）mm	mm
IC	ST7066U driver
Applied voltage	3.3V	V
Backlight	White
Mode	STN(-)
Drive mode (Duty)	——
Type	Character LCD
Polarizer type	Fully reflective polarizer
