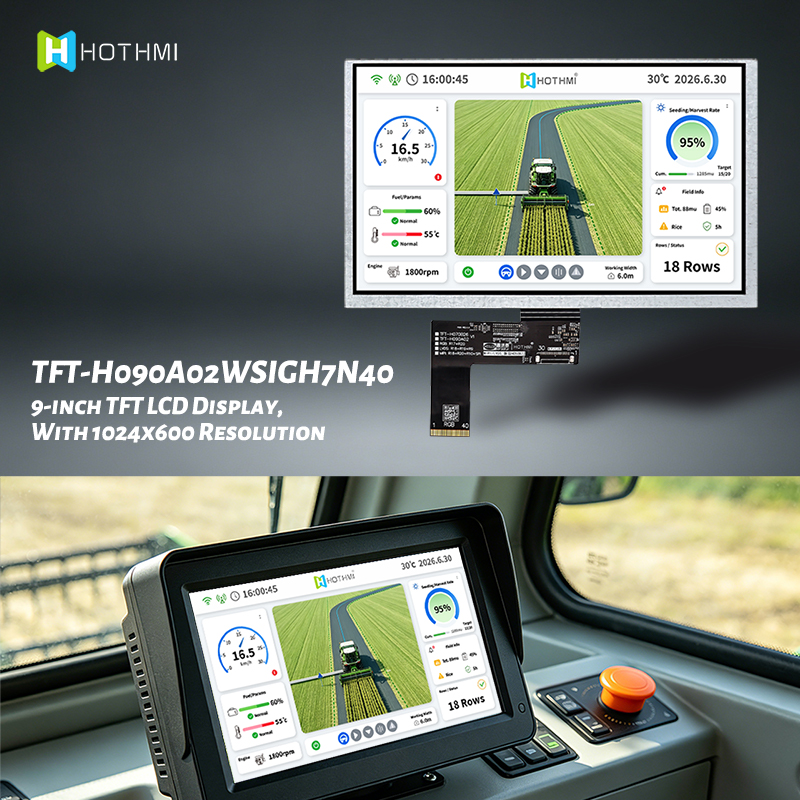

9-inch TFT LCD Display With 1024x600 Resolution

▶ Model: TFT-H090A02WSIGH7N40

▶ Type: Standard TFT Display
▶ Display Resolution: 1024x600

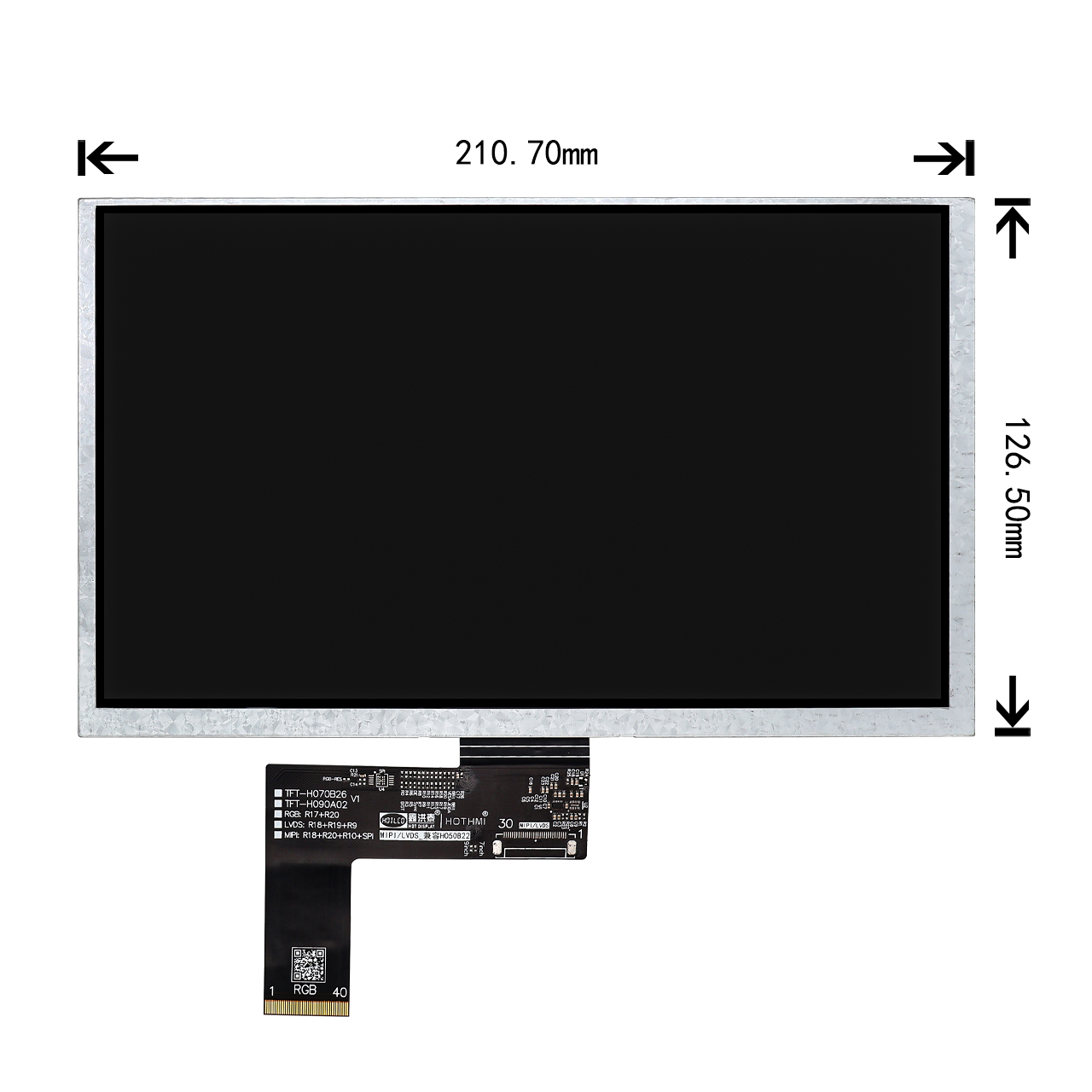

▶ Dimensions (mm): 210.7x126.5x5.0
▶ Active Area: 196.608x114.150
▶ Display Size: 9.0 inches
▶ Applications: Instrumentation, Portable Electronic Devices
▶ Viewing Angle: IPS Full Viewing Angle
▶ Backlight/Brightness: 700 cd/m²
▶ Pin Configuration: 40 PIN
▶ Interface: RGB/LVDS/MIPI
▶ Special Notes: ESD 8kV
▶ Operating Temperature: -20°C to 70°C
▶ Supply Voltage: 3.3V

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

No Back Next

Product Description
Customized Services
Attributes

TFT-H090A02WSIGH7N40 | 9-inch TFT LCD Display With 1024x600 Resolution
The 9-inch TFT LCD Display is engineered to deliver outstanding visual performance and robust reliability for a diverse range of industrial and portable applications. This standard TFT module is designed with a high-resolution screen, ensuring sharp, crisp imagery and excellent legibility for both intricate instrumentation readouts and dynamic user interfaces in portable electronic devices. A key strength of this 9-inch TFT LCD Display is its implementation of IPS technology, which provides a consistent, full viewing angle experience, allowing for clear color reproduction and minimal distortion when viewed from any direction.
This display is built to operate reliably in various environmental conditions, featuring a wide operating temperature range and significant protection against electrostatic discharge. Its high-brightness backlight ensures superb screen visibility even under bright ambient lighting or direct sunlight, making it an ideal solution for outdoor or high-glare environments. The versatile 9-inch TFT LCD Display supports multiple interface options, offering significant flexibility for system integration into different electronic architectures. Its compact and slim form factor, combined with a standard pin configuration, facilitates straightforward installation and space-efficient design.
Ultimately, the durability, visual clarity, and integration flexibility of this 9-inch TFT LCD Display make it a superior and dependable choice for demanding applications where consistent performance and readability are paramount.

Specification of this 9-inch TFT LCD Display

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H090A02WSIGH7N40
Diagonal size	9.0”	Inch
Resolution	1024x600	Dot
Dimensions	210.7 x 126.5 x 5.0	mm
Active area (AA)	196.608x114.150x5.0	mm
LCD type	9.0” TFT Module	mm
Display viewing angle	Full View
Aspect ratio	2：1
Backlight type	LED white
TFT driver IC	——
Brightness	700cd/m2	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-20~80℃	℃
