4.3-inch wide-temperature industrial TFT LCD module 800x480 resolution visible in sunlight

TFT-H043A34SVIGH6N40 | 4.3-inch wide-temperature industrial TFT LCD module 800x480 resolution visible in sunlight

The 4.3-Inch wide-temperature industrial TFT LCD module is a high-performance display solution engineered for demanding environments where reliability, readability, and durability are non-negotiable. With a resolution of 800x480 pixels, this module delivers crisp and clear visuals, making it suitable for applications ranging from medical equipment to industrial control systems. Unlike conventional consumer-grade displays, this 4.3-Inch wide-temperature industrial TFT LCD module is built to operate flawlessly across an extreme temperature range of -30°C to 85°C, ensuring consistent performance in both freezing cold and scorching hot conditions.

One of the standout features of this 4.3-Inch wide-temperature industrial TFT LCD module is its IPS full viewing angle technology, which guarantees accurate color reproduction and contrast even when viewed from extreme angles. This is particularly important in medical and industrial settings where operators may not always face the screen head-on. The module also boasts a brightness level of 600 cd/m², making it readable even under strong ambient light, though its primary design focus remains on wide-temperature tolerance and industrial-grade robustness.

The 4.3-Inch wide-temperature industrial TFT LCD module utilizes an RGB interface and comes with a flexible printed circuit (FPC) 40-pin configuration, allowing for easy integration into existing system designs. It operates on a low 3.3V power supply voltage, making it energy-efficient—a critical factor for portable medical devices and embedded industrial systems. Additionally, the module features built-in electrostatic discharge (ESD) protection up to 8KV, safeguarding sensitive electronics from sudden static shocks that are common in industrial environments.

What truly sets this 4.3-Inch wide-temperature industrial TFT LCD module apart is its ability to maintain display integrity under thermal stress. Standard LCDs often suffer from slow response times, image ghosting, or complete failure outside the 0°C to 50°C range. However, this 4.3-Inch wide-temperature industrial TFT LCD module undergoes rigorous testing to ensure stable operation across its entire temperature spectrum. Whether deployed in a sterilization chamber, a cold storage facility, or a factory floor near high-temperature machinery, this module delivers consistent, reliable performance.

In summary, the 4.3-Inch wide-temperature industrial TFT LCD module is not just a display—it is a mission-critical component for systems that cannot afford downtime or visual failure. Its combination of wide operating temperature, IPS viewing angles, ESD protection, and low power consumption makes it an ideal choice for engineers designing next-generation medical and industrial equipment.

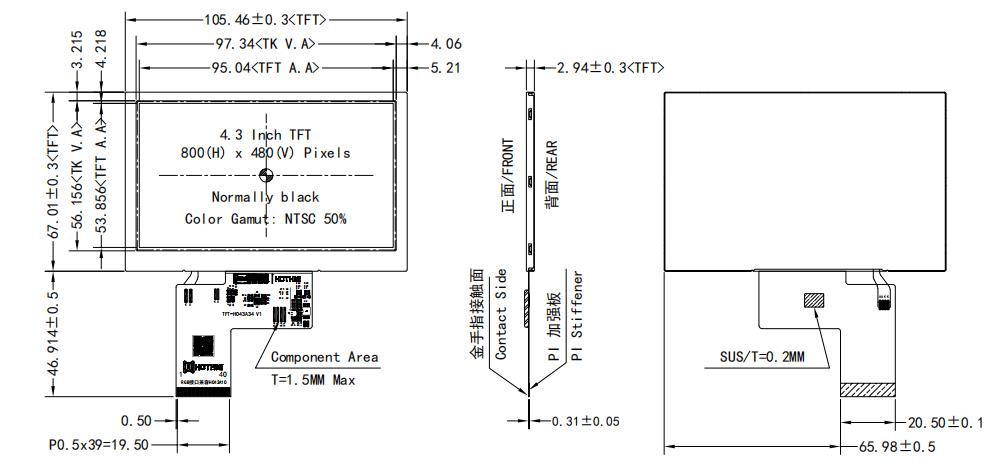

Specification of the 4.3-inch wide-temperature industrial TFT LCD module

What Problems Does a Wide-Temperature Display Solve for Users?

The introduction of the 4.3-Inch wide-temperature industrial TFT LCD module addresses several chronic pain points faced by engineers and end-users in industrial and medical fields. First and foremost, traditional consumer-grade displays are notoriously temperature-sensitive. When ambient temperatures drop below 0°C, liquid crystal response slows dramatically, leading to ghosting, smearing, or complete blackout. Conversely, when temperatures exceed 50°C, the same displays may experience image distortion, permanent burn-in, or total failure. The 4.3-Inch wide-temperature industrial TFT LCD module solves this by operating seamlessly between -30°C and 85°C, eliminating weather or environment-related downtime.

Another major problem is reliability in thermally volatile scenarios. Consider a portable medical device used in emergency ambulances—it may be exposed to freezing outdoor conditions one moment and heated indoor environments the next. A standard display would likely fail after repeated thermal cycling. However, the 4.3-Inch wide-temperature industrial TFT LCD module is designed to withstand rapid temperature changes without cracking, delaminating, or losing optical performance. This thermal shock resistance is critical for life-saving equipment where display failure is not an option.

Furthermore, in industrial control rooms or manufacturing plants, temperature is not always controlled. Machines generate heat, and uninsulated facilities can become very cold in winter. The 4.3-Inch wide-temperature industrial TFT LCD module allows engineers to deploy human-machine interfaces (HMIs) in these harsh zones without adding costly heating or cooling enclosures. By simplifying thermal management, this module reduces overall system cost, size, and power consumption.

Users also benefit from reduced maintenance and replacement frequency. Standard displays in wide-temperature environments may last only months before showing signs of liquid crystal degradation, backlight dimming, or controller failure. In contrast, the 4.3-Inch wide-temperature industrial TFT LCD module uses industrial-grade components rated for extreme thermal ranges, resulting in a longer operational lifespan. For industries like medical equipment and industrial control, where device uptime directly impacts patient safety or production efficiency, this reliability translates directly into lower total cost of ownership and higher system trustworthiness.

Lastly, wide-temperature capability ensures consistent visual quality. Some “wide-temp” displays in the market claim to operate in extreme temperatures but suffer from poor contrast or color shift. The 4.3-Inch wide-temperature industrial TFT LCD module maintains its 800x480 resolution, IPS full viewing angle, and 600 cd/m² brightness across the entire temperature range, providing a stable and accurate visual interface regardless of ambient conditions.

What Is an Industrial-Grade Display and How Does It Differ from Consumer-Grade?

An industrial-grade display, such as the 4.3-Inch wide-temperature industrial TFT LCD module, is built to operate reliably in harsh environments where consumer-grade products fail. The differences span five key areas.

1. Temperature range. Consumer displays are rated for 0°C to 50°C, suitable only for indoor use. In contrast, the 4.3-Inch wide-temperature industrial TFT LCD module operates from -30°C to 85°C, handling freezing outdoor sites to hot factory floors. Industrial displays also undergo rigorous thermal cycling tests.

2. Durability & reliability. Industrial models feature reinforced FPC connectors, vibration-resistant mounting, and certifications like ISO 13485 (medical) or IEC 61000 (EMC). Consumer displays lack such protections and are designed only for clean, static environments.

3. Lifespan. Consumer electronics typically last 2–5 years. Medical and industrial control systems require 5–10 years of continuous, often 24/7 operation. The 4.3-Inch wide-temperature industrial TFT LCD module uses long-life LED backlights and high-reliability components to ensure minimal failure rates over a decade.

4. Electrical protections. This industrial module provides ESD protection up to 8KV, guarding against static shocks common in dry industrial settings. Consumer displays rarely include such protection, making them vulnerable to static, spikes, and EMI.

5. Optical performance under stress. Consumer displays may look vibrant indoors but become unreadable in bright light or at oblique angles. The 4.3-Inch wide-temperature industrial TFT LCD module incorporates IPS full viewing angles and 600 cd/m² brightness, ensuring visibility from any side and under strong ambient light.

Application implications. You would not put a consumer tablet into a hospital ventilator or factory robot controller. Medical equipment demands absolute reliability—display failure can endanger lives. Industrial controls must withstand electrical noise, temperature extremes, and physical shock.
