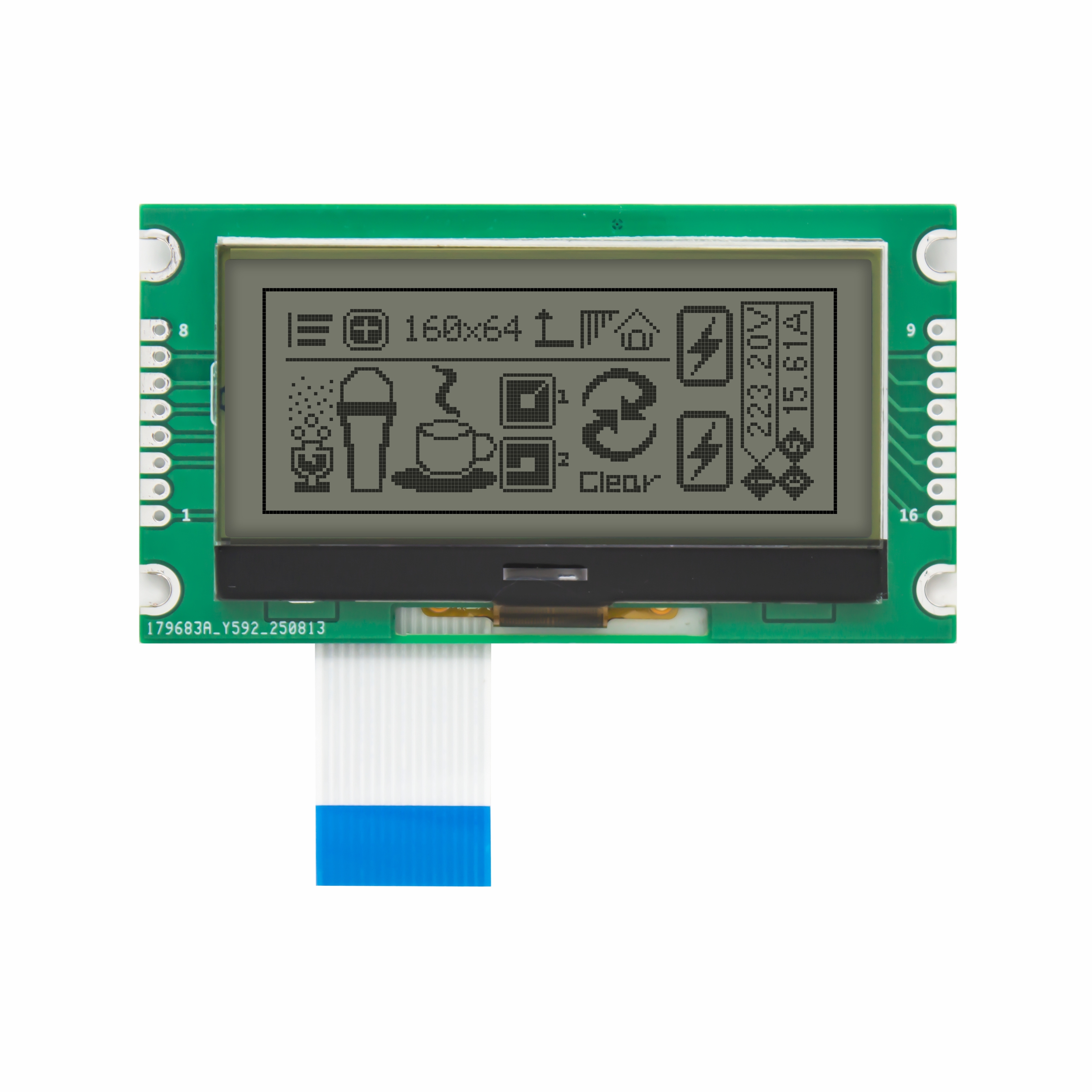

160x64 Graphic LCD Module | FSTN+Gray Display With White Backlight

▶ Model: HTM16064A-31W-N3P-V01

▶ Type: Graphic LCD Display Module
▶ Display Pixels: 160x64
▶ Dimensions (mm): 79.0x42.3x5.2
▶ VA Dimensions (mm): 60.0x25.1
▶ AA Dimensions (mm): 55.97x22.37
▶ Pixel Pitch (mm): 0.28x0.28
▶ Application: Industrial Control
▶ Viewing Angle: 6H
▶ Backlight: White
▶ Pinout: PIN
▶ Interface: SPI
▶ Operating Temperature: -20°C to 70°C
▶ Supply Voltage: 3.3V
▶ Driver IC: ST3020

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

No Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
COG Adapter Board

Product Description
Customized Services
Attributes

HTM16064A-31W-N3P-V01 | 160x64 Graphic LCD Module | FSTN+Gray Display With White Backlight
This 160x64 pixel graphic LCD module utilizes FSTN grayscale technology, displaying dark pixels on gray, whether powered on or off. This transflective display is engineered to provide an optimal 6:00 viewing angle in all environments. In bright sunlight, the display utilizes its reflective layer to reflect ambient light back toward the viewer, making the screen easy to read. In darker conditions, a built-in yellow-green side backlight provides bright, high-contrast graphics. This advanced display technology ensures that this monochrome display is easy to read in all lighting conditions.

Gray Monochrome LCD with Parallel Interface | Arduino Compatible
This graphic LCD features a built-in ST3020 controller and communicates via a 6800/8080 parallel interface, ensuring compatibility with a variety of interfaces and development boards, including Arduino. The graphic module operates from a 3.3V power supply and has an operating temperature range of -20 to 70 degrees Celsius. All of our displays are RoHS compliant and adhere to strict environmental and safety standards.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
HTM16064A-31W-N3P-V01	August 08, 2025	67.19KB

Connector customization: Easily modify any connector on the display to meet your application requirements. Our engineers can solder pin headers, box headers, right-angle connectors, and any other connectors your display may require.

PCB modification: Choose from a variety of changes to the PCB shape, size, pinout, and component layout to perfectly fit your application.

Backlight color customization: The module backlight has a variety of combinations to choose from, including no backlight or yellow-green/blue/white/amber/red/RGB backlight options, with up to 48 effects to choose from. Click on the customization page for reference.

Font Customization: A variety of font libraries are available, including English/Japanese, Western European, Eastern European, Scandinavian European, Cyrillic (Russian), Hebrew/Arabic, and more.

Cable Customization: Adjust cable length, position, and pinout, or add additional connectors. Get a precisely designed cable solution that streamlines and secures your connections.

ITEM	parameter	Unit
Name	HTM16064A-31W-N3P-V01
Number of dots	160x64	dots
Module size	79.0x42.3x5.2	mm
VA size	60.0x25.1	mm
AA size	55.97x22.37	mm
Pixel pitch	0.28x0.28	mm
IC	ST3020
Power supply voltage	3.3V	V
Backlight	White
Display mode	FSTN+
Drive mode (Duty)	1/64 duty cycle
Type	Graphic LCD
Features	Transflective
