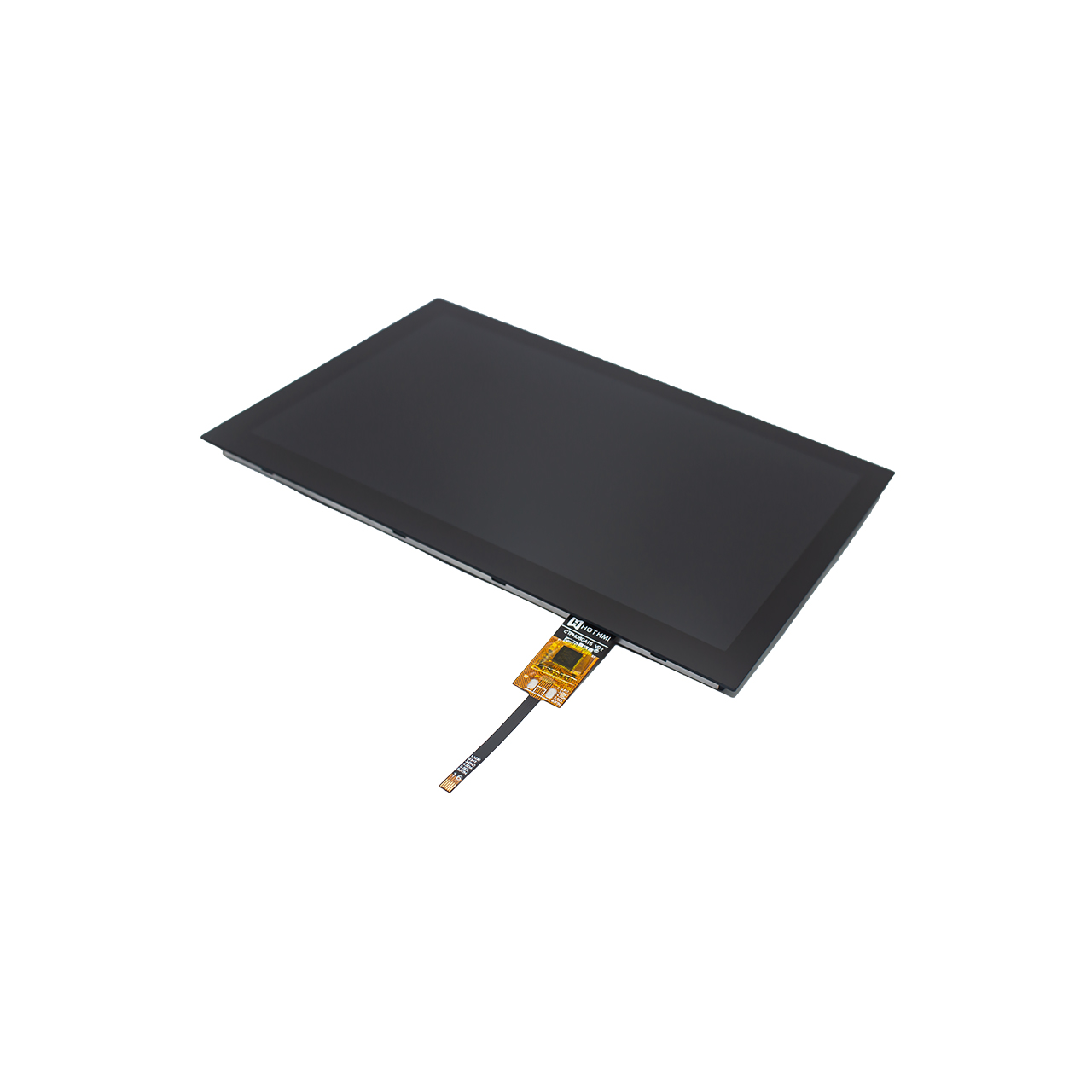

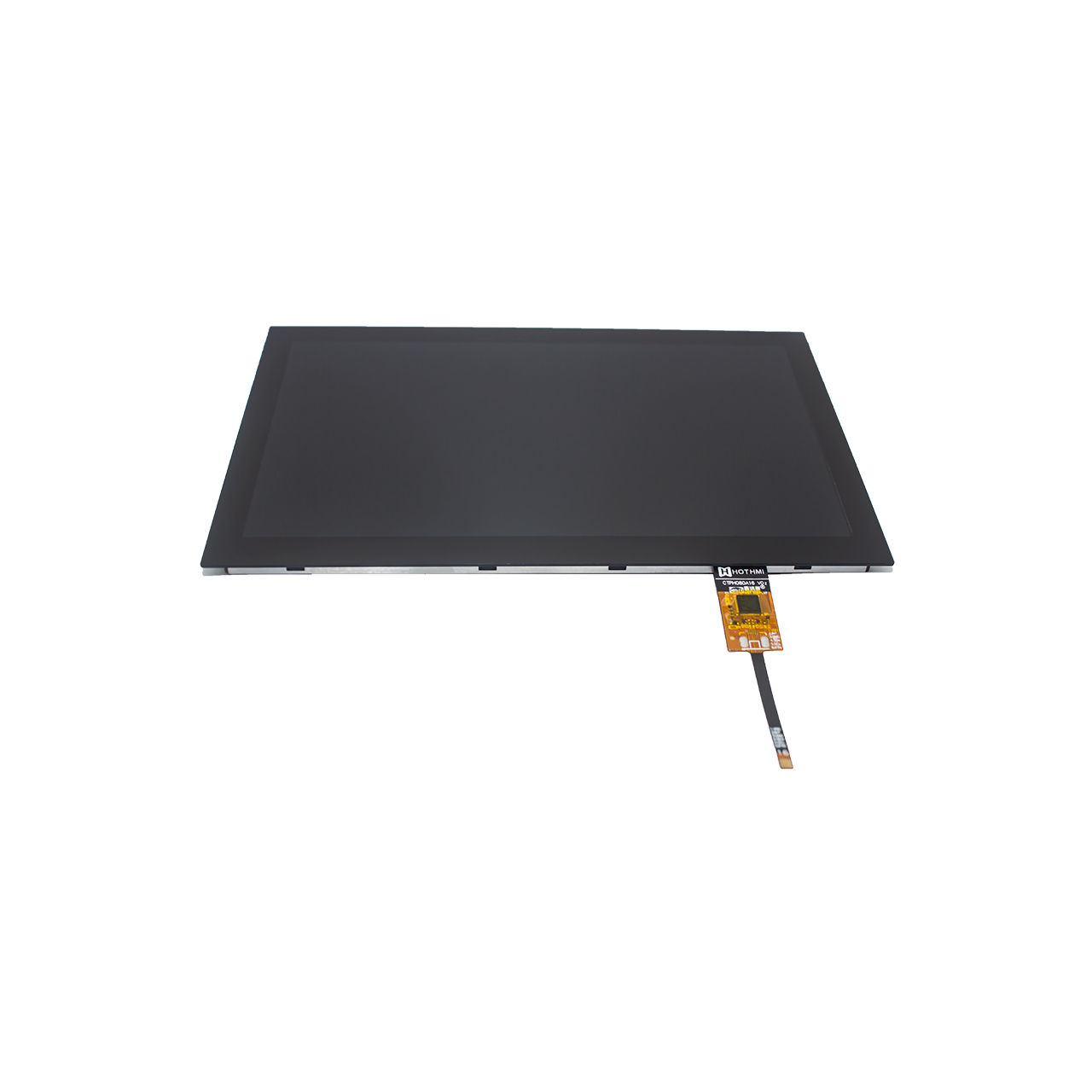

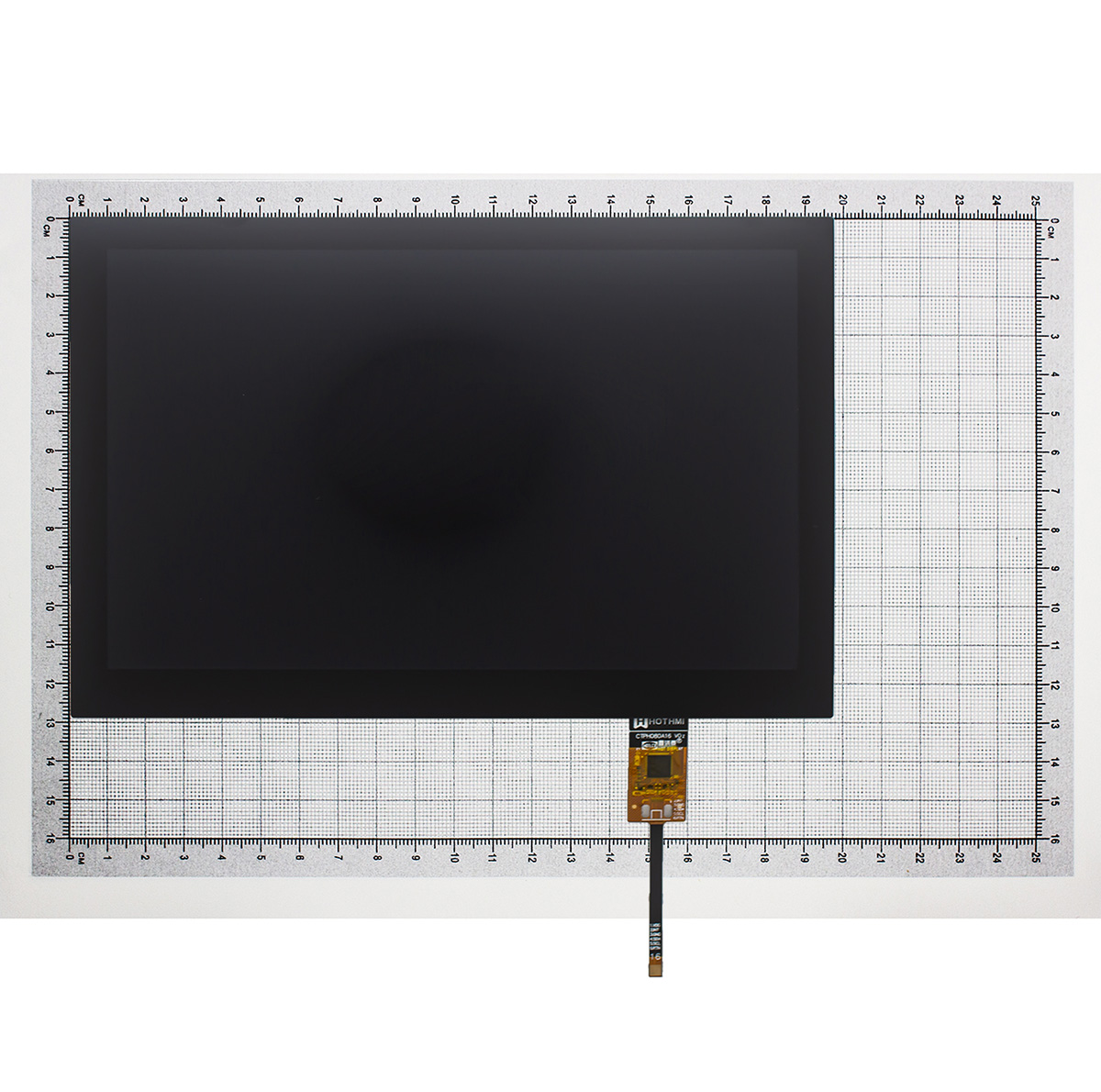

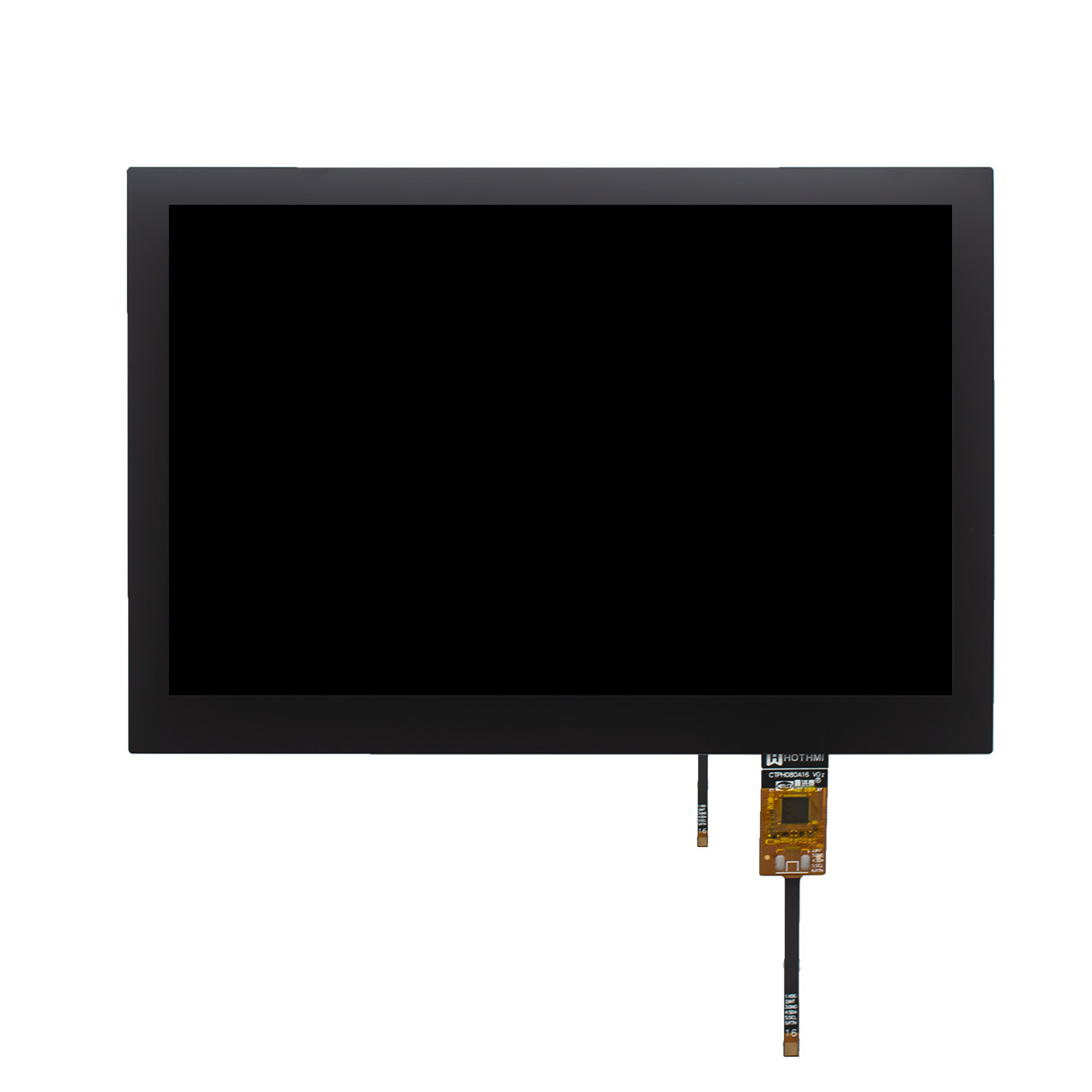

TFT-H080D16WUIFLGC40 | 8 inch TFT LCD Display With High Brightness LVDS Interface Sunlight Readable Screen
Product Promotion: 8-inch High-Brightness TFT LCD Display
Our exceptional 8-inch high-brightness TFT LCD display elevates your visual interfaces to unprecedented levels of clarity and performance. Designed to handle the most challenging lighting environments, this display provides unparalleled readability and reliability for industrial, commercial, and outdoor applications.
At the heart of this innovative module lies its peak brightness of up to 1500 nits. This exceptional brightness is the true highlight of this 8-inch high-brightness TFT LCD display, ensuring all content remains vibrant, clear, and eye-catching even in direct sunlight. Whether powering digital billboards under the midday sun, serving as a critical control panel in a brightly lit factory workshop, or providing navigation data for ships, this display guarantees crystal-clear visibility of every detail. It effectively eliminates the washout and annoying glare common in ordinary displays, making it an indispensable component in any application where visual communication is critical and ambient lighting is uncontrollable.

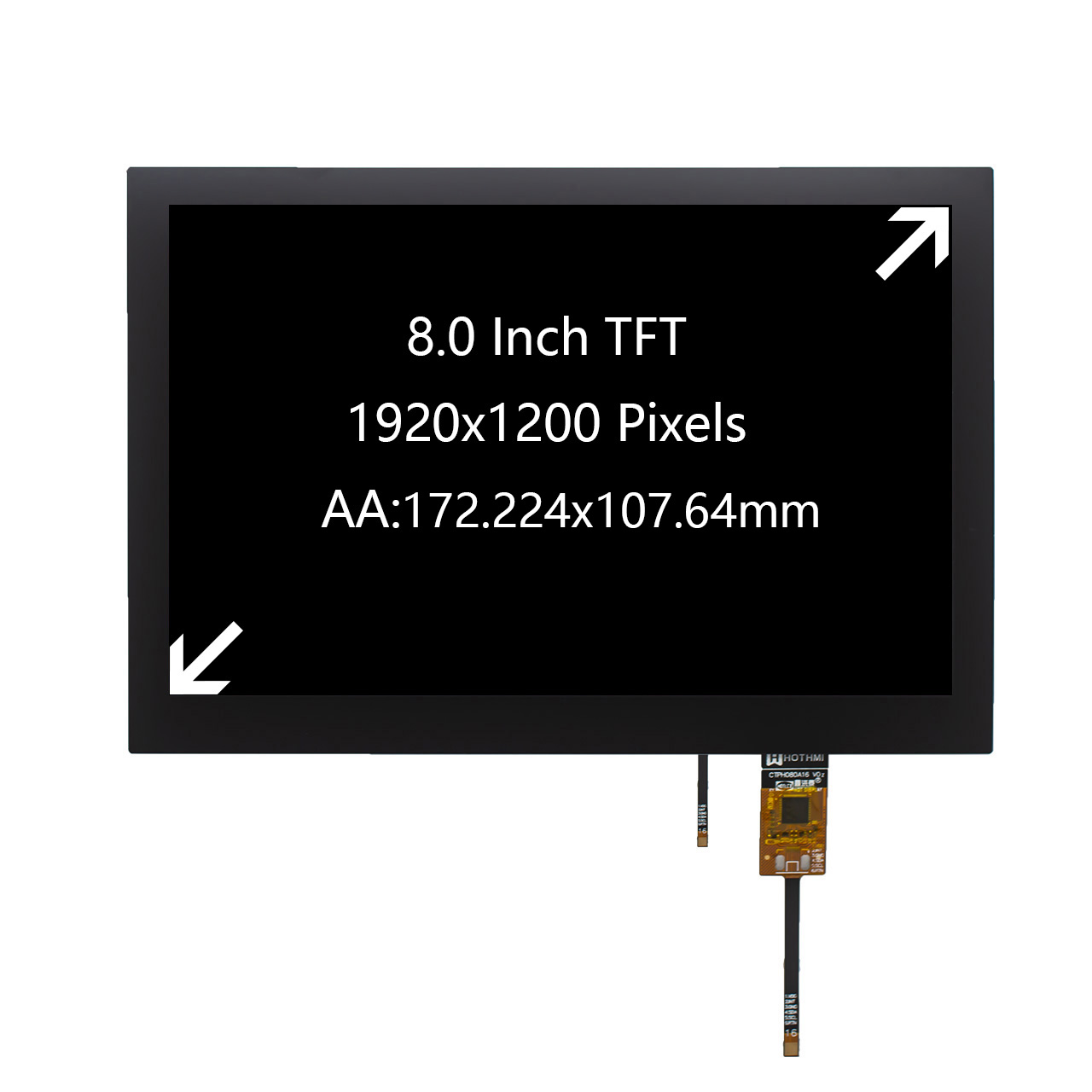

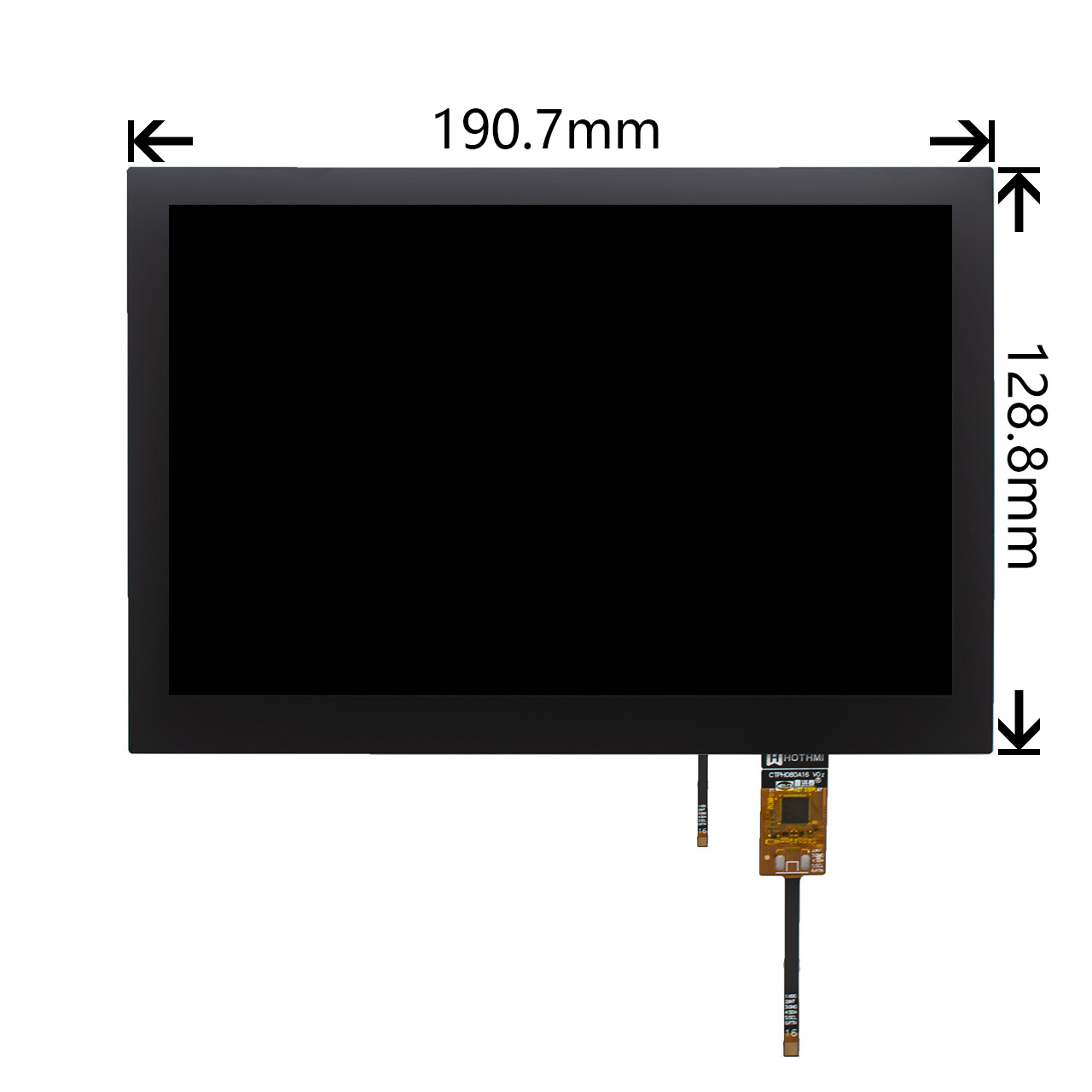

In addition to its exceptional brightness, this 8-inch high-brightness TFT LCD display delivers a stunning high-definition visual experience. Its large 8-inch effective display area boasts a crisp 1920x1200 (WUXGA) resolution, ensuring impeccable detail and accuracy in images, text, and graphics. The high pixel density is perfectly matched with an impressive 1200:1 contrast ratio, delivering deep, pure blacks and preventing images from appearing flat or dull.

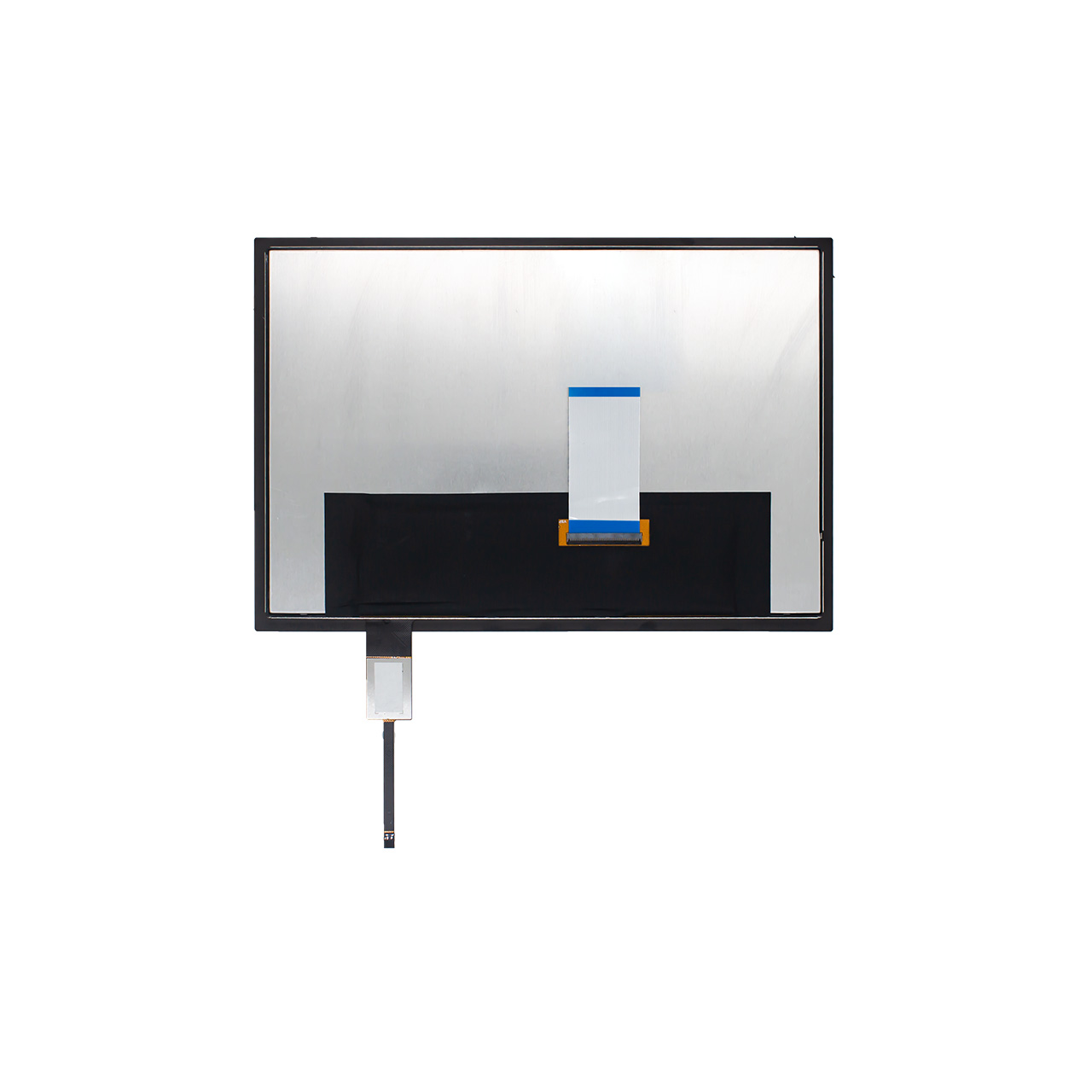

This rugged 8-inch high-brightness TFT LCD screen is designed for harsh working environments. It supports a wide operating temperature range of -30°C to +85°C, ensuring stable startup and continuous operation in both extremely cold and hot conditions without compromising display quality. For applications requiring user input, a high-performance projected capacitive touchscreen (CTP) is available as an option. This touchscreen uses the GT911 driver chip and supports multi-touch gestures, providing an intuitive and responsive user experience. The module employs a standard dual-port LVDS interface, ensuring broad compatibility and easy integration into various systems. In summary, this versatile and rugged 8-inch high-brightness TFT LCD display is ideal for engineers and designers to achieve superior visual performance and stable reliability in outdoor and high ambient light products.
