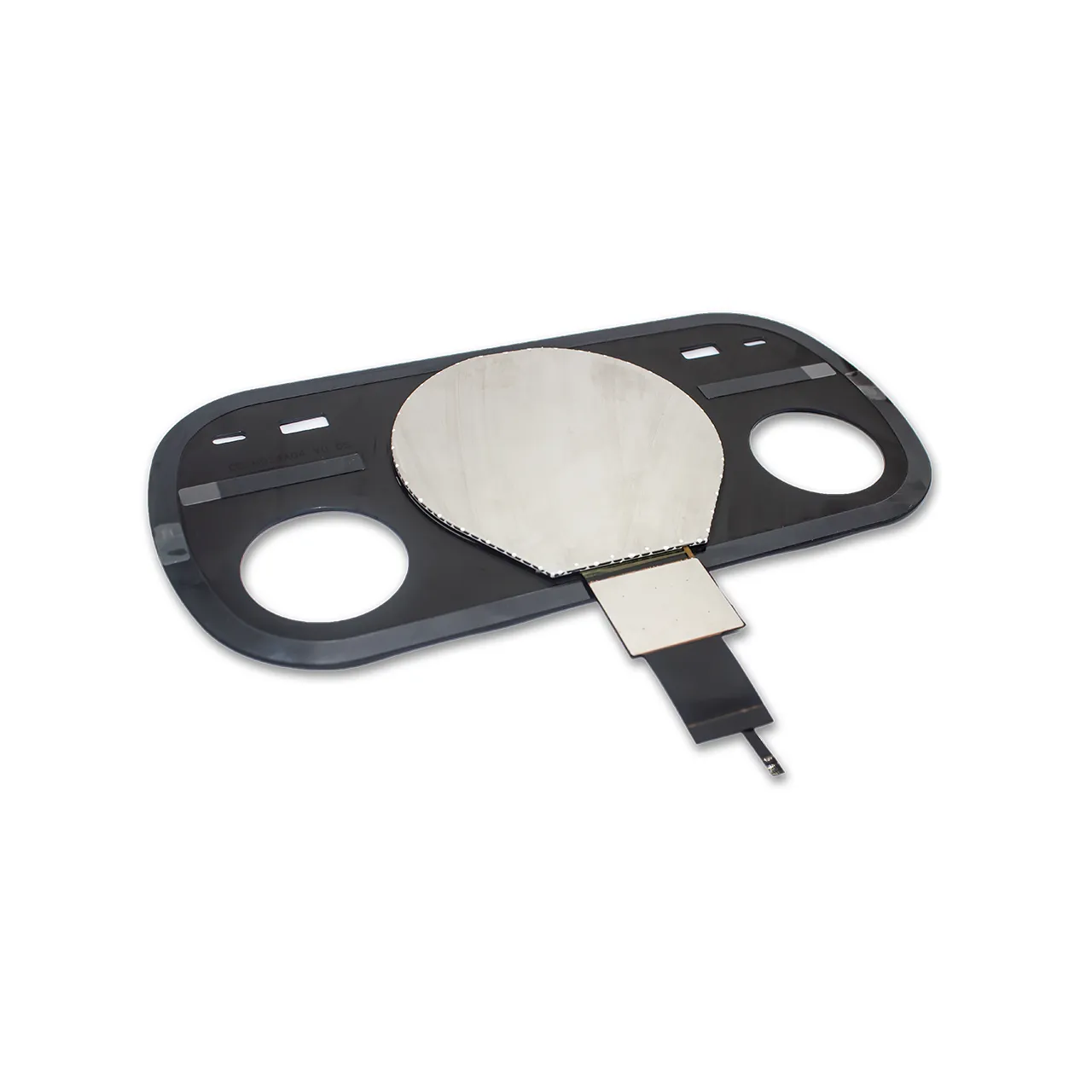

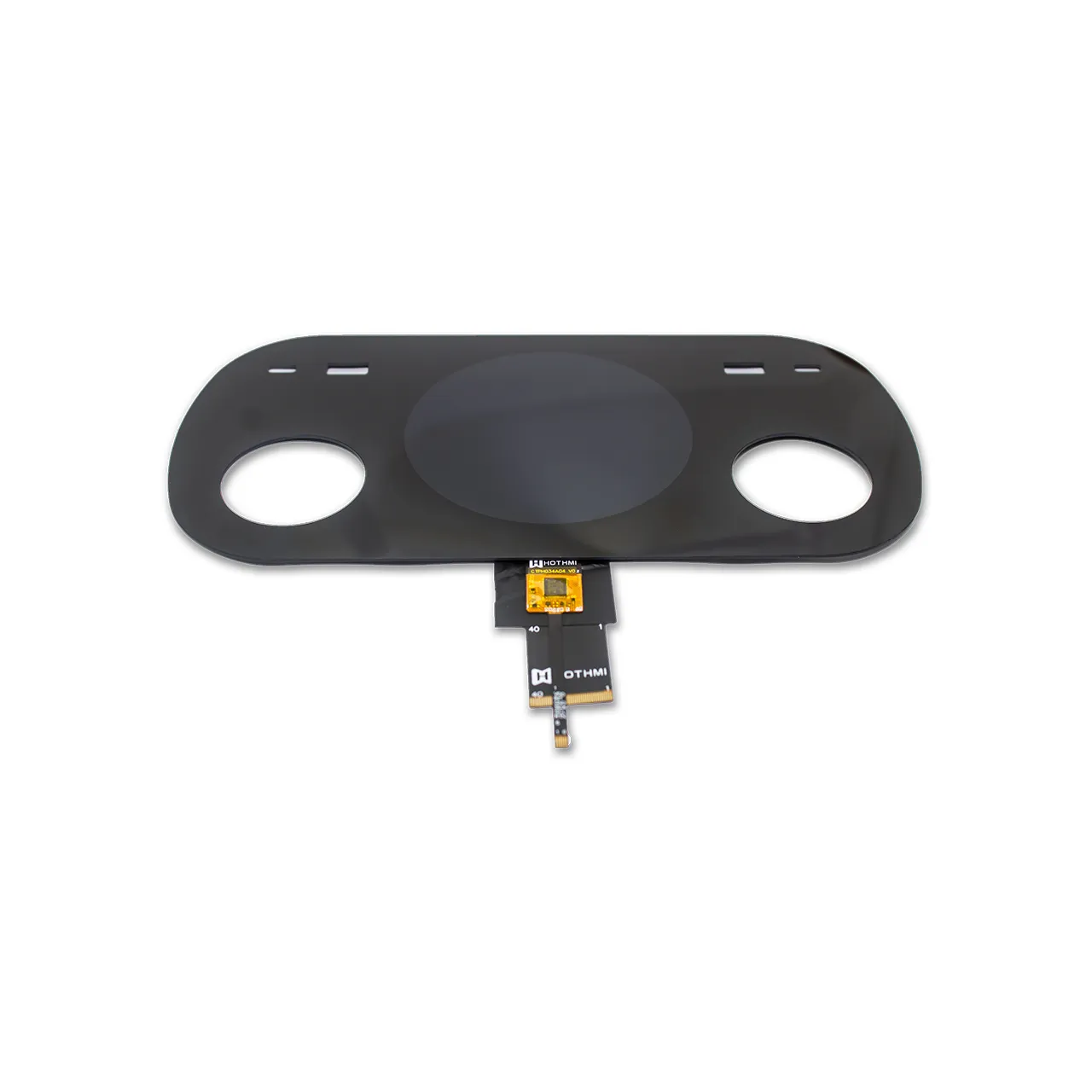

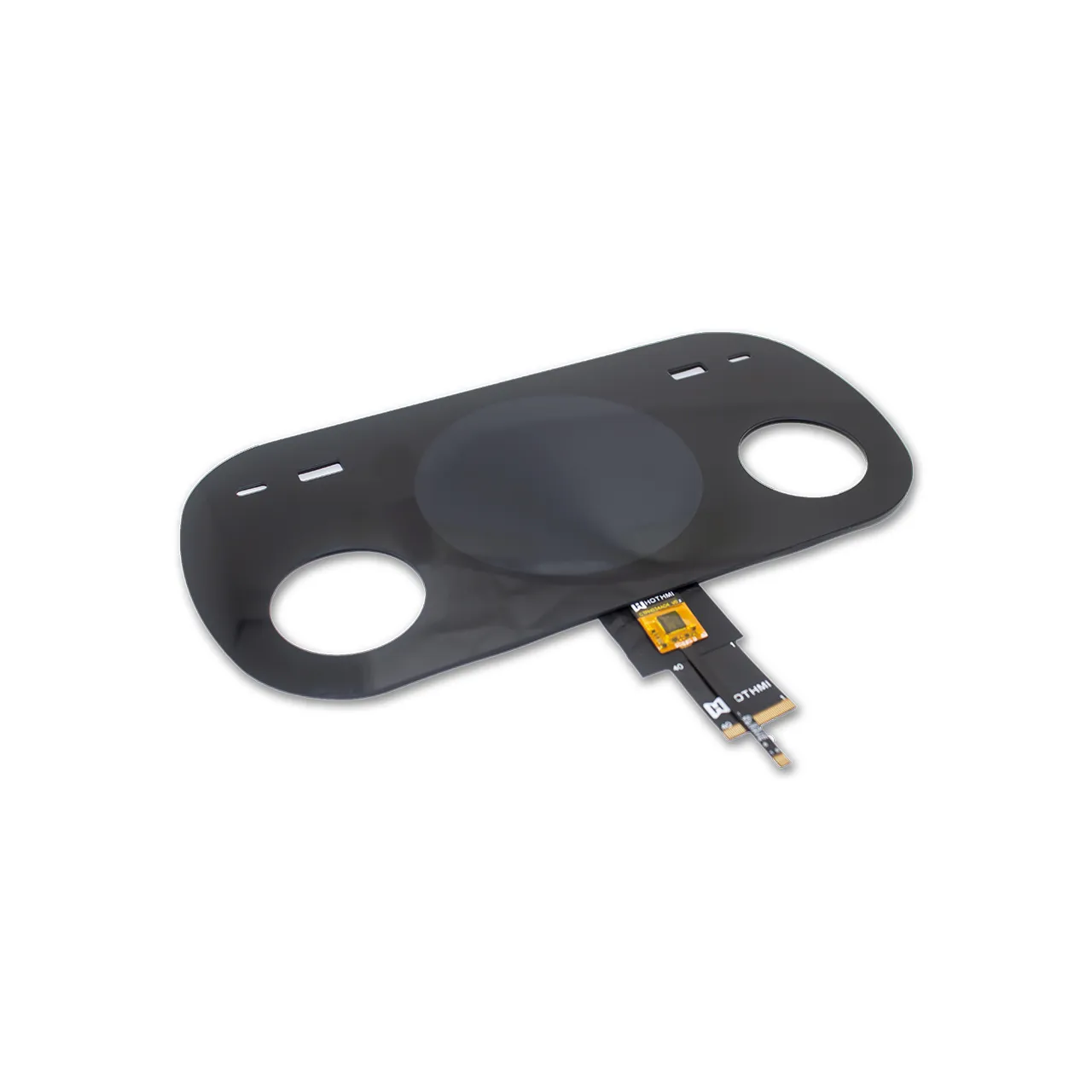

3.4 inch Round TFT LCD Display With uxTouch CTP 800x800 Resolution

▶ Model: TFT-H034A04ZJIGCKC40

▶ Type: Standard TFT Display
▶ Display Pixels: 800x800
▶ Dimensions (mm): 225.29x113.0x3.95
▶ Effective Dimensions (mm): 87.6x87.6
▶ Size: 3.4
▶ Applications: Electric Vehicles, Outdoor Equipment
▶ Viewing Angle: IPS Full Viewing Angle
▶ Backlight/Brightness: 1000cd/m²
▶ Pin Arrangement: 40 PIN
▶ Interface: RGB
▶ Special Notes: ESD 8kV
▶ Operating Temperature: -30°C to 80°C
▶ Supply Voltage: 3.3V

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

No Back No

Product Description
Customized Services
Attributes

TFT-H034A04ZJIGCKC40 | 3.4-inch Round TFT LCD Display with uxTouch CTP Touch, 800x800 Resolution LVDS Interface Touchscreen Display
Define Your Interface with the 3.4 inch Round TFT LCD Display With uxTouch CTP
Introducing a breakthrough in compact display technology for modern outdoor and portable devices. The 3.4 inch Round TFT LCD Display With uxTouch CTP is engineered to merge superior visibility with bespoke design, making it the ideal choice for applications like electric vehicle dashboards, advanced instrumentation, and high-end portable electronics.

A key advantage of this 3.4 inch Round TFT LCD Display With uxTouch CTP is its fully customizable touch cover lens. The "uxTouch CTP" (Capacitive Touch Panel) technology provides a smooth, responsive multi-touch experience, while the large cover glass can be printed with unique patterns, logos, and functional icons. This allows you to create a seamlessly branded and aesthetically pleasing interface that is both modern and intuitive.

To conquer challenging lighting conditions, the 3.4 inch Round TFT LCD Display With uxTouch CTP delivers an ultra-high brightness of 1000 nits. This ensures that the 800x800 resolution display remains brilliantly clear and perfectly readable, even in direct sunlight. The IPS full viewing angle technology guarantees consistent color and clarity for viewers from any direction.

Built to endure harsh environments, this robust 3.4 inch Round TFT LCD Display With uxTouch CTP features a wide operating temperature range from -30°C to 80°C and high ESD protection of 8kV. Its durability ensures reliable performance in demanding outdoor and industrial settings. For your next project that demands a perfect blend of style, durability, and performance, the 3.4 inch Round TFT LCD Display With uxTouch CTP stands as the definitive solution.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
3.4-inch Round TFT LCD Display with uxTouch CTP Touch Screen	November 11, 2025	1.64MB

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

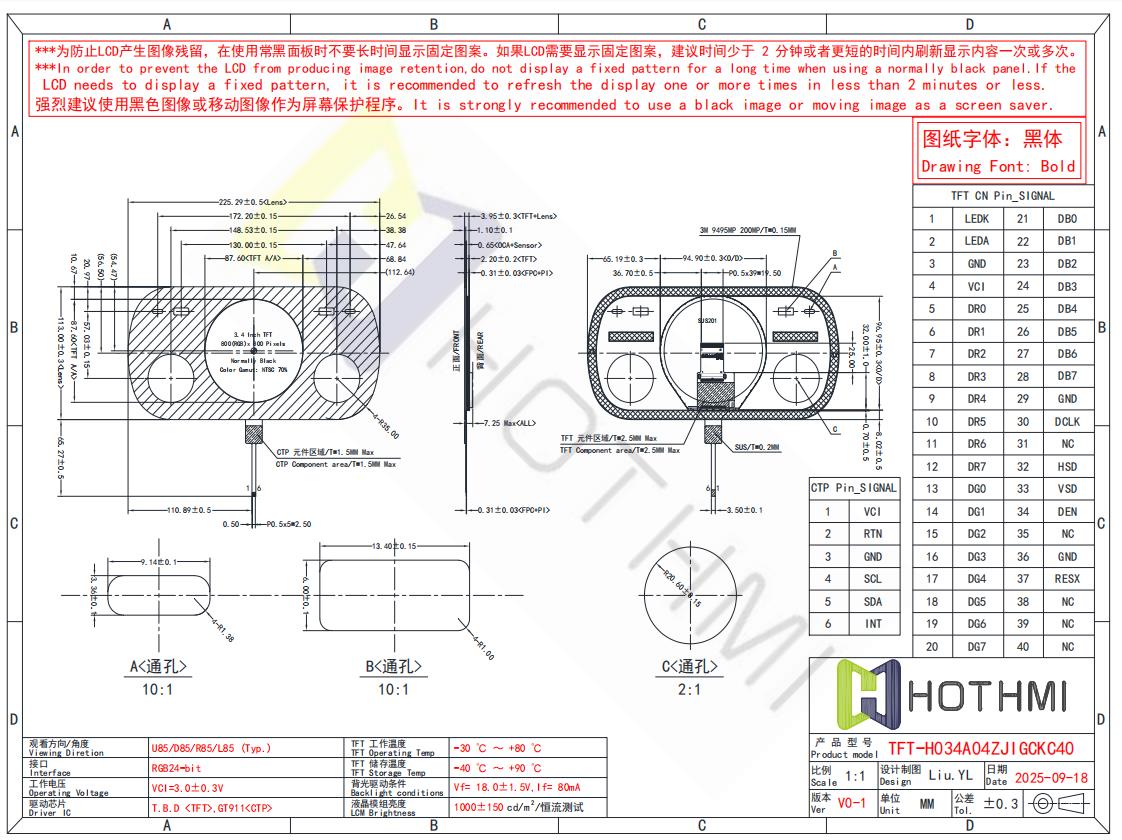

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H034A04ZJIGCKC40
Diagonal size	3.4”	Inch
Resolution	800x800	Dot
Dimensions	225.29x113.0x3.95	mm
Active area (AA)	87.6x87.6	mm
LCD type	3.4” TFT Module	mm
Display viewing angle	Full View
Aspect ratio	1：1
Backlight type	LED white
TFT driver IC	--
Brightness	1000cd/m2	cd/m2
Operating temperature	-30~80℃	℃
Storage temperature	-40~90℃	℃
