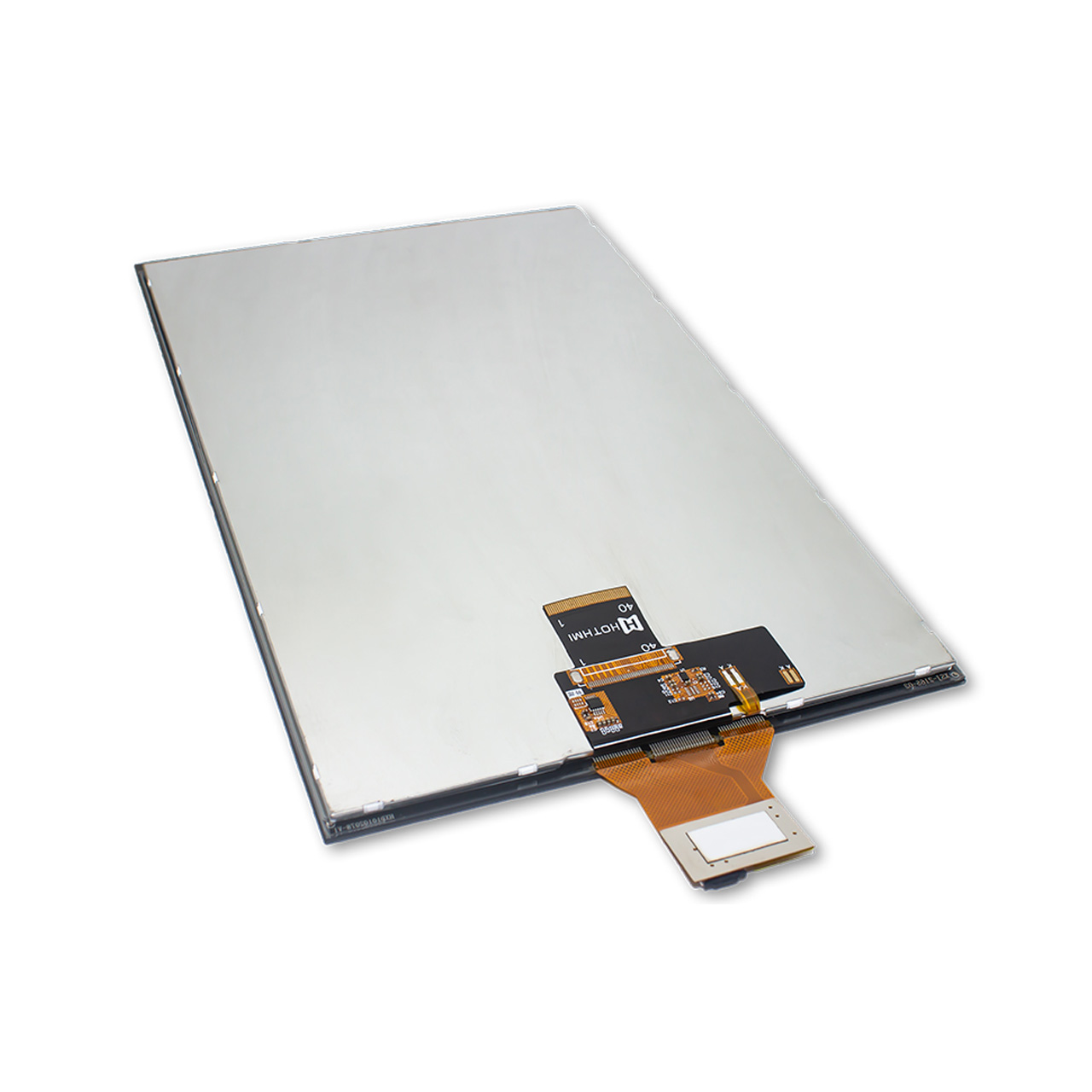

Plug and play display 10.1″ TFT LCD With LVDS Interface

▶ Model: TFT-H101A19HDINV5N40

▶ Type: TFT Standard Display Screen
▶ Display Pixels: 800x1280
▶ Dimensions: 142.9x228.5x2.67 mm
▶ Active Area (AA) Size: 135.36x216.576 mm
▶ Display Size: 10.1 inches
▶ Applications: Medical equipment, central control systems
▶ Viewing Angle: IPS Full Viewing Angle
▶ Backlight/Brightness: 500 cd/m²
▶ Pins: FPC-40 pin
▶ Interface: LVDS
▶ Special Features: Anti-static ESD 8KV
▶ Operating Temperature: -20~70℃
▶ Power Supply Voltage: 3.3V
▶ Driver Chip: NV3051F

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Product Description
Customized Services
Attributes

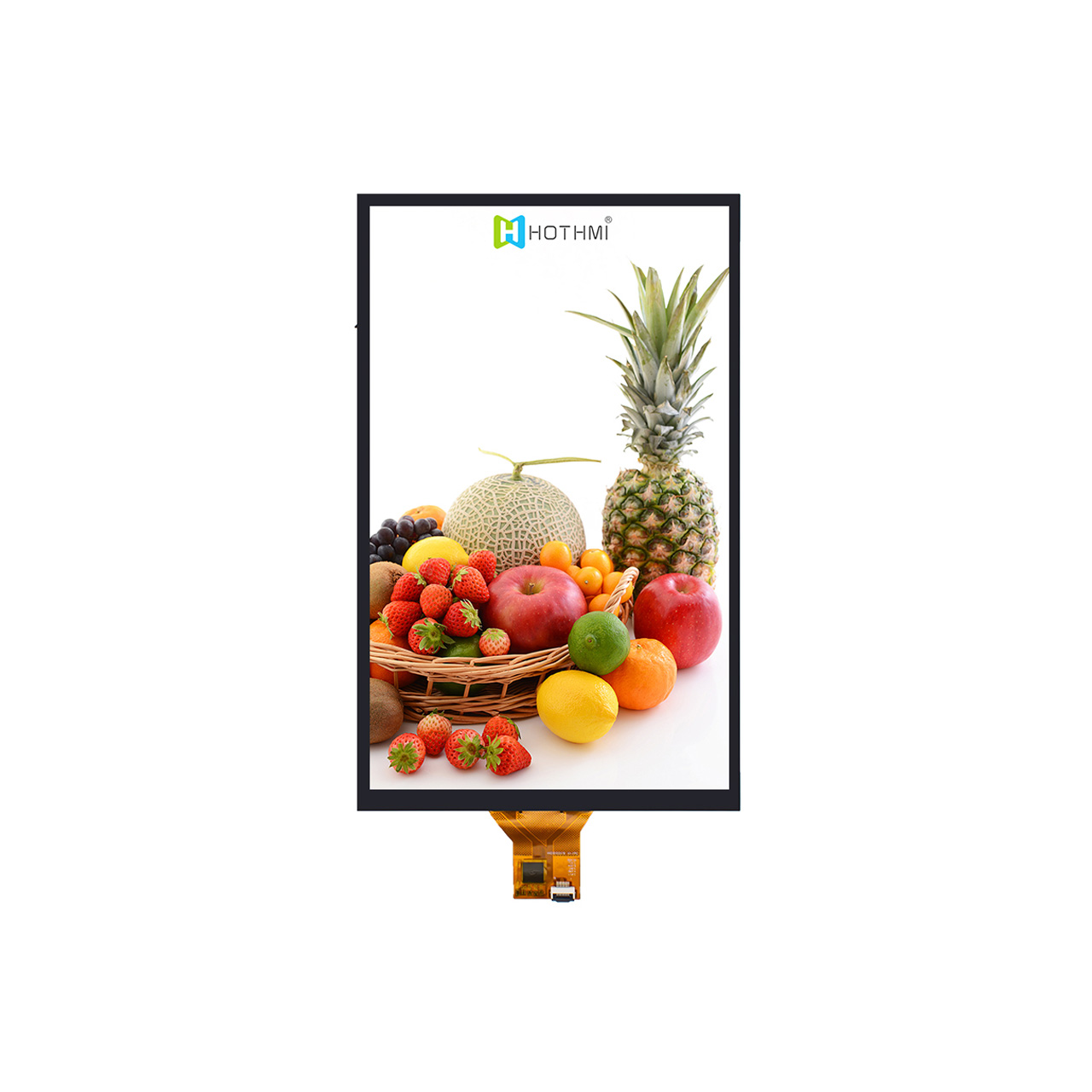

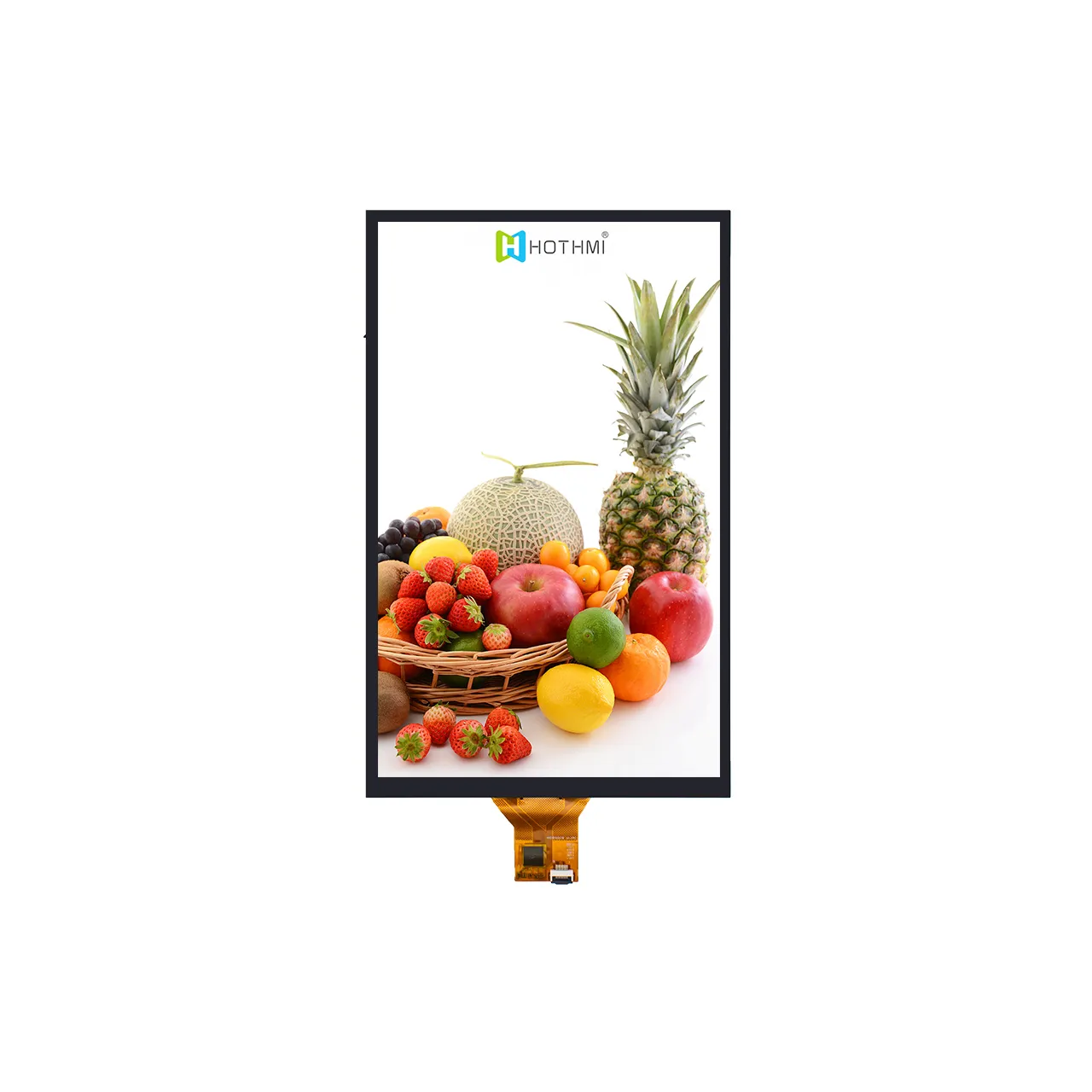

TFT-H101A19HDINV5N40 | 10.1-inch TFT LCD Display with LVDS Interface | 800x1280 HD IPS Ultra-thin TFT Display
Introducing our premium 10.1-inch TFT LCD Display, engineered to deliver exceptional clarity and performance for demanding applications. This high-definition screen boasts an 800x1280 resolution with an IPS panel, ensuring vibrant colors and sharp details from every angle. Whether integrated into sophisticated instrumentation or cutting-edge portable electronic devices, this 10.1-inch TFT LCD Display provides a visual output that is both brilliant and reliable.

Durability meets ultra-thin design in this versatile module. With a slim profile and a compact outline, it is perfectly suited for space-constrained projects without compromising on a generous active viewing area. The robust 10.1-inch TFT LCD Display is built to last, featuring an anti-static ESD rating of 8KV and an operating temperature range of -20~70℃, guaranteeing stable performance in various environments.

At the heart of its connectivity is the LVDS interface, driven by the NV3051F chip, which ensures a stable, high-speed signal transmission and pristine image quality. A high brightness of 500 cd/m² makes this display easily readable even under bright lighting conditions. For a powerful combination of HD visuals, ruggedness, and energy efficiency (3.3V power supply), choose this advanced 10.1-inch TFT LCD Display as the core of your next innovation.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
TFT-H101A19HDINV5N40	October 10, 2025	57.45KB

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

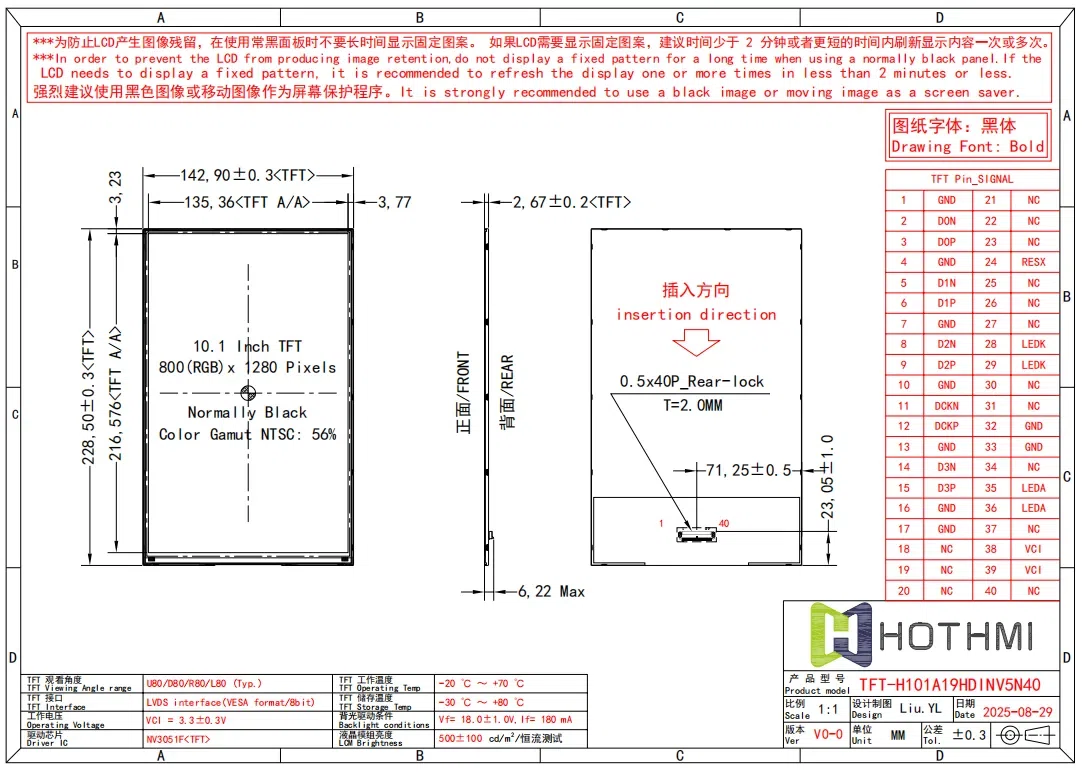

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H101A19HDINV5N40
Diagonal size	10.1”	Inch
Resolution	800x1280	Dot
Dimensions	142.9x228.5x2.67	mm
Active area (AA)	135.36x216.576	mm
LCD type	10.1” TFT Module	mm
Display viewing angle	Full View
Aspect ratio	2:3
Backlight type	LED white
TFT driver IC	NV3051F
Brightness	500cd/m2	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
