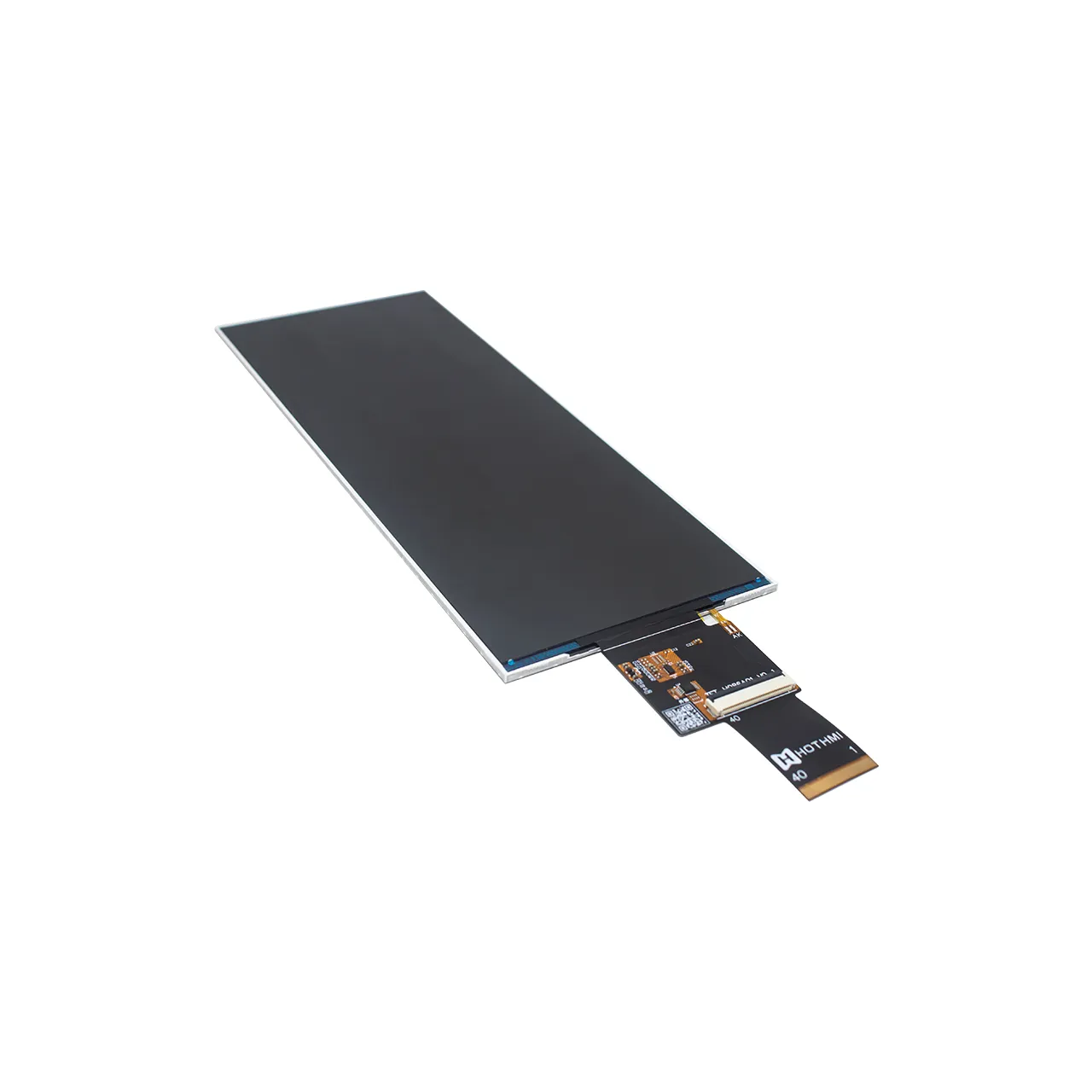

8.6 inch TFT LCD Display With 600x1600 Resolution RGB Interface

▶ Model: TFT-H086A01ZRIGC5N40

▶ Type: TFT Standard Display Screen
▶ Display Pixels: 600x1600
▶ Dimensions: 82.18x212.85x2.6 mm
▶ Active Area (AA) Size (mm): 76.36x20.362
▶ Display Size: 8.6”
▶ Applications: Instruments and meters, portable electronic devices
▶ Viewing Angle: IPS Full Viewing Angle
▶ Backlight/Brightness: 500 cd/m2
▶ Pins: FPC-40 pin
▶ Interface Type: RGB
▶ Special Notes: Anti-static ESD 8KV
▶ Operating Temperature: -20~70℃
▶ Power Supply Voltage: 3.3V
▶ Driver Chip: GC9704

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Product Description
Customized Services
Attributes

TFT-H086A01ZRIGC5N40 | 8.6-inch TFT LCD display, 600x1600 resolution, RGB interface | 8.6-inch bar-type LCD display
This 8.6-inch TFT LCD display is designed for precision and durability, offering a high-performance bar-type display solution to meet the demanding requirements of modern industrial and portable applications. With its unique 600x1600 resolution, this TFT LCD display presents a long, narrow, and crisp visual image, ideal for displaying detailed data, charts, or complex user interfaces in a compact form factor.

This 8.6-inch TFT LCD display boasts an impressive 500 nits of high brightness, ensuring clear visibility even in direct sunlight or bright environments. The adoption of IPS (In-Plane Switching) technology ensures a full IPS viewing angle, presenting consistent and accurate colors and sharp images from virtually any angle without color shift or contrast degradation. The RGB TFT display interface ensures direct, high-speed data transmission, resulting in stable performance and vibrant color reproduction.

This robust 8.6-inch TFT LCD display is built to withstand harsh environmental conditions. It features a wide operating temperature range of -20~70°C, ensuring reliable operation even in extreme cold and heat. Furthermore, its 8KV ESD protection prevents the module from being affected by electrostatic discharge during operation and handling, enhancing its lifespan and reliability in the field.

This 8.6-inch TFT LCD display is primarily used in professional fields requiring bar-type displays, such as instrumentation, industrial control systems, portable diagnostic equipment, and advanced consumer electronics. Its combination of unique aspect ratio, high brightness, wide temperature range, and industrial-grade ruggedness makes it an ideal choice for engineers and designers seeking a high-quality and reliable display component for their next-generation devices.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
TFT-H086A01ZRIGC5N40	October 10, 2025	1.33MB

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H086A01ZRIGC5N40
Diagonal size	8.6”	Inch
Resolution	600x1600	Dot
Dimensions	82.18x212.85x2.6	mm
Active area (AA)	76.36x20.362	mm
LCD type	8.6” TFT Module	mm
Display viewing angle	Full View
Aspect ratio	5:2
Backlight type	LED white
TFT driver IC	GC9704
Brightness	500cd/m2	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
