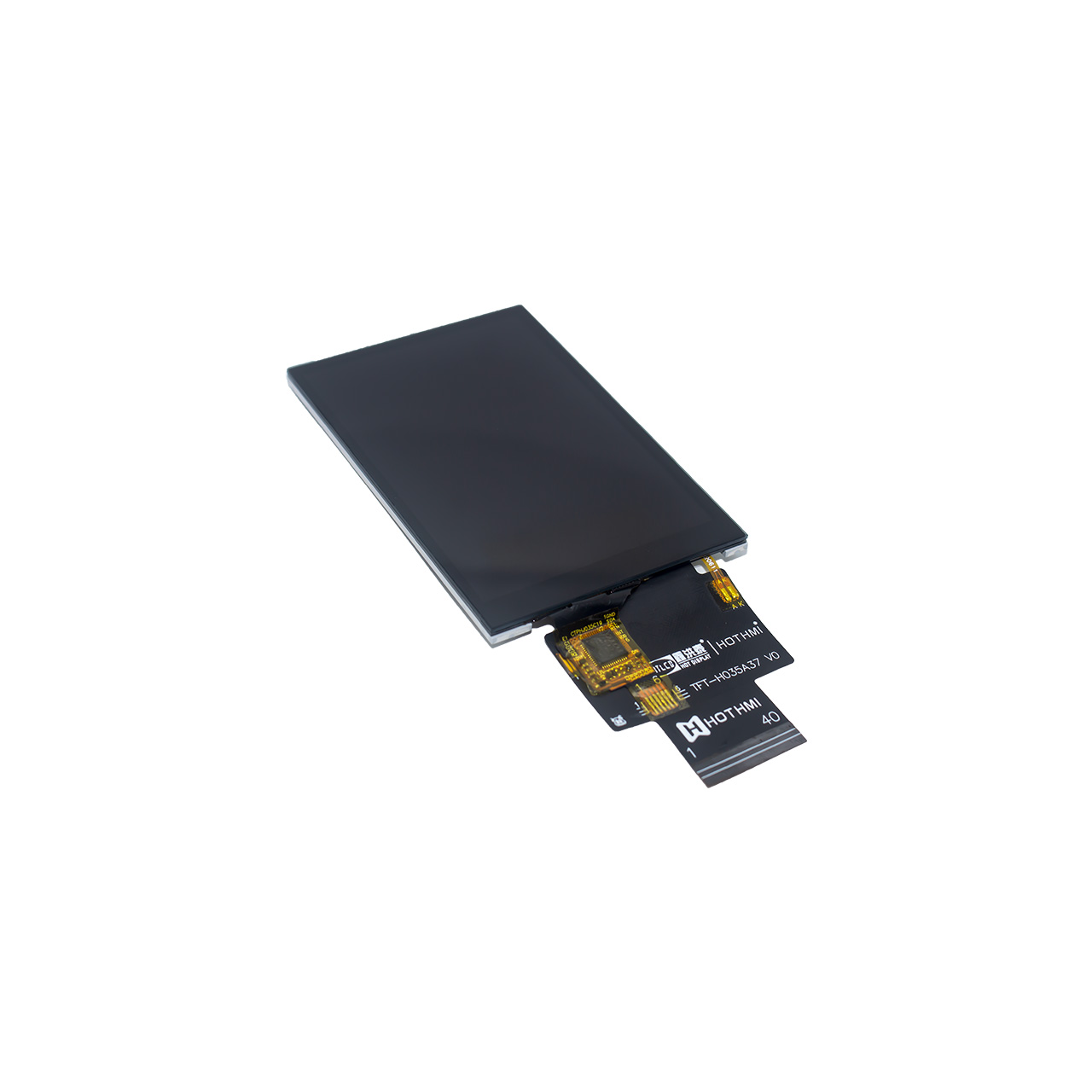

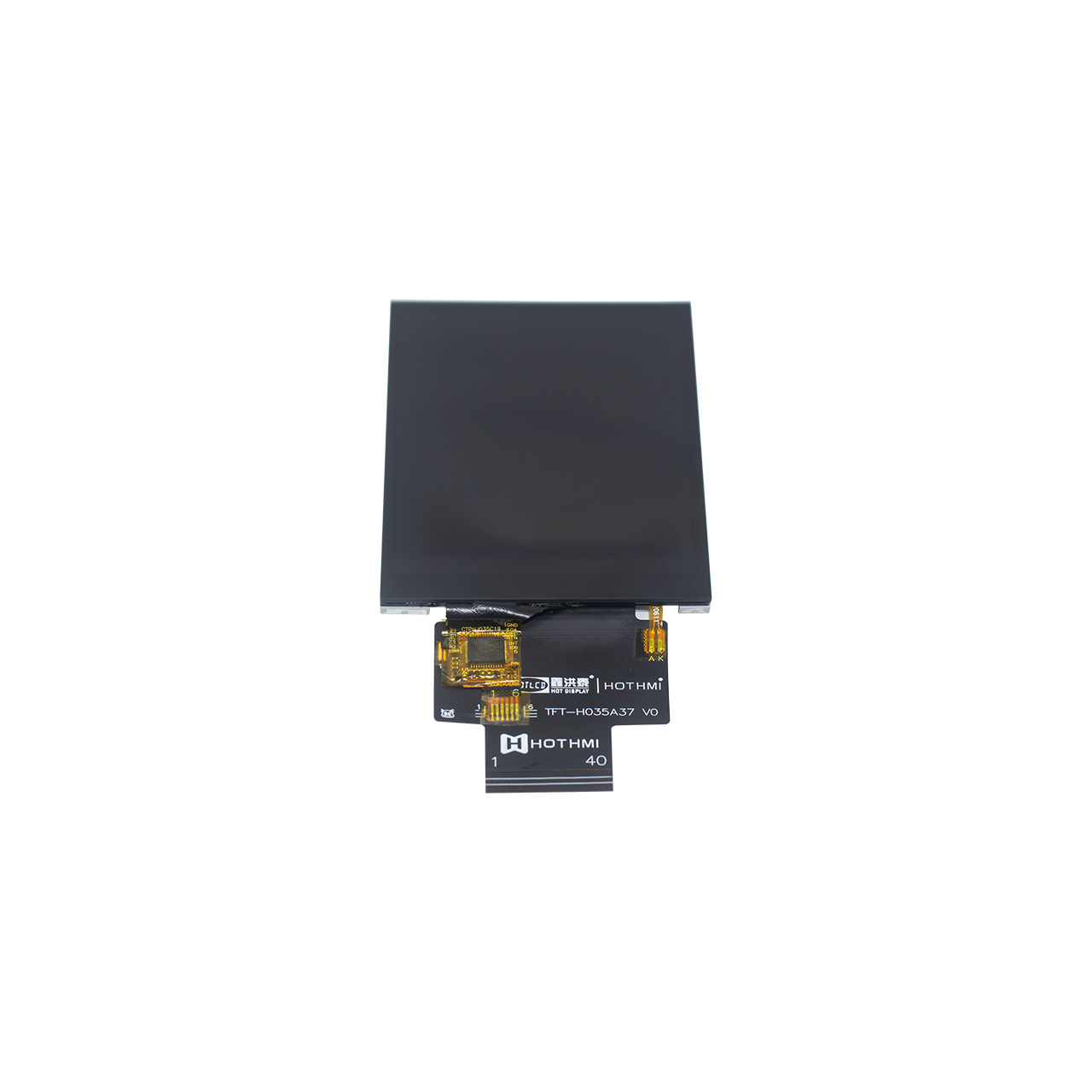

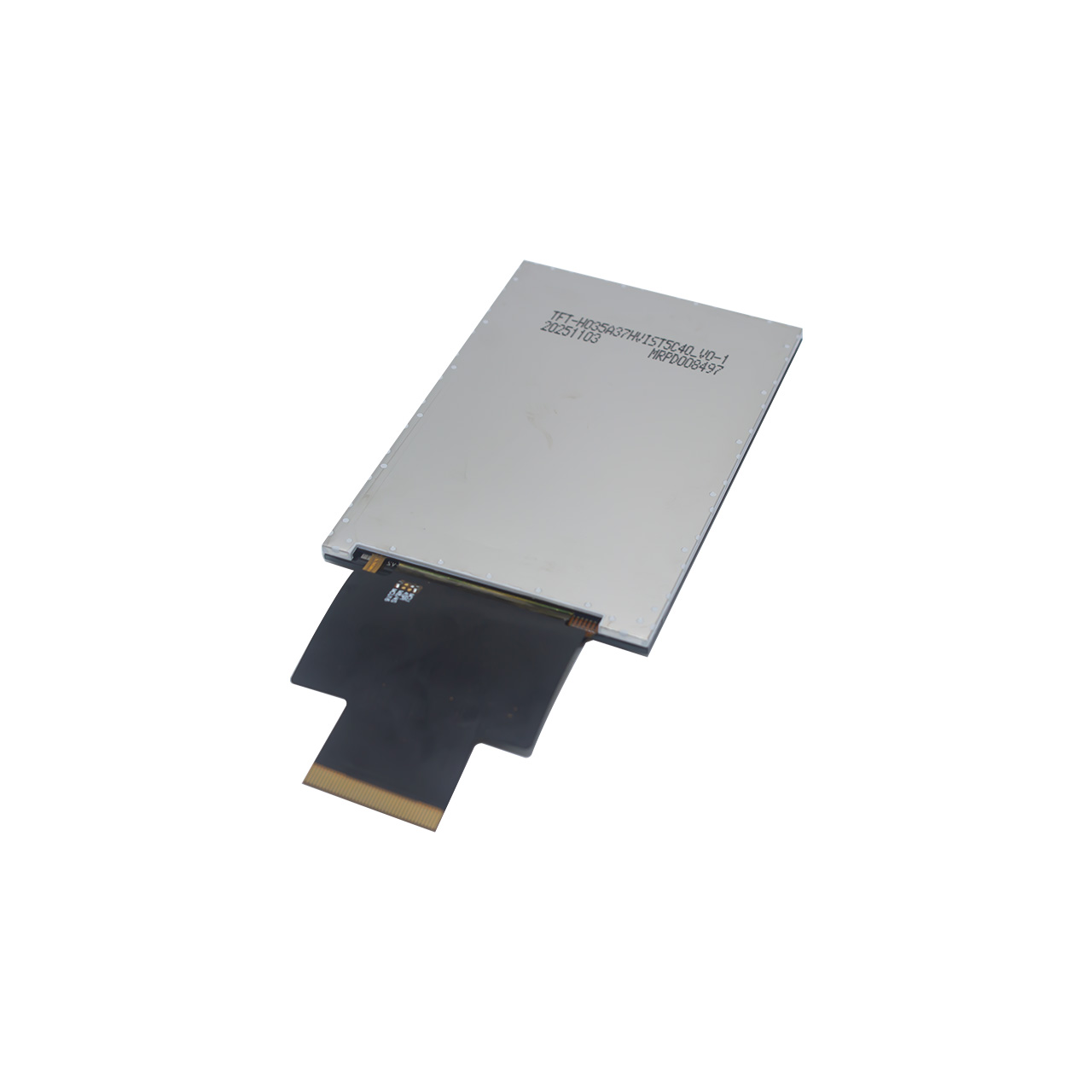

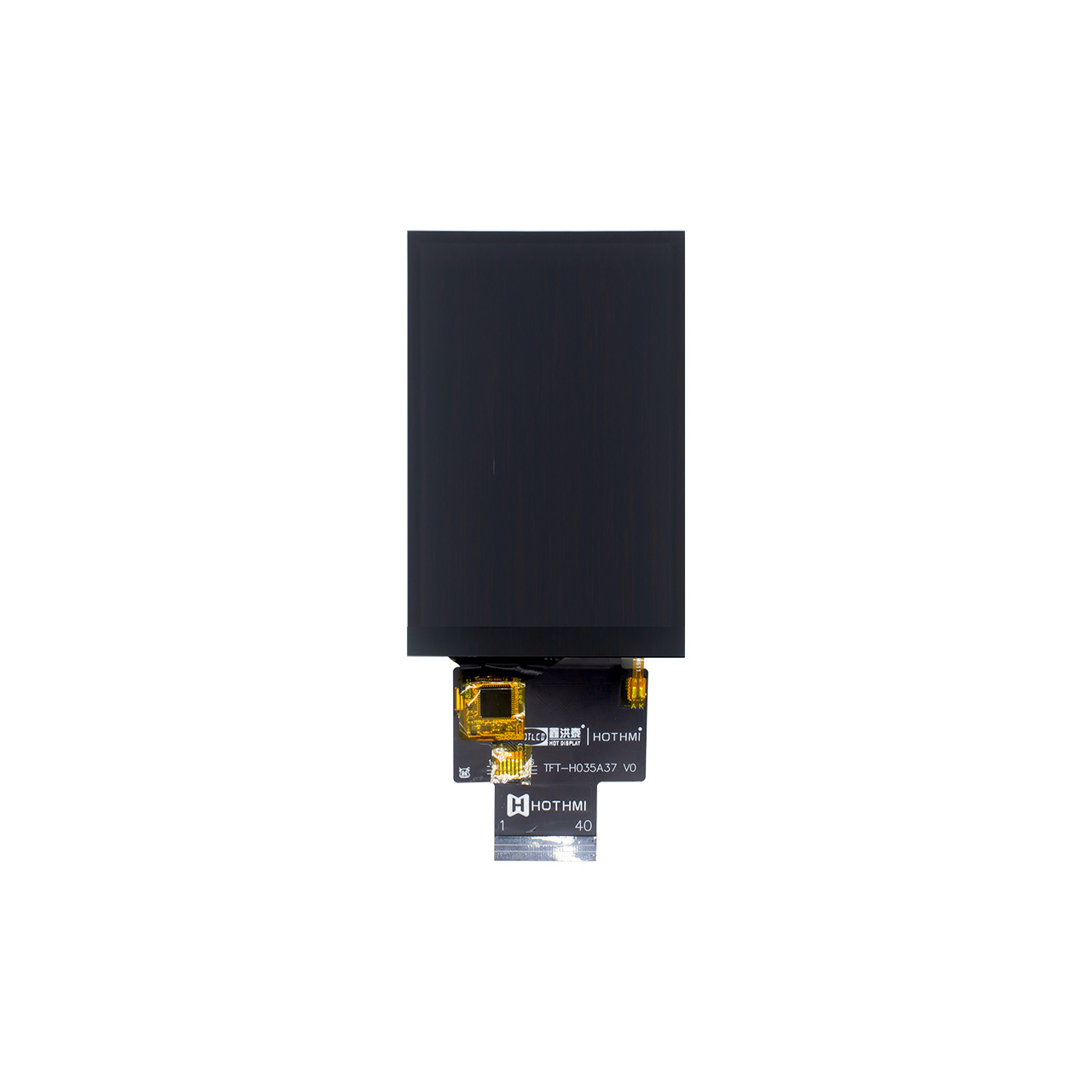

3.5 Inch Capacitive Touch TFT LCD Display With MCU Interface

▶ Model: TFT-H035A37HVIST5C40

▶ Type: Standard TFT Display
▶ Display Pixels: 320x480
▶ Dimensions: 54.46x82.94x3.79mm
▶ AA Size (mm): 48.96x73.44mm
▶ Display Inches: 3.5"
▶ Applications: Instrumentation, Portable Electronic Devices
▶ Viewing Angle: IPS Full Viewing Angle
▶ Backlight/Brightness: 500cd/m²
▶ Pinout: FPC-40 pin
▶ Interface: MCU
▶ Special Instructions: ESD 8kV
▶ Operating Temperature: -20°C to 70°C
▶ Supply Voltage: 3.3V
▶ Driver IC: ST7365P

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Product Description
Customized Services
Attributes

TFT-H035A37HVIST5C40 | 3.5-inch capacitive touchscreen TFT LCD with MCU interface | 320x480 IPS HD TFT display
The 3.5 Inch Capacitive Touch TFT LCD is a high-performance standard TFT display module engineered for a diverse range of electronic applications. Featuring a sharp resolution of 320x480 pixels, this 3.5 Inch Capacitive Touch TFT LCD delivers clear and vibrant visuals, enhanced by its IPS technology which guarantees a full viewing angle for consistent image quality from any perspective. The robust 500 cd/m² backlight ensures excellent readability even under bright lighting conditions.
Designed with versatility in mind, the 3.5 Inch Capacitive Touch TFT LCD is ideally suited for instrumentation and portable electronic devices, offering a compact physical dimension of 54.46x82.94x3.79mm and an active area of 48.96x73.44mm. It integrates a responsive capacitive touch panel, providing an intuitive user interface experience. The module operates on a 3.3V supply voltage and is built to withstand an operating temperature range from -20°C to +70°C, ensuring reliable performance in various environments.
Interfacing is streamlined through a 40-pin FPC connector and an MCU interface, supported by the ST7365P driver IC for efficient control. Furthermore, the 3.5 Inch Capacitive Touch TFT LCD is designed with durability in mind, featuring ESD protection of up to 8kV. This combination of a bright, wide-view display, responsive touch, and a robust build makes it a superior choice for demanding embedded projects.

Datasheet for Touch Panel,Controller↓

Name	Date	Size
TFT-H035A37HVIST5C40	October 10, 2025	100.47KB

Customized Cables/FPCs: Adjust cable length, position, and pinout, or add additional connectors to suit your needs. Get precisely engineered cable solutions to make your connections more streamlined and secure.

Touchscreen: Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization: Choose from a variety of interface options or speak with our experts to select the interface option that best suits your project. We can integrate interfaces such as HI, USB, SPI, VGA, etc. into your display to achieve your design goals.

Cover Glass: Custom-cut cover glass for your display for increased durability. Cover glass is available in a variety of thicknesses and optically bonded to protect against moisture and debris.Optional surface treatment: AF (anti-fingerprint oil) / AG (anti-glare) / AR (anti-reflection).

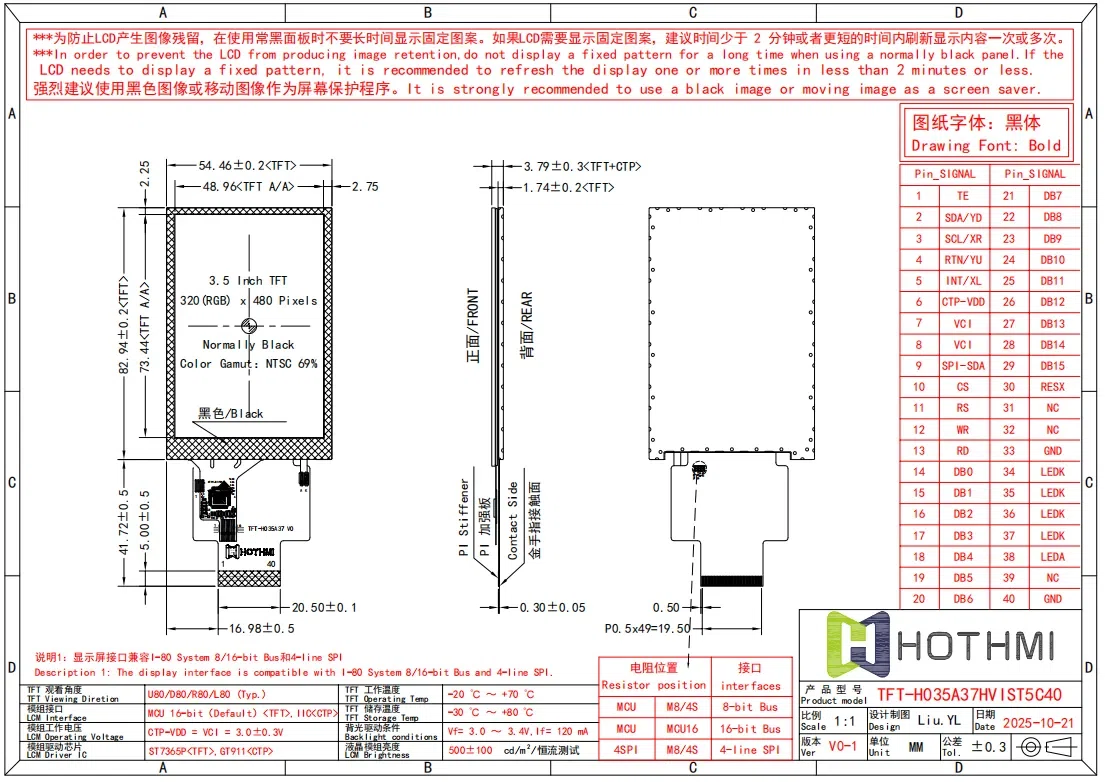

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H035A37HVIST5C40
Diagonal size	3.5”	Inch
Resolution	320x480	Dot
Dimensions	54.46x82.94x3.79	mm
Active area (AA)	48.96x73.44	mm
LCD type	3.5” TFT Module	mm
Display viewing angle	Full View
Aspect ratio	2:3
Backlight type	LED white
TFT driver IC	ST7365P
Brightness	500cd/m2	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
