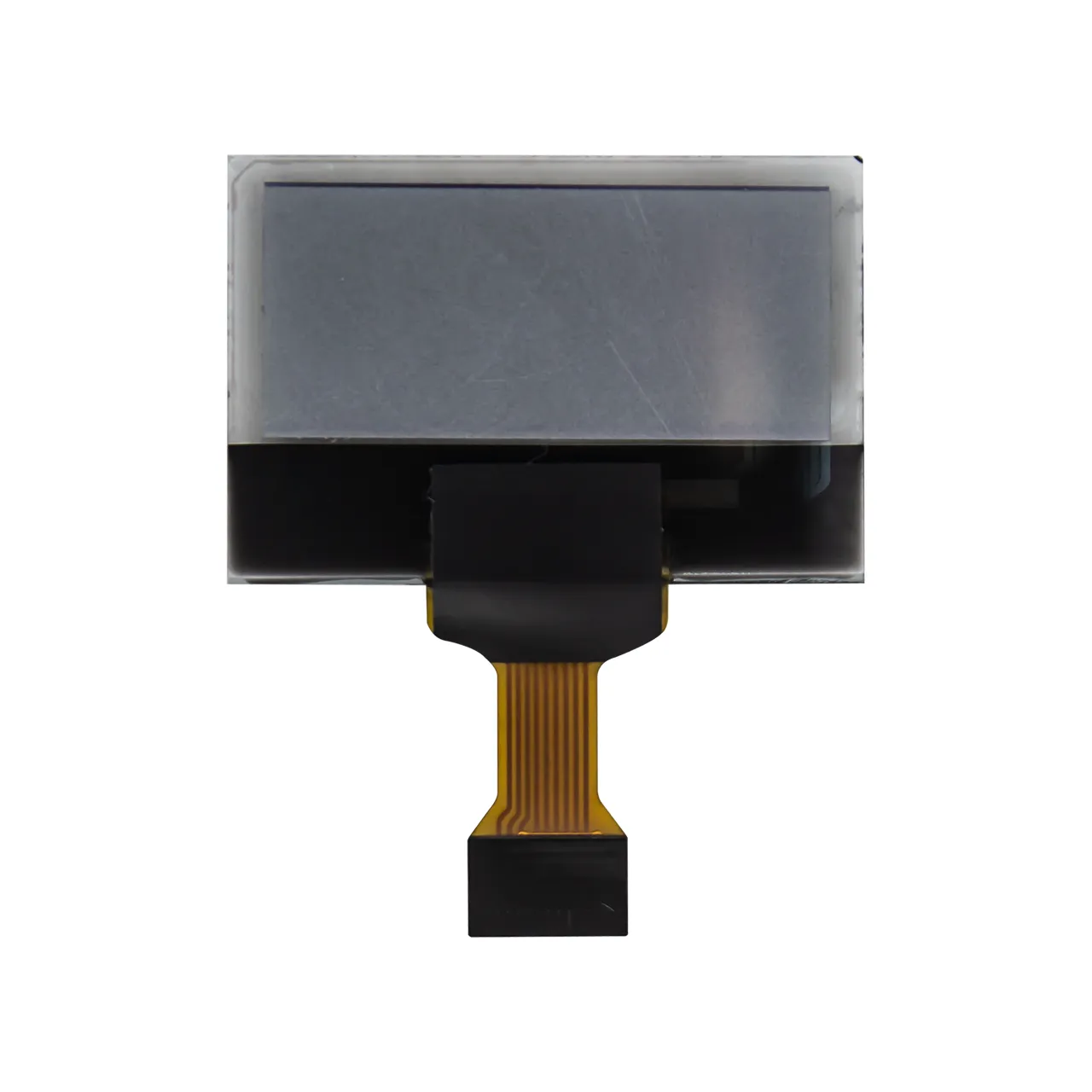

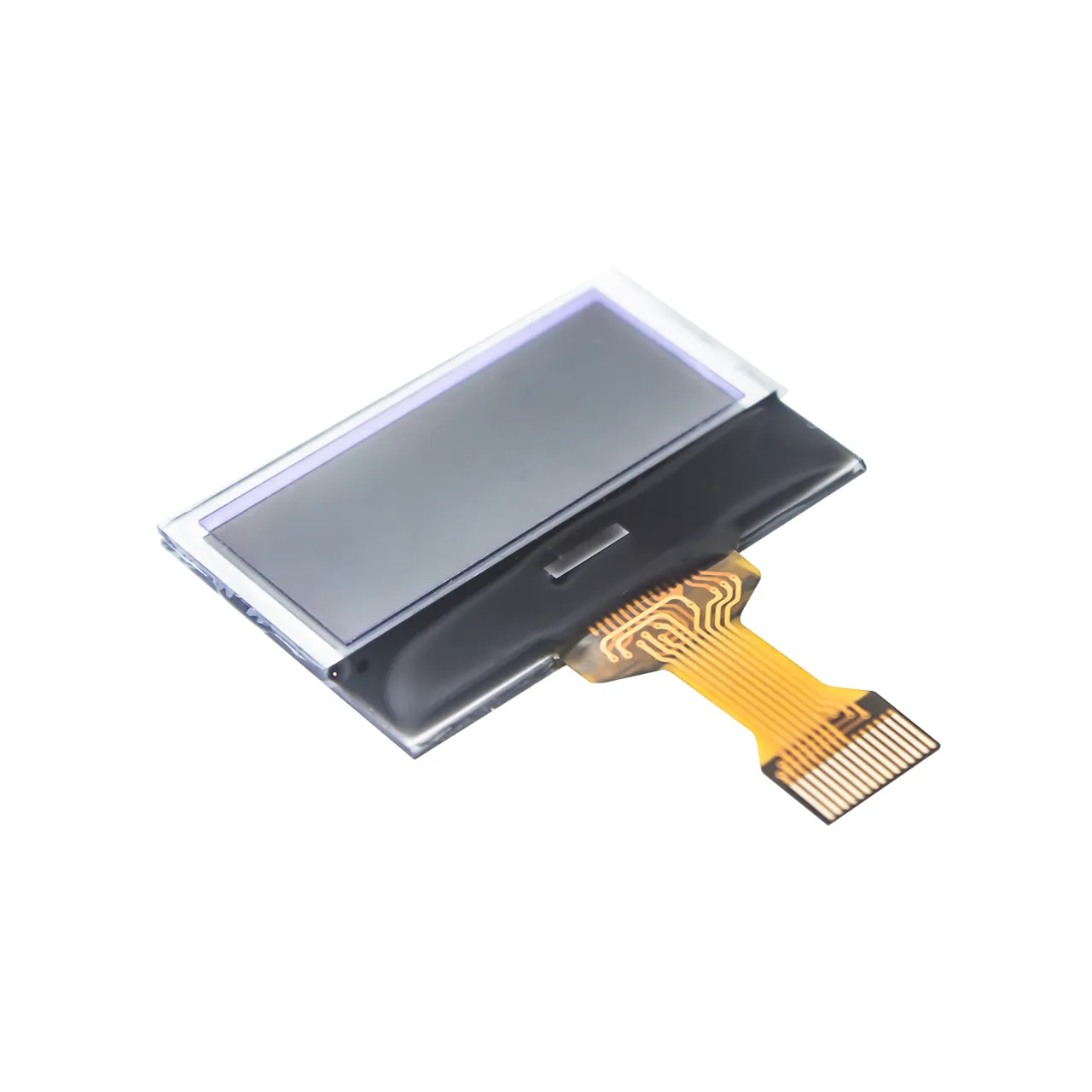

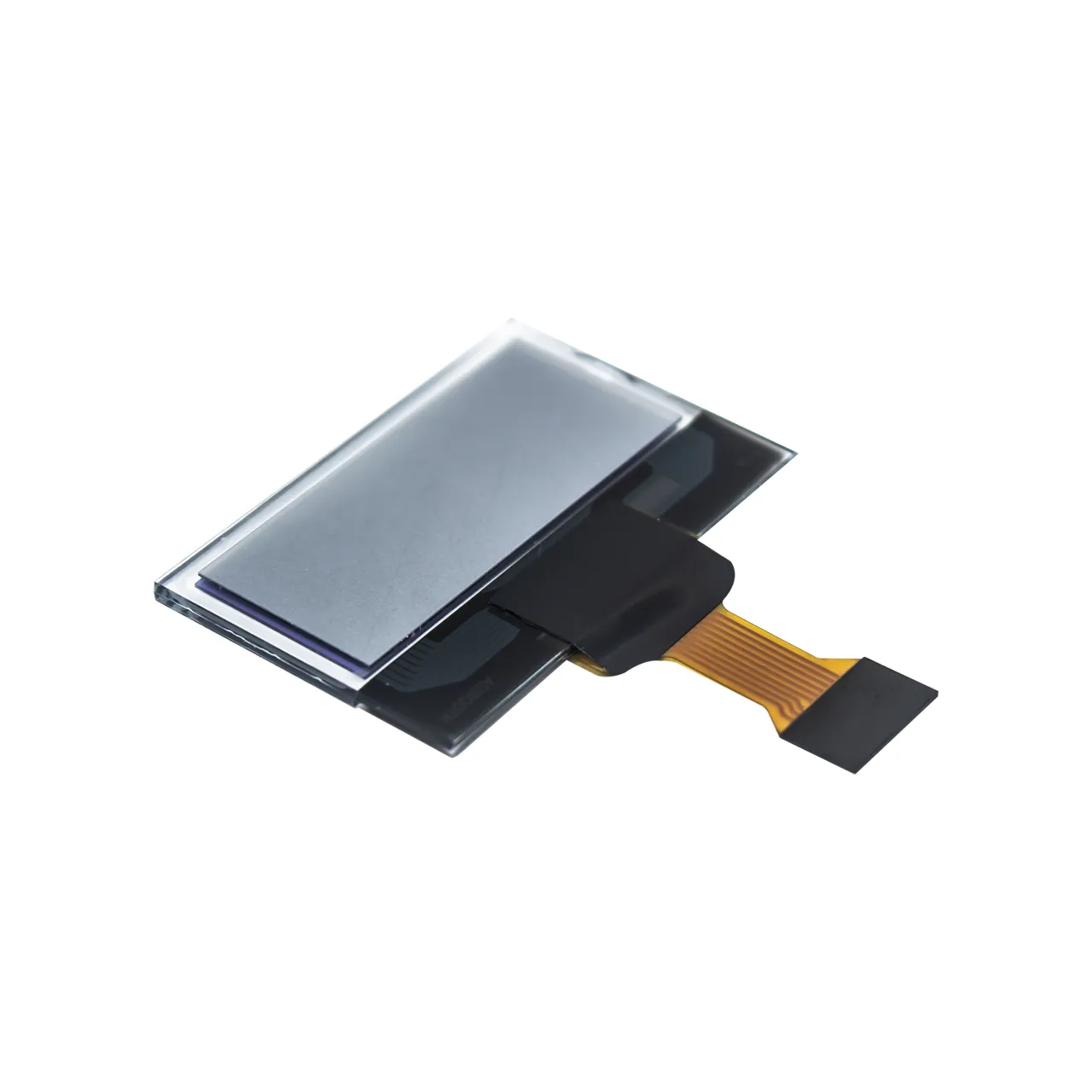

9x2 COG LCD Display With Backlight

9x2 COG LCD Display Transflective LCD With Backlight

▶ Model: HTG0902B

▶ Type: COG LCD
▶ Display Pixels: 9x2

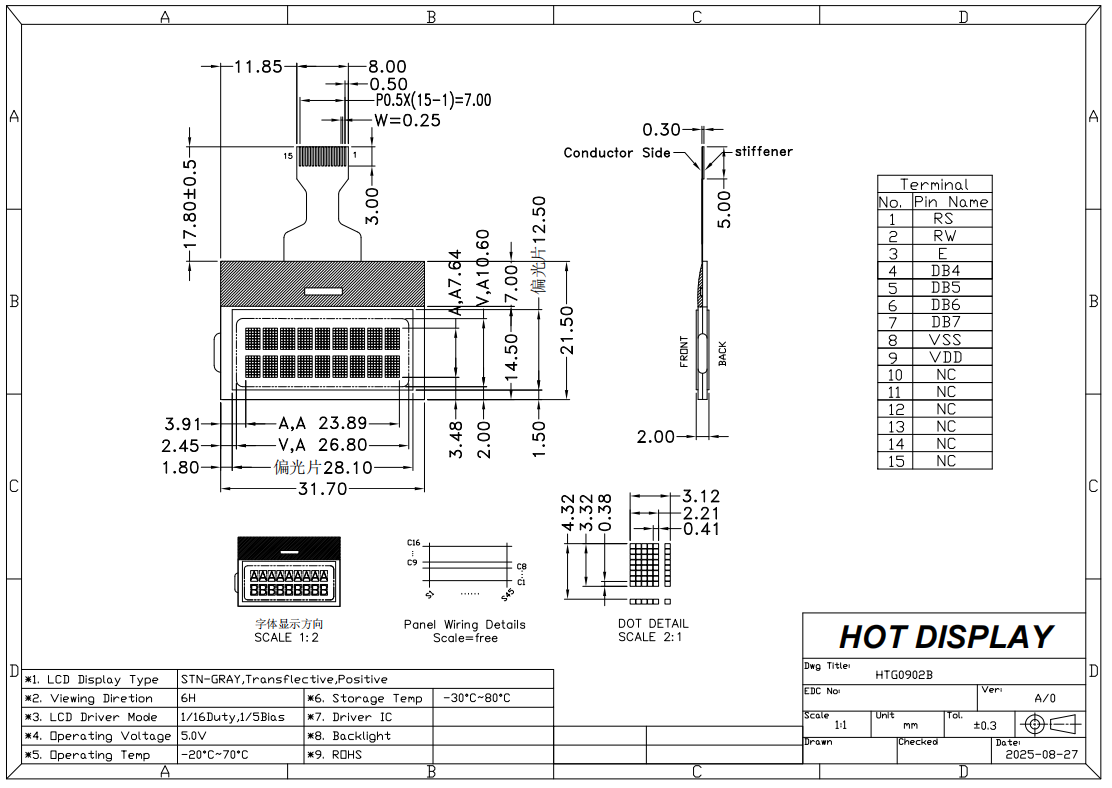

▶ Dimensions (mm): 31.7x21.5x0.3
▶ VA Dimensions (mm): 26.8x10.6
▶ AA Dimensions (mm): 23.89x7.64
▶ Pixel Pitch (mm): 0.51x0.51
▶ Application: Instrumentation
▶ Viewing Angle: 6H
▶ Backlight/Brightness: White
▶ Pinout: 15-pin
▶ Interface: MCU
▶ Special Instructions: ESD 8KV
▶ Operating Temperature: -20°C to +70°C
▶ Supply Voltage: 5.0V

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Share to:

Prev Back Next

Product Description
Customized Services
Attributes

HTG0902B | 9x2 COG LCD Display With Backlight | STN Positive Transflective LCD Display
Our 9x2 COG LCD Display is engineered for reliability and clarity in demanding applications. This 9x2 COG LCD Display utilizes advanced Chip-on-Glass (COG) technology, integrating the driver IC directly onto the glass for a compact, robust, and ultra-thin (0.3mm) design perfect for space-constrained instrumentation.
The display offers exceptional readability with a high-contrast FSTN LCD (or STN LCD) panel and a bright white LED backlight, ensuring clear visibility under various lighting conditions. The transflective LCD technology provides optimal performance in both low-light and bright, sunny environments.
Designed for industrial use, this wide temperature range LCD operates reliably from -20°C to +70°C, making it suitable for harsh environments. With an 8KV ESD protection rating, it offers enhanced durability against electrostatic discharge.

Connector customization: Easily modify any connector on the display to meet your application requirements. Our engineers can solder pin headers, box headers, right-angle connectors, and any other connectors your display may require.

PCB modification: Choose from a variety of changes to the PCB shape, size, pinout, and component layout to perfectly fit your application.

Backlight color customization: The module backlight has a variety of combinations to choose from, including no backlight or yellow-green/blue/white/amber/red/RGB backlight options, with up to 48 effects to choose from. Click on the customization page for reference.

Font Customization: A variety of font libraries are available, including English/Japanese, Western European, Eastern European, Scandinavian European, Cyrillic (Russian), Hebrew/Arabic, and more.

Cable Customization: Adjust cable length, position, and pinout, or add additional connectors. Get a precisely designed cable solution that streamlines and secures your connections.
