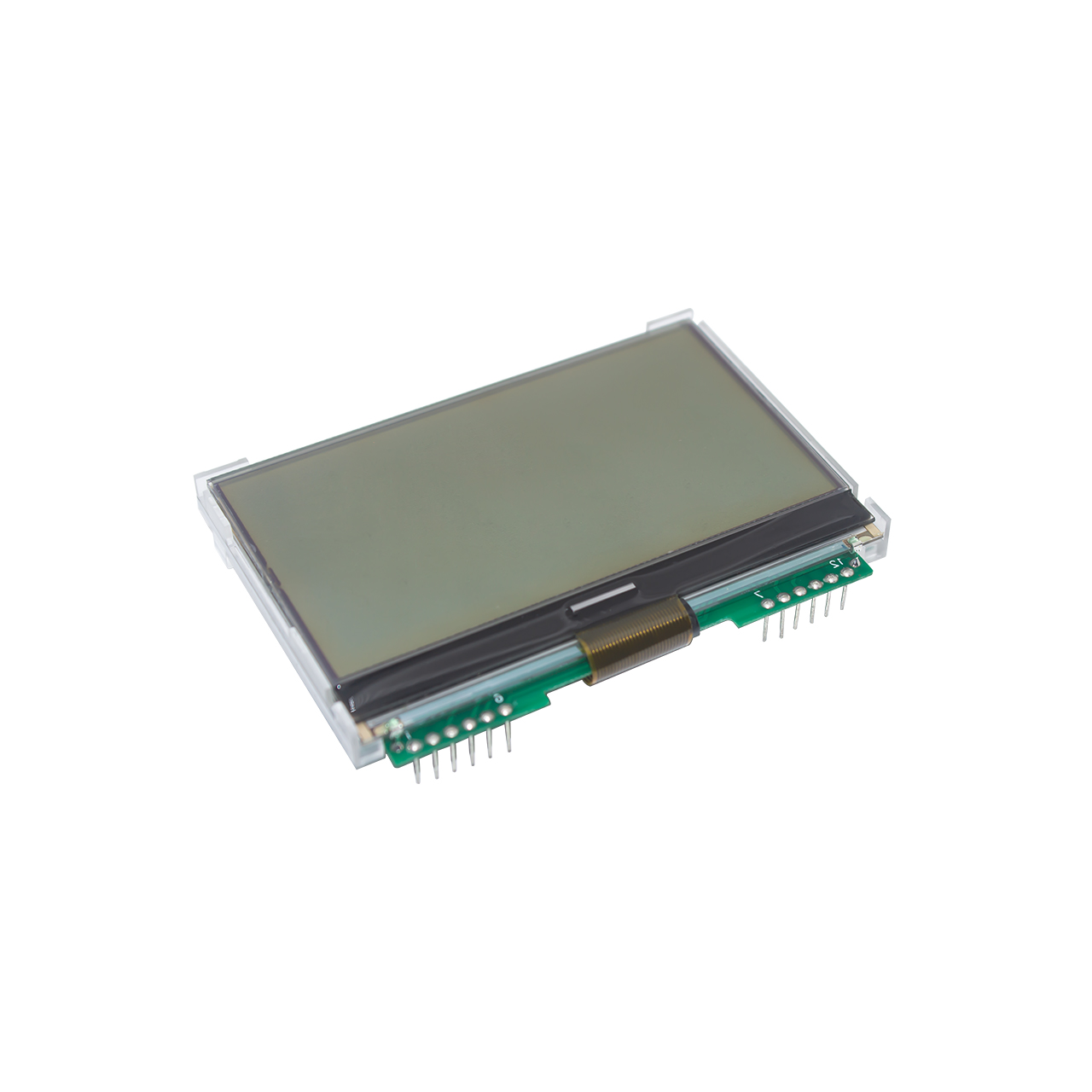

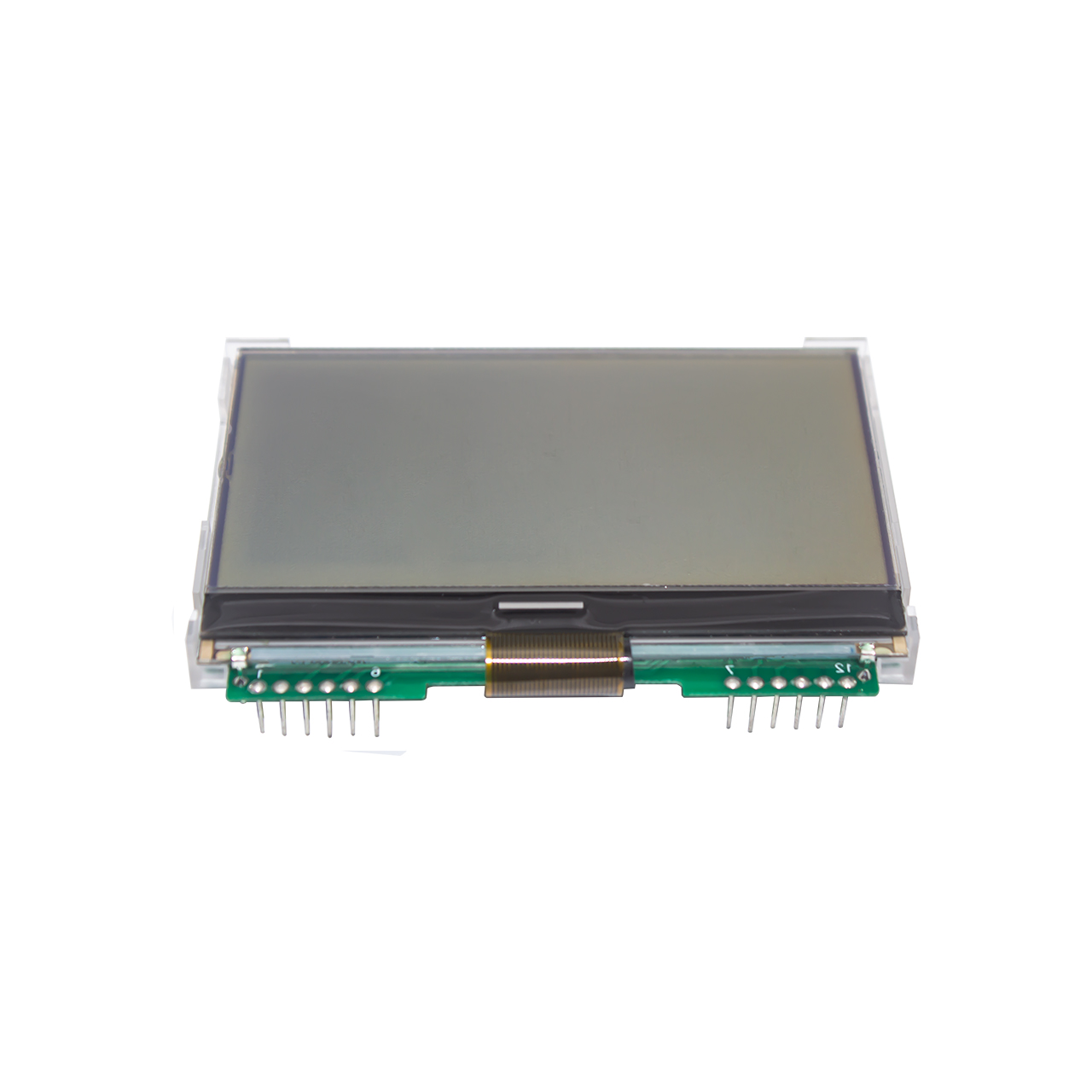

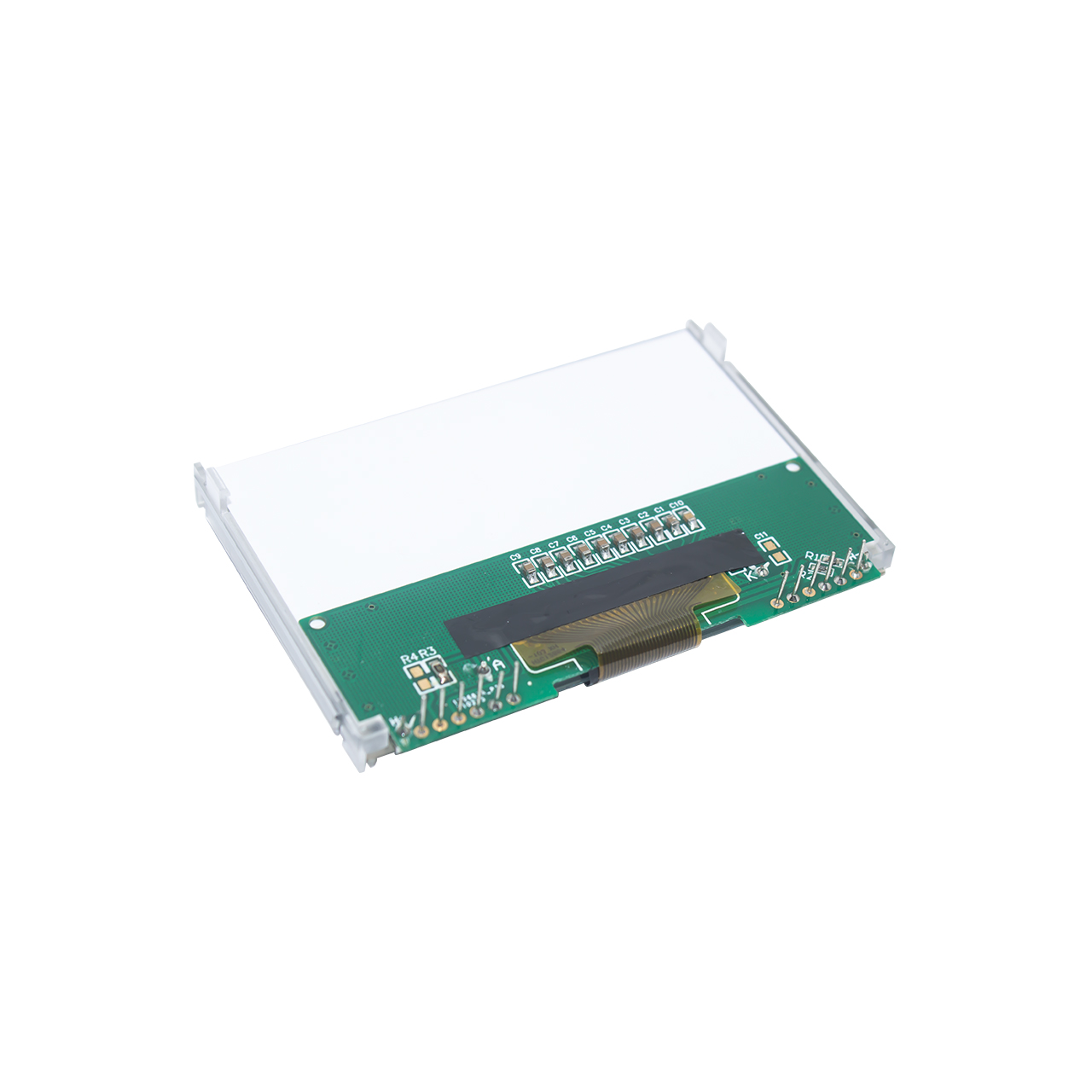

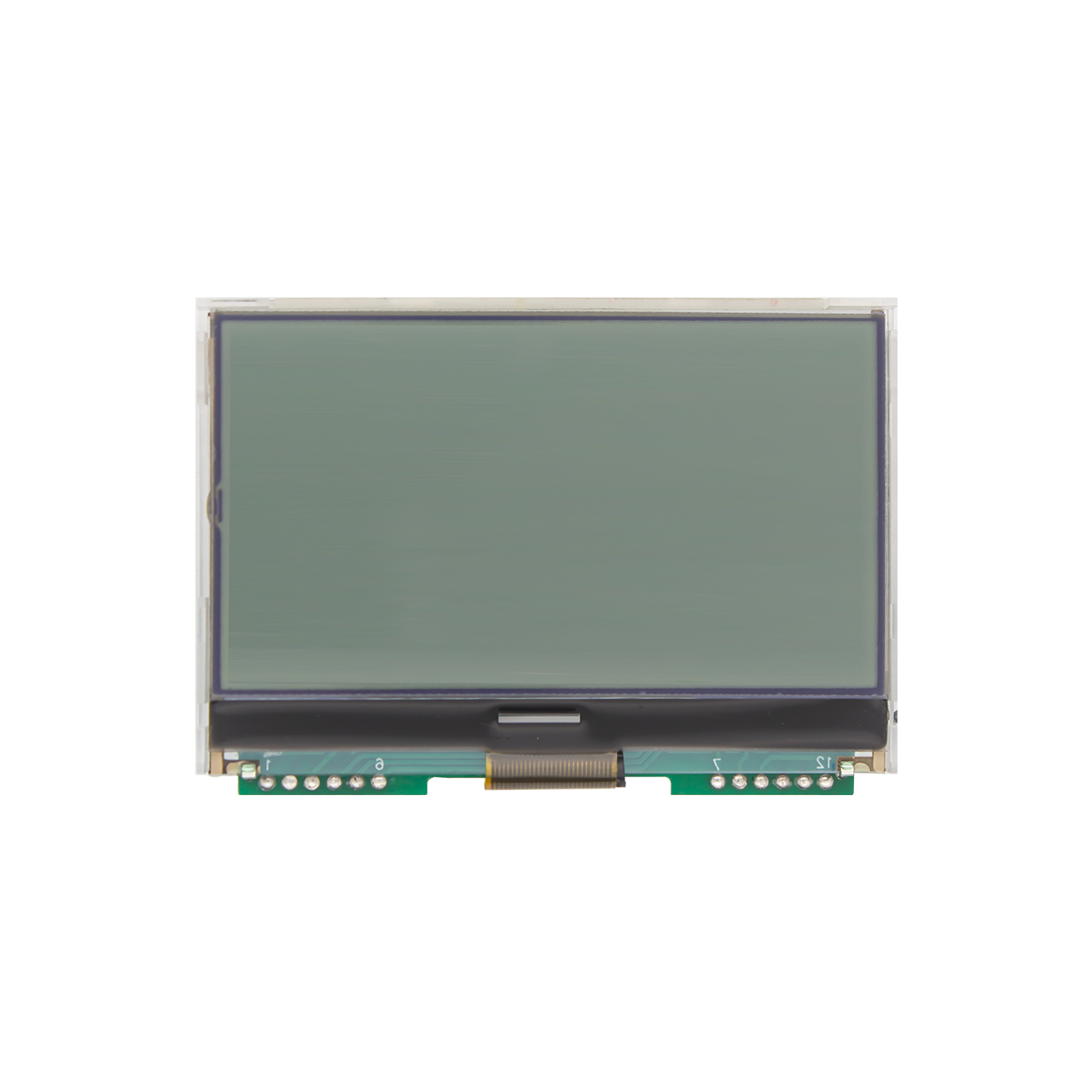

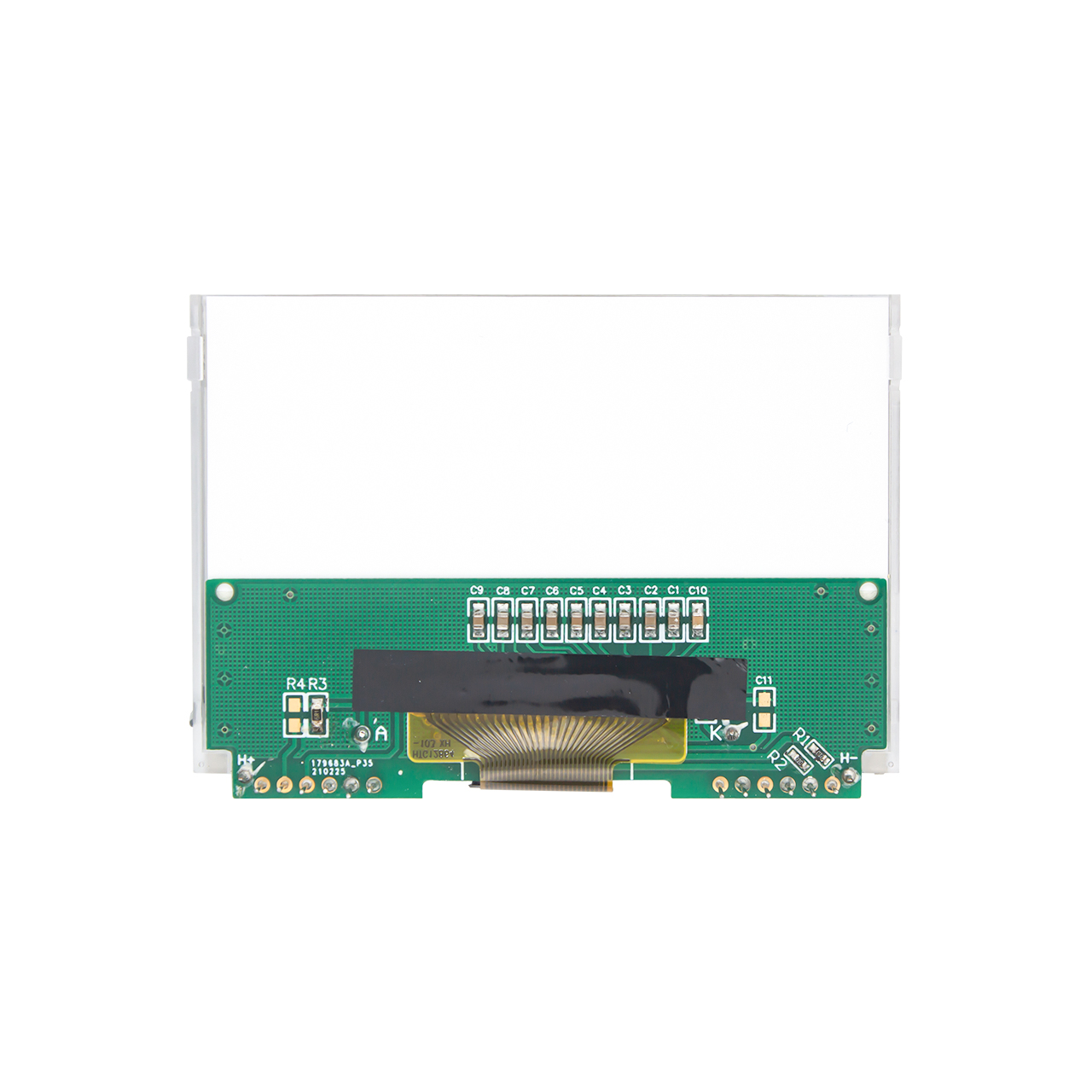

  • HTM12864-96-31W-N3-V01 | 128x64 Graphic LCD Module with Backlight | FSTN High-Contrast Graphic LCD Module

    Experience exceptional visual performance and unwavering reliability with our advanced 128x64 Graphic LCD Module. Engineered for the most demanding applications, this display sets a new standard for clarity and durability in challenging operational environments. Its core strength lies in the superior, high-contrast visualization it delivers, ensuring that every pixel, line, and graphic is rendered with stunning sharpness and legibility. This crystal-clear readability is crucial for presenting complex data and intuitive user interfaces, minimizing operator error and enhancing overall interaction, making the 128x64 Graphic LCD Module an indispensable component for critical information display.


    Built to withstand the rigors of industrial settings, this 128x64 Graphic LCD Module boasts exceptional mechanical stability and robust construction. It is designed to resist vibrations, shocks, and environmental stressors that are commonplace in factories and plants, guaranteeing consistent performance day in and day out. Furthermore, its inherent resistance to electrical noise and interference ensures stable operation even when surrounded by powerful motors and control systems, providing a flicker-free and dependable display at all times. This resilience makes the versatile 128x64 Graphic LCD Module the perfect visual interface for a wide array of industrial equipment and precision instrumentation.

    Beyond its ruggedness, this module is crafted for longevity. With an extended operational lifespan, it offers a cost-effective and low-maintenance solution, reducing downtime and total cost of ownership. The integrated backlight provides uniform, energy-efficient illumination, perfect for low-light conditions without compromising its durability. As the optimal partner for measurement devices, control panels, and specialized machinery, this 128x64 Graphic LCD Module with Backlight seamlessly combines enduring quality with exceptional performance, empowering your products to excel where it matters most.


  • Datasheet for Touch Panel,Controller↓

    Name Date Size
    China LCD TFT Display Manufacturer, Global Supplier HTM12864-96-31W-N3-V01 October 10, 2025 77.02KB
  • Connector customization: Easily modify any connector on the display to meet your application requirements. Our engineers can solder pin headers, box headers, right-angle connectors, and any other connectors your display may require.

    PCB modification: Choose from a variety of changes to the PCB shape, size, pinout, and component layout to perfectly fit your application.

    Backlight color customization: The module backlight has a variety of combinations to choose from, including no backlight or yellow-green/blue/white/amber/red/RGB backlight options, with up to 48 effects to choose from. Click on the customization page for reference.

    Font Customization: A variety of font libraries are available, including English/Japanese, Western European, Eastern European, Scandinavian European, Cyrillic (Russian), Hebrew/Arabic, and more.



    Cable Customization: Adjust cable length, position, and pinout, or add additional connectors. Get a precisely designed cable solution that streamlines and secures your connections.


  • ITEM

    parameter

    Unit

    Name

    HTM12864-96-31W-N3-V01


    Number of dots

    128x64

    dots

    Module size

    80x54

    mm

    VA size

    70.7x38.8

    mm

    AA size

    66.52x33.24

    mm

    Pixel pitch

    0.52x0.52

    mm

    IC

     ST7565P


    Power supply voltage

    3.3V

    V

    Backlight

    White


    Display mode

    FSTN+


    Drive mode (Duty)

    1/64 duty cycle


    Type

    Graphic LCD


    Features

    Transflective
